一、MPLS-VPN基本配置实验¶
1.1 实验目的¶
客户X和客户Y各自有两个站点，现需要通过MPLS VPN实现站点之间的互联，分别对应VPNX和VPNY。

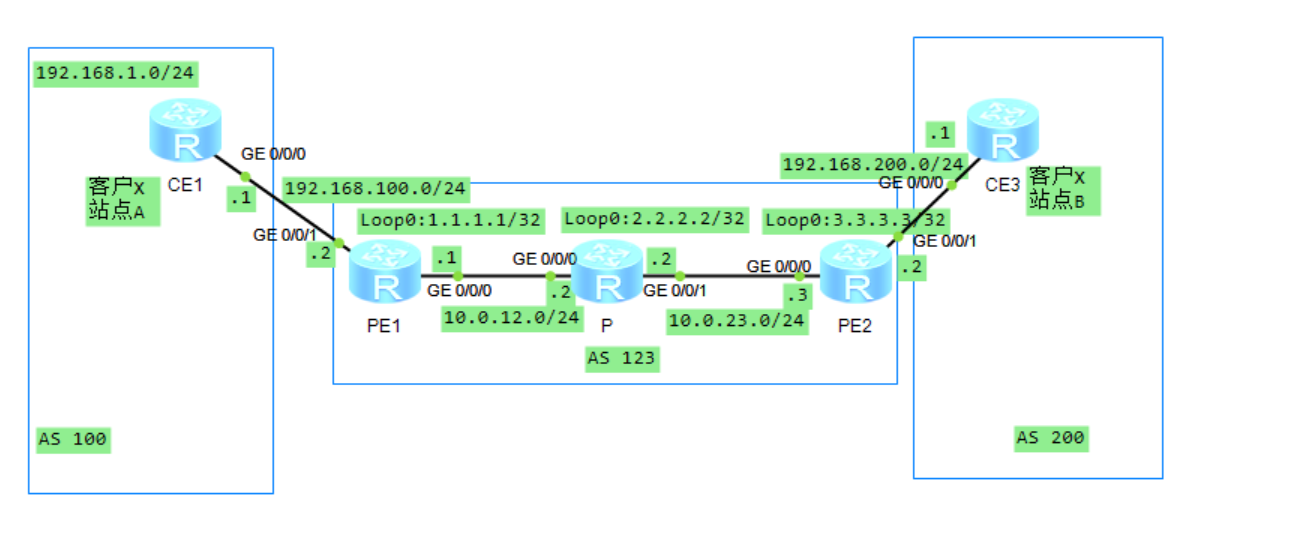

1.2 实验拓扑¶
1.3 实验编制表¶
| 设备 | 接口 | IP地址 | 子网掩码 | 默认网关 |
|---|---|---|---|---|
| CE1(AR2220) | GE0/0/0 | 192.168.100.1 | 255.255.255.0 | N/A |
| CE3(AR2220) | GE0/0/0 | 192.168.200.1 | 255.255.255.0 | N/A |
| PE1(AR2220) | GE0/0/0 | 10.0.12.1 | 255.255.255.0 | N/A |
| PE1(AR2220) | GE0/0/1 | 192.168.100.2 | 255.255.255.0 | N/A |
| PE1(AR2220) | LoopBack0 | 1.1.1.1 | 255.255.255.255 | N/A |
| P(AR2220) | GE0/0/0 | 10.0.12.2 | 255.255.255.0 | N/A |
| P(AR2220) | GE0/0/1 | 10.0.23.2 | 255.255.255.0 | N/A |
| P(AR2220) | LoopBack0 | 2.2.2.2 | 255.255.255.255 | N/A |
| PE2(AR2220) | GE0/0/0 | 10.0.23.3 | 255.255.255.0 | N/A |
| PE2(AR2220) | GE0/0/1 | 192.168.200.2 | 255.255.255.0 | N/A |
| PE2(AR2220) | LoopBack0 | 3.3.3.3 | 255.255.255.255 | N/A |
1.4 PEVPN配置表¶
| 配置项 | PE1 | PE2 |
|---|---|---|
| VPN名称 | VPNX | VPNX |
| RD | 100:1 | 100:1 |
| IRT | 100:321 | 100:123 |
| ERT | 100:123 | 100:321 |
| 接口 | GE0/0/1 | GE0/0/1 |
| MP-BGP | 源接口:LoopBack0 | 源接口:LoopBack0 |
1.5 配置思路¶
1、MPLS VPN骨干网配置 * IGP配置，实现骨干网的IP连通性 * MPLS与MPLS LDP配置，建立MPLS LSP公网隧道，传输VPN数据 * MP-BGP配置，建立后续传递VPNv4路由的MP-BGP对等体关系
2、VPN用户接入配置 * 创建VPN实例并配置参数(RT、RD) * 将接口加入VPN实例 * 配置PE与CE之间的路由交换
1.6 实验步骤¶
1.6.1 基本配置¶
根据实验编址表，并使用Ping命令检测直连网段之间的连通性。
1.6.2 IGP配置¶
1、在MPLS VPN骨干网络内部署OSPF，MPLS VPN骨干网络内部署的OSPF用于实现骨干网络内部路由互通
[PE1]ospf 1 router-id 1.1.1.1
[PE1-ospf-1]area 0
[PE1-ospf-1-area-0.0.0.0]network 1.1.1.1 0.0.0.0
[PE1-ospf-1-area-0.0.0.0]network 10.0.12.1 0.0.0.0
[P]ospf 1 router-id 2.2.2.2
[P-ospf-1]area 0
[P-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0
[P-ospf-1-area-0.0.0.0]network 10.0.12.2 0.0.0.0
[P-ospf-1-area-0.0.0.0]network 10.0.23.2 0.0.0.0
[PE2]ospf 1 router-id 3.3.3.3
[PE2-ospf-1]area 0
[PE2-ospf-1-area-0.0.0.0]network 3.3.3.3 0.0.0.0
[PE2-ospf-1-area-0.0.0.0]network 10.0.23.3 0.0.0.0
2、配置完成后，在P设备上查看OSPF邻居建立情况。观察到邻接关系建立。
[P]dis ospf peer brief
OSPF Process 1 with Router ID 2.2.2.2
Peer Statistic Information
----------------------------------------------------------------------------
Area Id Interface Neighbor id State
0.0.0.0 GigabitEthernet0/0/0 1.1.1.1 Full
0.0.0.0 GigabitEthernet0/0/1 3.3.3.3 Full
----------------------------------------------------------------------------
1.6.3 MPLS与MPLS LDP配置¶
1、在PE1、P、PE2节点上配置MPLS与MPLS LDP
[PE1]mpls lsr-id 1.1.1.1
[PE1]mpls
Info: Mpls starting, please wait... OK!
[PE1-mpls]mpls ldp
[PE1]int g0/0/0
[PE1-GigabitEthernet0/0/0]mpls
[PE1-GigabitEthernet0/0/0]mpls ldp
[P]mpls lsr-id 2.2.2.2
[P]mpls
Info: Mpls starting, please wait... OK!
[P-mpls]mpls ldp
[P-mpls-ldp]qu
[P]int g0/0/0
[P-GigabitEthernet0/0/0]mpls
[P-GigabitEthernet0/0/0]mpls ldp
[P-GigabitEthernet0/0/0]int g0/0/1
[P-GigabitEthernet0/0/1]mpls
[P-GigabitEthernet0/0/1]mpls ldp
[PE2]mpls lsr-id 3.3.3.3
[PE2]mpls
Info: Mpls starting, please wait... OK!
[PE2-mpls]mpls ldp
[PE2-mpls-ldp]int g0/0/0
[PE2-GigabitEthernet0/0/0]mpls
[PE2-GigabitEthernet0/0/0]mpls ldp
1.6.4 MP-BGP配置¶
1、在PE1及PE2之间建立MP-BGP对等体关系
[PE1]bgp 123
[PE1-bgp]router-id 1.1.1.1
[PE1-bgp]peer 3.3.3.3 as 123
[PE1-bgp]peer 3.3.3.3 connect-interface loop 0
[PE1-bgp]ipv4-family vpnv4 unicast
[PE1-bgp-af-vpnv4]peer 3.3.3.3 enable
[PE2]bgp 123
[PE2-bgp]router-id 3.3.3.3
[PE2-bgp]peer 1.1.1.1 as 123
[PE2-bgp]peer 1.1.1.1 connect-interface loop 0
[PE2-bgp]ipv4-family vpnv4 unicast
[PE2-bgp-af-vpnv4]peer 1.1.1.1 enable
2、在PE1和PE2上查看公网隧道建立情况
[PE1]dis mpls lsp
-------------------------------------------------------------------------------
LSP Information: LDP LSP
-------------------------------------------------------------------------------
FEC In/Out Label In/Out IF Vrf Name
1.1.1.1/32 3/NULL -/-
2.2.2.2/32 NULL/3 -/GE0/0/0
2.2.2.2/32 1024/3 -/GE0/0/0
3.3.3.3/32 NULL/1025 -/GE0/0/0
3.3.3.3/32 1025/1025 -/GE0/0/0
[PE2]dis mpls lsp
-------------------------------------------------------------------------------
LSP Information: LDP LSP
-------------------------------------------------------------------------------
FEC In/Out Label In/Out IF Vrf Name
1.1.1.1/32 NULL/1024 -/GE0/0/0
1.1.1.1/32 1024/1024 -/GE0/0/0
2.2.2.2/32 NULL/3 -/GE0/0/0
2.2.2.2/32 1025/3 -/GE0/0/0
3.3.3.3/32 3/NULL -/-
3、在PE1和PE2查看MP-BGP邻居状态
[PE1]dis bgp vpnv4 all peer
BGP local router ID : 1.1.1.1
Local AS number : 123
Total number of peers : 1 Peers in established state : 1
Peer V AS MsgRcvd MsgSent OutQ Up/Down State Pre
fRcv
3.3.3.3 4 123 5 7 0 00:03:55 Established
0
[PE2]dis bgp vpnv4 all peer
BGP local router ID : 3.3.3.3
Local AS number : 123
Total number of peers : 1 Peers in established state : 1
Peer V AS MsgRcvd MsgSent OutQ Up/Down State Pre
fRcv
1.1.1.1 4 123 5 5 0 00:03:23 Established
0
1.6.5 VPN用户接入配置¶
1、在PE1和PE2上创建VPN实例并按照规划配置RD与RT参数
[PE1]ip vpn-instance VPNX
[PE1-vpn-instance-VPNX]route-distinguisher 100:1
[PE1-vpn-instance-VPNX-af-ipv4]vpn-target 100:321 import-extcommunity
IVT Assignment result:
Info: VPN-Target assignment is successful.
[PE1-vpn-instance-VPNX-af-ipv4]vpn-target 100:123 export-extcommunity
EVT Assignment result:
Info: VPN-Target assignment is successful.
[PE2]ip vpn-instance VPNX
[PE2-vpn-instance-VPNX]route-distinguisher 100:1
[PE2-vpn-instance-VPNX-af-ipv4]vpn-target 100:123 import-extcommunity
IVT Assignment result:
Info: VPN-Target assignment is successful.
[PE2-vpn-instance-VPNX-af-ipv4]vpn-target 100:321 export-extcommunity
EVT Assignment result:
Info: VPN-Target assignment is successful.
2、将接口绑定到VPN实例
[PE1]int g0/0/1
[PE1-GigabitEthernet0/0/1]ip binding vpn-instance VPNX
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
May 30 2022 20:37:41-08:00 PE1 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/1 has entered the DOWN state.
[PE1-GigabitEthernet0/0/1]ip add 192.168.100.2 24
[PE2]int g0/0/1
[PE2-GigabitEthernet0/0/1]ip binding vpn-instance VPNX
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
May 30 2022 20:39:54-08:00 PE2 %%01IFNET/4/LINK_STATE(l)[11]:The line protocol I
P on the interface GigabitEthernet0/0/1 has entered the DOWN state.
[PE2-GigabitEthernet0/0/1]ip add 192.168.200.2 24
3、部署CE1-PE1、CE3-PE2之间的路由信息交互 (1)创建与实例绑定的OSPF进程
[PE1]ospf 2 vpn-instance VPNX
[PE1-ospf-2]area 0
[PE1-ospf-2-area-0.0.0.0]network 192.168.100.0 0.0.0.255
[PE2]ospf 2 vpn-instance VPNX
[PE2-ospf-2]area 0
[PE2-ospf-2-area-0.0.0.0]network 192.168.200.0 0.0.0.255
(2)配置OSPF进程与MP-BGP之间的路由双向引入
[PE1]ospf 2 vpn-instance VPNX
[PE1-ospf-2]import-route bgp
[PE1-ospf-2]bgp 123
[PE1-bgp]ipv4-family vpn-instance VPNX
[PE1-bgp-VPNX]import-route ospf 2
[PE2]ospf 2 vpn-instance VPNX
[PE2-ospf-2]import-route bgp
[PE2-ospf-2]bgp 123
[PE2-bgp]ipv4-family vpn-instance VPNX
[PE2-bgp-VPNX]import-route ospf 2
