一、k8s系统组件配置¶

1.1 Etcd配置¶

1.在Master01节点上配置Etcd

$ vim /etc/etcd/etcd.config.yml
name: 'k8s-master01'
data-dir: /var/lib/etcd
wal-dir: /var/lib/etcd/wal
snapshot-count: 5000
heartbeat-interval: 100
election-timeout: 1000
quota-backend-bytes: 0
listen-peer-urls: 'https://192.168.1.31:2380'
listen-client-urls: 'https://192.168.1.31:2379,http://127.0.0.1:2379'
max-snapshots: 3
max-wals: 5
cors:
initial-advertise-peer-urls: 'https://192.168.1.31:2380'
advertise-client-urls: 'https://192.168.1.31:2379'
discovery:
discovery-fallback: 'proxy'
discovery-proxy:
discovery-srv:
initial-cluster: 'k8s-master01=https://192.168.1.31:2380,k8s-master02=https://192.168.1.32:2380,k8s-master03=https://192.168.1.33:2380'
initial-cluster-token: 'etcd-k8s-cluster'
initial-cluster-state: 'new'
strict-reconfig-check: false
enable-v2: true
enable-pprof: true
proxy: 'off'
proxy-failure-wait: 5000
proxy-refresh-interval: 30000
proxy-dial-timeout: 1000
proxy-write-timeout: 5000
proxy-read-timeout: 0
client-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
peer-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  peer-client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
debug: false
log-package-levels:
log-outputs: [default]
force-new-cluster: false

2.在Master02节点上配置Etcd

$ vim /etc/etcd/etcd.config.yml
name: 'k8s-master02'
data-dir: /var/lib/etcd
wal-dir: /var/lib/etcd/wal
snapshot-count: 5000
heartbeat-interval: 100
election-timeout: 1000
quota-backend-bytes: 0
listen-peer-urls: 'https://192.168.1.32:2380'
listen-client-urls: 'https://192.168.1.32:2379,http://127.0.0.1:2379'
max-snapshots: 3
max-wals: 5
cors:
initial-advertise-peer-urls: 'https://192.168.1.32:2380'
advertise-client-urls: 'https://192.168.1.32:2379'
discovery:
discovery-fallback: 'proxy'
discovery-proxy:
discovery-srv:
initial-cluster: 'k8s-master01=https://192.168.1.31:2380,k8s-master02=https://192.168.1.32:2380,k8s-master03=https://192.168.1.33:2380'
initial-cluster-token: 'etcd-k8s-cluster'
initial-cluster-state: 'new'
strict-reconfig-check: false
enable-v2: true
enable-pprof: true
proxy: 'off'
proxy-failure-wait: 5000
proxy-refresh-interval: 30000
proxy-dial-timeout: 1000
proxy-write-timeout: 5000
proxy-read-timeout: 0
client-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
peer-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  peer-client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
debug: false
log-package-levels:
log-outputs: [default]
force-new-cluster: false

3.在Master03节点上配置Etcd

$ vim /etc/etcd/etcd.config.yml
name: 'k8s-master03'
data-dir: /var/lib/etcd
wal-dir: /var/lib/etcd/wal
snapshot-count: 5000
heartbeat-interval: 100
election-timeout: 1000
quota-backend-bytes: 0
listen-peer-urls: 'https://192.168.1.33:2380'
listen-client-urls: 'https://192.168.1.33:2379,http://127.0.0.1:2379'
max-snapshots: 3
max-wals: 5
cors:
initial-advertise-peer-urls: 'https://192.168.1.33:2380'
advertise-client-urls: 'https://192.168.1.33:2379'
discovery:
discovery-fallback: 'proxy'
discovery-proxy:
discovery-srv:
initial-cluster: 'k8s-master01=https://192.168.1.31:2380,k8s-master02=https://192.168.1.32:2380,k8s-master03=https://192.168.1.33:2380'
initial-cluster-token: 'etcd-k8s-cluster'
initial-cluster-state: 'new'
strict-reconfig-check: false
enable-v2: true
enable-pprof: true
proxy: 'off'
proxy-failure-wait: 5000
proxy-refresh-interval: 30000
proxy-dial-timeout: 1000
proxy-write-timeout: 5000
proxy-read-timeout: 0
client-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
peer-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  peer-client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
debug: false
log-package-levels:
log-outputs: [default]
force-new-cluster: false

4.所有Master节点创建etcd service并启动

$ vim /usr/lib/systemd/system/etcd.service
[Unit]
Description=Etcd Service
Documentation=https://coreos.com/etcd/docs/latest/
After=network.target

[Service]
Type=notify
ExecStart=/usr/local/bin/etcd --config-file=/etc/etcd/etcd.config.yml
Restart=on-failure
RestartSec=10
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
Alias=etcd3.service

5.所有Master节点创建etcd的证书目录

$ mkdir /etc/kubernetes/pki/etcd
$ ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/
$ systemctl daemon-reload
$ systemctl enable --now etcd

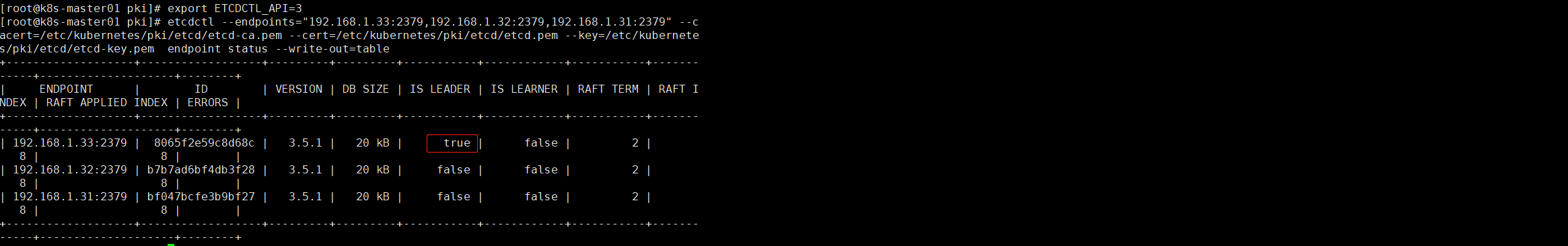

6.在Master01节点上查看etcd状态

$ export ETCDCTL_API=3
$ etcdctl --endpoints="192.168.1.33:2379,192.168.1.32:2379,192.168.1.31:2379" --cacert=/etc/kubernetes/pki/etcd/etcd-ca.pem --cert=/etc/kubernetes/pki/etcd/etcd.pem --key=/etc/kubernetes/pki/etcd/etcd-key.pem  endpoint status --write-out=table

查看etcd状态

二、高可用组件安装¶

公有云要用公有云自带的负载均衡，比如阿里云的SLB，腾讯云的ELB，用来替代haproxy和keepalived，因为公有云大部分都是不支持keepalived的，另外如果用阿里云的话，kubectl控制端不能放在master节点，推荐使用腾讯云，因为阿里云的slb有回环的问题，也就是slb代理的服务器不能反向访问SLB，但是腾讯云修复了这个问题。

注意:如果不是高可用集群，haproxy和keepalived无需安装!!!

1.安装HAProxy

(1)所有Master节点通过yum安装HAProxy和KeepAlived

$ yum install keepalived haproxy -y

(2)所有Master节点配置HAProxy,所有Master节点的HAProxy配置相同

$ mkdir /etc/haproxy
$ > /etc/haproxy/haproxy.cfg
$ vim /etc/haproxy/haproxy.cfg
global
  maxconn  2000
  ulimit-n  16384
  log  127.0.0.1 local0 err
  stats timeout 30s

defaults
  log global
  mode  http
  option  httplog
  timeout connect 5000
  timeout client  50000
  timeout server  50000
  timeout http-request 15s
  timeout http-keep-alive 15s

frontend k8s-master
  bind 0.0.0.0:8443
  bind 127.0.0.1:8443
  mode tcp
  option tcplog
  tcp-request inspect-delay 5s
  default_backend k8s-master

backend k8s-master
  mode tcp
  option tcplog
  option tcp-check
  balance roundrobin
  default-server inter 10s downinter 5s rise 2 fall 2 slowstart 60s maxconn 250 maxqueue 256 weight 100
  server k8s-master01    192.168.1.31:6443  check
  server k8s-master02    192.168.1.32:6443  check
  server k8s-master03    192.168.1.33:6443  check

2.安装KeepAlived

所有Master节点配置KeepAlived，配置不一样，注意区分每个节点的IP和网卡（interface参数）

(1)Master01节点的配置如下

$ mkdir /etc/keepalived
$ > /etc/keepalived/keepalived.conf
$ vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
}
vrrp_script chk_apiserver {
    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
    rise 1
}
vrrp_instance VI_1 {
    state MASTER
    interface ens33
    mcast_src_ip 192.168.1.31
    virtual_router_id 51
    priority 101
    nopreempt
    advert_int 2
    authentication {
        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {
        192.168.1.38
    }
    track_script {
      chk_apiserver
} }

(2)Master02节点的配置如下

$ mkdir /etc/keepalived
$ > /etc/keepalived/keepalived.conf
$ vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
}
vrrp_script chk_apiserver {
    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
    rise 1

}
vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    mcast_src_ip 192.168.1.32
    virtual_router_id 51
    priority 100
    nopreempt
    advert_int 2
    authentication {
        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {
        192.168.1.38
    }
    track_script {
      chk_apiserver
} }

(3)Master03节点的配置如下

$ mkdir /etc/keepalived
$ > /etc/keepalived/keepalived.conf
$ vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
}
vrrp_script chk_apiserver {
    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
    rise 1
}
vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    mcast_src_ip 192.168.1.33
    virtual_router_id 51
    priority 100
    nopreempt
    advert_int 2
    authentication {
        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {
        192.168.1.38
    }
    track_script {
      chk_apiserver
} }

(4)所有master节点配置KeepAlived健康检查文件

$ vim /etc/keepalived/check_apiserver.sh
#!/bin/bash

#初始化错误计数器
err=0
#循环三次检查HAProxy进程是否在运行
for k in $(seq 1 3)
do
    check_code=$(pgrep haproxy)
    if [[ $check_code == "" ]]; then
        #如果未找到进程，增加错误计数器并等待一秒钟
        err=$(expr $err + 1)
        sleep 1
        continue
    else
        #如果找到进程，重置错误计数器并退出循环
        err=0
        break
    fi
done

#根据错误计数器的值，决定是否停止keepalived服务并退出脚本
if [[ $err != "0" ]]; then
    echo "systemctl stop keepalived"
    /usr/bin/systemctl stop keepalived
    exit 1
else
    exit 0
fi

#赋权
$ chmod +x /etc/keepalived/check_apiserver.sh

3.所有master节点启动haproxy和keepalived

$ systemctl daemon-reload
$ systemctl enable --now haproxy
$ systemctl enable --now keepalived

4.测试VIP,验证keepalived是否是正常

$ ping 192.168.1.38 -c 4
