一、创建Java测试用例¶

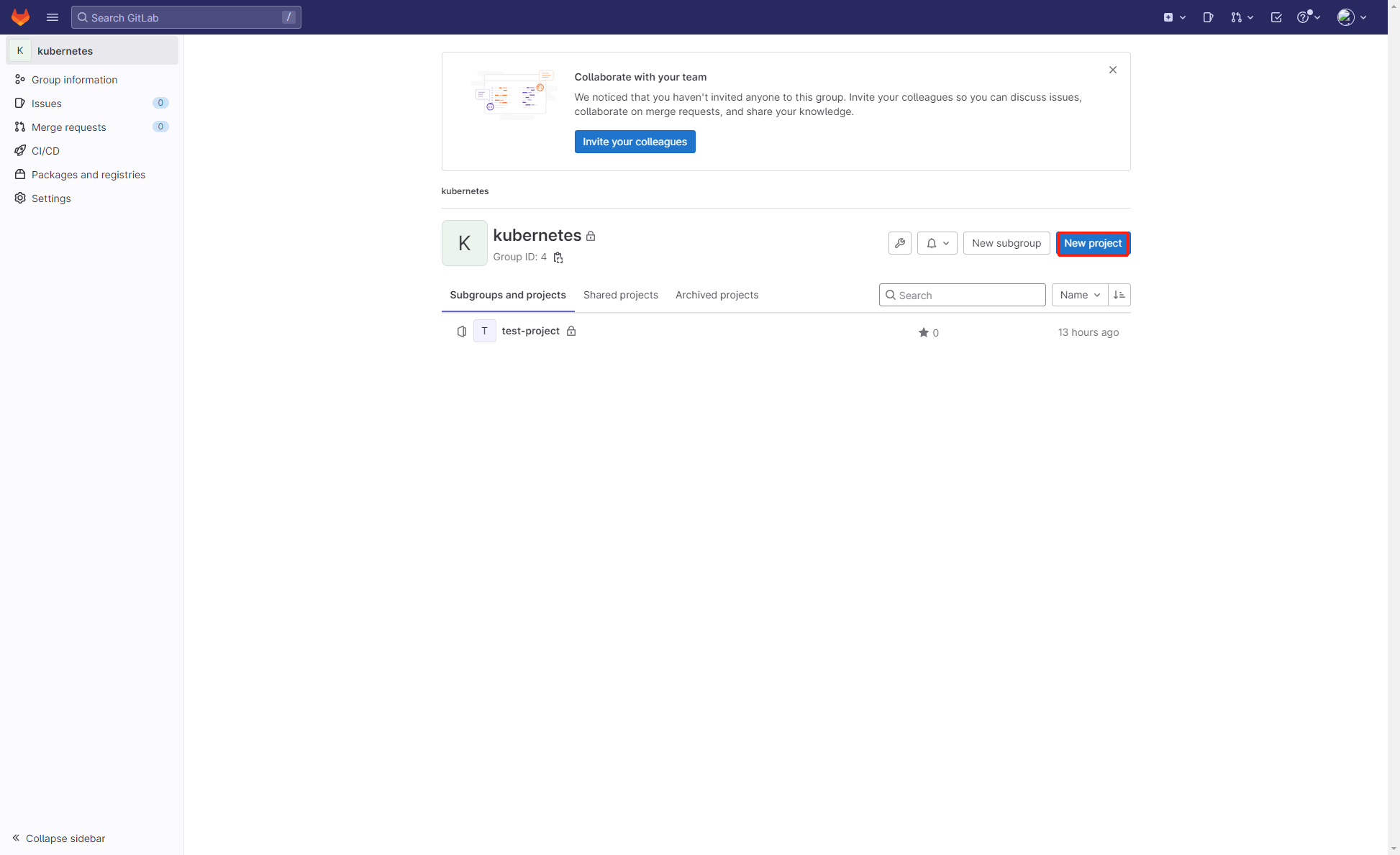

1.打开浏览器输入http://192.168.1.37/kubernetes,点击【New project】

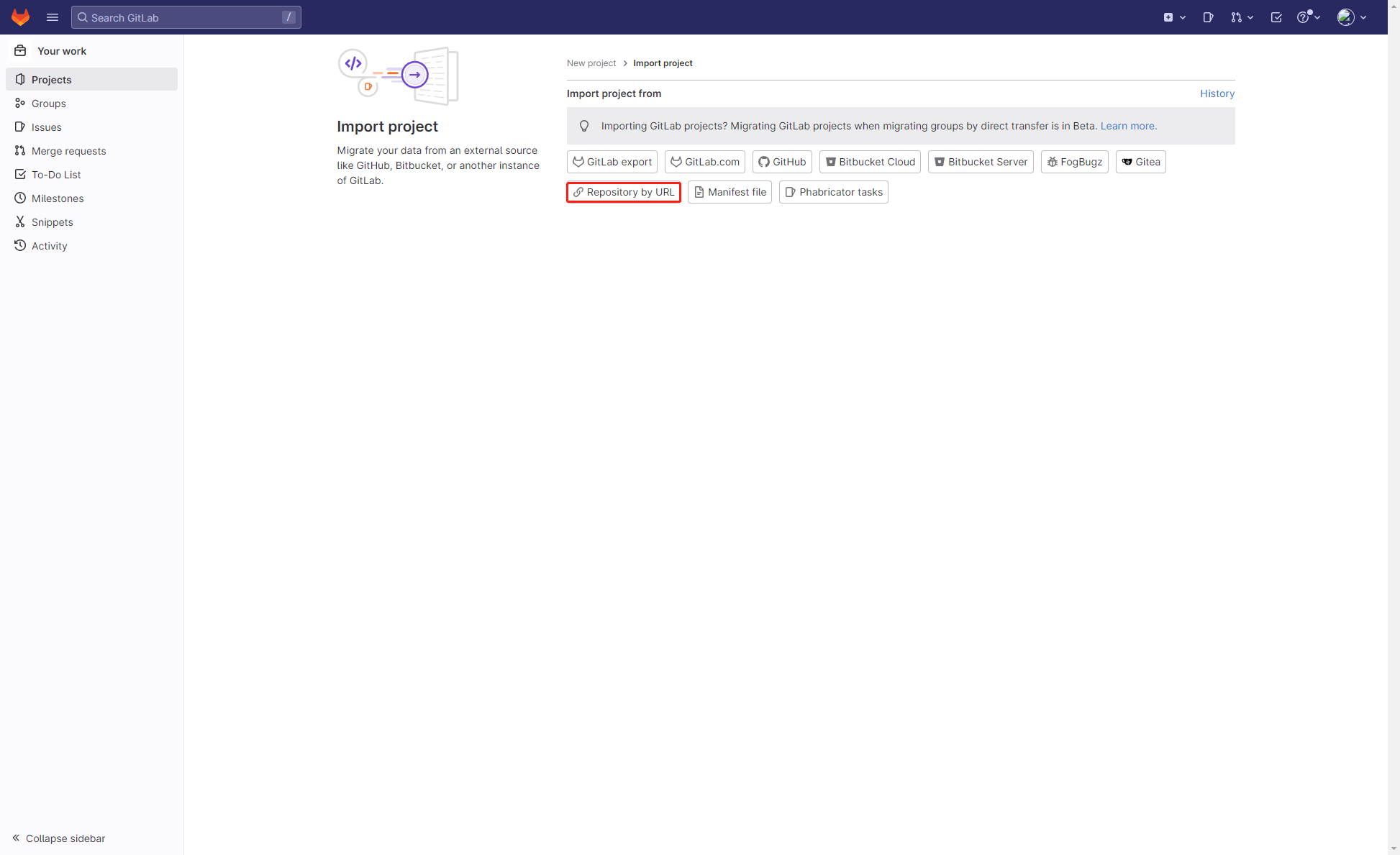

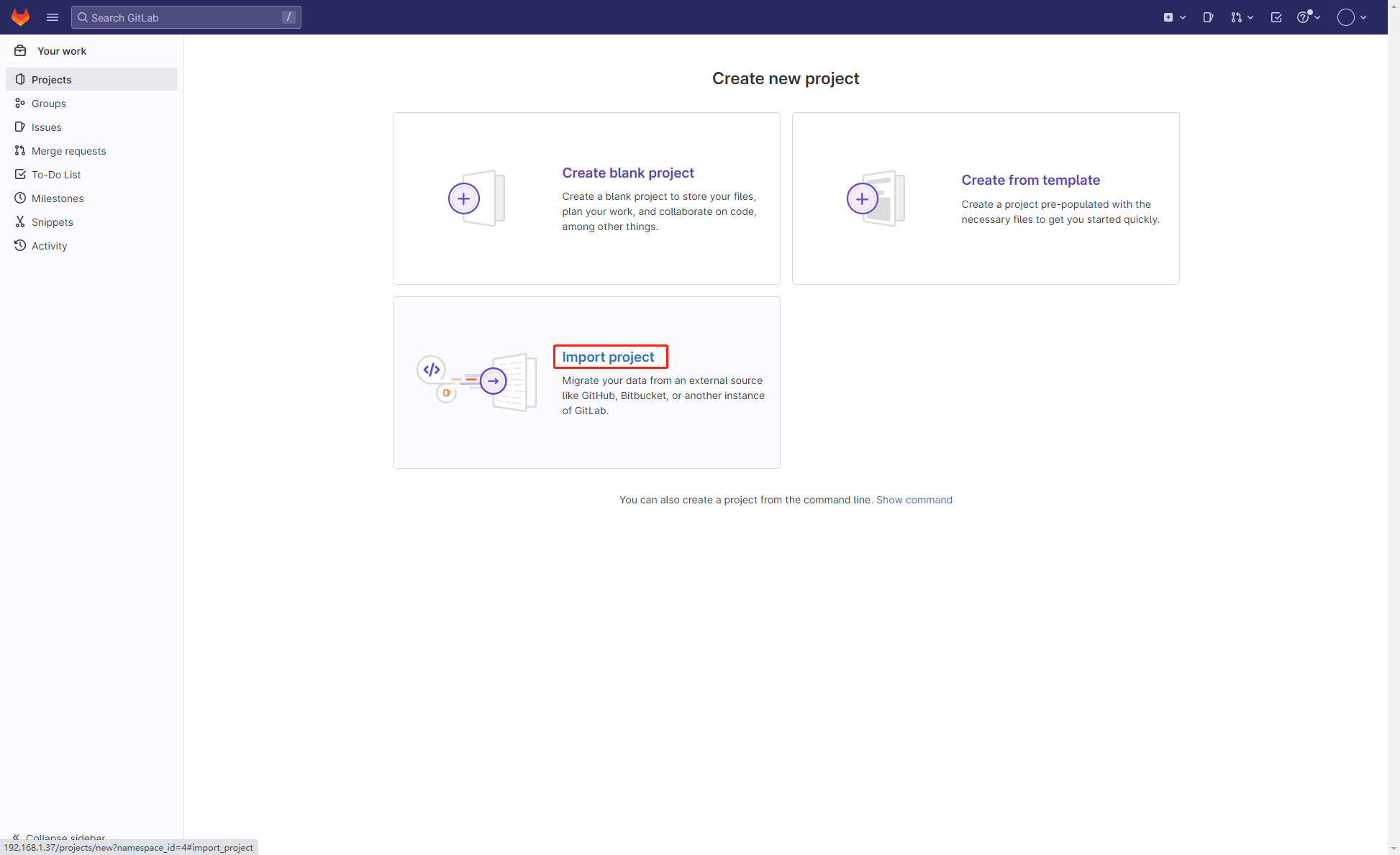

2.点击【Import project】-【Repository by URL】

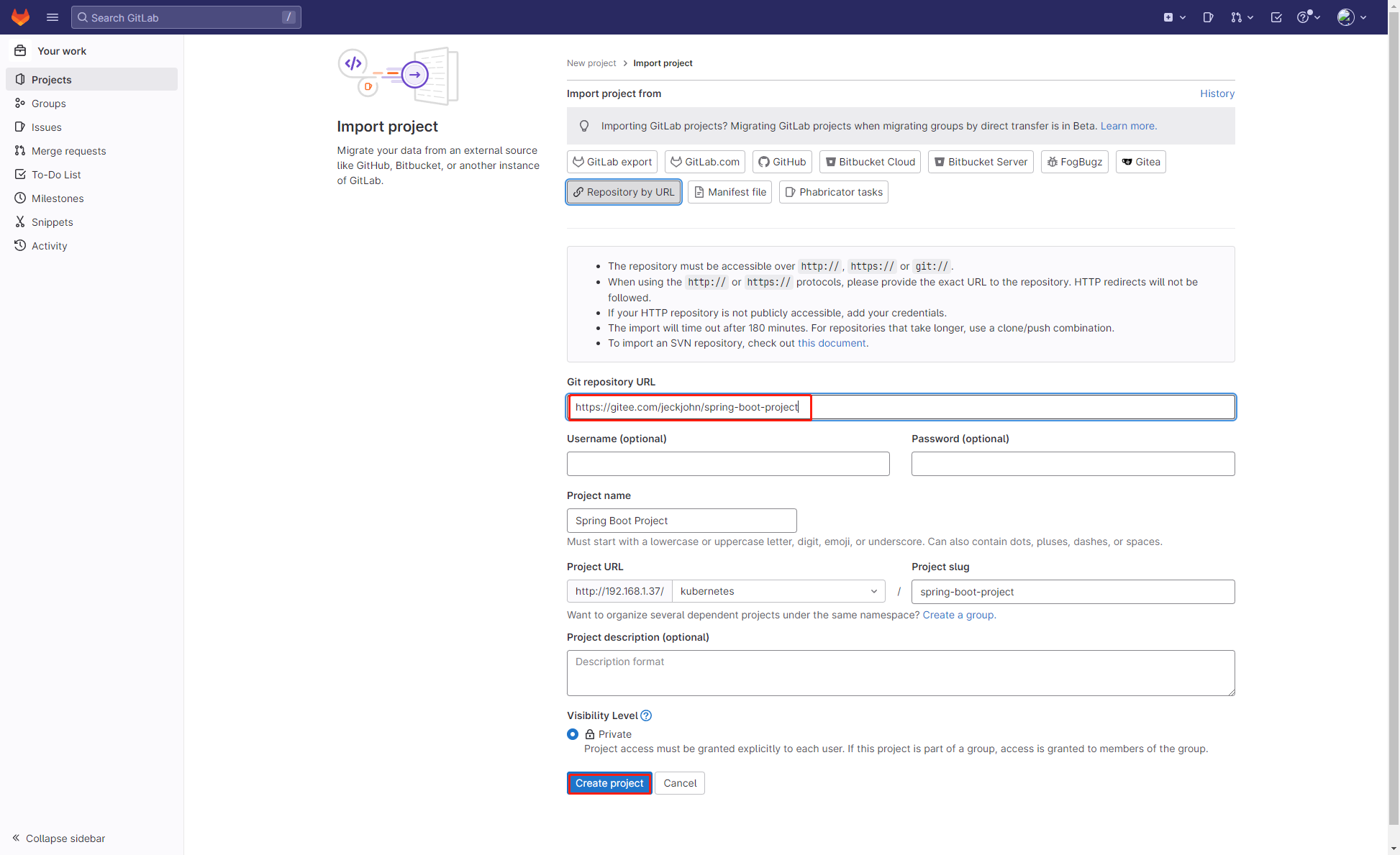

3.在Git repository URL处输入https://gitee.com/jeckjohn/spring-boot-project,点击【Create project】

二、定义 Jenkinsfile¶
1.在GitLab的源代码中添加 Jenkinsfile

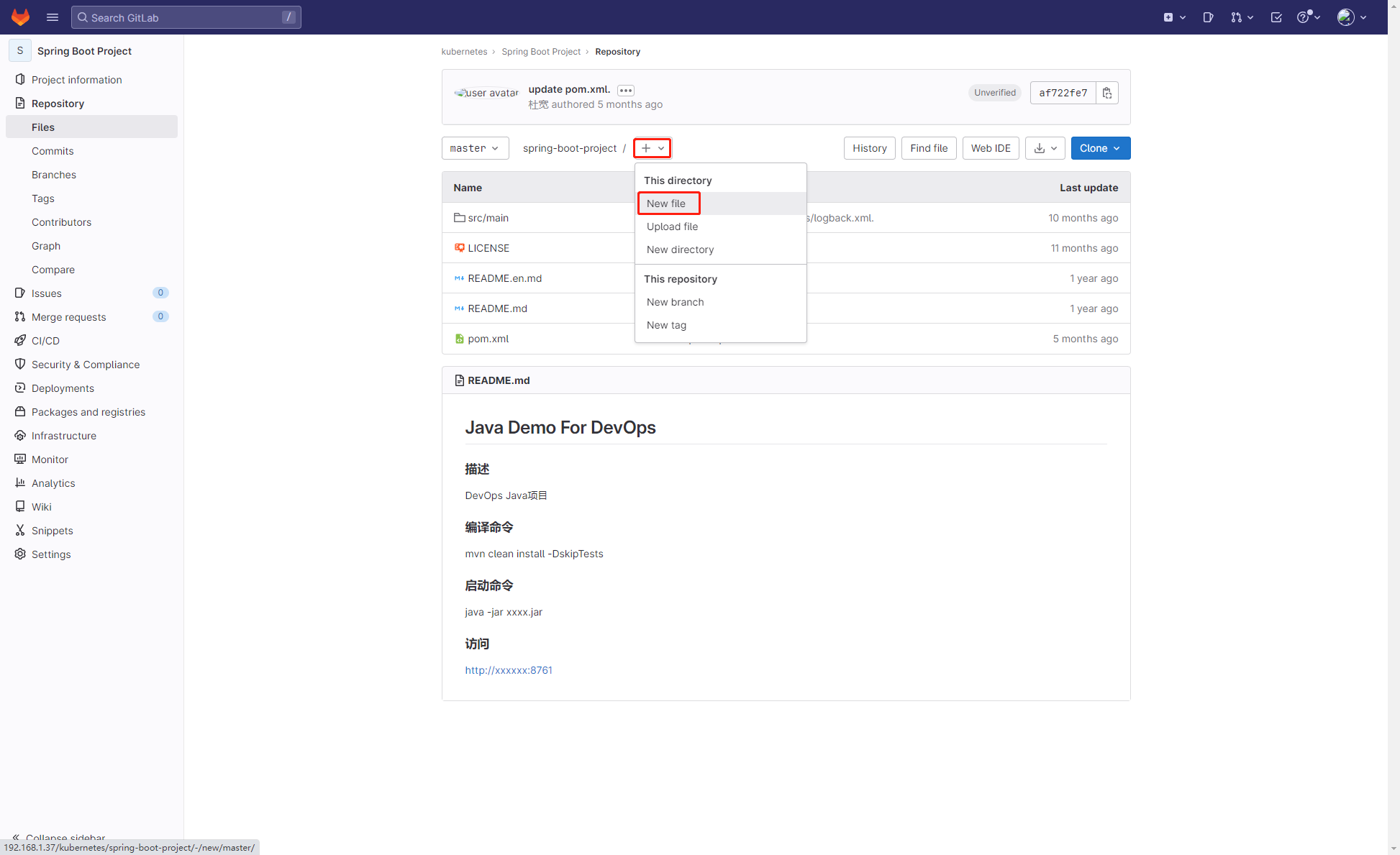

先点击代码首页的“+”号,然后点击 New file

在窗口处填写Jenkinsfile,并在内容框中填写以下内容后,点击【Commit changes`】
pipeline {
agent {
kubernetes {
cloud 'study-kubernetes'
slaveConnectTimeout 1200
workspaceVolume hostPathWorkspaceVolume(hostPath: "/opt/workspace", readOnly: false)
yaml '''
apiVersion: v1
kind: Pod
spec:
containers:
- args: [\'$(JENKINS_SECRET)\', \'$(JENKINS_NAME)\']
image: 'registry.cn-beijing.aliyuncs.com/dotbalo/jnlp:latest-jdk11'
name: jnlp
imagePullPolicy: IfNotPresent
volumeMounts:
- mountPath: "/etc/localtime"
name: "localtime"
readOnly: false
- command:
- "cat"
env:
- name: "LANGUAGE"
value: "en_US:en"
- name: "LC_ALL"
value: "en_US.UTF-8"
- name: "LANG"
value: "en_US.UTF-8"
image: "registry.cn-beijing.aliyuncs.com/citools/maven:3.5.3"
imagePullPolicy: "IfNotPresent"
name: "build"
tty: true
volumeMounts:
- mountPath: "/etc/localtime"
name: "localtime"
- mountPath: "/root/.m2/"
name: "cachedir"
readOnly: false
- command:
- "cat"
env:
- name: "LANGUAGE"
value: "en_US:en"
- name: "LC_ALL"
value: "en_US.UTF-8"
- name: "LANG"
value: "en_US.UTF-8"
image: "registry.cn-beijing.aliyuncs.com/citools/kubectl:self-1.17"
imagePullPolicy: "IfNotPresent"
name: "kubectl"
tty: true
volumeMounts:
- mountPath: "/etc/localtime"
name: "localtime"
readOnly: false
- command:
- "cat"
env:
- name: "LANGUAGE"
value: "en_US:en"
- name: "LC_ALL"
value: "en_US.UTF-8"
- name: "LANG"
value: "en_US.UTF-8"
image: "registry.cn-beijing.aliyuncs.com/citools/docker:19.03.9-git"
imagePullPolicy: "IfNotPresent"
name: "docker"
tty: true
volumeMounts:
- mountPath: "/etc/localtime"
name: "localtime"
readOnly: false
- mountPath: "/var/run/docker.sock"
name: "dockersock"
readOnly: false
restartPolicy: "Never"
nodeSelector:
build: "true"
securityContext: {}
volumes:
- hostPath:
path: "/var/run/docker.sock"
name: "dockersock"
- hostPath:
path: "/usr/share/zoneinfo/Asia/Shanghai"
name: "localtime"
- name: "cachedir"
hostPath:
path: "/opt/m2"
'''
}
}
stages {
stage('Pulling Code') {
parallel {
stage('Pulling Code by Jenkins') {
when {
expression {
env.gitlabBranch == null
}
}
steps {
git(changelog: true, poll: true, url: 'git@192.168.1.37:kubernetes/spring-boot-project.git', branch: "${BRANCH}", credentialsId: 'gitlab-key')
script {
COMMIT_ID = sh(returnStdout: true, script: "git log -n 1 --pretty=format:'%h'").trim()
TAG = BUILD_TAG + '-' + COMMIT_ID
println "Current branch is ${BRANCH}, Commit ID is ${COMMIT_ID}, Image TAG is ${TAG}"
}
}
}
stage('Pulling Code by trigger') {
when {
expression {
env.gitlabBranch != null
}
}
steps {
git(url: 'git@192.168.1.37:kubernetes/spring-boot-project.git', branch: env.gitlabBranch, changelog: true, poll: true, credentialsId: 'gitlab-key')
script {
COMMIT_ID = sh(returnStdout: true, script: "git log -n 1 --pretty=format:'%h'").trim()
TAG = BUILD_TAG + '-' + COMMIT_ID
println "Current branch is ${env.gitlabBranch}, Commit ID is ${COMMIT_ID}, Image TAG is ${TAG}"
}
}
}
}
}
stage('Building') {
steps {
container(name: 'build') {
sh """
curl repo.maven.apache.org
mvn clean install -DskipTests
ls target/*
"""
}
}
}
stage('Docker build for creating image') {
environment {
HARBOR_USER = credentials('Harbor-username')
}
steps {
container(name: 'docker') {
sh """
echo ${HARBOR_USER_USR} ${HARBOR_USER_PSW} ${TAG}
docker build -t ${HARBOR_ADDRESS}/${REGISTRY_DIR}/${IMAGE_NAME}:${TAG} .
docker login -u ${HARBOR_USER_USR} -p ${HARBOR_USER_PSW} ${HARBOR_ADDRESS}
docker push ${HARBOR_ADDRESS}/${REGISTRY_DIR}/${IMAGE_NAME}:${TAG}
"""
}
}
}
stage('Deploying to K8s') {
environment {
MY_KUBECONFIG = credentials('study-kubernetes')
}
steps {
container(name: 'kubectl'){
sh """
/usr/local/bin/kubectl --kubeconfig $MY_KUBECONFIG set image deploy -l app=${IMAGE_NAME} ${IMAGE_NAME}=${HARBOR_ADDRESS}/${REGISTRY_DIR}/${IMAGE_NAME}:${TAG} -n $NAMESPACE
"""
}
}
}
}
environment {
COMMIT_ID = ""
HARBOR_ADDRESS = "192.168.1.33"
REGISTRY_DIR = "kubernetes"
IMAGE_NAME = "spring-boot-project"
NAMESPACE = "kubernetes"
TAG = ""
}
parameters {
gitParameter(branch: '', branchFilter: 'origin/(.*)', defaultValue: '', description: 'Branch for build and deploy', name: 'BRANCH', quickFilterEnabled: false, selectedValue: 'NONE', sortMode: 'NONE', tagFilter: '*', type: 'PT_BRANCH')
}
}
