一、MetalLB 安装

1.3.1 前提条件

已准备kuberntes集群：v1.26.9，已准备网络插件：calico等。

[root@master01 ~]# kg node -owide
NAME       STATUS   ROLES           AGE   VERSION   INTERNAL-IP    EXTERNAL-IP   OS-IMAGE                KERNEL-VERSION                CONTAINER-RUNTIME
master01   Ready    control-plane   12d   v1.26.9   10.0.0.60   <none>        CentOS Linux 7 (Core)   4.19.12-1.el7.elrepo.x86_64   containerd://1.6.24
master02   Ready    control-plane   12d   v1.26.9   10.0.0.63   <none>        CentOS Linux 7 (Core)   4.19.12-1.el7.elrepo.x86_64   containerd://1.6.24
master03   Ready    control-plane   12d   v1.26.9   10.0.0.64   <none>        CentOS Linux 7 (Core)   4.19.12-1.el7.elrepo.x86_64   containerd://1.6.24
node01     Ready    <none>          12d   v1.26.9   10.0.0.61   <none>        CentOS Linux 7 (Core)   4.19.12-1.el7.elrepo.x86_64   containerd://1.6.24
node02     Ready    <none>          12d   v1.26.9   10.0.0.62   <none>        CentOS Linux 7 (Core)   4.19.12-1.el7.elrepo.x86_64   containerd://1.6.24

如果在 IPVS 模式下使用 kube-proxy，从 Kubernetes v1.14.2 开始，必须启用严格的 ARP模式。

可以通过在当前集群中编辑 kube-proxy 配置来实现这一点，执行一下命令：

#修改成IPVS模式：
[root@master01 ~]# kubectl edit configmap -n kube-system kube-proxy
...
...
    kind: KubeProxyConfiguration
    metricsBindAddress: ""
    mode: "ipvs"
...
...

#设置kubernetes的kube-proxy的ARP模式为true
[root@master01 ~]# kubectl get configmap kube-proxy -n kube-system -o yaml | \
sed -e "s/strictARP: false/strictARP: true/" | \
kubectl apply -f - -n kube-system

#验证
[root@master01 4]# kubectl get configmap kube-proxy -n kube-system -o yaml |grep strictARP
      strictARP: true

1.3.2 MetalLB 安装

Metallb 支持 yaml文件、Kustomize、Helm 和 MetalLB Operator多种安装方法，这里 使用yaml方式进行安装。

下载release版本

[root@master01 ~]# cd 4
[root@master01 4]# wget https://github.com/metallb/metallb/archive/refs/tags/v0.13.12.tar.gz
[root@master01 4]# tar -zxvf metallb-0.13.12.tar.gz

执行yaml文件进行安装

##修改metallb-native.yaml文件,将namespace命名空间替换成devops
# 如果没有devops命名空间
[root@master01 ~]# k create ns devops
# 将namespace命名空间替换成devops
[root@master01 ~]# cd /root/4/metallb-0.13.12/config/manifests/
[root@master01 manifests]# vim metallb-native.yaml
:%s/namespace: metallb-system/namespace: devops/g

##修改metallb-native.yaml文件,将国外镜像替换成国内镜像
[root@master01 ~]# cd /root/4/metallb-0.13.12/config/manifests/
[root@master01 manifests]# vim metallb-native.yaml
#替换前的镜像
image: quay.io/metallb/controller:v0.13.12
image: quay.io/metallb/speaker:v0.13.12
#替换后的镜像
registry.cn-hangzhou.aliyuncs.com/abroad_images/controller:v0.13.12
registry.cn-hangzhou.aliyuncs.com/abroad_images/speaker:v0.13.12

##应用
[root@master01 ~]# cd /root/4/metallb-0.13.12/config/manifests/
[root@master01 manifests]# kubectl apply -f  metallb-native.yaml

查看运行的pods，metalLB包含两个部分： a cluster-wide controller, and a per- machine protocol speaker.

[root@master01 manifests]# kgp -n devops
NAME                          READY   STATUS    RESTARTS   AGE
controller-6b44dbf99b-qhhkv   1/1     Running   0          13m
speaker-dzxrv                 1/1     Running   0          13m
speaker-kv52n                 1/1     Running   0          13m
speaker-lmn6t                 1/1     Running   0          13m
speaker-mtkvd                 1/1     Running   0          13m
speaker-nvbvl                 1/1     Running   0          13m

[root@master01 manifests]# kubectl -n devops get deploy
NAME         READY   UP-TO-DATE   AVAILABLE   AGE
controller   1/1     1            1           14m

[root@master01 manifests]# kubectl -n devops get ds
NAME      DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR            AGE
speaker   5         5         5       5            5           kubernetes.io/os=linux   15m

1.3.3 配置 Layer2 模式

复制模板文件进行修改

[root@master01 ~]# cd /root/4/metallb-0.13.12/configsamples
[root@master01 configsamples]# cp deployment_l2.yaml l2.yaml
[root@master01 configsamples]# vim l2.yaml
#修改ns为devops
#修改地址池地址为10.0.0.10-10.0.0.14，说明这个地址范围必须和宿主机在同一网段
#修改nginx镜像地址为registry.cn-hangzhou.aliyuncs.com/zq-demo/nginx:1.21.6

修改后的内容

[root@master01 ~]# cd /root/6/metallb-0.13.12/configsamples
[root@master01 configsamples]# vim l2.yaml
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
  name: example
  namespace: devops
spec:
  addresses:
  - 10.0.0.10-10.0.0.14
---
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
  name: empty
  namespace: devops
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
spec:
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: registry.cn-hangzhou.aliyuncs.com/zq-demo/nginx:1.21.6
        ports:
        - name: http
          containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: nginx
spec:
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: nginx
  type: LoadBalancer

创建测试后端应用和服务

[root@master01 ~]# cd /root/4/metallb-0.13.12/configsamples
[root@master01 configsamples]# kaf l2.yaml

查看service分配的EXTERNAL-IP

[root@master01 configsamples]# kg svc
NAME         TYPE           CLUSTER-IP        EXTERNAL-IP   PORT(S)        AGE
kubernetes   ClusterIP      192.168.0.1       <none>        443/TCP        186d
nginx        LoadBalancer   192.168.115.168   10.0.0.10     80:30700/TCP   19s

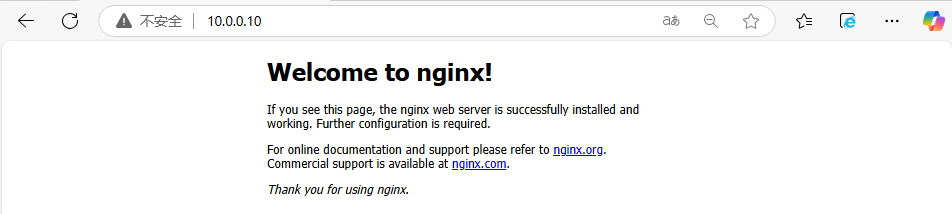

从集群外访问该IP地址10.0.0.10

image-20250120195223401
