一、Gitlab准备工作¶
准备上传代码条件
1、配置名字和邮箱
$ git config --global user.name "zq"
$ git config --global user.email "123456@qq.com"
验证
# 查看配置的名字
$ git config user.name
# 查看配置的邮箱
$ git config user.email
2、生成SSH密钥
$ ssh-keygen.exe -t rsa -C "123456@qq.com"
查看公钥
[root@master01 springdemo]# cat /root/.ssh/id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCsk6Lc3iQb9SU0ghxOTZNFZ/p5cFghwzHSBCyOsJS+jOz6ygvAAwMI3iX/Sg6cLbg7IYKT+lPo0/+9klEA71DCwG1GUjTQ5EFz+CdtWYc/ge1VEBRzjADHt/JWDoqOOETBtPdJbS1Qw7zyhCfbpsErcNsvrkTRU/AFBffUr0RBKIr19/IUmR7xktL7HbWsDZ76+rYHvKeAvS3JTp789FiSwKZHwe5yo91ynygxPC1N7nLmfJIs18mtHDGQ/Cpgnt0lr7gEgv17bAL2WxR7+C52/GbWfw8xS62/O9jtTJAutZlYiJCoGSgs1zsRi03MzuPHk+ooUXbzWVR/ALWY3FTp 123456@qq.com

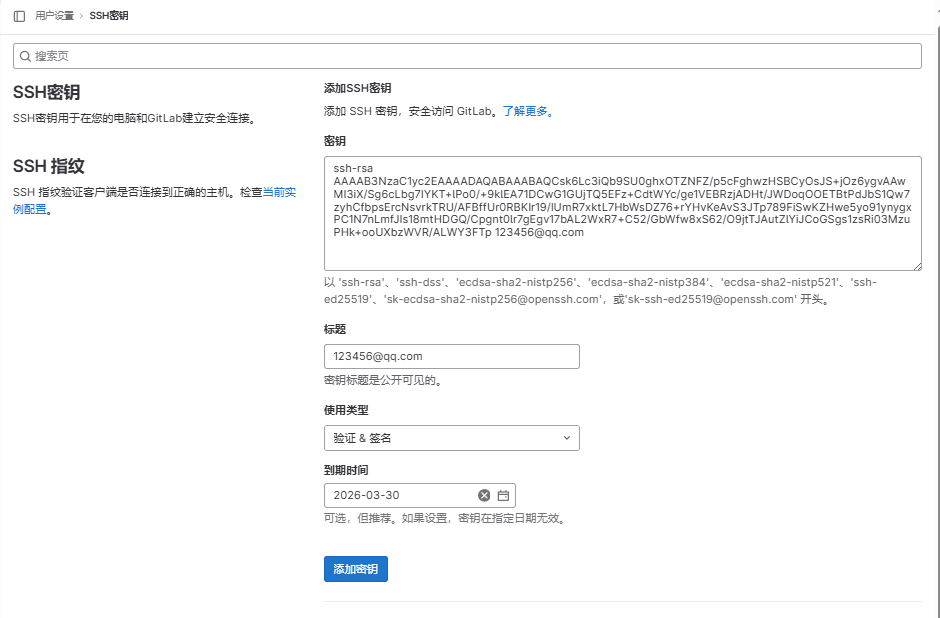

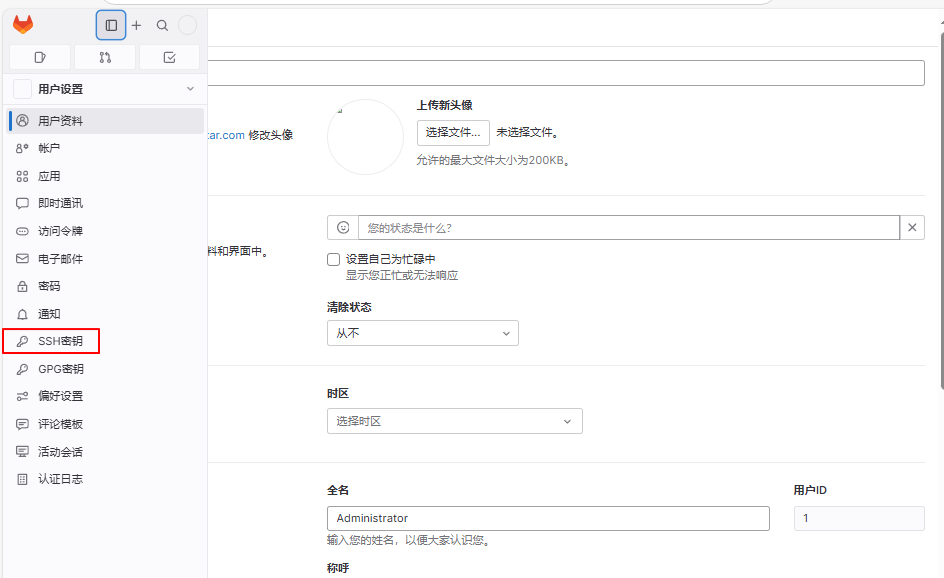

上传公钥到gitlab仓库
上传代码到gitlab上
1、在浏览器上输入http://gitlab.zhang-qing.com/,默认的管理员用户root，密码S6n5Y7b81wRrJnKv
2、创建名为demoteam的群组

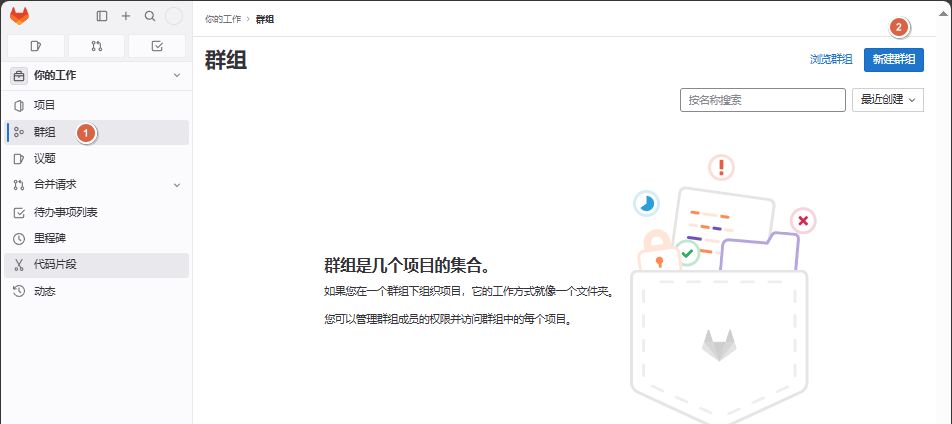

依次点击【群组】-【新建群组】

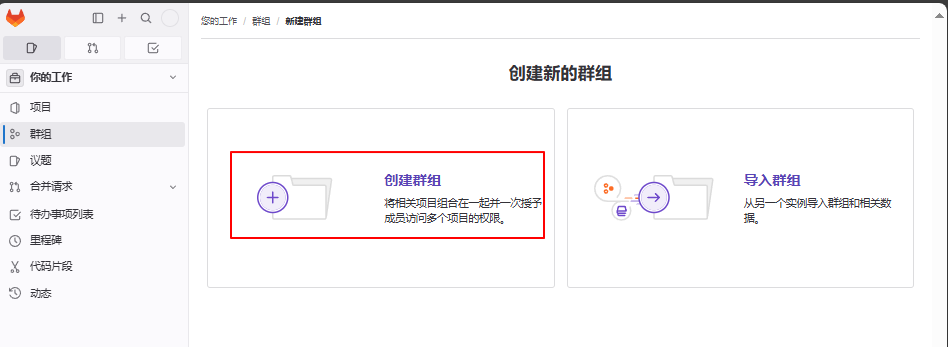

点击【创建群组】

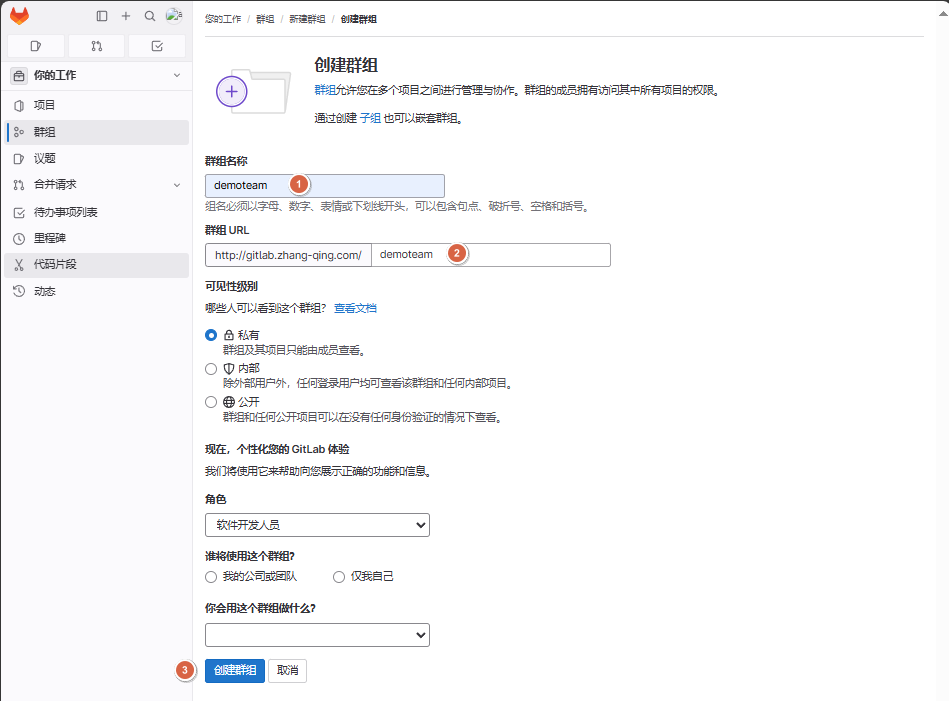

定义群组名称为demoteam后，点击【创建群组】
3、创建名为Vue-Kubernetes的项目

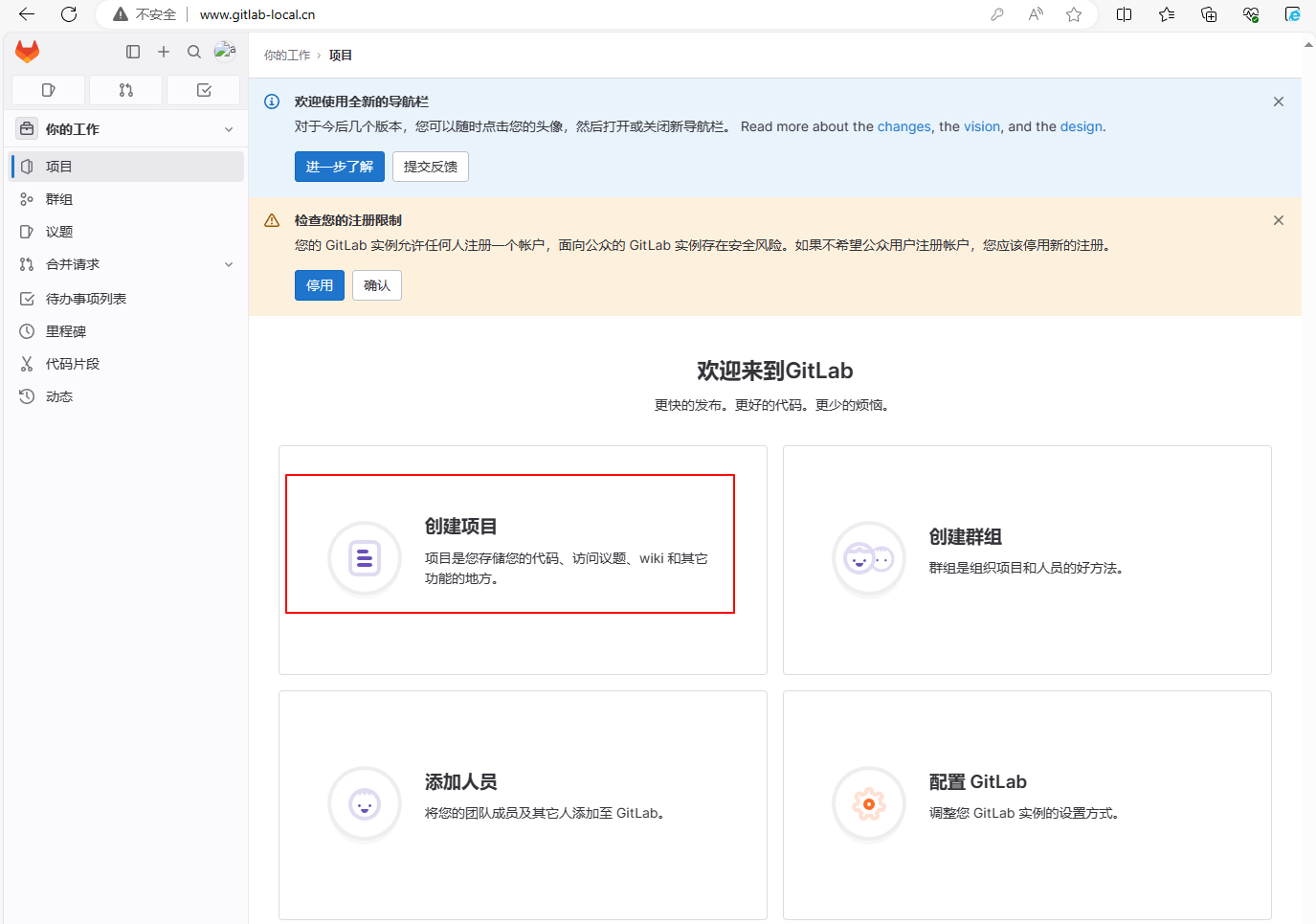

点击【创建项目】

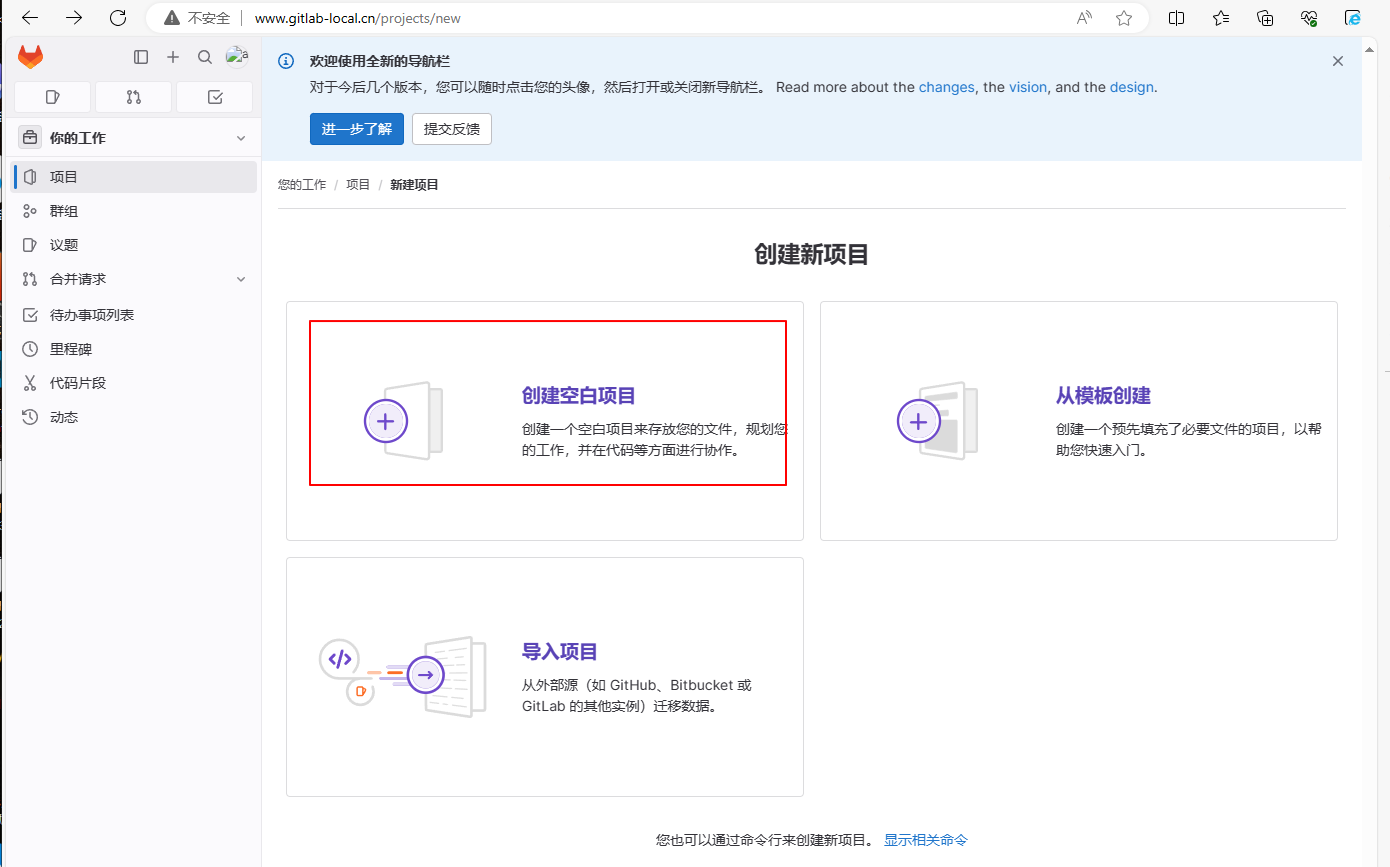

点击【创建空白项目】

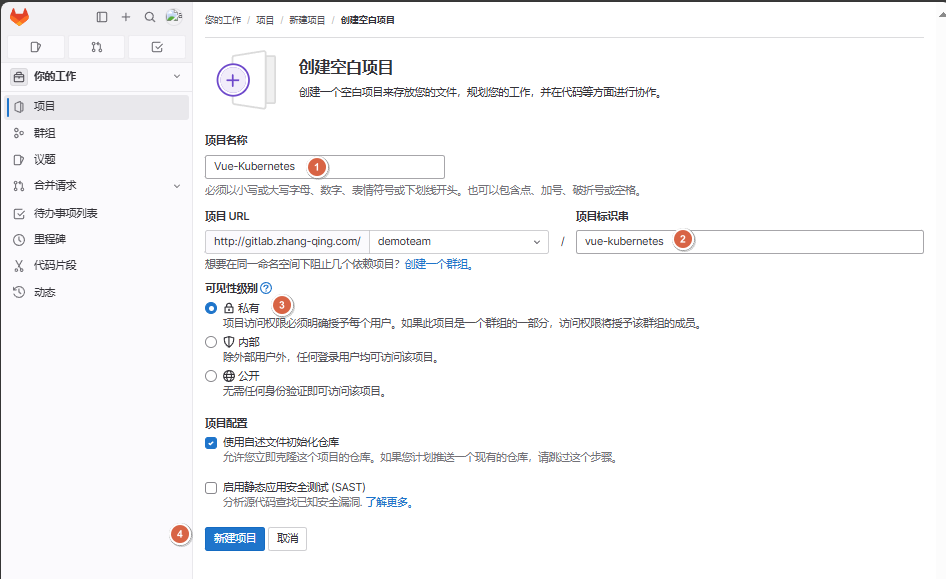

填写仓库名称：Vue-Kubernetes，设置可见性级别为私有，点击【新建项目】
上传代码到本地gitlab上
[root@master01 ~]# cd /root/5/
[root@master01 5]# cp -r vue3_web_element-demo-plus/ vue3_web_element-demo-plus-jenkins
[root@master01 ~]# cd /root/5/vue3_web_element-demo-plus-jenkins
#修改控制器文件
[root@master01 vue3_web_element-demo-plus-jenkins]# vim deployment.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: $APP_NAME
namespace: $NAMESPACE
data:
default.conf: |-
server {
listen 80;
server_name vue-test.zhang-qing.com; #生产环境域名
location /img { #访问img路径下资源时，重定向到百度页面
return 301 https://www.baidu.com;
}
location / {
root /opt/vue/dist;
index index.html index.htm;
try_files $uri $uri/ /index.html;
add_header Access-Control-Allow-Origin *;
}
}
---
apiVersion: v1
kind: Service
metadata:
name: $APP_NAME
namespace: $NAMESPACE
spec:
type: ClusterIP
selector:
app: $APP_NAME
ports:
- name: http
port: 80
protocol: TCP
targetPort: 80
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: $APP_NAME
namespace: $NAMESPACE
spec:
replicas: $APP_REPLICAS
selector:
matchLabels:
app: $APP_NAME
template:
metadata:
labels:
app: $APP_NAME
spec:
containers:
- name: $APP_NAME
image: $IMAGE_NAME
resources:
limits:
memory: $PODMEMORYGi
cpu: $PODCPUm
requests:
memory: $PODMEMORYGi
cpu: $PODCPUm
ports:
- containerPort: 80
name: web
livenessProbe:
httpGet:
port: web
path: /
readinessProbe:
tcpSocket:
port: web
volumeMounts:
- mountPath: /etc/nginx/conf.d/default.conf
subPath: default.conf
name: nginx-config
- mountPath: /media
name: media
volumes:
- name: nginx-config # 使用生产模式nginx配置文件
configMap:
name: $APP_NAME
- name: media # 挂载空目录，用于存放远端资源
emptyDir: {}
#提交代码文件内容
[root@master01 vue3_web_element-demo-plus-jenkins]# git init
[root@master01 vue3_web_element-demo-plus-jenkins]# git add .
[root@master01 vue3_web_element-demo-plus-jenkins]# git commit -m 'VueDemo'
[root@master01 vue3_web_element-demo-plus-jenkins]# git remote add origin http://gitlab.zhang-qing.com/demoteam/vue-kubernetes.git
[root@master01 vue3_web_element-demo-plus-jenkins]# git branch -M main
[root@master01 vue3_web_element-demo-plus-jenkins]# git push -uf origin main
Username for 'http://gitlab.zhang-qing.com': root
Password for 'http://root@gitlab.zhang-qing.com': S6n5Y7b81wRrJnKv
可能遇到的问题：
#执行完git push -uf origin main提示失败
error: failed to push some refs to 'http://gitlab.zhang-qing.com/demoteam/vue-kubernetes.git'
#解决方法
依次点击【设置】-【仓库】-【受保护分支】，取消保护分支即可
如果远程仓库存在其他内容，参考下面删除
#查看
[root@master01 springdemo]# git remote -v
#验证
[root@master01 springdemo]# git remote remove origin
二、镜像拉取¶
通过docker login登录，本地生成凭证配置文件config.json
查看生成的认证文件(一般路径为/root/.docker/config.json)
#提前手动登录harbor仓库，自动生成/root/.docker/config.json文件
[root@master01 ~]# docker login -uadmin harbor.zhang-qing.com
password: Harbor12345
#查看
[root@master01 ~]# ls -l /root/.docker/config.json
-rw------- 1 root root 89 May 7 20:36 /root/.docker/config.json
基于该凭证文件创建K8S集群中拉取镜像的secret：
#创建secret
[root@master01 ~]# k create ns demo
[root@master01 ~]# kubectl create secret generic harborsecret -n demo \
--from-file=.dockerconfigjson=/root/.docker/config.json \
--type=kubernetes.io/dockerconfigjson
#验证查看
[root@master01 ~]# kg secret -n demo | grep harborsecret
harborsecret kubernetes.io/dockerconfigjson 1 49s
三、完整pipeline¶
完整pipeline：
1、定义名为Vue-Demo-Test的Pipeline
// 定义git相关数据
def git_address = "http://gitlab.zhang-qing.com/demoteam/vue-kubernetes.git"
def git_auth = "Gitlab-username"
// 构建版本的名称
def tag = "latest"
// Harbor私服地址
def harbor_url = "harbor.zhang-qing.com"
// Harbor的项目名称
def harbor_project_name = "demo"
// Harbor的凭证
def harbor_auth = "Harbor-username"
// 启动时间
def start = new Date().format('yyyy-MM-dd HH:mm:ss')
// 创建一个Pod的模板，label为jenkins-slave
podTemplate(
label: 'jenkins-slave-vue',
cloud: 'study-kubernetes',
containers: [
containerTemplate(
name: 'jnlp',
image: "harbor.zhang-qing.com/library/inbound-agent:3299.v0d0d06908537-1",
ttyEnabled: true
),
containerTemplate(
name: 'docker',
image: "harbor.zhang-qing.com/library/docker:stable",
ttyEnabled: true,
command: 'cat'
),
],
volumes: [
hostPathVolume(mountPath: '/var/run/docker.sock', hostPath: '/var/run/docker.sock')
]
) {
node("jenkins-slave-vue") {
// 第一步
stage('Pull') {
checkout([
$class: 'GitSCM',
branches: [[name: "${branch}"]],
extensions: [],
userRemoteConfigs: [[credentialsId: "${git_auth}", url: "${git_address}"]]
])
}
stage('BuildDescription') {
// 自定义设置构建历史显示的名称和描述信息
// 不同的部署方式设置构建历史显示的名称和描述信息方式不一样，根据自己的部署方式自行百度找到设置方法
script {
// 设置buildName
wrap([$class: 'BuildUser']) {
// 修改Description
buildDescription "${BUILD_USER} > ${project_name} > ${branch}"
}
}
}
// 第二步
stage('Build&Tag&Push&Deploy') {
// 把选择的项目信息转为数组
def selectedProjects = "${project_name}".split(',')
for(int i = 0; i < selectedProjects.size(); i++) {
// 取出每个项目的名称
def currentProjectName = selectedProjects[i];
// 定义镜像名称
def imageName = "${currentProjectName}:${tag}"
// 定义newTag
def newTag = sh(returnStdout: true, script: 'echo `date +"%Y%m%d%H%M"_``git describe --tags --always`').trim()
// 编译，构建本地镜像
// sh "sed -i 's#ACTIVEPROFILE#${springProfilesActive}#g' Dockerfile"
// sh "mvn clean package -Dmaven.test.skip=true"
container('docker') {
// 镜像编译
sh "docker build -t ${imageName} ."
// 给镜像打标签
sh "docker tag ${imageName} ${harbor_url}/${harbor_project_name}/${currentProjectName}:${newTag}"
// 登录Harbor，并上传镜像
withCredentials([usernamePassword(credentialsId: "${harbor_auth}", passwordVariable: 'password', usernameVariable: 'username')]) {
// 登录
sh "docker login -u ${username} -p ${password} ${harbor_url}"
// 上传镜像
sh "docker push ${harbor_url}/${harbor_project_name}/${currentProjectName}:${newTag}"
}
// 删除本地镜像
sh "docker rmi -f ${imageName}"
sh "docker rmi -f ${harbor_url}/${harbor_project_name}/${currentProjectName}:${newTag}"
}
def deploy_image_name = "${harbor_url}/${harbor_project_name}/${currentProjectName}:${newTag}"
// 基于控制器的方式部署到K8S
sh """
sed -i 's#\$IMAGE_NAME#${deploy_image_name}#' deployment.yaml
sed -i 's#\$APP_NAME#${currentProjectName}#' deployment.yaml
sed -i 's#\$APP_REPLICAS#${replicas}#' deployment.yaml
sed -i 's#\$NAMESPACE#${namespaces}#' deployment.yaml
sed -i 's#\$PODMEMORY#${podsMem}#' deployment.yaml
sed -i 's#\$PODCPU#${podsCpu}#' deployment.yaml
cat deployment.yaml
"""
// 部署到K8S
kubernetesDeploy(kubeconfigId: "kubeconfig", configs: "deployment.yaml")
}
}
}
}
说明：Kubernetes Continuous Deploy这个插件已经被暂停使用，新版Jenkins无法下载该插件，下载链接：https://zqzqbucket.oss-cn-hangzhou.aliyuncs.com/file/kubernetes-cd.hpi
2、定义字符串参数
依次点击【参数化构建过程】-【字符参数】
-
第一个字符参数：
-
名称：branch
- 默认值：main
- 描述：Git 分支
-
第二个字符参数：
-
名称：project_name
- 默认值：vue
- 描述：项目名称
-
第三个字符参数：
-
名称：replicas
- 默认值：1
- 描述：副本数
-
第四个字符参数：
-
名称：namespaces
- 默认值：demo
- 描述：K8s 命名空间
-
第五个字符参数：
-
名称：podsMem
-
默认值：1
-
描述：内存限制
-
第六个字符参数：
- 名称：podsCpu
- 默认值：500
- 描述：CPU 限制
3、填写完成后，点击【应用】-【Save】
4、点击【Build with Parameters】,默认值即可，点击【Build】进行构建即可
5、构建完成后，验证查看
#查看pod和svc
[root@master01 vue3_web_element-demo-plus-jenkins]# kg deploy,svc -n demo
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/vue 1/1 1 1 23s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/vue ClusterIP 192.168.176.131 <none> 80/TCP 24s
6、手动创建一个ingress访问测试
[root@master01 ~]# cd /root/5/vue3_web_element-demo-plus-jenkins
[root@master01 vue3_web_element-demo-plus-jenkins]# cat ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
annotations:
konghq.com/https-redirect-status-code: "301"
konghq.com/protocols: http
konghq.com/regex-priority: "1000"
name: vue-ing
spec:
ingressClassName: nginx
rules:
- host: vue-test.zhang-qing.com
http:
paths:
- backend:
service:
name: vue
port:
number: 80
path: /
pathType: ImplementationSpecific
[root@master01 springdemo-jenkins]# kaf ingress.yaml -n demo
#测试访问
[root@master01 springdemo-jenkins]# curl vue-test.zhang-qing.com
四、问题汇总¶
4.1 问题1¶
问题报错内容
[PodInfo] default/jenkins-slave-vue-tq0bc-84841
Container [jnlp] waiting [ErrImagePull] rpc error: code = Unknown desc = failed to pull and unpack image "docker.io/jenkins/inbound-agent:3299.v0d0d06908537-1": failed to resolve reference "docker.io/jenkins/inbound-agent:3299.v0d0d06908537-1": failed to do request: Head "https://registry-1.docker.io/v2/jenkins/inbound-agent/manifests/3299.v0d0d06908537-1": dial tcp 31.13.81.4:443: connect: connection refused
问题报错原因
需要启动jnlp容器，但是拉取镜像失败
问题解决
1、拉取镜像并上传到harbor
[root@master01 ~]#docker pull jenkins/inbound-agent:3299.v0d0d06908537-1
[root@master01 ~]#docker tag jenkins/inbound-agent:3299.v0d0d06908537-1 harbor.zhang-qing.com/library/inbound-agent:3299.v0d0d06908537-1
[root@master01 ~]#docker push harbor.zhang-qing.com/library/inbound-agent:3299.v0d0d06908537-1
2、pipline文件添加如下内容
containerTemplate(
name: 'jnlp',
image: "harbor.zhang-qing.com/library/inbound-agent:3299.v0d0d06908537-1",
ttyEnabled: true
),
完整pipline文件内容如下：
// 定义git相关数据
def git_address = "http://gitlab.zhang-qing.com/demoteam/vue-kubernetes.git"
def git_auth = "Gitlab-username"
// 构建版本的名称
def tag = "latest"
// Harbor私服地址
def harbor_url = "harbor.zhang-qing.com"
// Harbor的项目名称
def harbor_project_name = "demo"
// Harbor的凭证
def harbor_auth = "Harbor-username"
// 启动时间
def start = new Date().format('yyyy-MM-dd HH:mm:ss')
// 创建一个Pod的模板，label为jenkins-slave
podTemplate(
label: 'jenkins-slave-vue',
cloud: 'study-kubernetes',
containers: [
containerTemplate(
name: 'jnlp',
image: "harbor.zhang-qing.com/library/inbound-agent:3299.v0d0d06908537-1",
ttyEnabled: true
),
containerTemplate(
name: 'docker',
image: "harbor.zhang-qing.com/library/docker:stable",
ttyEnabled: true,
command: 'cat'
),
],
volumes: [
hostPathVolume(mountPath: '/var/run/docker.sock', hostPath: '/var/run/docker.sock')
]
) {
node("jenkins-slave-vue") {
// 第一步
stage('Pull') {
checkout([
$class: 'GitSCM',
branches: [[name: "${branch}"]],
extensions: [],
userRemoteConfigs: [[credentialsId: "${git_auth}", url: "${git_address}"]]
])
}
stage('BuildDescription') {
// 自定义设置构建历史显示的名称和描述信息
// 不同的部署方式设置构建历史显示的名称和描述信息方式不一样，根据自己的部署方式自行百度找到设置方法
script {
// 设置buildName
wrap([$class: 'BuildUser']) {
// 修改Description
buildDescription "${BUILD_USER} > ${project_name} > ${branch}"
}
}
}
// 第二步
stage('Build&Tag&Push&Deploy') {
// 把选择的项目信息转为数组
def selectedProjects = "${project_name}".split(',')
for(int i = 0; i < selectedProjects.size(); i++) {
// 取出每个项目的名称
def currentProjectName = selectedProjects[i];
// 定义镜像名称
def imageName = "${currentProjectName}:${tag}"
// 定义newTag
def newTag = sh(returnStdout: true, script: 'echo `date +"%Y%m%d%H%M"_``git describe --tags --always`').trim()
// 编译，构建本地镜像
// sh "sed -i 's#ACTIVEPROFILE#${springProfilesActive}#g' Dockerfile"
// sh "mvn clean package -Dmaven.test.skip=true"
container('docker') {
// 镜像编译
sh "docker build -t ${imageName} ."
// 给镜像打标签
sh "docker tag ${imageName} ${harbor_url}/${harbor_project_name}/${currentProjectName}:${newTag}"
// 登录Harbor，并上传镜像
withCredentials([usernamePassword(credentialsId: "${harbor_auth}", passwordVariable: 'password', usernameVariable: 'username')]) {
// 登录
sh "docker login -u ${username} -p ${password} ${harbor_url}"
// 上传镜像
sh "docker push ${harbor_url}/${harbor_project_name}/${currentProjectName}:${newTag}"
}
// 删除本地镜像
sh "docker rmi -f ${imageName}"
sh "docker rmi -f ${harbor_url}/${harbor_project_name}/${currentProjectName}:${newTag}"
}
def deploy_image_name = "${harbor_url}/${harbor_project_name}/${currentProjectName}:${newTag}"
// 基于控制器的方式部署到K8S
sh """
sed -i 's#\$IMAGE_NAME#${deploy_image_name}#' deployment.yaml
sed -i 's#\$APP_NAME#${currentProjectName}#' deployment.yaml
sed -i 's#\$APP_REPLICAS#${replicas}#' deployment.yaml
sed -i 's#\$NAMESPACE#${namespaces}#' deployment.yaml
sed -i 's#\$PODMEMORY#${podsMem}#' deployment.yaml
sed -i 's#\$PODCPU#${podsCpu}#' deployment.yaml
cat deployment.yaml
"""
// 部署到K8S
kubernetesDeploy(kubeconfigId: "kubeconfig", configs: "deployment.yaml")
}
}
}
}
五、环境复原¶
删除deployment、service、ingress
[root@master01 ~]# cd /root/5/vue3_web_element-demo-plus-jenkins
[root@master01 vue3_web_element-demo-plus-jenkins]# k delete -f ingress.yaml -n demo
[root@master01 springdemo-jenkins]# k delete deploy,svc vue -n demo
