一、使用Skywalking Agent¶
Java 中使用 agent ，提供了以下三种方式供你选择
- 使用官方提供的基础镜像 skywalking-base；
- 将agent包构建到已经存在的基础镜像中；
- sidecar 模式挂载 agent（推荐）；
1.1 使用官方提供的基础镜像¶
1.2 将agent 包构建到已经存在的基础镜像中¶
提供这种方式的原因是：官方的镜像属于精简镜像，并且是 openjdk ，可能很多命令没有，需要自己二次安装，这里略过。
1.3 sidecar 模式挂载 agent¶
- 不需要修改原来的基础镜像，也无需重新构建服务镜像。以sidecar 模式，通过共享 volume 的方式将 agent 所需的相关文件挂载到已经存在的服务镜像中。
- 在 Sidecar 模式下，SkyWalking 代理程序与应用程序是分离的，不会影响应用程序的执行，也不会干扰到应用的性能问题。
1.4 构建 skywalking agent image¶
通过以下 dockerfile 进行构建：
# 在线下载安装包
FROM registry.cn-hangzhou.aliyuncs.com/github_images1024/alpine:3.8
LABEL maintainer="ZQ"
ENV SKYWALKING_VERSION=8.5.0
ADD https://archive.apache.org/dist/skywalking/${SKYWALKING_VERSION}/apache-skywalking-apm-${SKYWALKING_VERSION}.tar.gz /
RUN tar -zxvf /apache-skywalking-apm-${SKYWALKING_VERSION}.tar.gz && \
mv apache-skywalking-apm-bin skywalking && \
mv /skywalking/agent/optional-plugins/apm-trace-ignore-plugin* /skywalking/agent/plugins/ && \
sed -i 's@# logging.max_history_files=${SW_LOGGING_MAX_HISTORY_FILES:-1}@logging.max_history_files=${SW_LOGGING_MAX_HISTORY_FILES:2}@' /skywalking/agent/config/agent.config && \
echo -e "\n# Ignore Path" >> /skywalking/agent/config/agent.config && \
echo "# see https://github.com/apache/skywalking/blob/v8.5.0/docs/en/setup/service-agent/java-agent/agent-optional-plugins/trace-ignore-plugin.md" >> /skywalking/agent/config/agent.config && \
echo 'trace.ignore_path=${SW_IGNORE_PATH:/health}' >> /skywalking/agent/config/agent.config
# 离线安装包(必须保证包和Dockerfile处于同一目录下)
[root@master01 8]# cat Dockerfile
FROM registry.cn-hangzhou.aliyuncs.com/github_images1024/alpine:3.8
LABEL maintainer="ZQ"
ENV SKYWALKING_VERSION=8.5.0
# 使用本地已存在的 tar.gz 文件（确保构建上下文包含此文件）
COPY apache-skywalking-apm-${SKYWALKING_VERSION}.tar.gz /
RUN tar -zxvf /apache-skywalking-apm-${SKYWALKING_VERSION}.tar.gz && \
mv apache-skywalking-apm-bin skywalking && \
mv /skywalking/agent/optional-plugins/apm-trace-ignore-plugin* /skywalking/agent/plugins/ && \
sed -i 's@# logging.max_history_files=${SW_LOGGING_MAX_HISTORY_FILES:-1}@logging.max_history_files=${SW_LOGGING_MAX_HISTORY_FILES:2}@' /skywalking/agent/config/agent.config && \
echo -e "\n# Ignore Path" >> /skywalking/agent/config/agent.config && \
echo "# see https://github.com/apache/skywalking/blob/v8.5.0/docs/en/setup/service-agent/java-agent/agent-optional-plugins/trace-ignore-plugin.md" >> /skywalking/agent/config/agent.config && \
echo 'trace.ignore_path=${SW_IGNORE_PATH:/health}' >> /skywalking/agent/config/agent.config
待 docker build 完毕后，push 到仓库即可。
$ docker build -t registry.cn-hangzhou.aliyuncs.com/github_images1024/skywalking-agent:8.5.0 .
$ docker push registry.cn-hangzhou.aliyuncs.com/github_images1024/skywalking-agent:8.5.0
1.5 使用 sidecar 挂载¶
测试demo应用
apiVersion: apps/v1
kind: Deployment
metadata:
name: demo-skywalking
spec:
replicas: 1
selector:
matchLabels:
app: demo-skywalking
strategy:
rollingUpdate:
maxSurge: 1
maxUnavailable: 0
type: RollingUpdate
template:
metadata:
labels:
app: demo-skywalking
spec:
initContainers:
- name: init-skywalking-agent
image: registry.cn-hangzhou.aliyuncs.com/github_images1024/skywalking-agent:8.5.0
command:
- 'sh'
- '-c'
- 'set -ex;mkdir -p /vmskywalking/agent;cp -r /skywalking/agent/* /vmskywalking/agent;'
volumeMounts:
- mountPath: /vmskywalking/agent
name: skywalking-agent
containers:
- image: registry.cn-hangzhou.aliyuncs.com/abroad_images/nginx::1.15.12
imagePullPolicy: Always
name: nginx
ports:
- containerPort: 80
protocol: TCP
volumeMounts:
- mountPath: /opt/skywalking/agent
name: skywalking-agent
volumes:
- name: skywalking-agent
emptyDir: {}
以上是挂载 sidecar 的 deployment.yaml 文件，以 nginx 作为服务为例，主要是通过共享 volume 的方式挂载 agent。
首先 initContainers 通过 skywalking-agent 卷挂载了 sw-agent-sidecar 中的/vmskywalking/agent ，并且将上面构建好的镜像中的 agent 目录 cp 到了/vmskywalking/agent 目录，完成之后 nginx 启动时也挂载了 skywalking-agent卷，并将其挂载到了容器的 /opt/skywalking/agent 目录。
二、改造 Spring Cloud 应用¶
2.1 docker打包并推送到仓库¶
修改下dockerfile 配置，集成 skywalking agent：
[root@master01 ~]# mkdir -p /root/8/appwithskywalking
[root@master01 ~]# cd /root/8/appwithskywalking/
[root@master01 appwithskywalking]#
# FROM openjdk:8-jdk
FROM registry.cn-hangzhou.aliyuncs.com/abroad_images/openjdk:8-jdk
COPY ./springdemo2023.jar /opt/
RUN mkdir -p data/logs/ \
&& mkdir -p data/skywalking/agent
RUN ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
RUN echo 'Asia/Shanghai' > /etc/timezone
ENTRYPOINT [ "java","-Dapp.id=springdemo2023","-javaagent:/data/skywalking/agent/skywalking-agent.jar","-Dskywalking.agent.service_name=springdemo2023","-Dskywalking.collector.backend_service=skywalking-oap.devops.svc.cluster.local:11800", "-jar", "/opt/springdemo2023.jar" ,"-Dfile.encoding=UTF-8"]
注意：
k8s 创建 Service 时，它会创建相应的 DNS 条目。此条目的格式为 <servicename>.<namespace-name>.svc.cluster.local ，这意味着如果容器只使用<service-name> ，它将解析为本地服务到命名空间。 如果要跨命名空间访问，则需要使用完全限定的域名。
编译推送到私仓测试：
$ docker build -t registry.cn-hangzhou.aliyuncs.com/github_images1024/springdemo-skywalking:v1 .
2.2 编写k8s的yaml部署¶
[root@master01 ~]# mkdir -p /root/8/appwithskywalking
[root@master01 ~]# cd /root/8/appwithskywalking/
[root@master01 appwithskywalking]# vim springdemo2023.yaml
apiVersion: v1
kind: Service
metadata:
annotations:
prometheus.io/http-probe: "true"
prometheus.io/http-probe-port: "8080"
prometheus.io/http-probe-path: "/apptwo"
name: springdemo2023
namespace: default
spec:
ports:
- name: web
port: 8080
protocol: TCP
targetPort: 8080
selector:
app: springdemo2023
sessionAffinity: None
type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: springdemo2023
namespace: default
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
app: springdemo2023
strategy:
rollingUpdate:
maxSurge: 25%
maxUnavailable: 25%
type: RollingUpdate
template:
metadata:
labels:
app: springdemo2023
spec:
imagePullSecrets:
- name: harborsecret
initContainers:
- name: init-skywalking-agent
image: registry.cn-hangzhou.aliyuncs.com/github_images1024/skywalking-agent:8.5.0
command:
- sh
- -c
- set -ex;mkdir -p /vmskywalking/agent;cp -r /skywalking/agent/* /vmskywalking/agent;
volumeMounts:
- mountPath: /vmskywalking/agent
name: skywalking-agent
containers:
- image: registry.cn-hangzhou.aliyuncs.com/github_images1024/springdemo-skywalking:v1
imagePullPolicy: IfNotPresent
livenessProbe:
failureThreshold: 5
httpGet:
path: /apptwo
port: 8080
scheme: HTTP
initialDelaySeconds: 30
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 2
name: springdemo2023
ports:
- containerPort: 8080
name: web
protocol: TCP
readinessProbe:
failureThreshold: 5
httpGet:
path: /apptwo
port: 8080
scheme: HTTP
initialDelaySeconds: 20
periodSeconds: 5
successThreshold: 1
timeoutSeconds: 2
volumeMounts:
- mountPath: /data/skywalking/agent
name: skywalking-agent
dnsPolicy: ClusterFirst
restartPolicy: Always
terminationGracePeriodSeconds: 60
volumes:
- name: skywalking-agent
emptyDir: {}
# 应用
[root@master01 appwithskywalking]# kaf springdemo2023.yaml
# 验证
[root@master01 appwithskywalking]# kgp | grep springdemo2023
springdemo2023-c58b95c66-g7ngh 1/1 Running 0 108s
模拟访问
# 多执行几次
[root@master01 appwithskywalking]# curl java.zhang-qing.com/apptwo -i
打开浏览器输入http://skywalking.zhang-qing.com/查看skywalking(账号密码都为admin)

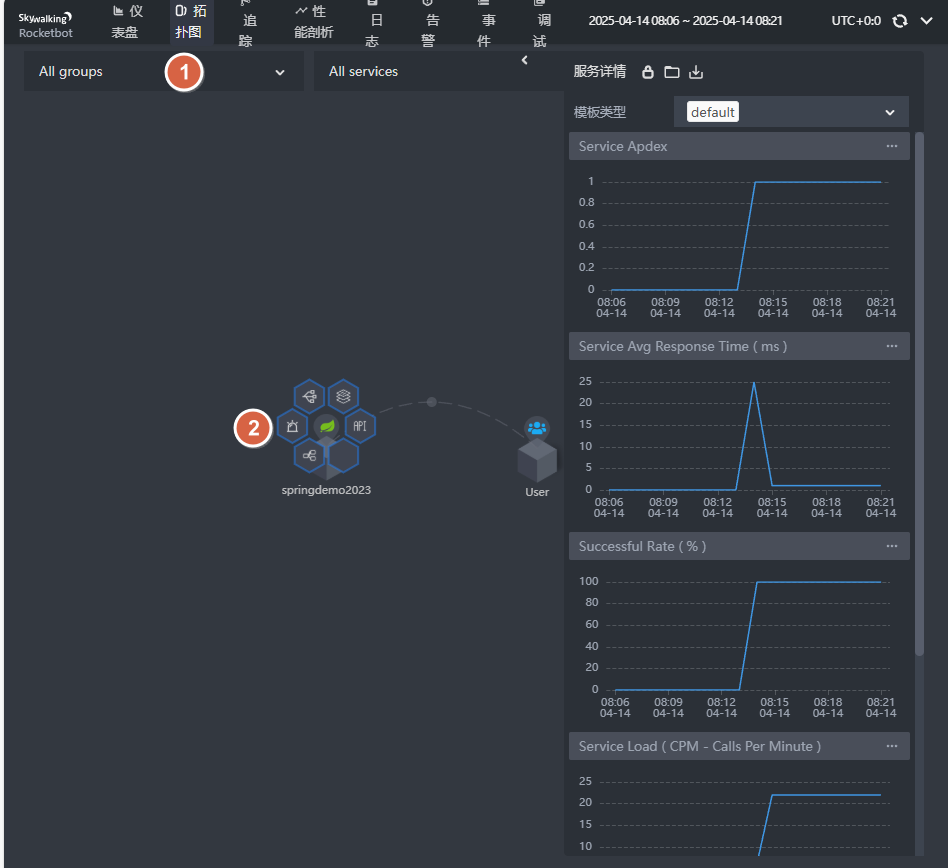

查看拓扑图

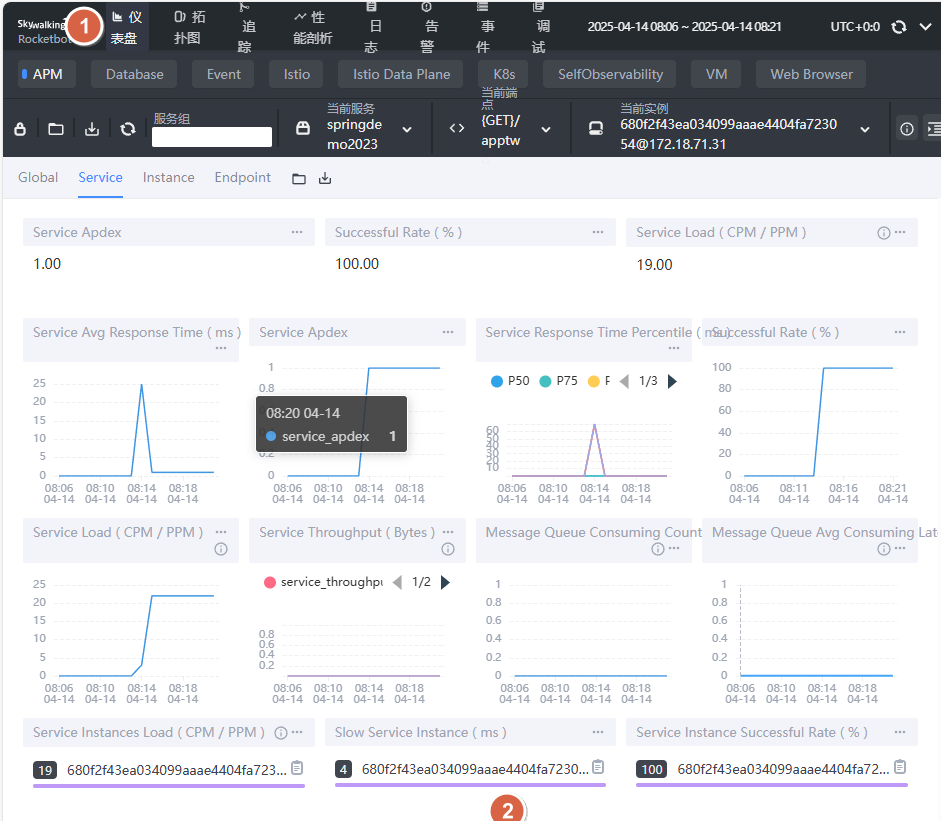

查看仪表盘
