一、Gitlab-Jenkins版本控制（补充）¶
1.1 构建邮件通知¶
- Email Extension:
email-ext安装
1.1.1 添加邮件发送模板到sharedlibrary¶
src/org/devops/toemail.groovy
package org.devops
//定义邮件内容
def Email(status,emailUser){
emailext body: """
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
</head>
<body leftmargin="8" marginwidth="0" topmargin="8" marginheight="4" offset="0">
<img src="http://192.168.33.1:30088/root/static/-/blob/master/images/headshot.png">
<table width="95%" cellpadding="0" cellspacing="0" style="font-size: 11pt; font-family: Tahoma, Arial, Helvetica, sans-serif">
<tr>
<td><br />
<b><font color="#0B610B">Build Information</font></b>
</td>
</tr>
<tr>
<td>
<ul>
<li>Job Name:${JOB_NAME}</li>
<li>Build Id:${BUILD_ID}</li>
<li>Build Status: ${status} </li>
<li>Build URL:<a href="${BUILD_URL}">${BUILD_URL}</a></li>
<li>Build Log:<a href="${BUILD_URL}console">${BUILD_URL}console</a></li>
</ul>
</td>
</tr>
<tr>
</table>
</body>
</html> """,
subject: "Jenkins-${JOB_NAME}Build Information ",
to: emailUser
}

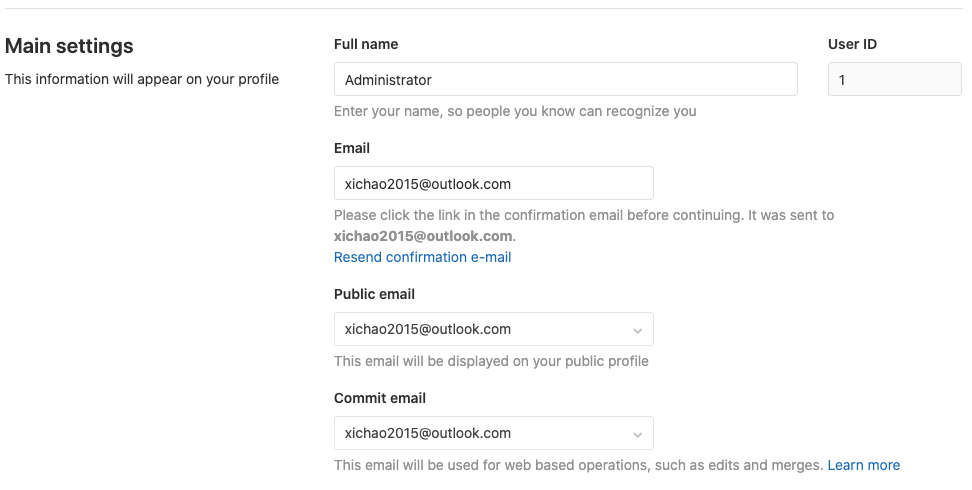

1.1.2 添加用户邮件地址到Gitlab¶
Admin area -> users -> (username) -> Add User Email- Update User profile settings
1.1.3 添加新的Trigger变量¶
triggers {
GenericTrigger(
genericVariables: [
[key: 'branch', value: '$.ref'],
[key: 'userName', value: '$.user_username'],
[key: 'projectId', value: '$.project.id'],
[key: 'commitSha', value: '$.checkout_sha'],
[key: 'before', value: '$.before'],
[key: 'after', value: '$.after'],
[key: 'object_kind', value: '$.object_kind'],
[key: 'userEmail', value: '$.user_email']
],
...
Console Output
{
"object_kind":"push",
"event_name":"push",
"before":"c3c7ced66b6c50f472d1c681156e7c16fb41b12c",
"after":"2bb50eebe62e9cfc401905f4dd47981fc2f8b78e",
"ref":"refs/heads/master",
"checkout_sha":"2bb50eebe62e9cfc401905f4dd47981fc2f8b78e",
"message":null,
"user_id":1,
"user_name":"Administrator",
"user_username":"root",
"user_email":"xichao2015@outlook.com",
"user_avatar":"https://www.gravatar.com/avatar/d86ea488c14556309b0c2773c1e1dd6a?s=80\u0026d=identicon",
...
"commits":[
{
"id":"2bb50eebe62e9cfc401905f4dd47981fc2f8b78e",
"message":"Update README.md",
"title":"Update README.md",
"timestamp":"2020-07-25T19:35:34+08:00",
"url":"http://localhost:30088/root/demo-maven-service/-/commit/2bb50eebe62e9cfc401905f4dd47981fc2f8b78e",
"author":{
"name":"Administrator",
"email":"xichao2015@outlook.com"
},
...
}
Contributing variables:
after = 2bb50eebe62e9cfc401905f4dd47981fc2f8b78e
before = c3c7ced66b6c50f472d1c681156e7c16fb41b12c
branch = refs/heads/master
commitSha = 2bb50eebe62e9cfc401905f4dd47981fc2f8b78e
object_kind = push
projectId = 7
runOpts = Gitlabpush
runOpts_0 = Gitlabpush
userEmail = xichao2015@outlook.com
userName = root
1.1.4 在pipeline中调用邮件发送方法¶
#!groovy
@Library('jenkinslib@master') _
...
def toemail = new org.devops.toemail()
...
post {
always {
script{
println("always")
}
}
success {
script{
println("succcess")
gitlab.ChangeCommitStatus(projectId,commitSha,"success")
toemail.Email("Build Success!...",userEmail)
}
}
failure {
script{
println("failure")
gitlab.ChangeCommitStatus(projectId,commitSha,"failed")
toemail.Email("Build failed!...",userEmail)
}
}
aborted {
script{
println("aborted")
gitlab.ChangeCommitStatus(projectId,commitSha,"canceled")
toemail.Email("Build Canceled!...",userEmail)
}
}
}
}

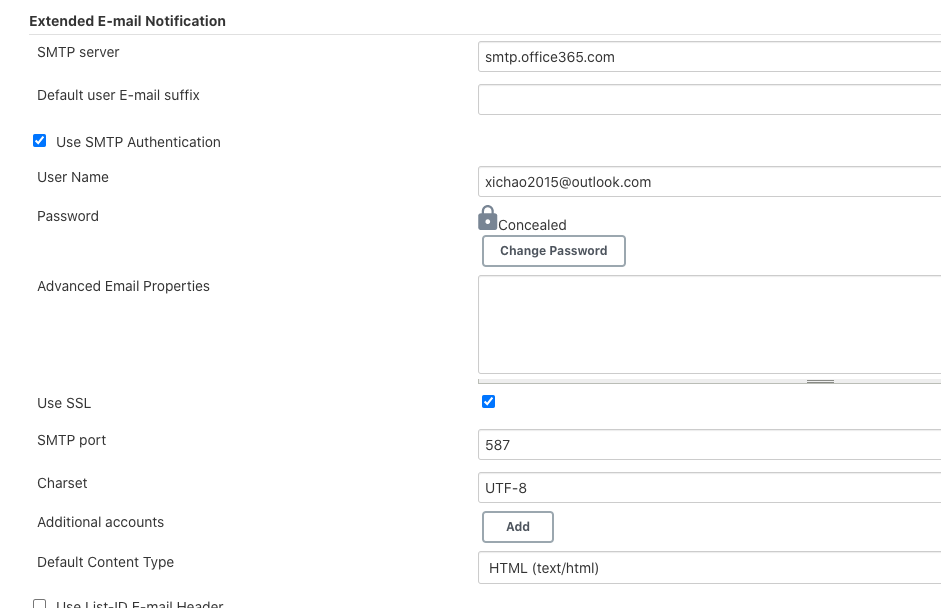

1.1.5 在Jenkins中添加SMTP信息¶

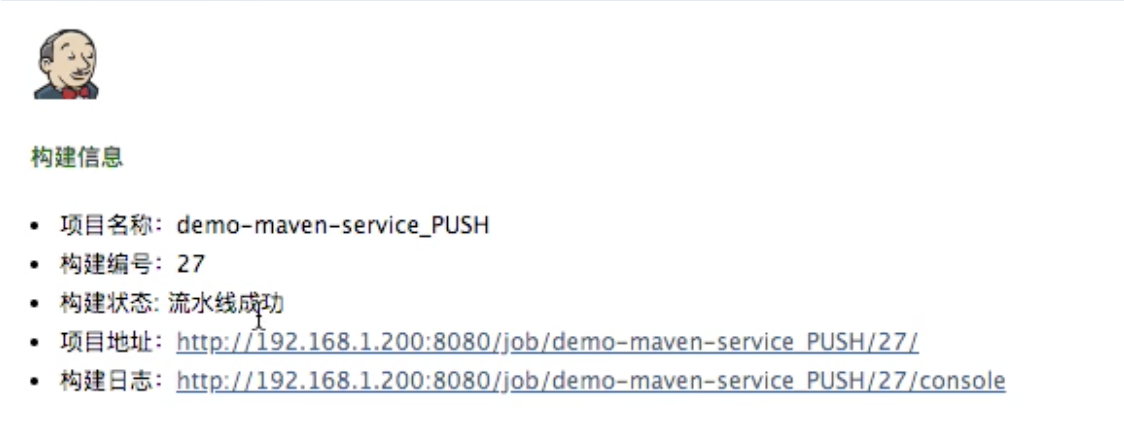

1.1.6 触发job¶
最终pipeline script
#!groovy
@Library('jenkinslib@master') _
def build = new org.devops.buildtools()
def gitlab = new org.devops.gitlab()
def toemail = new org.devops.toemail()
String branchName = "${env.branchName}"
pipeline {
agent { node { label "hostmachine" }}
parameters {
string(name: 'srcUrl', defaultValue: 'http://192.168.33.1:30088/root/demo-maven-service.git', description: '')
// choice(name: 'branchName', choices: 'master\nstage\ndev', description: 'Please chose your branch')
choice(name: 'buildType', choices: 'mvn', description: 'build tool')
choice(name: 'buildShell', choices: 'clean package -DskipTest\n--version', description: 'build tool')
}
triggers {
GenericTrigger(
genericVariables: [
[key: 'branch', value: '$.ref'],
[key: 'userName', value: '$.user_username'],
[key: 'projectId', value: '$.project.id'],
[key: 'commitSha', value: '$.checkout_sha'],
[key: 'before', value: '$.before'],
[key: 'after', value: '$.after'],
[key: 'object_kind', value: '$.object_kind'],
[key: 'userEmail', value: '$.user_email']
],
genericRequestVariables: [
[key: 'runOpts', regexpFilter: '']
],
token: 'demo-maven-service-PUSH',
silentResponse: false,
printContributedVariables: true,
printPostContent: true,
regexpFilterText: '$object_kind $before $after',
regexpFilterExpression: '^push\\s(?!0{40}).{40}\\s(?!0{40}).{40}$'
)
}
stages{
stage('Checkout') {
steps {
script {
if ("${runOpts}" == "Gitlabpush"){
println ("$branch")
def reg = "refs/heads/"
branchName = "$branch" - reg
currentBuild.description = "Trigger by ${userName} ${branch}"
gitlab.ChangeCommitStatus(projectId,commitSha,"running")
}
checkout([$class: 'GitSCM', branches: [[name: "${branchName}"]], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlab-admin-user', url: "${srcUrl}"]]])
}
}
}
stage('Build') {
steps {
script {
build.Build(buildType,buildShell)
}
}
}
}
post {
always {
script{
println("always")
}
}
success {
script{
println("succcess")
gitlab.ChangeCommitStatus(projectId,commitSha,"success")
toemail.Email("Build Success!...",userEmail)
}
}
failure {
script{
println("failure")
gitlab.ChangeCommitStatus(projectId,commitSha,"failed")
toemail.Email("Build failed!...",userEmail)
}
}
aborted {
script{
println("aborted")
gitlab.ChangeCommitStatus(projectId,commitSha,"canceled")
toemail.Email("Build Canceled!...",userEmail)
}
}
}
}
Console Output
Contributing variables:
after = 2bb50eebe62e9cfc401905f4dd47981fc2f8b78e
before = c3c7ced66b6c50f472d1c681156e7c16fb41b12c
branch = refs/heads/master
commitSha = 2bb50eebe62e9cfc401905f4dd47981fc2f8b78e
object_kind = push
projectId = 7
runOpts = Gitlabpush
runOpts_0 = Gitlabpush
userEmail = xichao2015@outlook.com
userName = root
...
Sending email to: xichao2015@outlook.com

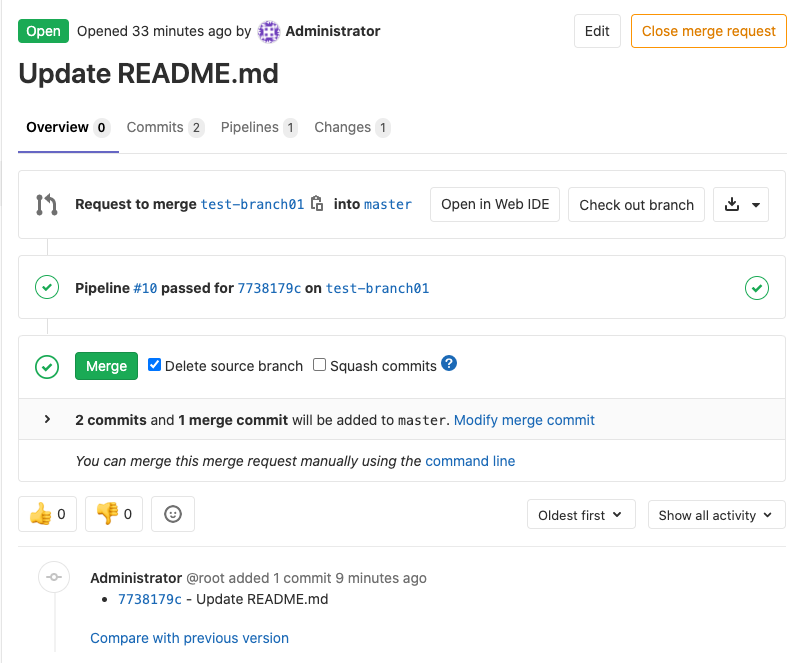

1.2 配置GitLab合并流水线¶
- Email Extension:
gitlab-merge-request-jenkins安装

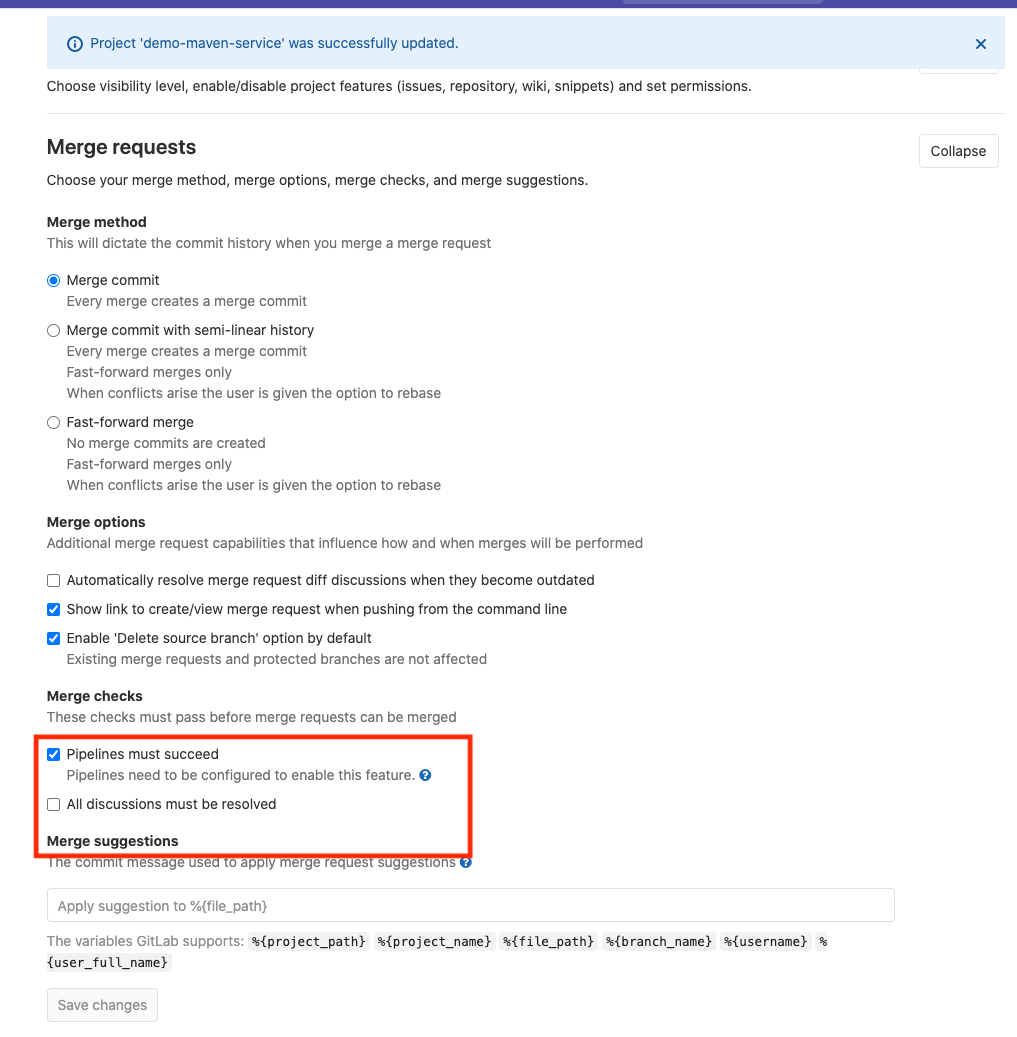

当流水线成功后合并分支
settings -> general -> Merge requests
Merge Checks -> Pipeline must success
二、第四节GitOps Gitlab-Jenkins模式下微服务CI/CD实践¶
2.1 第四节GitOps Gitlab-Jenkins模式下微服务CI/CD实践¶

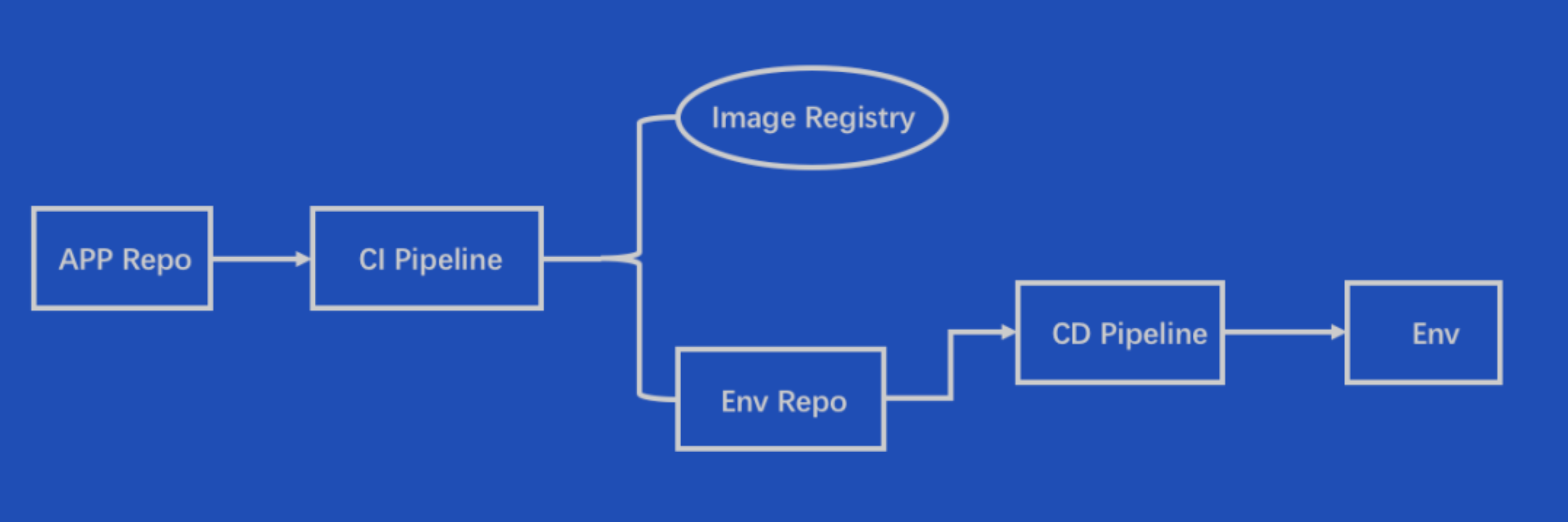

单应用与环境流程设计：

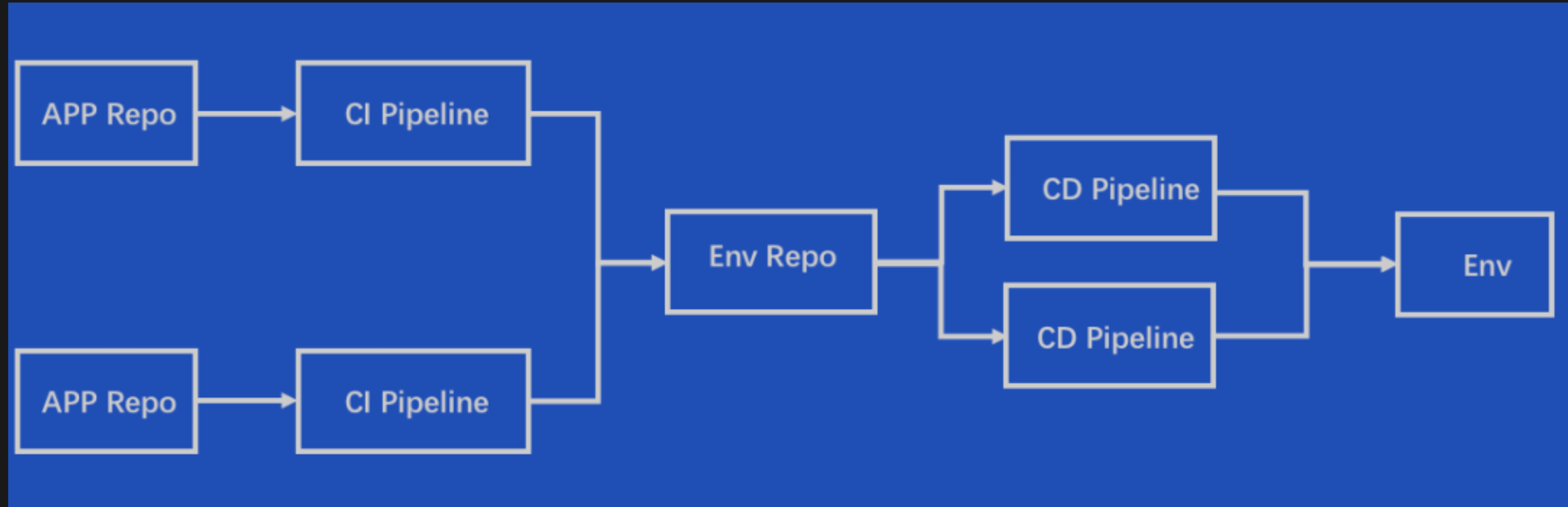

多应用与环境流程设计：
2.2 CI持续集成¶
首先准备一个代码库：https://github.com/DevOpsCICDCourse/microservicescicd/blob/main/microservice-demo-service-master.zip

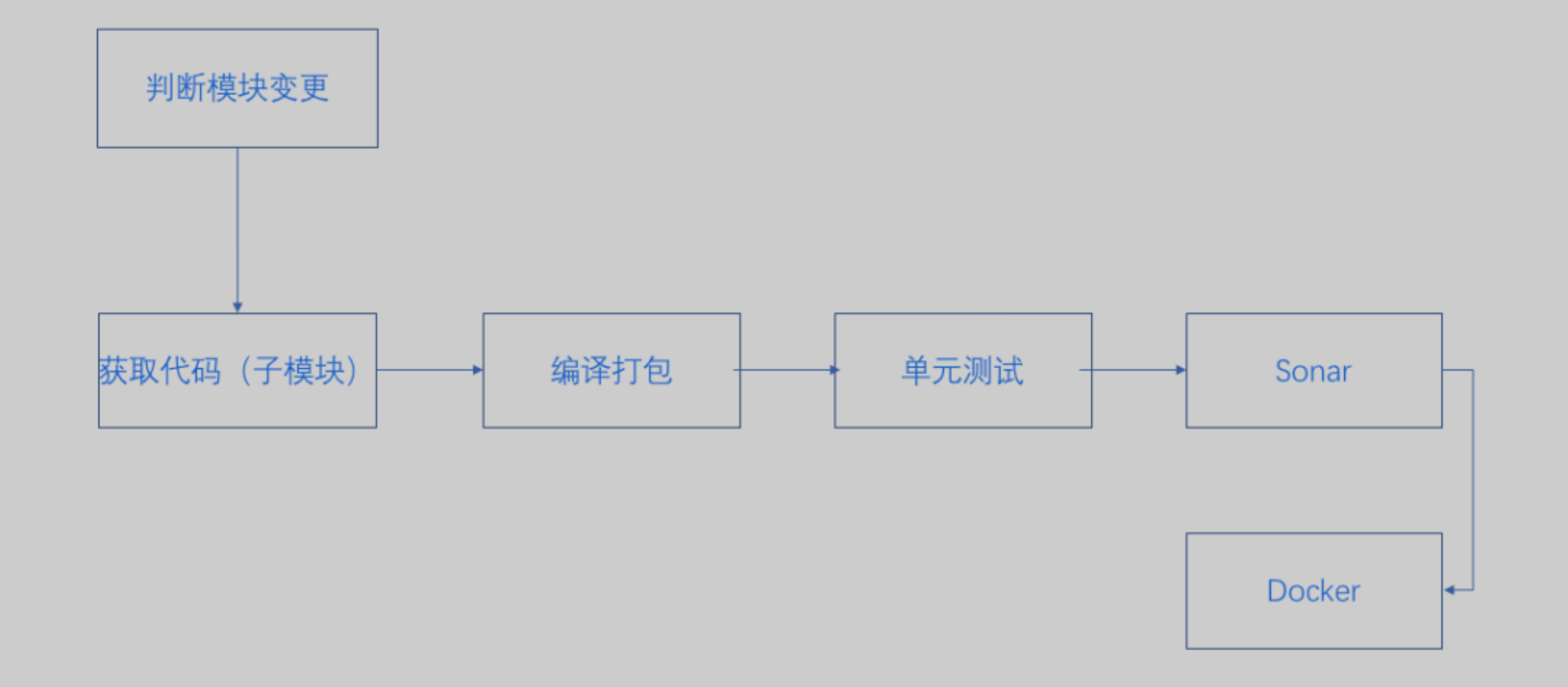

我们来梳理一下CI流水线的步骤：
- 由于此次实现的代码仓库类型为单一存储库，即一个存储库存放多个服务模块代码，每个子目录为一个服务模块。
- 首先，我们的持续集成流水线需要能够正确获取，当前的commit是哪个服务的代码。
- 确定好服务，然后下载该服务的代码，进行编译打包、单元测试、代码扫描和构建镜像等步骤。
如何获取commit的服务信息？这里我们使用GitLab WebHook功能和Jenkins 的job 构建触发器对接来实现。

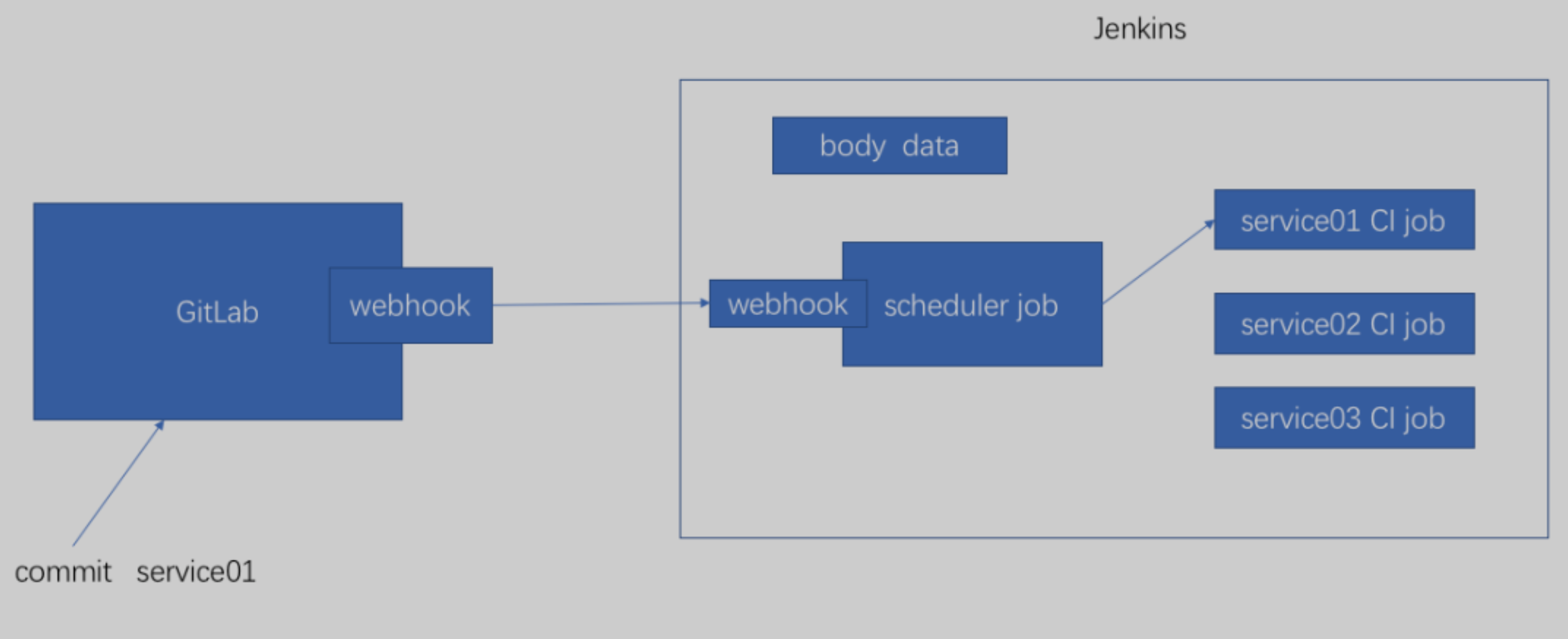

工作流程是：
当我在Gitlab提交了代码，会通过GitLab webhook 触发Jenkins Scheduler 作业， 会将此次提交代码所产生的hook data数据信息以POST的方式传给Jenkins Job。
此时Jenkins job可以编写使用Generic Hook插件获取此次POST请求传输过来的请求体Body信息。
是一段JSON数据， 该job运行后编写Pipeline 解析JSON中的数据拿到所变更的服务模块信息。最后触发对应服务的CI作业进行构建。

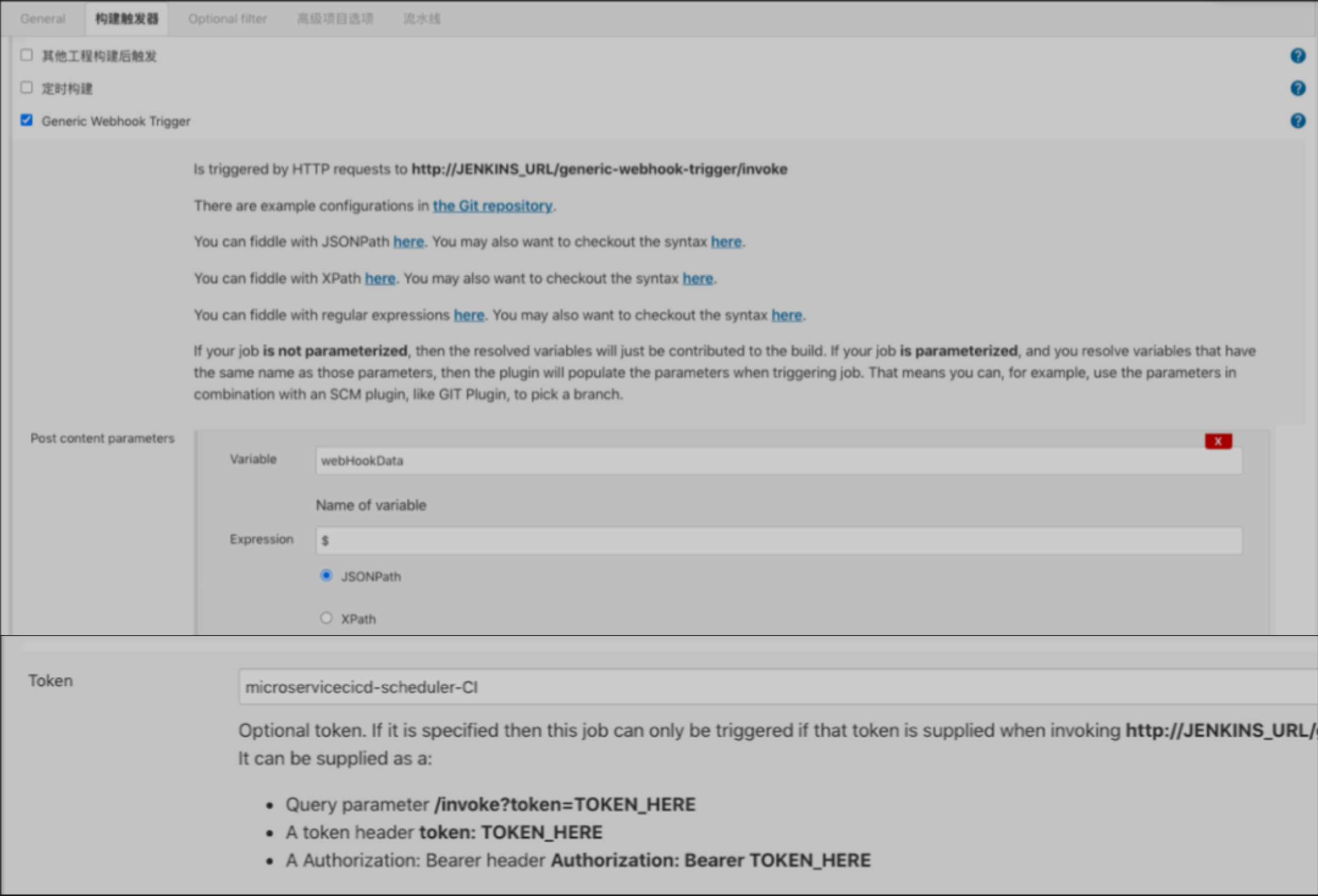

2.2.1 CI-Scheduler作业¶
此作业只需要开启webhook， 配置触发token（唯一性）。生成hookurl：http://jenkins.idevops.site/generic-webhook-trigger/invoke?token=microservicecicd-scheduler-CI
Jenkinsfile
pipeline {
agent any
stages{
stage("GetData"){
steps{
script {
echo "${webHookData}"
data = readJSON text: "${webHookData}"
println(data)
env.branchName = data.ref - "refs/heads/"
env.commitId = data.checkout_sha
env.projectId = data.project_id
commits = data["commits"]
println("${env.branchName}")
println("${env.commitID}")
println("${env.projectId}")
//env.moduleName = "service01"
changeServices = []
for(commit in commits) {
println(commit.id)
//added
for (add in commit.added) {
s = add.split("/") as List
if (s.size() > 1){
if (changeServices.indexOf(s[0]) == -1){
changeServices.add(s[0])
}
}
}
//modified
for (m in commit.modified) {
s = m.split("/") as List
// println s
// println s.size()
// println s[0]
if (s.size() > 1){
// println changeServices.indexOf(s[0])
if (changeServices.indexOf(s[0]) == -1){
changeServices.add(s[0])
}
}
}
//removed
for (r in commit.removed) {
s = r.split("/") as List
println s
if (s.size() > 1){
if (changeServices.indexOf(s[0]) == -1){
changeServices.add(s[0])
}
}
}
}
println(changeServices)
//currentBuild.description = " Trigger by ${eventType} ${changeServices}
}
}
}
stage('DefineService') {
steps {
script{
println(changeServices)
//服务构建顺序控制
services = ['service02', 'service01']
for (service in services){
if (changeServices.indexOf(service) != -1){
jobName = 'microservicecicd-'+service+'-service-CI'
build job: jobName, wait: false, parameters: [string(name: 'branchName', value: "${env.branchName}" ),
string(name: 'commitId', value: "${env.commitId}" ),
string(name: 'projectId', value: "${env.projectId}" )]
}
}
}
}
}
}
}

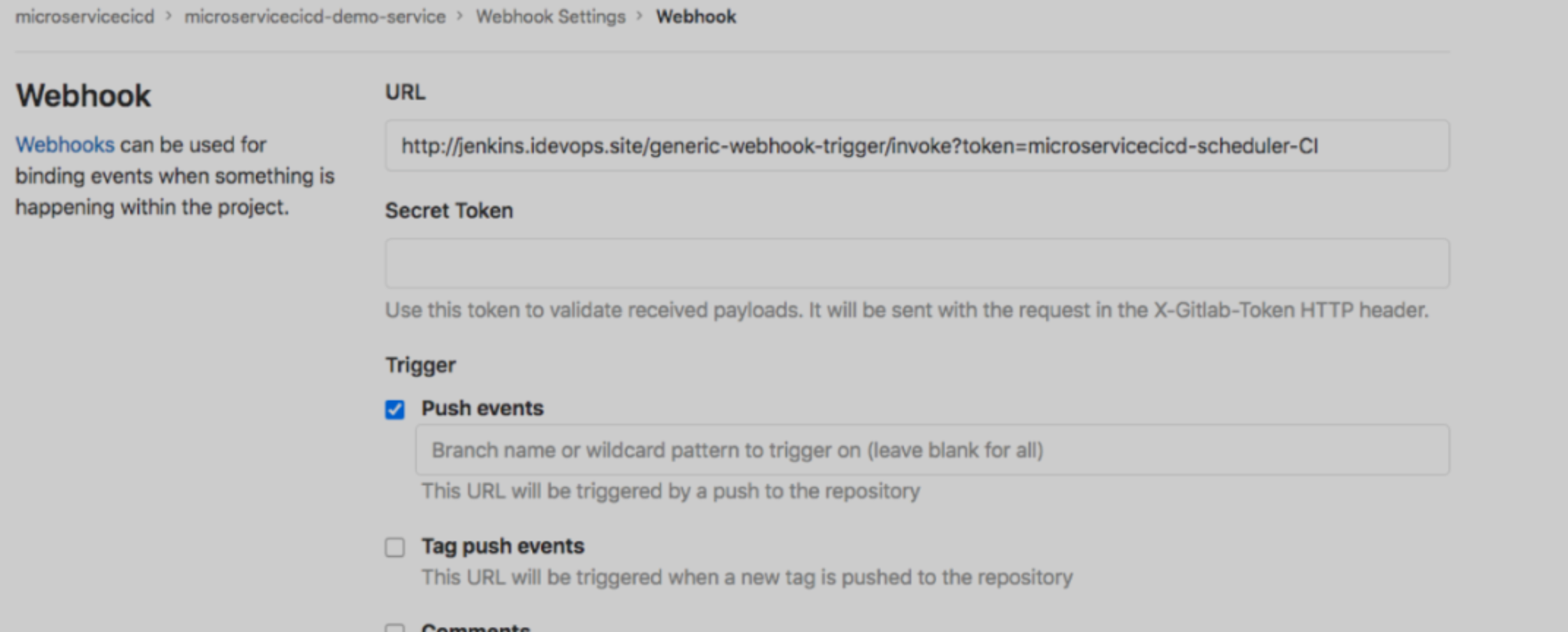

GitLab 配置WebHook
开启webhook，配置hookurl：http://jenkins.idevops.site/generic-webhook-trigger/invoke?token=microservicecicd-scheduler-CI

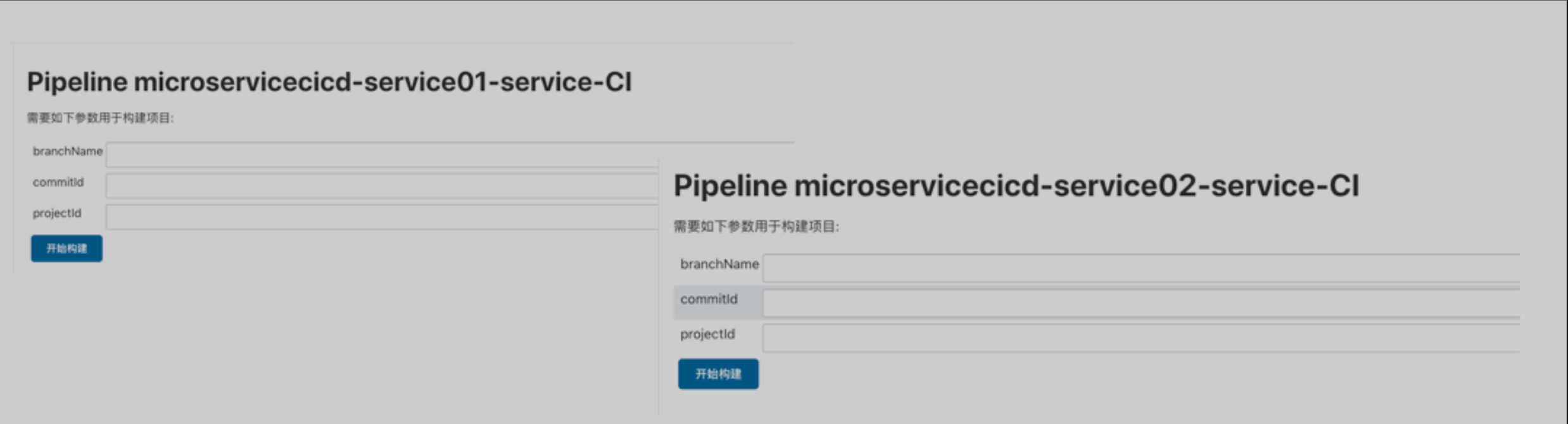

CI流水线-CI作业
每个微服务创建一个CI作业，具有三个字符串参数：分支名称、commitID、项目ID。
Jenkinsfile
String branchName = "${env.branchName}"
String moduleName = "${JOB_NAME}".split("/")[1].split("-")[1]
String srcUrl = "http://gitlab.idevops.site/microservicecicd/microservicecicd-demo-service.git"
String commitId = "${env.commitId}"
String projectId = "${env.projectId}"
pipeline {
agent { node { label "build" } }
stages {
stage('GetCode') {
steps {
script {
checkout([$class: 'GitSCM',
branches: [[name: "${branchName}"]],
doGenerateSubmoduleConfigurations: false,
extensions: [[$class: 'SparseCheckoutPaths',
sparseCheckoutPaths: [[path: "${moduleName}"],[path: 'Dockerfile']]]],
submoduleCfg: [],
userRemoteConfigs: [[credentialsId: 'gitlab-admin-user',
url: "${srcUrl}"]]])
}
}
}
stage("Build&Test"){
steps{
script{
echo "Build..........."
sh """
cd ${moduleName}
mvn clean package
"""
}
}
post {
always {
junit "${moduleName}/target/surefire-reports/*.xml"
}
}
}
stage("SonarScan"){
steps{
script{
def sonarDate = sh returnStdout: true, script: 'date +%Y%m%d%H%M%S'
sonarDate = sonarDate - "\n"
withCredentials([string(credentialsId: 'sonar-admin-user', variable: 'sonartoken'),
string(credentialsId: 'gitlab-user-token', variable: 'gitlabtoken')]) {
// some block
sh """
cd ${moduleName}
sonar-scanner \
-Dsonar.projectKey=${JOB_NAME} \
-Dsonar.projectName=${JOB_NAME} \
-Dsonar.projectVersion=${sonarDate} \
-Dsonar.ws.timeout=30 \
-Dsonar.projectDescription="xxxxxxx" \
-Dsonar.links.homepage=http://www.baidu.com \
-Dsonar.sources=src \
-Dsonar.sourceEncoding=UTF-8 \
-Dsonar.java.binaries=target/classes \
-Dsonar.java.test.binaries=target/test-classes \
-Dsonar.java.surefire.report=target/surefire-reports \
-Dsonar.host.url="http://sonar.idevops.site" \
-Dsonar.login=${sonartoken} \
-Dsonar.gitlab.commit_sha=${commitId} \
-Dsonar.gitlab.ref_name=${branchName} \
-Dsonar.gitlab.project_id=${projectId} \
-Dsonar.dynamicAnalysis=reuseReports \
-Dsonar.gitlab.failure_notification_mode=commit-status \
-Dsonar.gitlab.url=http://gitlab.idevops.site \
-Dsonar.gitlab.user_token=${gitlabtoken} \
-Dsonar.gitlab.api_version=v4
"""
}
}
}
}
stage("BuildImage"){
steps{
script{
withCredentials([usernamePassword(credentialsId: 'aliyun-registry-admin', passwordVariable: 'password', usernameVariable: 'username')]) {
env.nowDate = sh returnStdout: true, script: 'date +%Y%m%d%H%M%S'
env.nowDate = env.nowDate - "\n"
env.releaseVersion = "${env.branchName}"
env.imageTag = "${releaseVersion}-${nowDate}-${commitId}"
env.dockerImage = "registry.cn-beijing.aliyuncs.com/microservicecicd/microservicecicd-${moduleName}-service:${env.imageTag}"
env.jarName = "${moduleName}-${branchName}-${commitId}"
sh """
docker login -u ${username} -p ${password} registry.cn-beijing.aliyuncs.com
cd ${moduleName} && docker build -t ${dockerImage} -f ../Dockerfile --build-arg SERVICE_NAME=${jarName} .
sleep 1
docker push ${dockerImage}
sleep 1
docker rmi ${dockerImage}
"""
}
}
}
}
}
}
2.3 GitOps-CI扩展部分¶

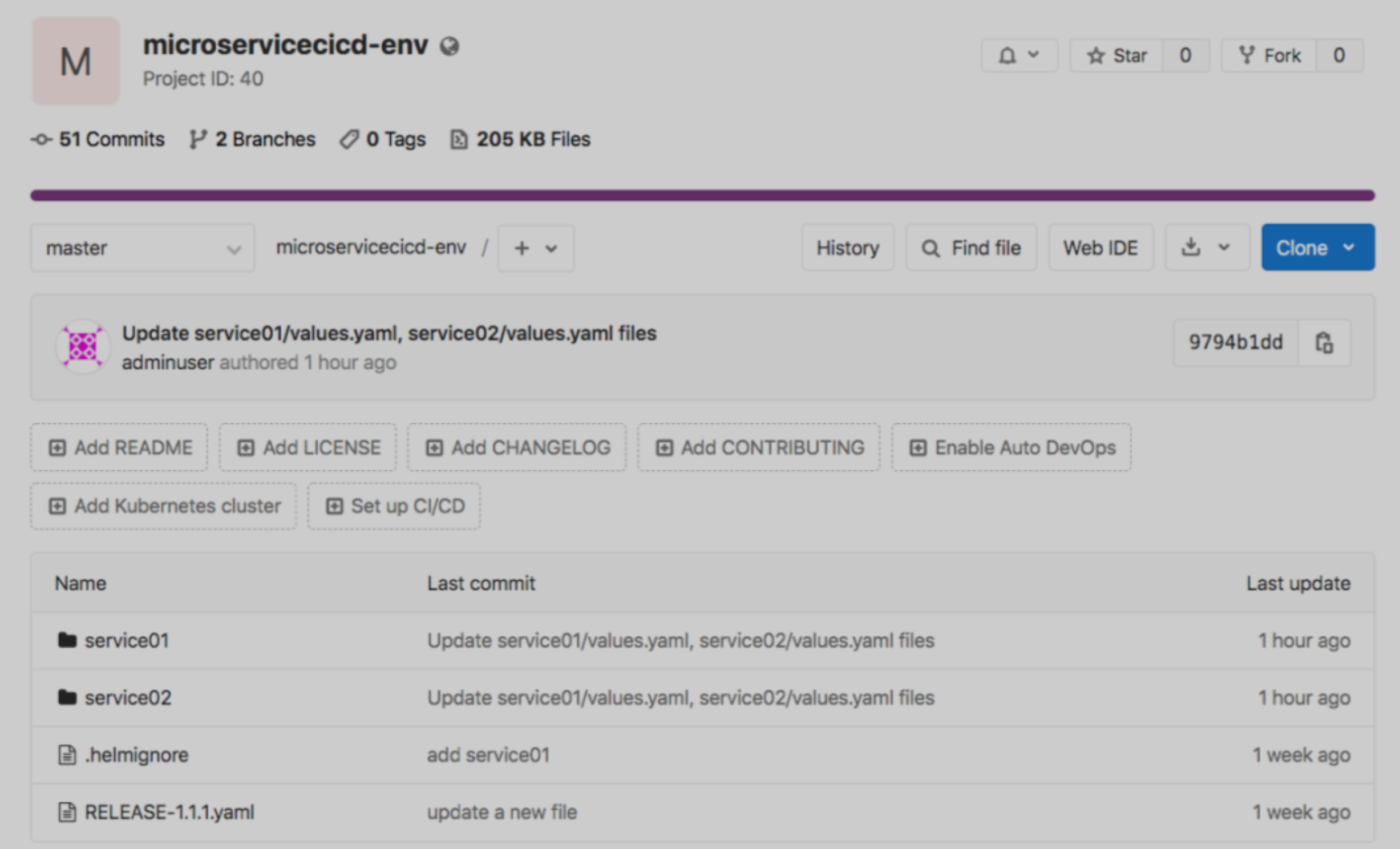

在原始CI作业的步骤基础上，增加了一个更新环境的步骤。GitOps实践会将当前的基础环境部署文件存放到一个Git仓库中。
我们的CI作业在完成镜像上传后，同时更新环境部署文件中的镜像标签信息。（所以我们需要先获取该环境文件并更新上传）
stage("PushFile"){
// when {
// expression { "${env.branchName}".contains("RELEASE-") }
// }
steps{
script{
if ("${env.branchName}".contains("RELEASE-")){
println("branchName = branchName")
env.branchName = "master"
} else {
env.branchName = "feature"
}
for (i = 0; i < 3; i++) {
//下载版本库文件
response = GetRepoFile(40,"${moduleName}%2fvalues.yaml", "${env.branchName}")
//println(response)
//替换文件中内容
yamlData = readYaml text: """${response}"""
println(yamlData.image.version)
println(yamlData.image.commit)
yamlData.image.version = "${releaseVersion}-${env.nowDate}"
yamlData.image.commit = "${commitId}"
println(yamlData.toString())
sh "rm -fr test.yaml"
writeYaml charset: 'UTF-8', data: yamlData, file: 'test.yaml'
newYaml = sh returnStdout: true, script: 'cat test.yaml'
println(newYaml)
//更新gitlab文件内容
base64Content = newYaml.bytes.encodeBase64().toString()
// 会有并行问题，同时更新报错
try {
UpdateRepoFile(40,"${moduleName}%2fvalues.yaml",base64Content, "${env.branchName}")
break;
} catch(e){
sh "sleep 2"
continue;
}
}
}
}
}
//封装HTTP请求
def HttpReq(reqType,reqUrl,reqBody){
def gitServer = "http://gitlab.idevops.site/api/v4"
withCredentials([string(credentialsId: 'gitlab-token', variable: 'gitlabToken')]) {
result = httpRequest customHeaders: [[maskValue: true, name: 'PRIVATE-TOKEN', value: "${gitlabToken}"]],
httpMode: reqType,
contentType: "APPLICATION_JSON",
consoleLogResponseBody: true,
ignoreSslErrors: true,
requestBody: reqBody,
url: "${gitServer}/${reqUrl}"
//quiet: true
}
return result
}
//获取文件内容
def GetRepoFile(projectId,filePath,branchName){
apiUrl = "projects/${projectId}/repository/files/${filePath}/raw?ref=${branchName}"
response = HttpReq('GET',apiUrl,'')
return response.content
}
//更新文件内容
def UpdateRepoFile(projectId,filePath,fileContent, branchName){
apiUrl = "projects/${projectId}/repository/files/${filePath}"
reqBody = """{"branch": "${branchName}","encoding":"base64", "content": "${fileContent}", "commit_message": "update a new file"}"""
response = HttpReq('PUT',apiUrl,reqBody)
println(response)
}
2.3.1 GitOps-CD部分¶
CD-Scheduler作业

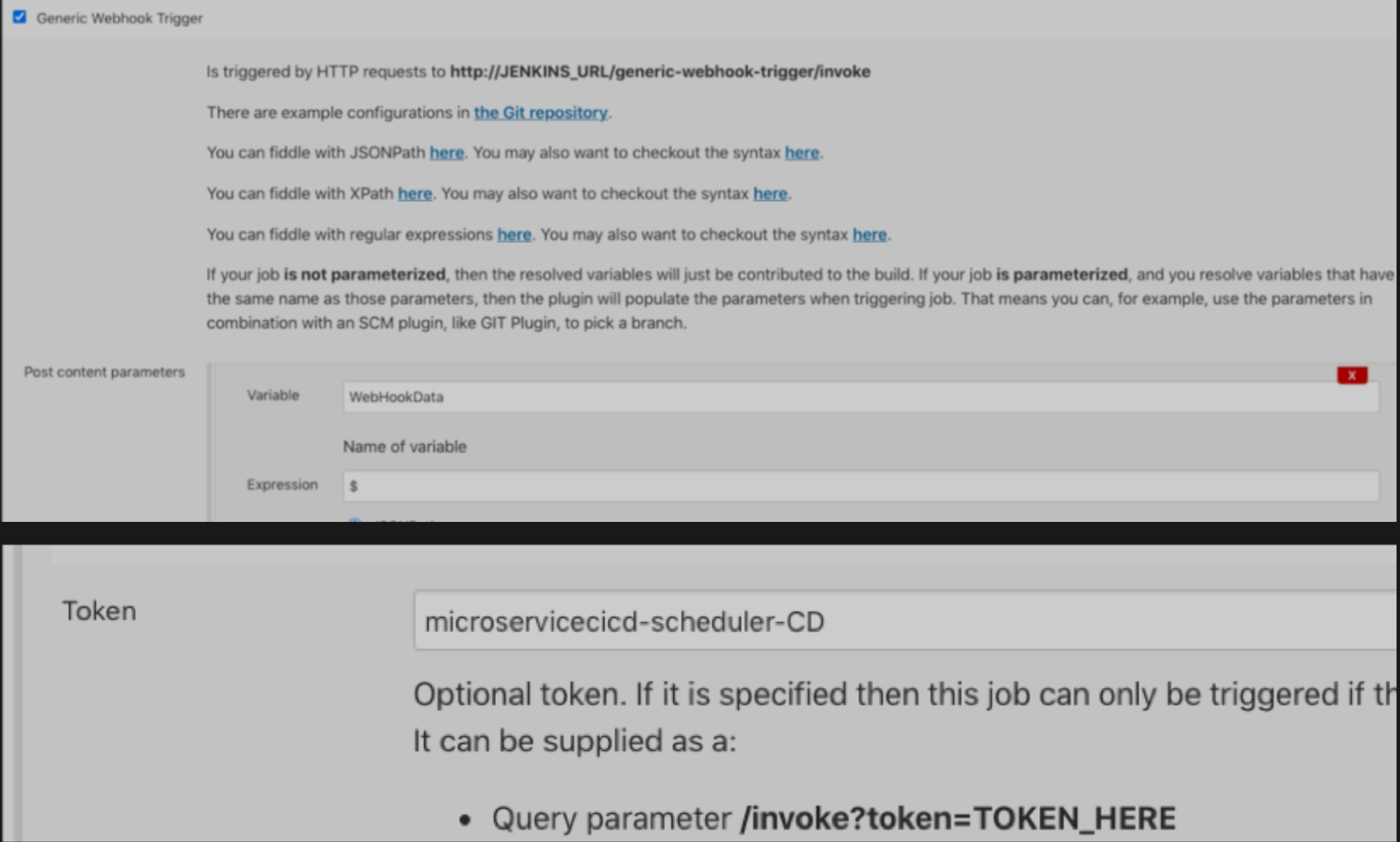

此作业其实也是接收GitLab的webhook请求， 与CI-scheduler作业类似。不同的是这个CD-scheduler作业是用来接收环境仓库的代码变更。开启webhook， 配置触发token。
生成hookurl：http://jenkins.idevops.site/generic-webhook-trigger/invoke?token=microservicecicd-scheduler-CD
Jenkinsfile
pipeline {
agent any
stages {
stage('GetCommitService') {
steps {
script{
echo 'Hello World'
echo "${WebHookData}"
// Git Info
webhookdata = readJSON text: """${WebHookData}"""
eventType = webhookdata["object_kind"]
commits = webhookdata["commits"]
branchName = webhookdata["ref"] - "refs/heads/"
projectID = webhookdata["project_id"]
commitID = webhookdata["checkout_sha"]
changeServices = []
for(commit in commits) {
println(commit.id)
//added
for (add in commit.added) {
s = add.split("/") as List
if (s.size() > 1){
if (changeServices.indexOf(s[0]) == -1){
changeServices.add(s[0])
}
}
}
//modified
for (m in commit.modified) {
s = m.split("/") as List
// println s
// println s.size()
// println s[0]
if (s.size() > 1){
// println changeServices.indexOf(s[0])
if (changeServices.indexOf(s[0]) == -1){
changeServices.add(s[0])
}
}
}
//removed
for (r in commit.removed) {
s = r.split("/") as List
println s
if (s.size() > 1){
if (changeServices.indexOf(s[0]) == -1){
changeServices.add(s[0])
}
}
}
}
println(changeServices)
currentBuild.description = " Trigger by ${eventType} ${changeServices} "
}
}
}
stage('DefineService') {
steps {
script{
println(changeServices)
//服务构建顺序控制
services = ['service02', 'service01']
for (service in services){
if (changeServices.indexOf(service) != -1){
jobName = 'microservicecicd-'+service+'-service-CD'
build job: jobName, wait: false, parameters: [string(name: 'branchName', value: "${branchName}" )]
}
}
}
}
}
}
}

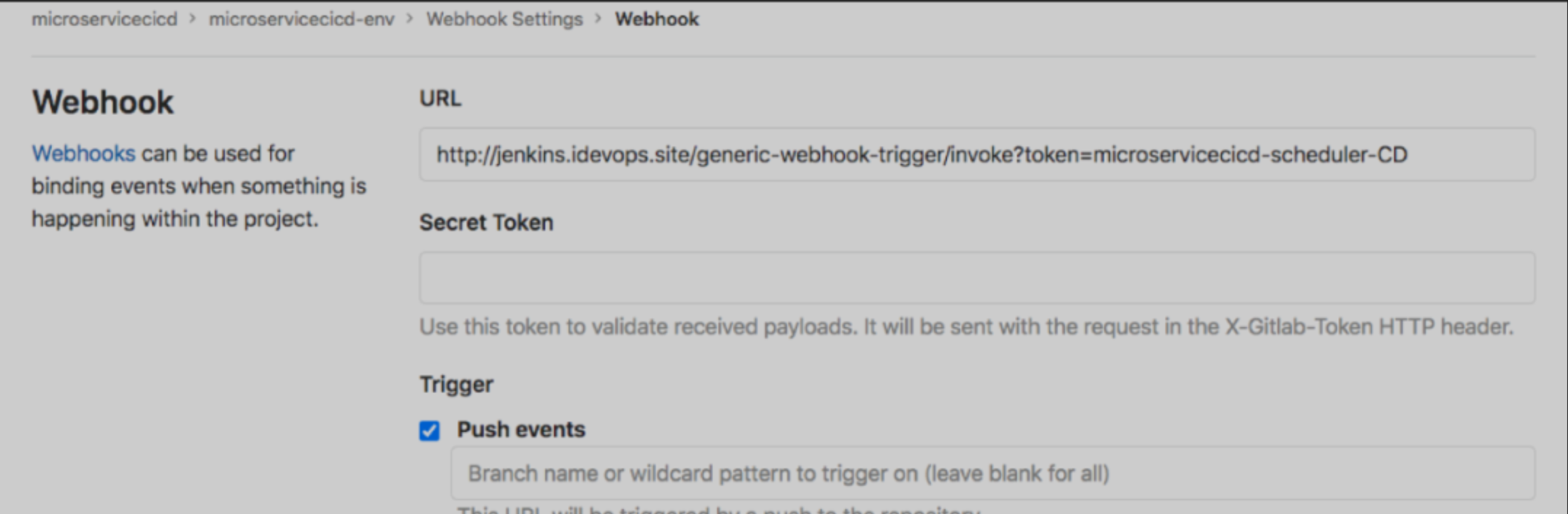

环境库配置webhook
开启webhook，配置hookurl：http://jenkins.idevops.site/generic-webhook-trigger/invoke?token=microservicecicd-scheduler-CD

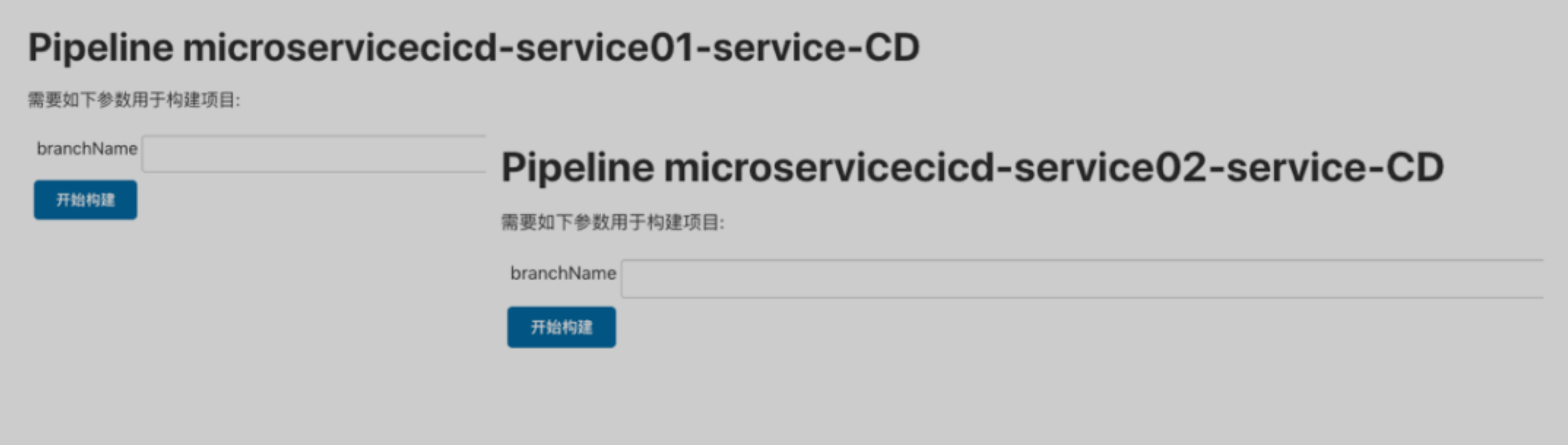

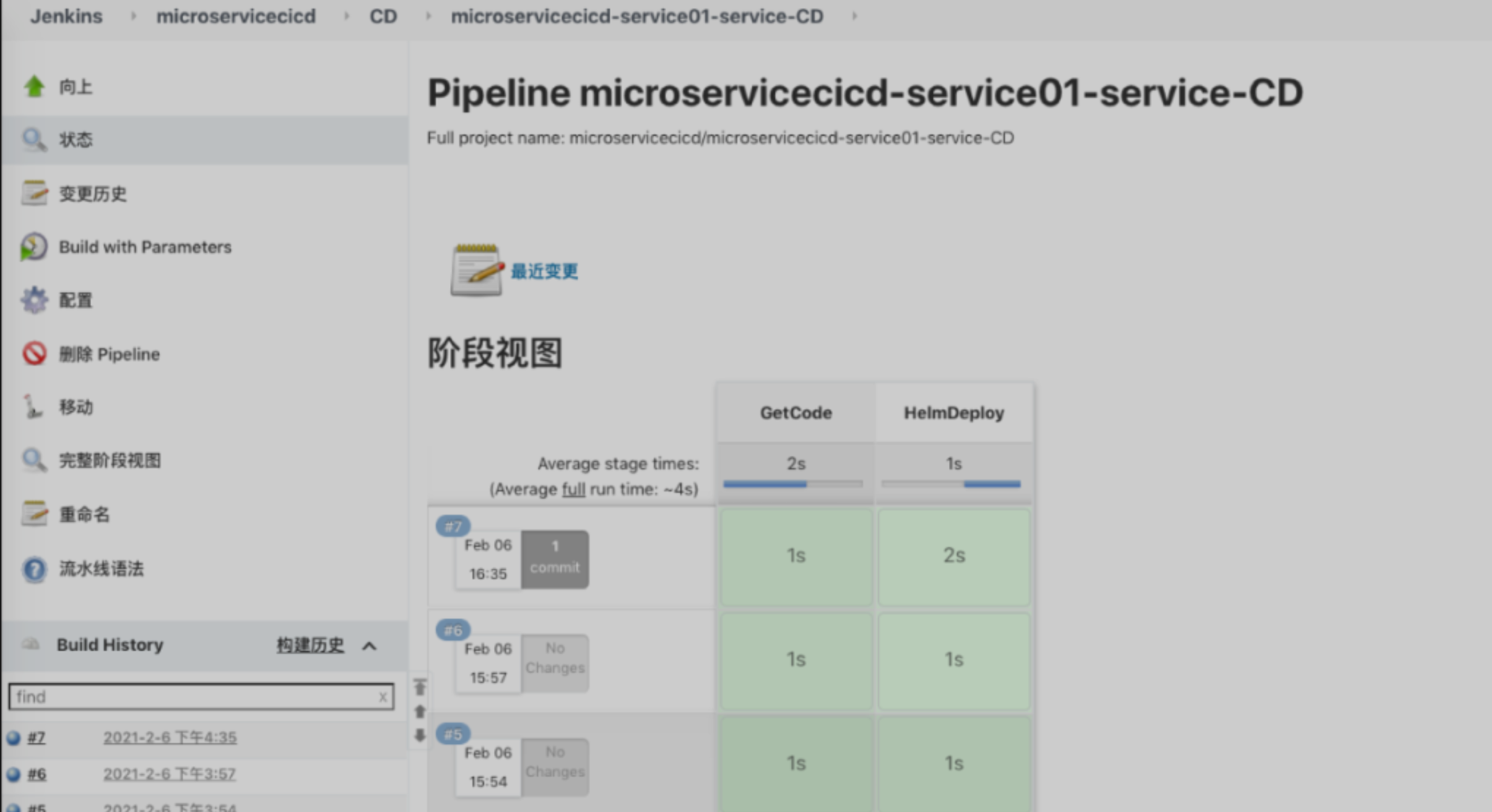

CD流水线-CD作业
Jenkinsfile
String serviceName ="${JOB_NAME}".split("-")[1]
String nameSpace = "${JOB_NAME}".split("-")[0].split("/")[-1]
//pipeline
pipeline{
agent { node { label "k8s"}}
stages{
stage("GetCode"){
steps{
script{
println("${branchName}")
println("${env.branchName}".contains("RELEASE-"))
println "获取代码"
checkout([$class: 'GitSCM', branches: [[name: "${env.branchName}"]],
doGenerateSubmoduleConfigurations: false,
extensions: [[$class: 'SparseCheckoutPaths',
sparseCheckoutPaths: [[path: "${serviceName}"]]]],
submoduleCfg: [],
userRemoteConfigs: [[credentialsId: 'gitlab-admin-user', url: "http://gitlab.idevops.site/microservicecicd/microservicecicd-env.git"]]])
}
}
}
stage("HelmDeploy"){
steps{
script{
sh """
kubectl create ns "${nameSpace}-uat" || echo false
helm install "${serviceName}" --namespace "${nameSpace}-uat" ./"${serviceName}" || helm upgrade "${serviceName}" --namespace "${nameSpace}-uat" ./"${serviceName}"
helm list --namespace "${nameSpace}-uat"
helm history "${serviceName}" --namespace "${nameSpace}-uat"
"""
}
}
}
}
}
