一、SonarQube：持续代码质量检查¶
1.1 SonarQube：持续代码质量检查¶
SonarQube是一个代码质量管理工具，能对20多种编程语言源码进行代码味道（Code Smells)、Bugs 、安全漏洞方面的静态分析。SonarQube有4个版本：开源版、开发者版、企业版、数据中心版（Data Center Edition）。

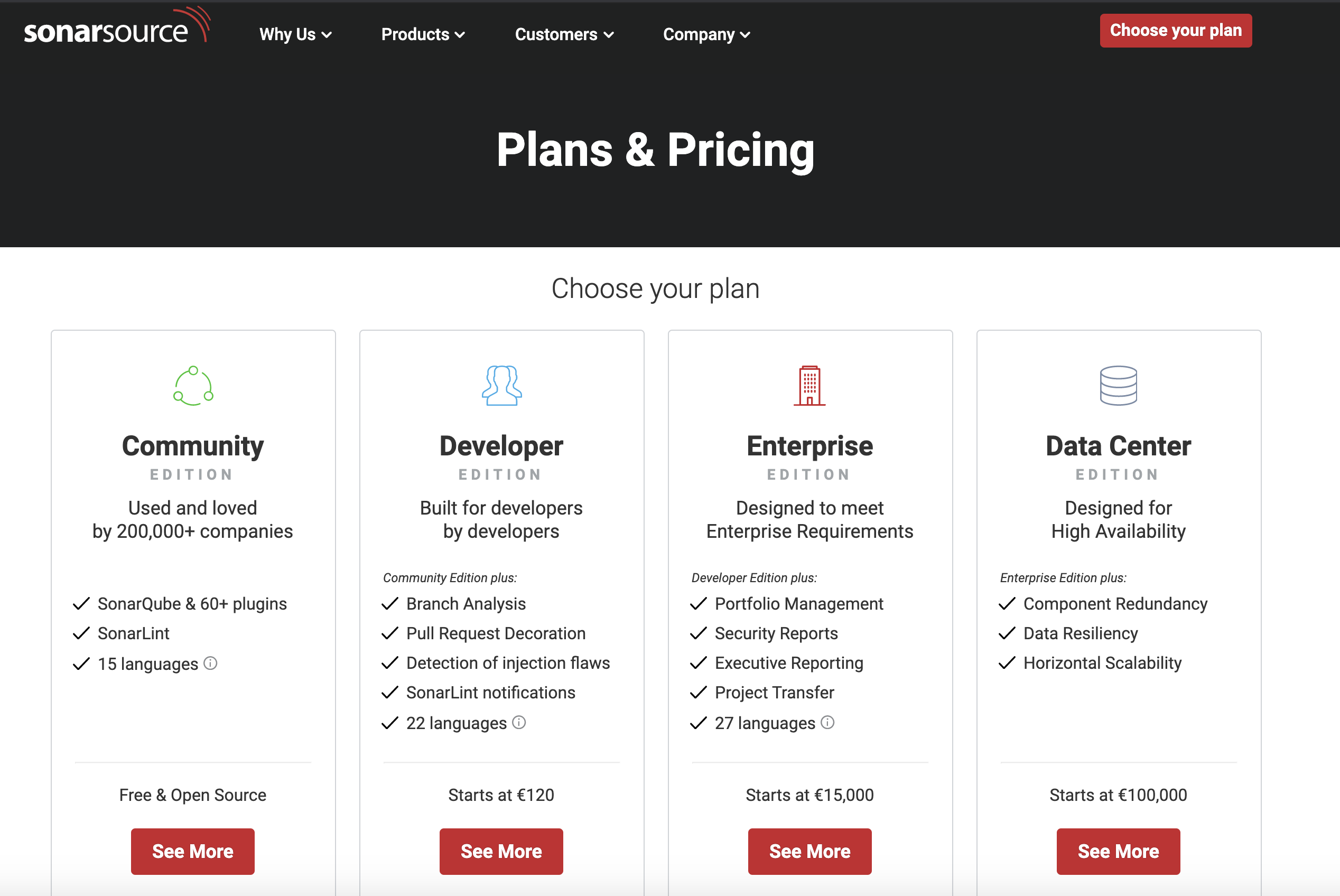

https://www.sonarsource.com/plans-and-pricing/
1.2 安装sonarqube (helm)¶
- https://hub.helm.sh/charts/oteemo/sonarqube
$ kuebctl create ns sonarqube
$ helm repo add oteemocharts https://oteemo.github.io/charts
"oteemocharts" has been added to your repositories
$ helm install sonarqube oteemocharts/sonarqube -n sonarqube -f values.yaml
NAME: sonarqube
LAST DEPLOYED: Thu Jul 30 13:33:06 2020
NAMESPACE: sonarqube
STATUS: deployed
REVISION: 1
NOTES:
1. Get the application URL by running these commands:
export POD_NAME=$(kubectl get pods --namespace sonarqube -l "app=sonarqube,release=sonarqube" -o jsonpath="{.items[0].metadata.name}")
echo "Visit http://127.0.0.1:8080 to use your application"
kubectl port-forward $POD_NAME 8080:9000

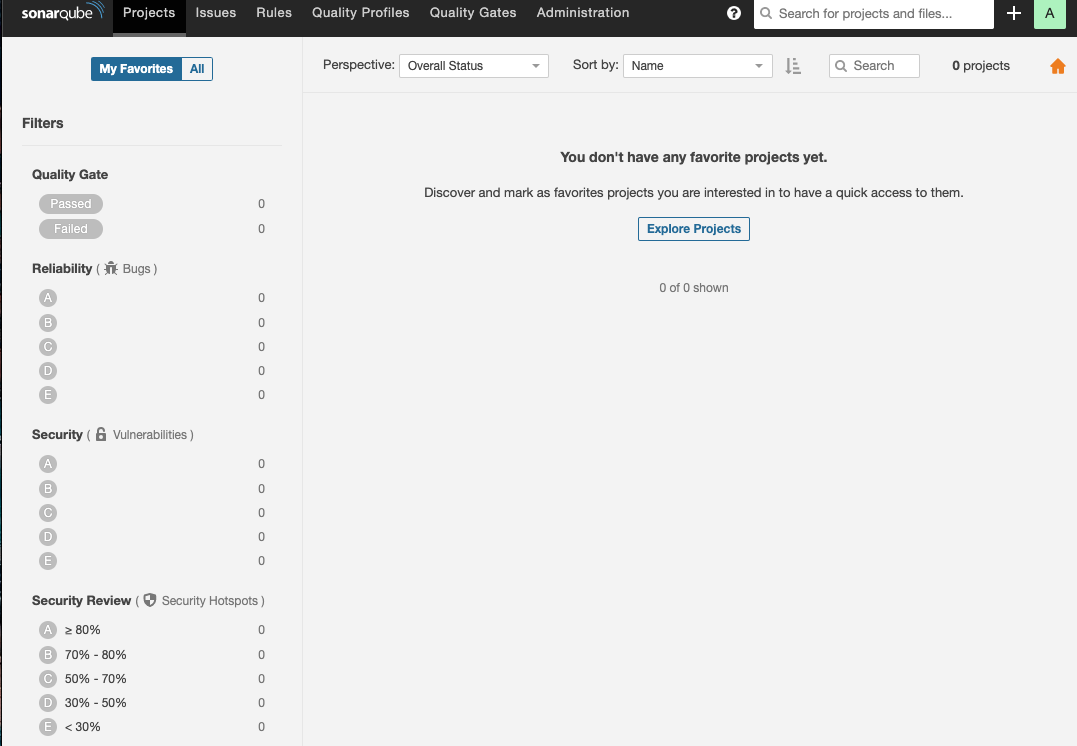

$ kubectl port-forward svc/sonarqube-sonarqube 9000:9000 -n sonarqube
Forwarding from 127.0.0.1:9000 -> 9000
Forwarding from [::1]:9000 -> 9000
Handling connection for 9000
admin
admin
values.yaml
- https://github.com/helm/charts/blob/master/stable/sonarqube/values.yaml
service:
type: NodePort
$ helm upgrade sonarqube oteemocharts/sonarqube -n sonarqube -f values.yaml
Release "sonarqube" has been upgraded. Happy Helming!
NAME: sonarqube
LAST DEPLOYED: Fri Jul 31 14:09:20 2020
NAMESPACE: sonarqube
STATUS: deployed
REVISION: 4
NOTES:
1. Get the application URL by running these commands:
export NODE_PORT=$(kubectl get --namespace sonarqube -o jsonpath="{.spec.ports[0].nodePort}" services sonarqube-sonarqube)
export NODE_IP=$(kubectl get nodes --namespace sonarqube -o jsonpath="{.items[0].status.addresses[0].address}")
echo http://$NODE_IP:$NODE_PORT
$ kubectl get svc -n sonarqube
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
sonarqube-postgresql ClusterIP 10.106.235.197 <none> 5432/TCP 22h
sonarqube-postgresql-headless ClusterIP None <none> 5432/TCP 22h
sonarqube-sonarqube NodePort 10.101.144.173 <none> 9000:32314/TCP 22h
1.3 Maven与SonarQube集成¶
1.3.1 Maven与SonarQube集成¶
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>sonar—maven—plugin</artifactId>
<version>3.4.1.1168</version>
</plugin>
执行命令
mvn clean org.sonarsource.scanner.maven:sonar-maven-plugin:3.4.1.1168:sonar -Dsonar.host.url=http://192.168.33.1:32324
#!groovy
@Library('jenkinslib@master') _
def build = new org.devops.buildtools()
pipeline {
agent { node { label "hostmachine" }}
parameters {
string(name: 'srcUrl', defaultValue: 'http://192.168.33.1:30088/root/demo-maven-service.git', description: '')
choice(name: 'branchName', choices: 'sonarqube\nmaster', description: 'Please chose your branch')
choice(name: 'buildType', choices: 'mvn', description: 'build tool')
choice(name: 'buildShell', choices: 'clean package -DskipTest\n--version', description: 'build tool')
}
stages{
stage('Checkout') {
steps {
script {
checkout([$class: 'GitSCM', branches: [[name: "${branchName}"]], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlab-admin-user', url: "${srcUrl}"]]])
}
}
}
stage('sonarqube test') {
steps {
script{
mvnHome = tool "m2"
sh "${mvnHome}/bin/mvn clean org.sonarsource.scanner.maven:sonar-maven-plugin:3.4.1.1168:sonar -Dsonar.host.url=http://192.168.33.1:32314"
}
}
}
}
}

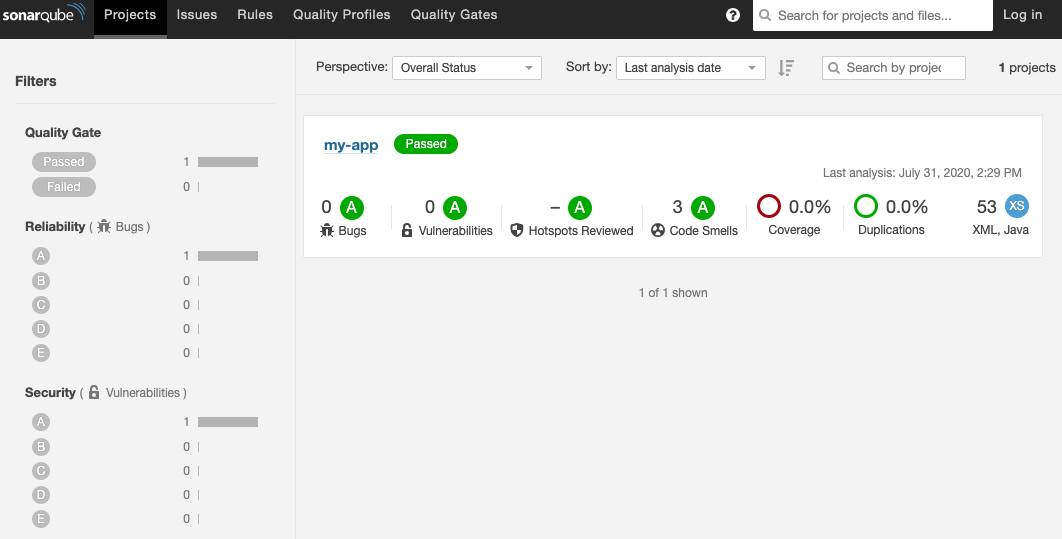

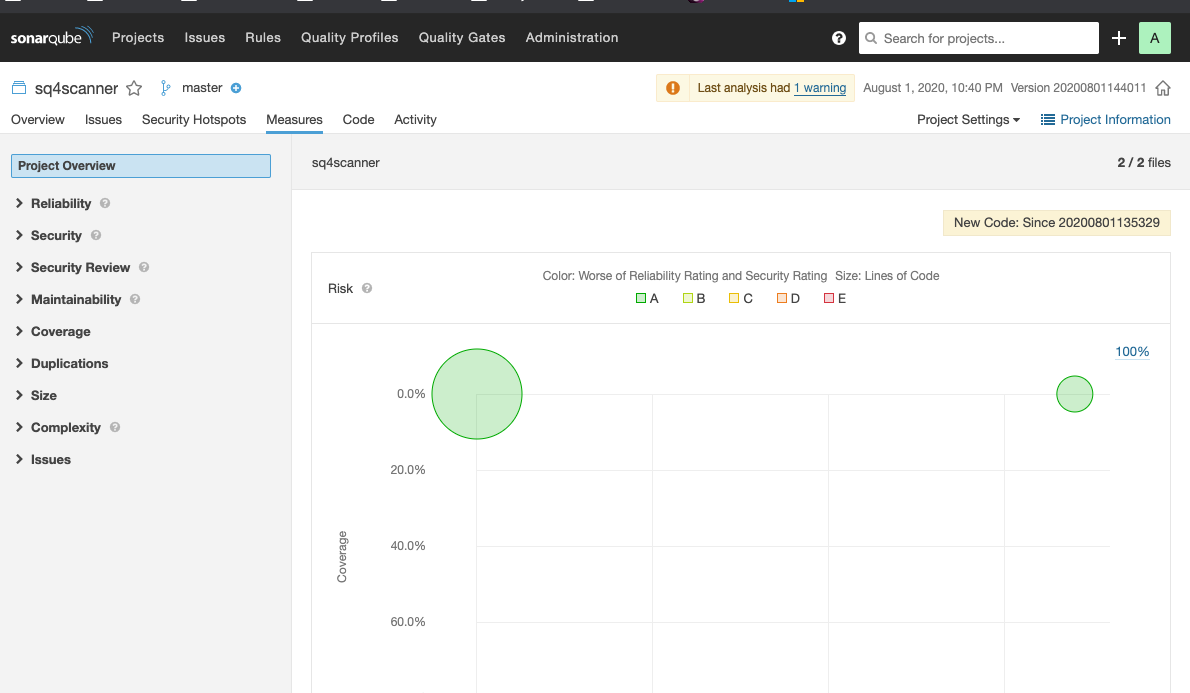

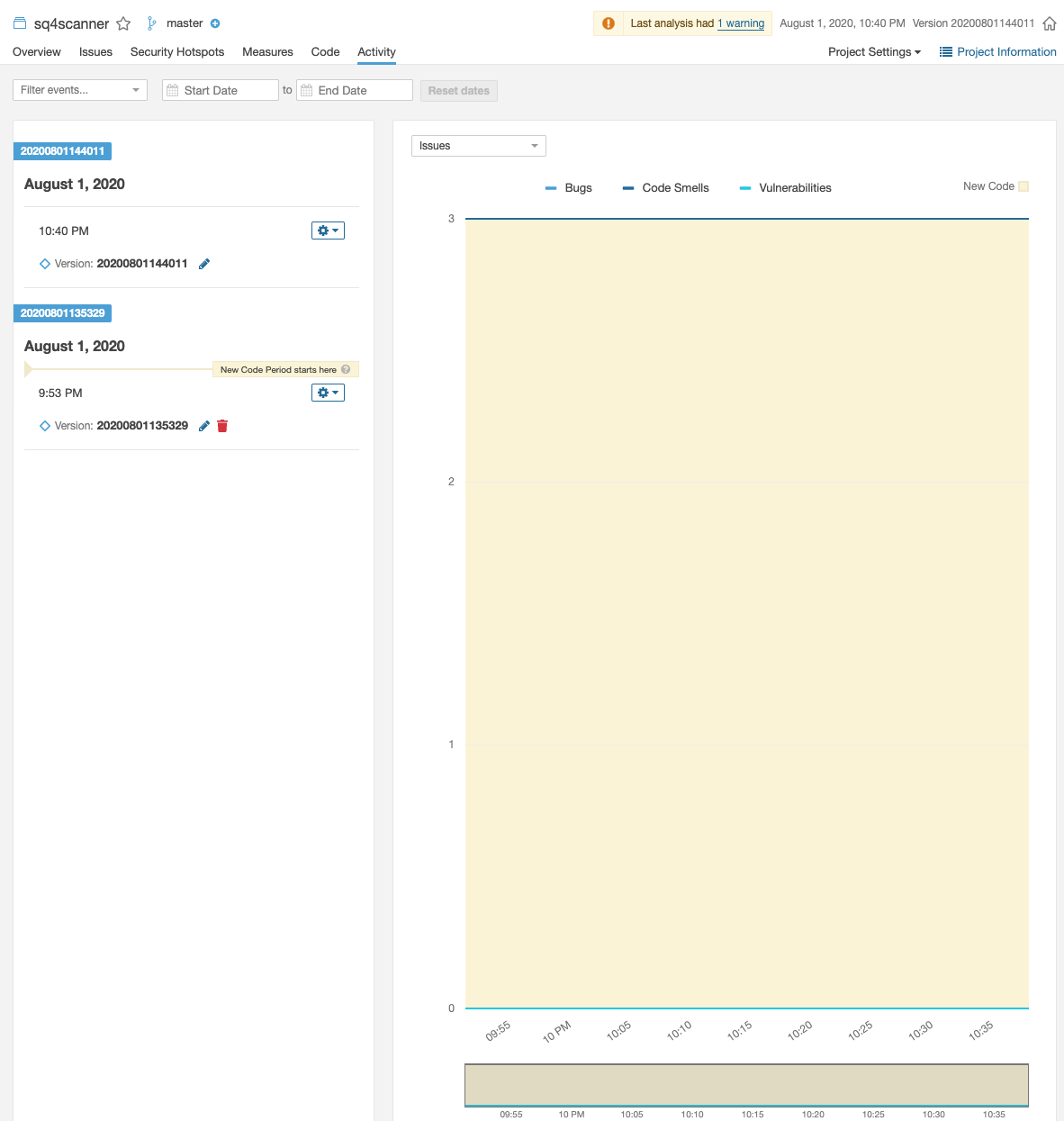

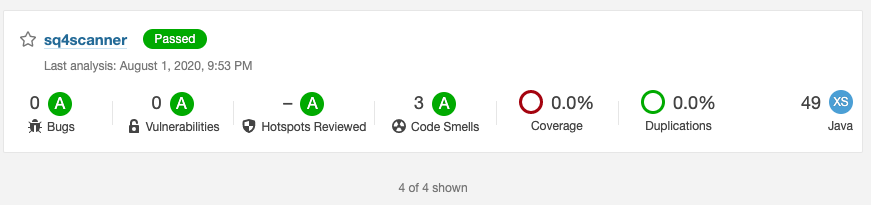

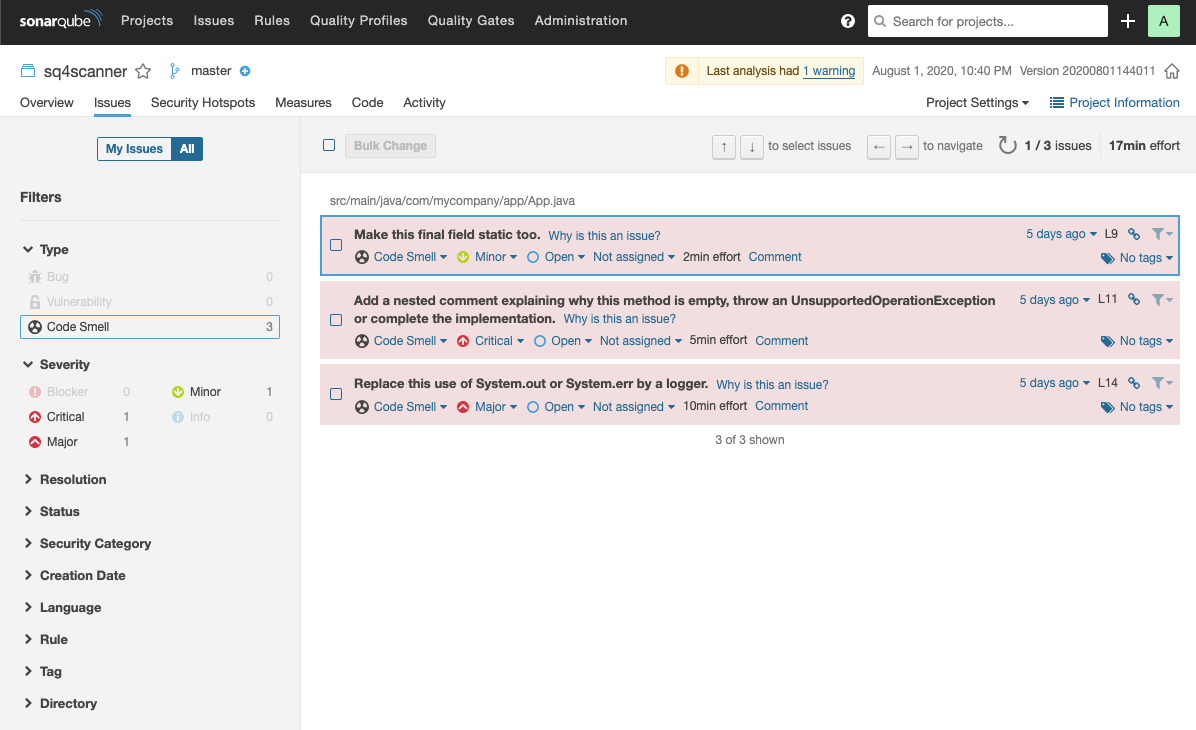

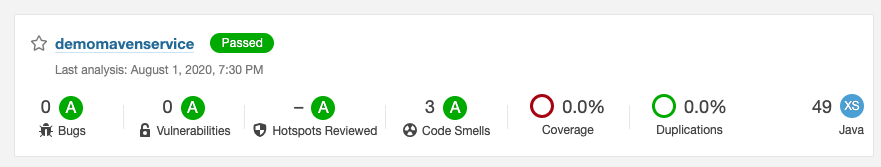

sonar.host.ur参数用于指定SonarQube服务的地址这时，就可以在SonarQube的Projects中看到结果
+ /opt/maven/bin/mvn clean org.sonarsource.scanner.maven:sonar-maven-plugin:3.4.1.1168:sonar -Dsonar.host.url=http://192.168.33.1:32314
[INFO] Scanning for projects...
Downloading from central:
...
[INFO] User cache: /home/vagrant/.sonar/cache
[INFO] SonarQube version: 8.2.0
[INFO] Default locale: "en_US", source code encoding: "UTF-8" (analysis is platform dependent)
[WARNING] SonarScanner will require Java 11 to run starting in SonarQube 8.x
[INFO] Load global settings
[INFO] Load global settings (done) | time=165ms
[INFO] Server id: EA8D9556-AXOeledPvj9r7r4MIG91
[INFO] User cache: /home/vagrant/.sonar/cache
[INFO] Load/download plugins
[INFO] Load plugins index
[INFO] Load plugins index (done) | time=62ms
...
SonarQube服务默认允许任何人执行源码分析，因此在生产环境中使用会有安全隐患。以下几步可以提高其安全性：

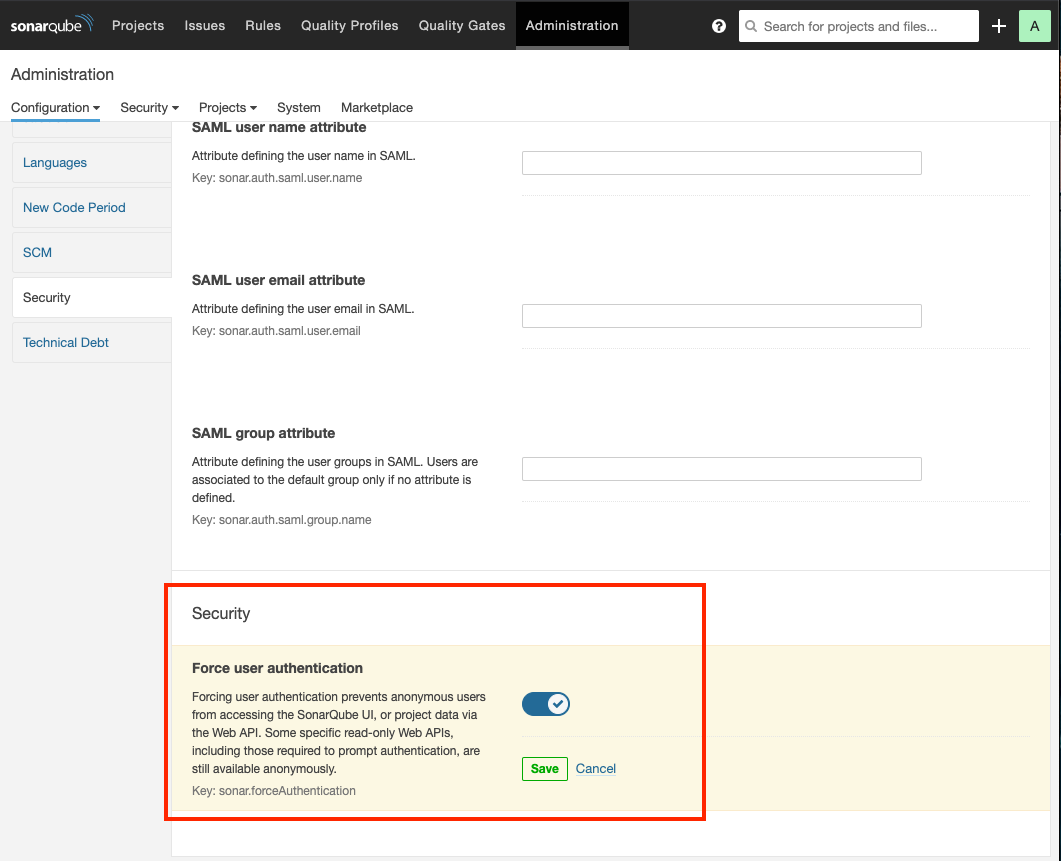

- (1）设置SonarQube禁止非登录用户使用
- (2）为用户生成

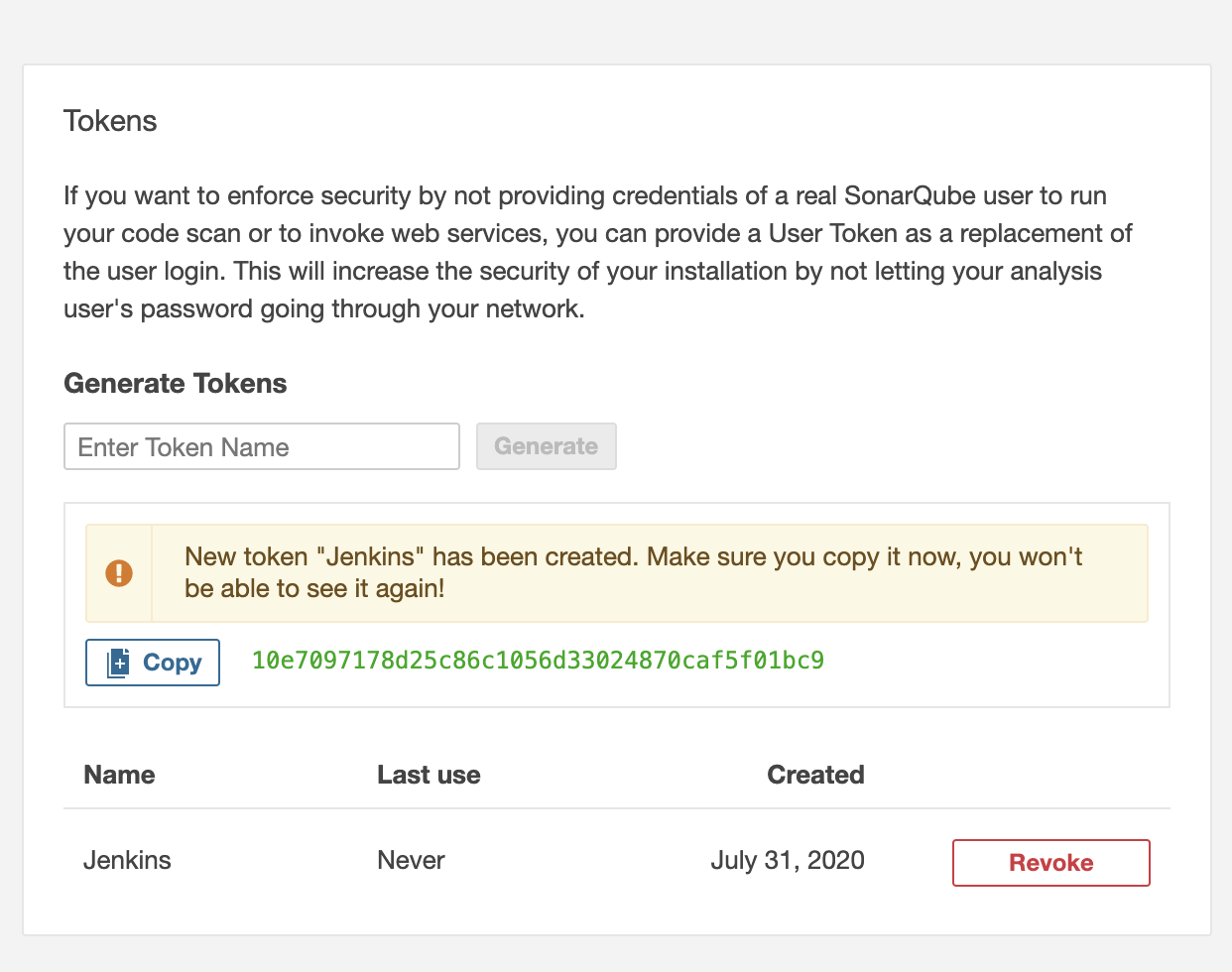

Token,Jenkins只能通过Token与SonarQube集成。登录SonarQube，进入个人设置页而中的Security tab页/account/security/
-
10e7097178d25c86c1056d33024870caf5f01bc9 -
(3）在执行mvn命令时加入相应的
sonar.login参数。
mvn clean org.sonarsource.scanner.maven:sonar-maven-plugin:3.4.1.1168:sonar -Dsonar.host.url=http://192.168.33.1:32314 -Dsonar.login=10e7097178d25c86c1056d33024870caf5f01bc9
1.3.2 2 Jenkins与SonarQube集成¶
我们将Maven与SonarQube集成。这时，SonarQube对于Jenkins来说还是很明确的，Jenkins并不知道代码质量如何。本节我们将集成Jenkins与SonarQube,以实现当代码 量不合格时，Jenkins pipeline失败。
具体步骤如下：
-
(1)
Jenkins：安装SonarQube Scanner插件（https://plugins.jenkins.io/sonar) -
(2)

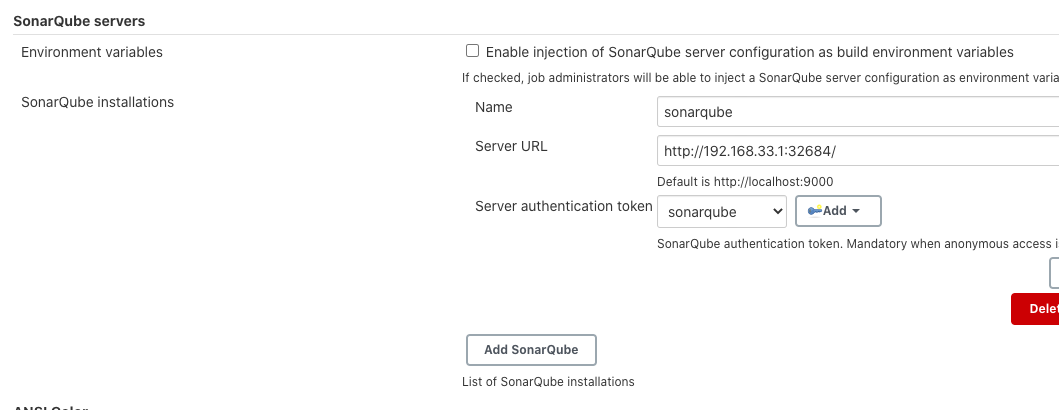

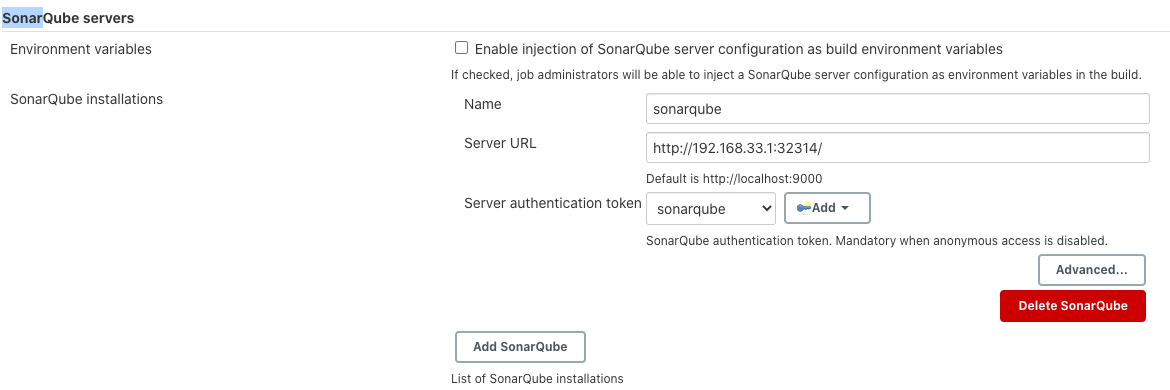

Jenkins：配置SonarQube Scanner插件，
- (3)

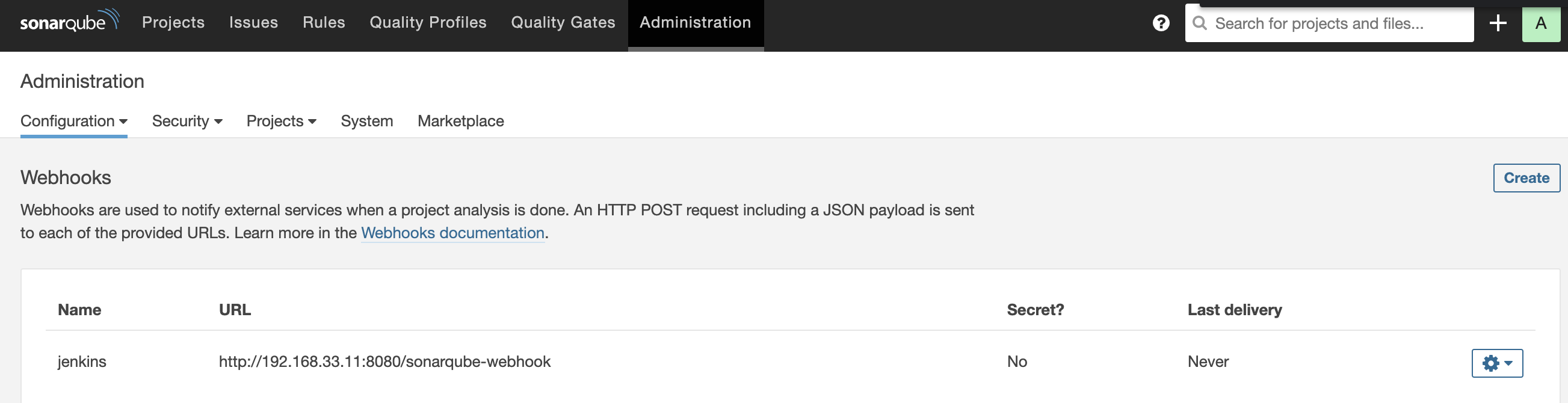

SonarQube：设置Webhooks。不同代码规模的源妈分析过程的耗时是不一样的。所以 当分析完成11寸由SonarQube主动通知Jenkins设置方法就是进人SonarQube的Adminstration -> Configuration -> Webhooks页加人＜Jenkins的地址＞/sonarqube-webhook
https://192.168.33.11:8080/sonarqube-webhook
<Jenkins的地址＞/sonarqube-webhook/接口由 Jenkiins SonaQube插件提供
- (4）在
JerkrnsfiIe中加入SonarQube的stage
stage('sonarqube test') {
steps {
withSonarQubeEnv('sonarqube') {
script{
mvnHome = tool "m2"
sh "${mvnHome}/bin/mvn clean org.sonarsource.scanner.maven:sonar-maven-plugin:3.4.1.1168:sonar -Dsonar.host.url=http://192.168.33.1:32314"
}
}
}
}
stage('Quality Gate') {
steps {
timeout(time: 1, unit: 'HOURS') {
waitForQualityGate abortPipeline: true
}
}
}
-
withSonarQubeEnv是一个环境变量包装器，读取的是我们在所配置的变量。在它的闭包内，我们可以使用以下变量。 -
SONAR_HOST_URL:SonarQube服务的地址。 -
SONAR_AUTH_TOKEN:SonarQube认证所需要的Token

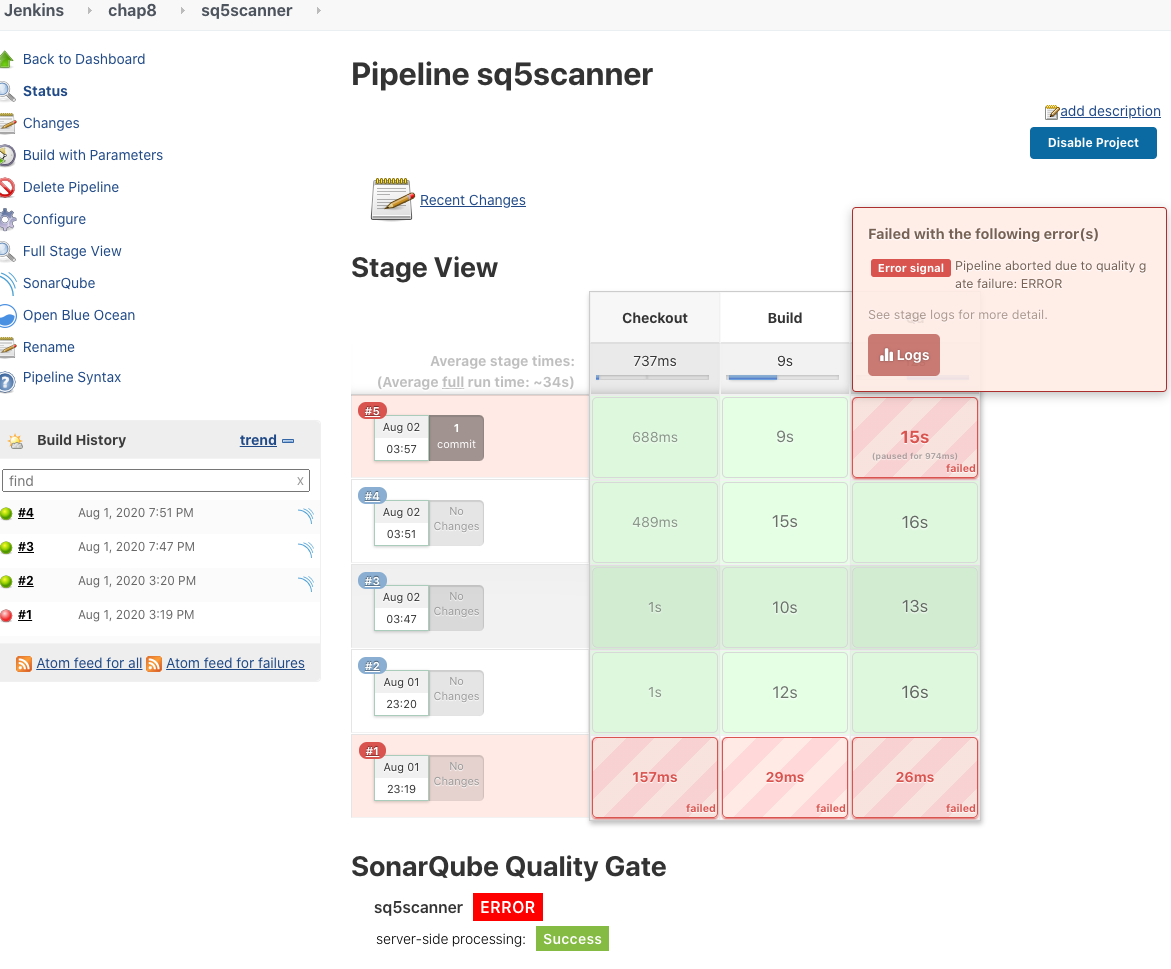

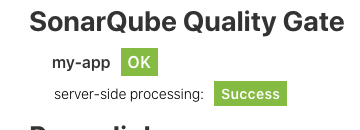

waitForQualityGate步骤告诉Jenkins等待SonarQube返回的分析结果。当它的 abortPipeline参数为true时，代表当质量不合格时，将pipeline的状态设置为UNSTABLE
我们同时使用了timeout包装器来设置waitForQualityGate步骤的超时时间，避免当网络出问题时，Jenkins任务一直处于等待状态。

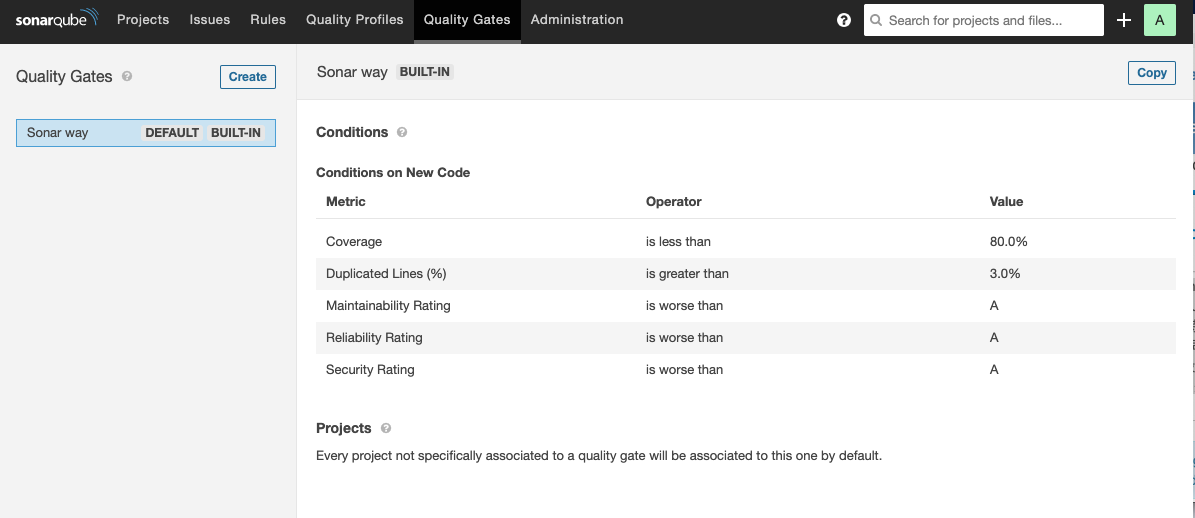

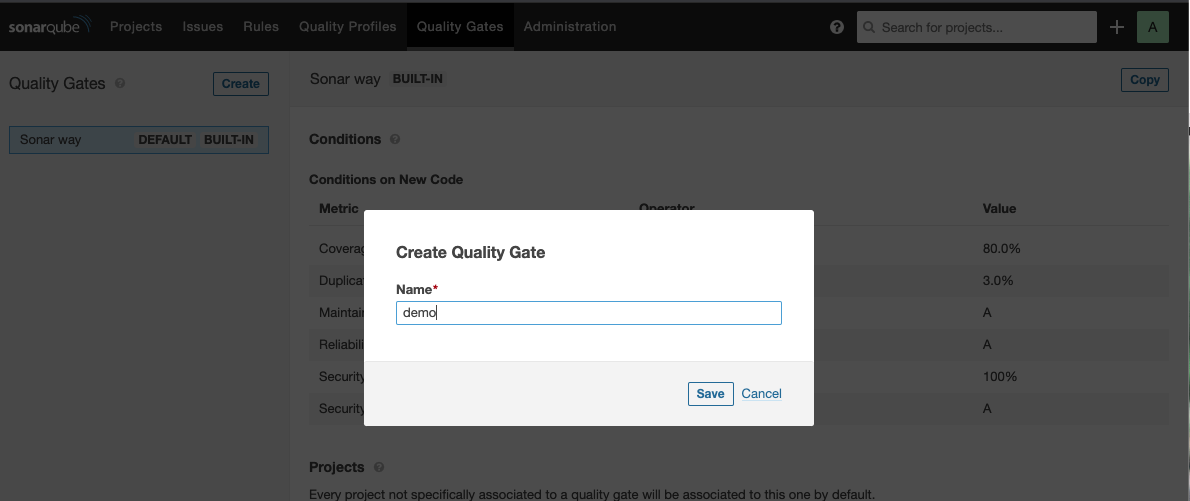

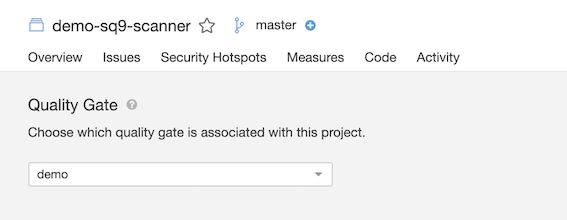

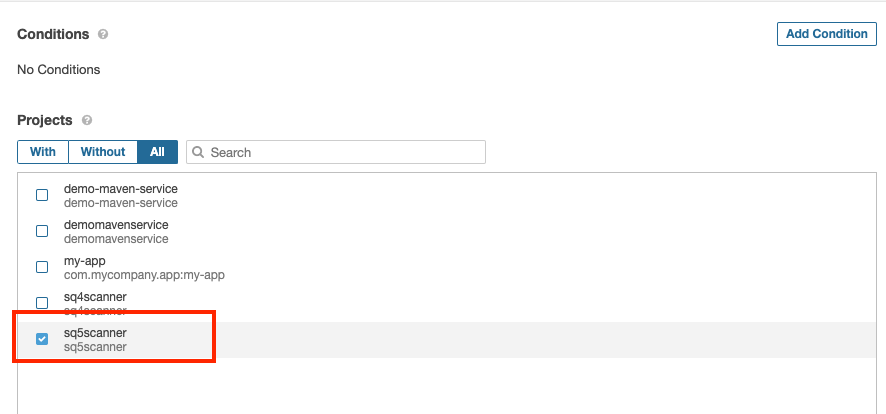

- (5）设置

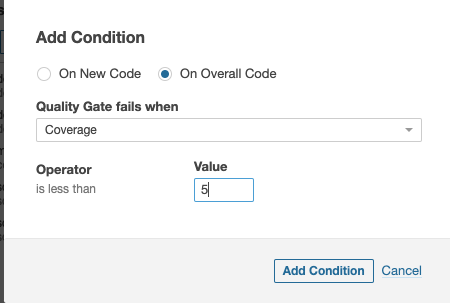

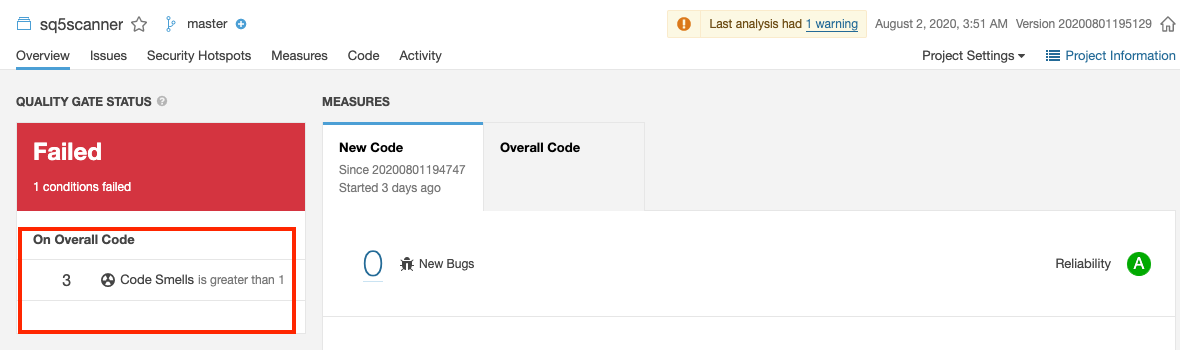

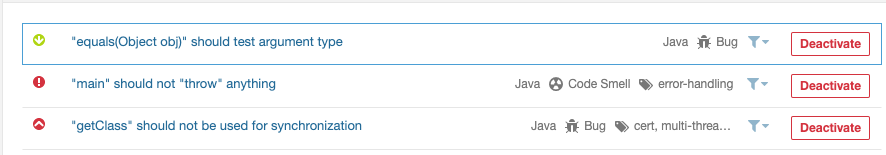

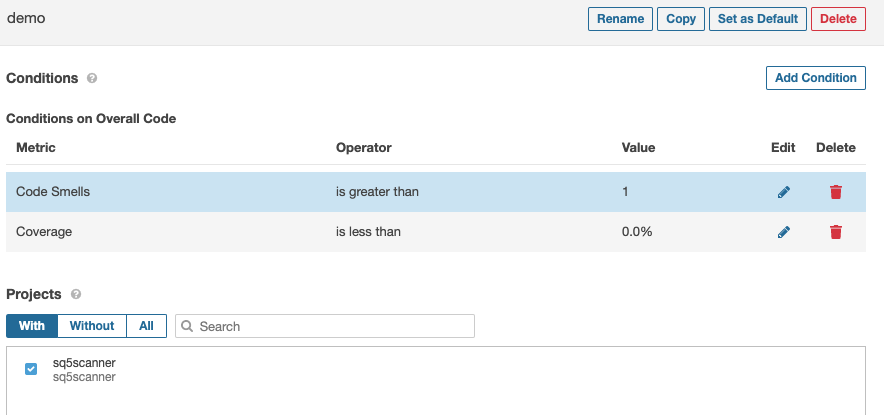

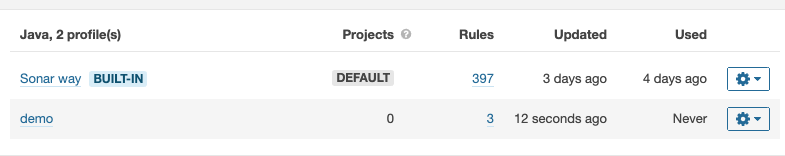

Quality Gates（质量阈值）。在SonarQube的“Quality Gates”下，我们可以看到系统自带的质量，阈值。可以看出它是针对新代码的。所以，在初次及没有新代码加入的情况下，执行代码分析是不会报出构建失败的。
1.4 使用SonarQube Scanner实现代码扫描¶
上文中，我们是使用Maven插件实现代码扫描的，也就是利用构建工具本身提供的插件来实现。在构建工具本身不支持的情况下，我们使用SonarQube本身提供的扫描工具（Scanner）进行代码扫描。
具体步骤如下：

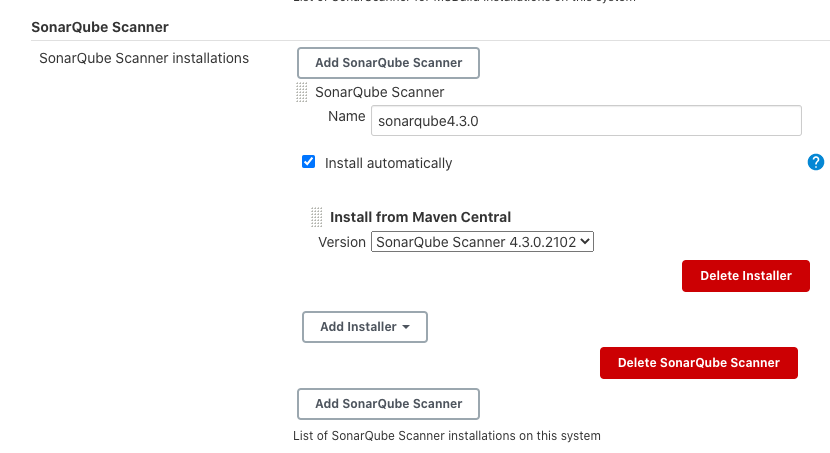

- (1)在安装
SonarQube Scanner：插件后，设置扫描工具自动下载并安装（推荐)。configureTools -> SonarQube Scanner)
请注意，这里的Name值与所设置的值是两码事。此处设置的是SonarScanner工具本身的名称与路径
- (2）在代码项目根目录下放人
sonar-project.properties文件sonar-scanner会读取其配置内容如下：
## must be unique in a given SonarQube instance
sonar.projectKey=my:project
## this is the name and version displayed in the SonarQube UI. Was mandatory prior to SonarQube 6.1.
sonar.projectName=My project
sonar.projectVersion=1.0
## This property is optional if Sonar.modules is set.
sonar.sources=.
## Encoding of the source code. Default is default system encoding
## sonar.sourceEncoding=UTE—8
- (3)

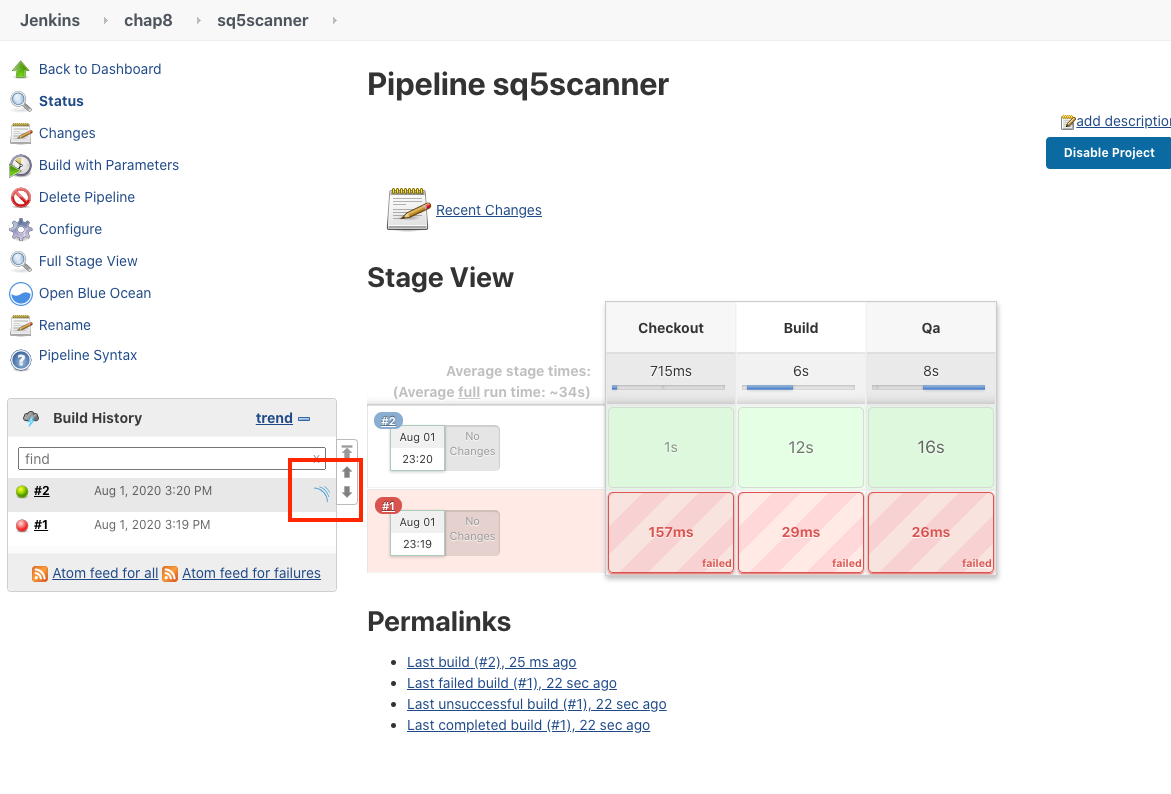

pipeline部分代码如下
script{
def sonarHome = tool name: 'sonarqube4.2.0', type: 'hudson.plusinS.sonar.SonarRunnerInstallation'
withSomarQubeEnv('sonar') {
sh "${sonarHome}/bin/sonar—scanner —Dsonar.host.url=${SONAR_HOST_URL} —Dsonar.login=${SONAR_AUTH_TOKEN}"
}
}
1.5 将分析报告推送到GitLab¶
如果希望对每一次代码的commit都进行分析，并将分析结果与该commit关联起来，那么SonarQube的GitLab插件就是一个不错的选择。SonarQube GitLab插件的功能就是将SonarQube 的分析结果推送到GitLab
- (1）在
SonarQube上安装GitLab插件
https://github.com/helm/charts/blob/master/stable/sonarqube/values.yaml
image:
repository: sonarqube
tag: 8.4.1-community
service:
type: NodePort
plugins:
intsalls:
- https://github.com/gabrie-allaigre/sonar-gitlab-plugin/releases/download/4.1.0-SNAPSHOT/sonar-gitlab-plugin-4.1.0-SNAPSHOT.jar
$ helm upgrade sonarqube oteemocharts/sonarqube -n sonarqube -f values.yaml

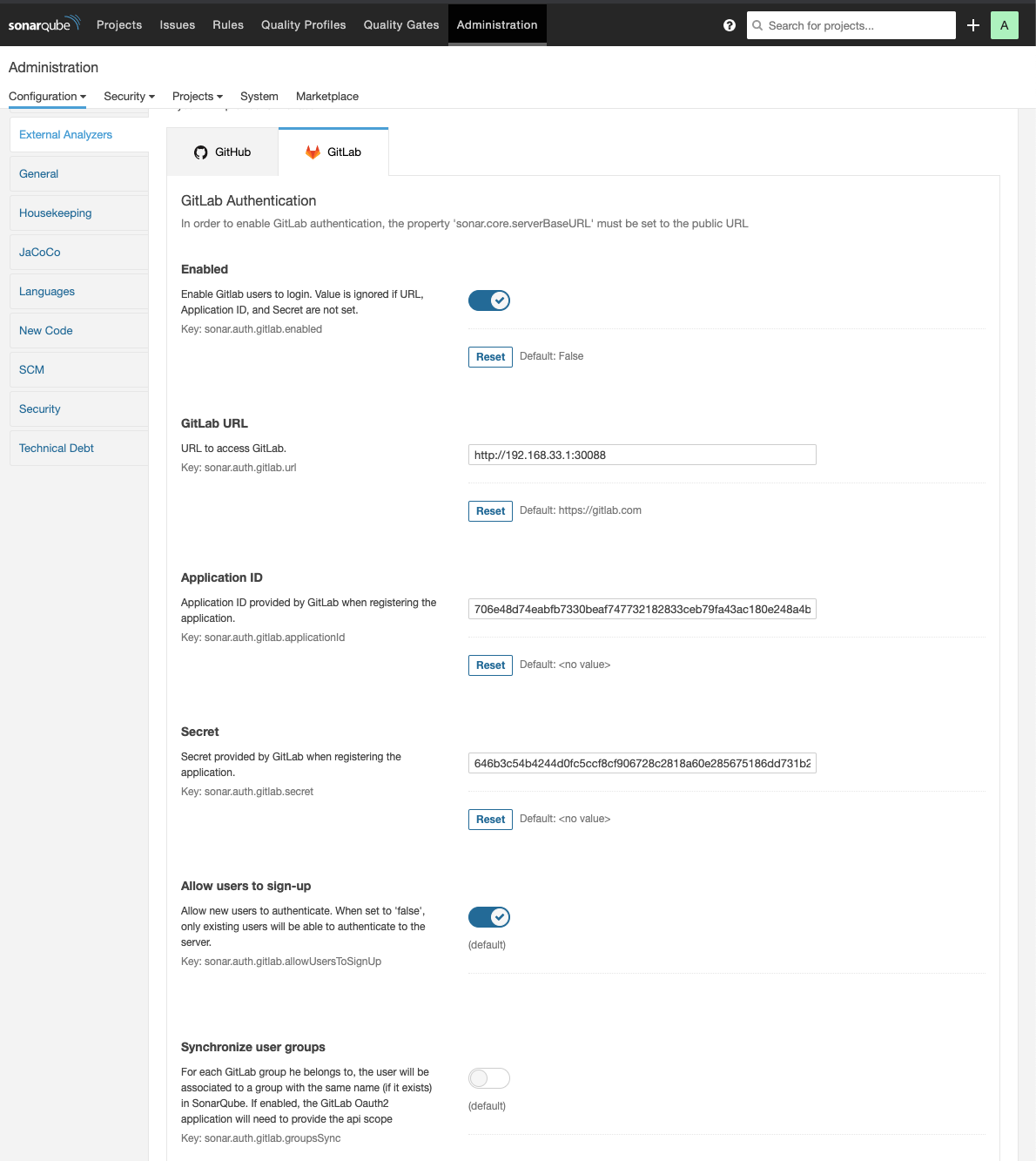

admin/settings?category=almintegration
gitlab part

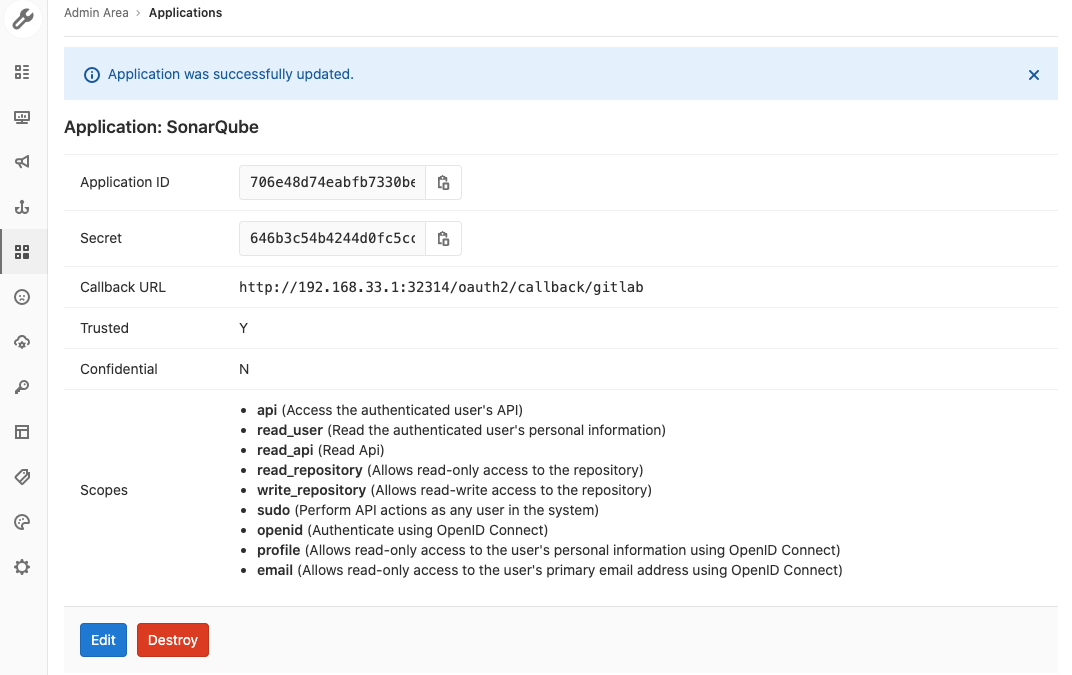

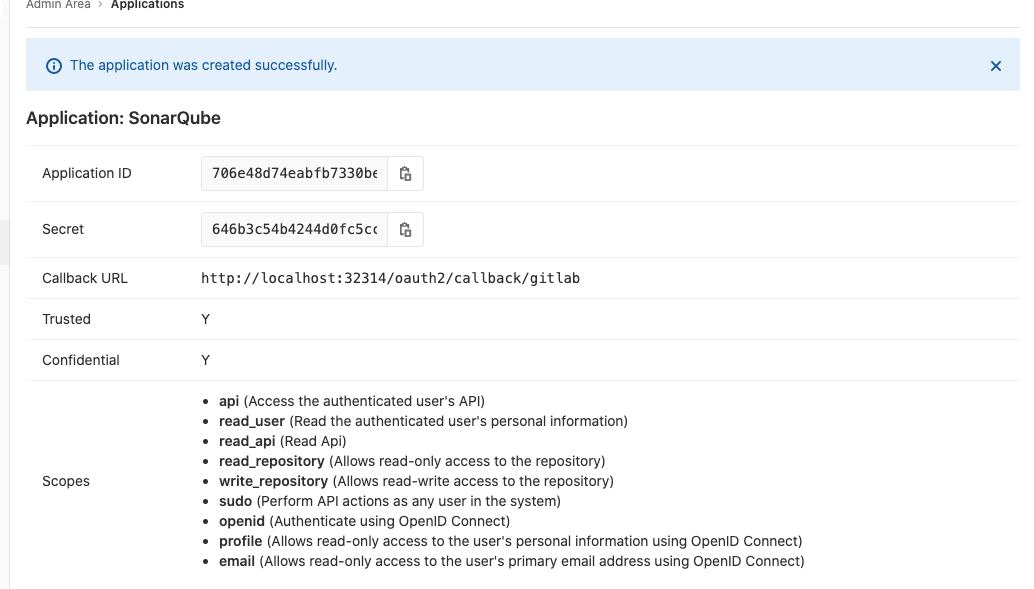

admin/applications
- http://localhost:32314/oauth2/callback/gitlab
- Application ID: 706e48d74eabfb7330beaf747732182833ceb79fa43ac180e248a4b77f55cfed
- Secret: 646b3c54b4244d0fc5ccf8cf906728c2818a60e285675186dd731b21a189c0c8
配置好sonarQube GitLab插件后，需要为sonar-scanner添加几个参数，以告诉SonarQube 将分析结果关联GitLab的相应commit上。
script{
def sonarHome = tool name: 'sonarqube3.2.0', type: 'hudson.plugins.sonar.SonarRunnerInstallation'
def GIT_COMMIT_ID = sh(
script: "git rev—parse ——short=10 HEAD",
returnStdout: true
)
sh "${sonarHome}/bin/sonar—scanner —Dsonar.host.url=${SONAR_HOST_URL} —Dsonar.analysis.mode=preview —Dsonar.gitlab.ref_name=master-Dsonar.gitlab.project_id=jenkins—book/sonarqube —Dsonar.projectName=jenkins—book—Dsonar.gitlab.commit_sha=${GIT_COMMIT_ID} —Dsonar.login=${SONAR_AUTH_TOKEN}"
}
首先通过sh步骤获取代码的commitID，然后在执行扫描时加人如下参数.
-Dsonar.analysis.mode：分析报告模式，值为preview，代表将结果推送到GitLab。此参数虽 然官方标注SonarQube 6.6后被废弃.-Dsonar.gitlab.ref_name：分支名称。-Dsonar.gitlab.project_id:GitLab对一应的项目路径。Dsonar.projectName：对应SonarQube上的项目名称。-Dsonar.gitlab.comit_sha：代码的commitID

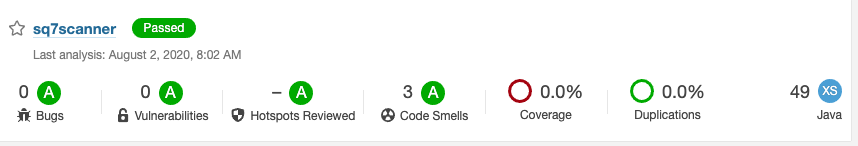

当SonarQube分析完成后，我们就可以在GitLab的相应Commit页面上的代码行内或commit评论区看到分析结果了

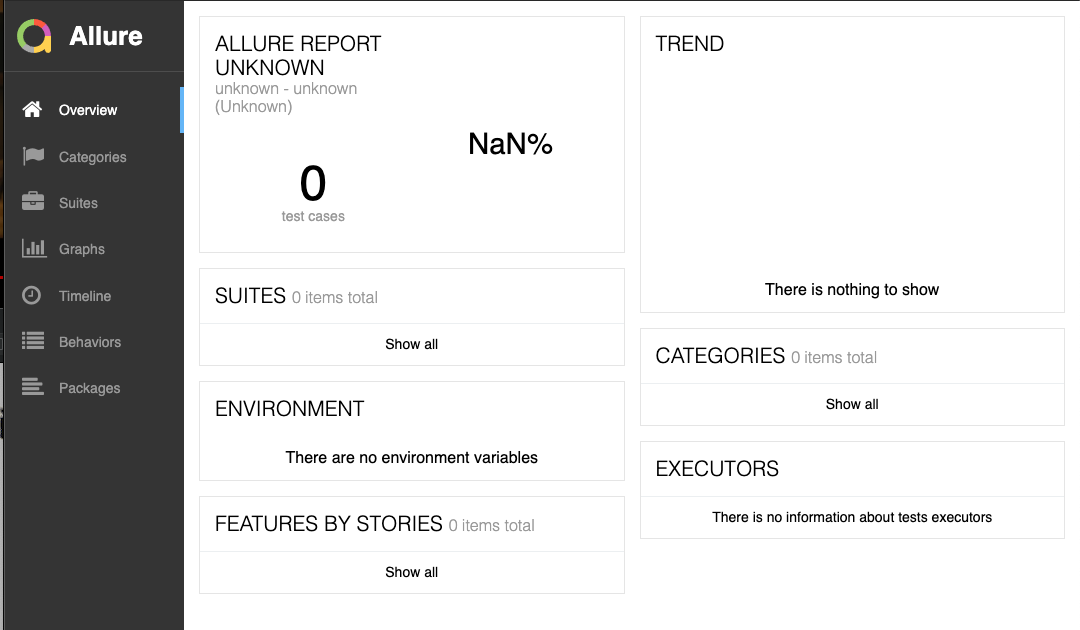

二、Allure测试报告：更美观的测试报告¶
2.1 Allure测试报告介绍¶
是不是觉得JUnit输出的测试报告不美观。 不只是JUnit很多其他编程语言的测试框架的测试报告也差不多。Allure测试报告是一个框架, 能将各种测试报告更美观地呈现出来。
2.2 集成Allure、Maven、Jenkins¶
接下来，我们将Allure、 Mavens Jenkins集成。Allure与其他编程语言及构建工具的集成与 此类似。 具体步骤如下：
- (1）安装

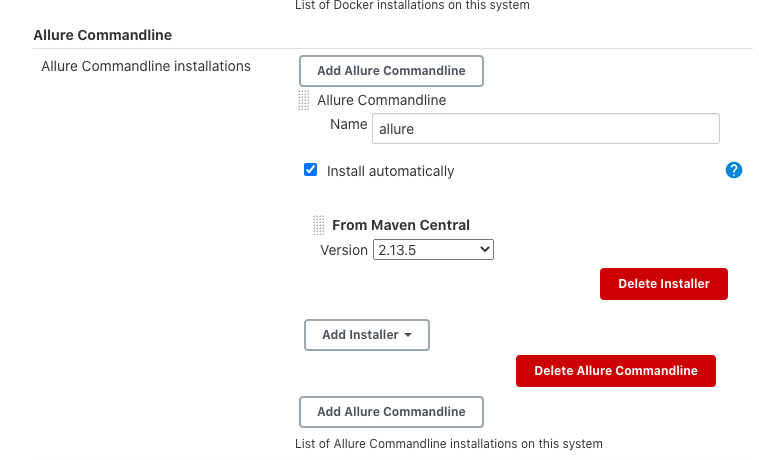

Allure Jenkins插件，进人Jenkins的Manage Jenkins -> Global Tool Configuration - Allure Commandline页，配置Allure自动下载并 装的版本
-
(2)在
pom.xml文件中加入依赖。 -
(3）在
pom.xml文件中加入Allure插件（https://github.com/allure-framework/allure-maven)。
<dependency>
<groupId>io.qameta.allure</groupId>
<artifactId>allure-junit4</artifactId>
<version>2.6.0</version>
</dependency>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.19.1</version>
<configuration>
<argLine>
- javaagent:" ${settings.localRepository}/org/aspectj/aspectjweaver/${aspectj.version}/aspectjweaver-${aspectj.version}.jar"
</argLine>
<properties>
<property>
<name>listener</name>
<value>io.qameta.allure.junit4/AllureJunit4</value>
</property>
</properties>
<systemProperties>
<property>
<name>allure.results.directory</name>
<value>${project.build.directory}/allure-results</value>
</property>
<property>
<name>allure.link.issue.pattern</name>
<value>https://example.org/issue/{}</value>
</property>
</systemProperties>
</configuration>
<dependencies>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>${aspectj.version}</version>
</dependency>
</dependencies>
</plugin>
<plugin>
<groupId>io.qameta.allure</groupId>
<artifactId>allure-maven</artifactId>
<version>2.8</version>
</plugin>
(4）在Jenkinsfile中的post 阶段加入allure步骤。
script {
allure([
includeProperties: false,
jdk: '',
properties: [],
reportBuildPolicy: 'ALWAYS',
results: [[path: 'target/allure-results']]
])
}
三、代码质量平台集成(SonarQube Final Edition)¶

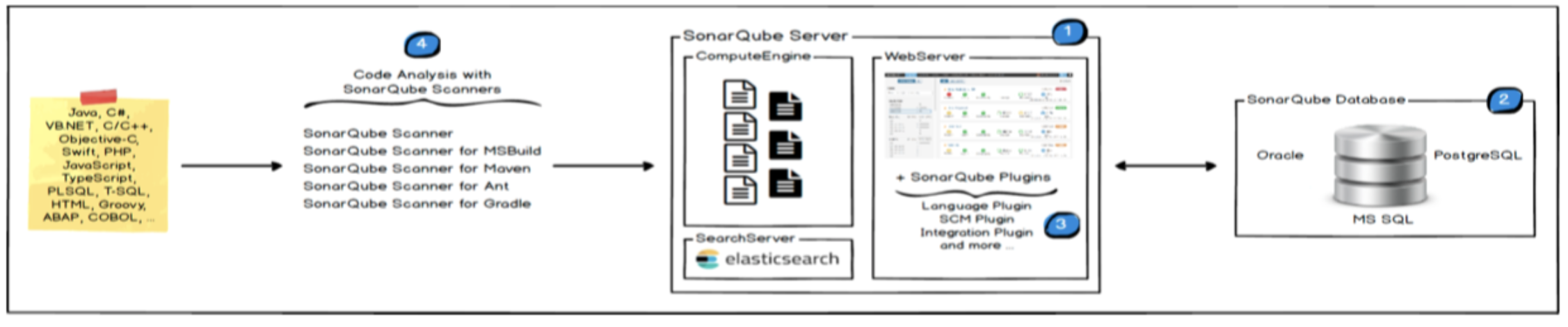

3.1 SonarQube平台简介与配置¶
1、一台SonarQube Server启动3个主要过程：
1. Web服务器，供开发人员，管理人员浏览高质量的快照并配置SonarQube实例
2. 基于`Elasticsearch`的`Search Server`从`UI`进行后退搜索
3. `Compute Engine`服务器，负责处理代码分析报告并将其保存在`SonarQube`数据库中
2、一个SonarQube数据库要存储：
1. SonarQube实例的配置（安全性，插件设置等）
2. 项目，视图等的质量诀照。
3、服务器上安装了多个SonarQube插件，可能包括语言，SCM，集成，身份验证和管理插件
4、在构建／持续集成服务器上运行一个或多个SonarScanner，以分析项目
组件组成
1、sonarqube server ： 他有三个程序分别是 webserver（配置和管理sonar） searchserver（搜索结果返回给sonarUI） ComplateEngineserver（计算服务 将分析结果入库）。
2、sonarqube db : 数据库 存放配置。
3、sonarqube plugins： 插件增加功能。
4、sonar-scanner ： 代码扫描工具可以有多个。
3.1.1 工作流程¶

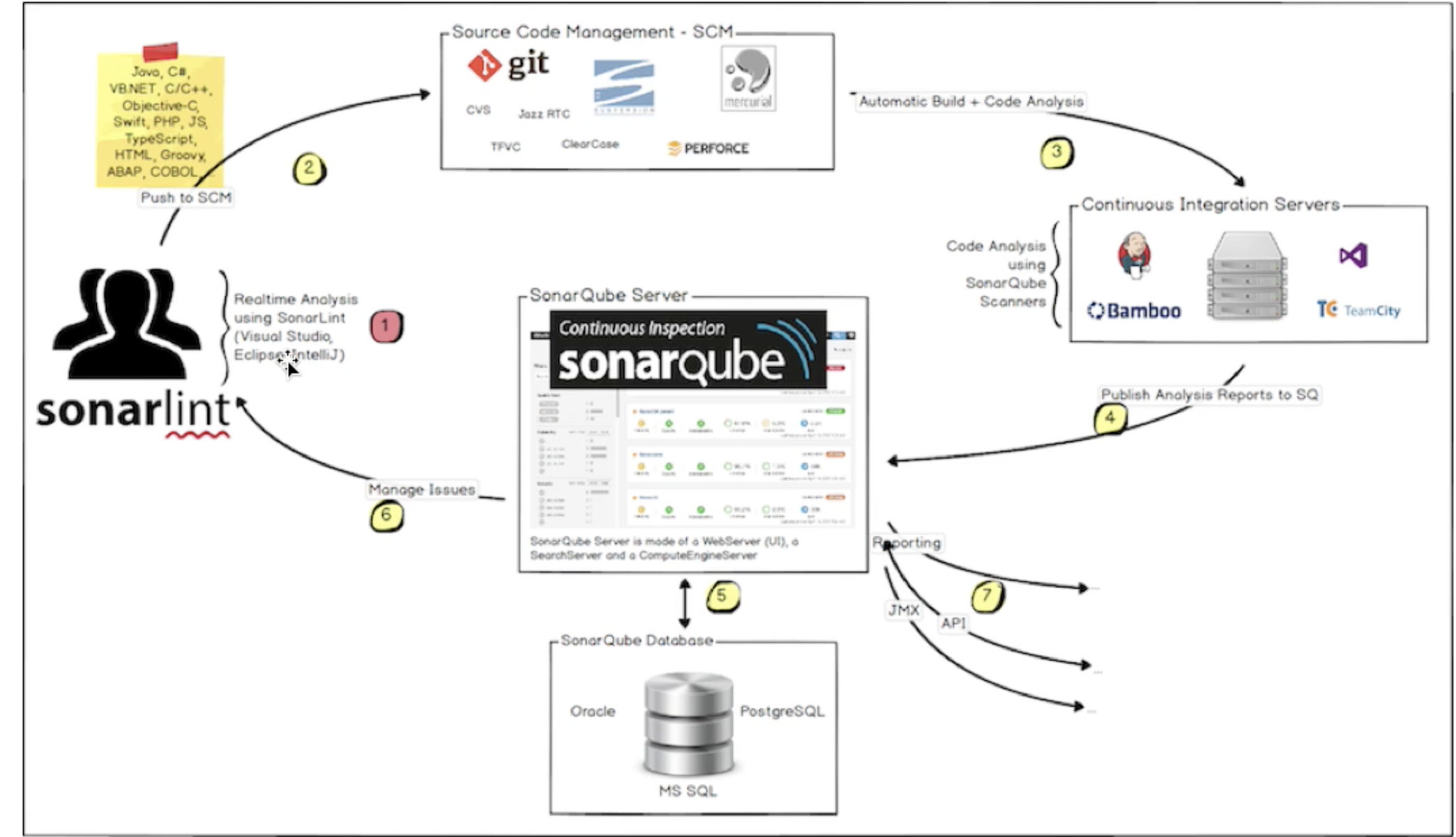

下面的模式展示了SonarQube如何与其他ALM工具集成，以及使用SONARQUE的各种组件。
- 开发人员在IDE中编写代码，并使用SONARLILT来运行本地分析
- 开发人员将他们的代码推到他们最喜欢的SCM：Git，Svn，TFVC，…
- 连续集成服务器触发自动构建，执行SONARQUE扫描器需要运行SONARQUE分析。
- 分析报告被发送到SONARQUE服务器进行处理。
- SONARQUE服务器在SONARQUE数据库中处理和存储分析报告结果，并将结果显示在UI中。
- 开发人员审查、评论、挑战他们的问题，通过SONARQUE UI管理和减少他们的技术债务。
- 管理者从分析中得到报告。
OPS使用API来自动配置并从SONARQUE中提取数据。OPS使用JMX监控SONARQUBE服务器
3.1.2 SonarQube安装¶
On server
- 运行
SonarQube的唯一前提条件是在计算机上安装Java (Oracle JRE 11或OpenJDK 11) - 实例至少需要
2GB的RAM才能有效运行，而OS则需要1GB的可用RAM - 每个节点分配
50Gb的驱动器空间 - 安装在具有出色读写性能的硬盘驱动器上（“数据”文件夹中包含
Elasticsearch索引，当服务器启动并运行时，将在该索引上进行大量的I/O) SonarQube在服务器端不支持32位系统。但是，SonarQube确实在扫描仪侧支持32位系统。

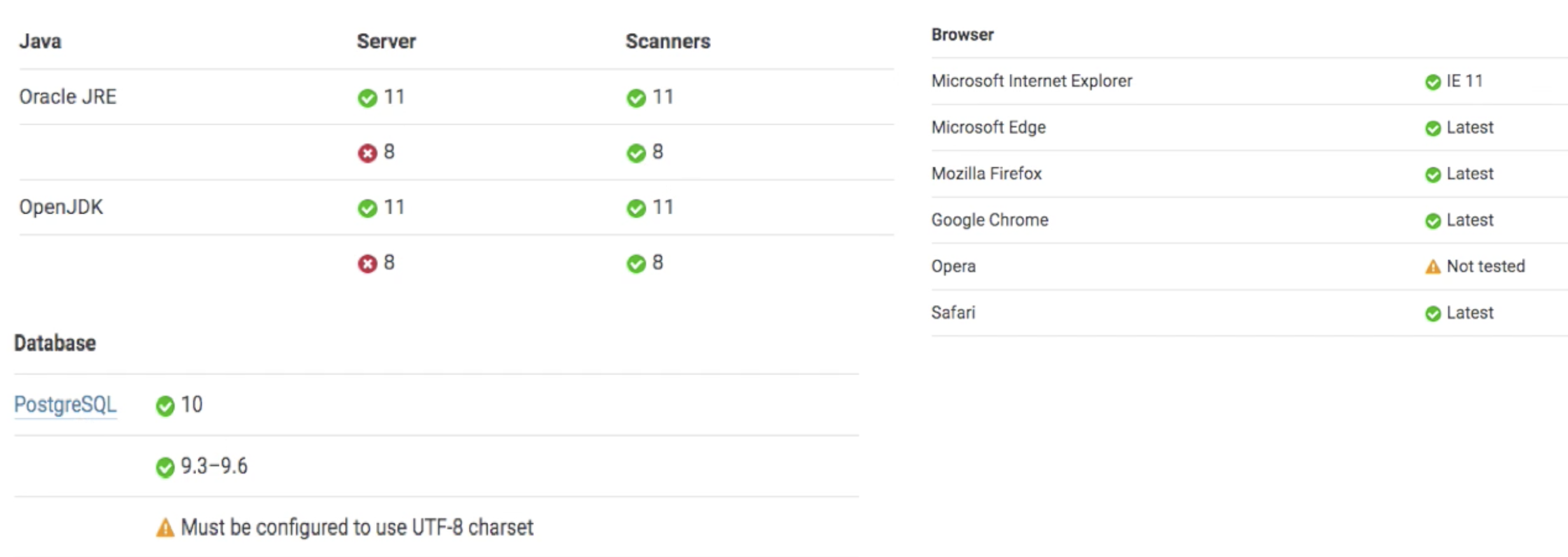

支持平台
- 运行
SonarQube的唯一前提条件是在计算机上安装Java (Oracle JRE 11或Open.JDK 11)
sysctl -w vm.max_ma_count=262144
sysctl -w fs.file-max=65536
ulimit -n 65536
ulimit -u 4096
Install For Docker
docker run --rm -d --name sonarqube \
-p 9000:9000 \
-v ${LOCALDIR}/sonar/sonarqube_conf:/opt/sonarqube/conf \
-v ${LOCALDIR}/sonar/sonarqube_extensions:/opt/sonarqube/extensions \
-v ${LOCALDIR}/sonar/sonarqube_logs:/opt/sonarqube/logs \
-v ${LOCALDIR}/sonar/sonarqube data:/opt/sonarqube/data \
sonarqube:8.4.1-community
3.1.3 服务集成¶

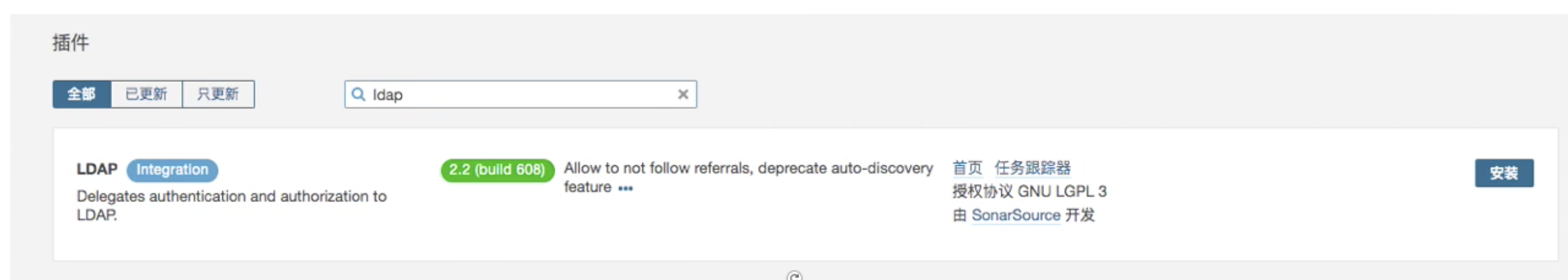

LDAPS
vim sonarqube_conf/sonar.properties
#LDAP sesttings
#admin
sonar.security.realm=LDAP
ldap.url=ldap://192.168.1.200:389
ldap.bindDn=cn=admin,dc=devops,dc=com
ldap.bindPassword=ldap123
## users
ldap.user.baseDn=ou=jenkins,dc=devops,dc=com
ldap.user.request= (&(objectClass=inetOrgPerson)(cn={login}))
ldap.user.realNameAttribute=cn
ldap.user.emailAttribute=mail

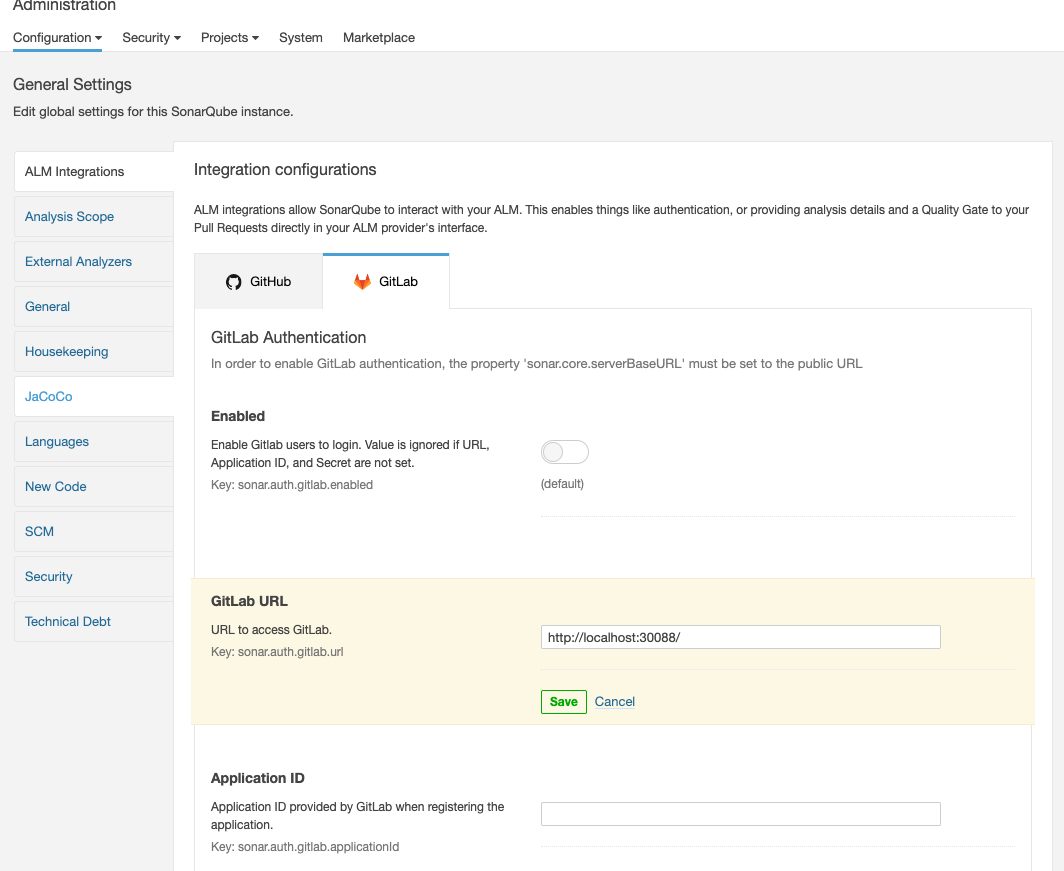

gitlab integration
- gitlab part
admin/applications
- http://localhost:32314/oauth2/callback/gitlab
- Application ID: 706e48d74eabfb7330beaf747732182833ceb79fa43ac180e248a4b77f55cfed
- Secret: 646b3c54b4244d0fc5ccf8cf906728c2818a60e285675186dd731b21a189c0c8
admin/settings?category=almintegration
3.2 SonarQube扫描仪配置¶
https://docs.sonarqube.org/display/SCAN/Analyzing+with+SonarQube+Scanner
3.3 SonarQube本地使用扫描仪项目分析配置¶
3.3.1 下载一个简单的maven项目到本地¶
$ git clone https://github.com/zeyangli/simple-java-maven-app
$ cd simple-java-maven-app
$ mv simple-java-maven-app demo-maven-service
$ mvn clean package
[INFO] Scanning for projects...
[INFO]
[INFO] ----------------------< com.mycompany.app:my-app >----------------------
[INFO] Building my-app 1.1-SNAPSHOT
[INFO] --------------------------------[ jar ]---------------------------------
[INFO]
[INFO] --- maven-clean-plugin:2.5:clean (default-clean) @ my-app ---
[INFO]
[INFO] --- maven-resources-plugin:2.6:resources (default-resources) @ my-app ---
[WARNING] Using platform encoding (UTF-8 actually) to copy filtered resources, i.e. build is platform dependent!
[INFO] skip non existing resourceDirectory /home/vagrant/test/simple-java-maven-app/src/main/resources
[INFO]
[INFO] --- maven-compiler-plugin:3.1:compile (default-compile) @ my-app ---
[INFO] Changes detected - recompiling the module!
[WARNING] File encoding has not been set, using platform encoding UTF-8, i.e. build is platform dependent!
[INFO] Compiling 1 source file to /home/vagrant/test/simple-java-maven-app/target/classes
[INFO]
[INFO] --- maven-resources-plugin:2.6:testResources (default-testResources) @ my-app ---
[WARNING] Using platform encoding (UTF-8 actually) to copy filtered resources, i.e. build is platform dependent!
[INFO] skip non existing resourceDirectory /home/vagrant/test/simple-java-maven-app/src/test/resources
[INFO]
[INFO] --- maven-compiler-plugin:3.1:testCompile (default-testCompile) @ my-app ---
[INFO] Changes detected - recompiling the module!
[WARNING] File encoding has not been set, using platform encoding UTF-8, i.e. build is platform dependent!
[INFO] Compiling 1 source file to /home/vagrant/test/simple-java-maven-app/target/test-classes
[INFO]
[INFO] --- maven-surefire-plugin:2.12.4:test (default-test) @ my-app ---
[INFO] Surefire report directory: /home/vagrant/test/simple-java-maven-app/target/surefire-reports
-------------------------------------------------------
T E S T S
-------------------------------------------------------
Running com.mycompany.app.AppTest
Tests run: 2, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 0.075 sec
Results :
Tests run: 2, Failures: 0, Errors: 0, Skipped: 0
[INFO]
[INFO] --- maven-jar-plugin:3.0.2:jar (default-jar) @ my-app ---
[INFO] Building jar: /home/vagrant/test/simple-java-maven-app/target/my-app-1.1-SNAPSHOT.jar
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 5.512 s
[INFO] Finished at: 2020-08-01T06:10:01Z
[INFO] ------------------------------------------------------------------------
$ tree target/
target/
├── classes
│ └── com
│ └── mycompany
│ └── app
│ └── App.class
├── maven-archiver
│ └── pom.properties
├── maven-status
│ └── maven-compiler-plugin
│ ├── compile
│ │ └── default-compile
│ │ ├── createdFiles.lst
│ │ └── inputFiles.lst
│ └── testCompile
│ └── default-testCompile
│ ├── createdFiles.lst
│ └── inputFiles.lst
├── my-app-1.1-SNAPSHOT.jar
├── surefire-reports
│ ├── com.mycompany.app.AppTest.txt
│ └── TEST-com.mycompany.app.AppTest.xml
└── test-classes
└── com
└── mycompany
└── app
└── AppTest.class
16 directories, 10 files
3.3.2 Run SonarScanner from the Docker image¶
docker run \
--rm \
-e SONAR_HOST_URL="http://192.168.33.1:32314" \
-e SONAR_LOGIN="admin" \
-e SONAR_PASSWORD="admin" \
-v "/home/vagrant/tools/sonar:/usr/src" \
sonarsource/sonar-scanner-cli -Dsonar.projectKey=demo-maven-service
docker run \
--rm \
-e SONAR_HOST_URL="http://${SONARQUBE_URL}" \
-v "${YOUR_REPO}:/usr/src" \
sonarsource/sonar-scanner-cli
$ docker run \
> --rm \
> -e SONAR_HOST_URL="http://192.168.33.1:32314" \
> -e SONAR_LOGIN="admin" \
> -e SONAR_PASSWORD="admin" \
> -v "/home/vagrant/tools/sonar:/usr/src" \
> sonarsource/sonar-scanner-cli -Dsonar.projectKey=demo-maven-service
INFO: Scanner configuration file: /opt/sonar-scanner/conf/sonar-scanner.properties
INFO: Project root configuration file: NONE
INFO: SonarScanner 4.4.0.2170
INFO: Java 11.0.6 AdoptOpenJDK (64-bit)
INFO: Linux 3.10.0-957.12.2.el7.x86_64 amd64
INFO: User cache: /opt/sonar-scanner/.sonar/cache
INFO: Scanner configuration file: /opt/sonar-scanner/conf/sonar-scanner.properties
INFO: Project root configuration file: NONE
INFO: Analyzing on SonarQube server 8.4.1
INFO: Default locale: "en_US", source code encoding: "UTF-8" (analysis is platform dependent)
INFO: Load global settings
INFO: Load global settings (done) | time=376ms
INFO: Server id: EA8D9556-AXOeledPvj9r7r4MIG91
INFO: User cache: /opt/sonar-scanner/.sonar/cache
INFO: Load/download plugins
INFO: Load plugins index
INFO: Load plugins index (done) | time=341ms
INFO: Load/download plugins (done) | time=8919ms
INFO: Process project properties
INFO: Process project properties (done) | time=1ms
INFO: Execute project builders
INFO: Execute project builders (done) | time=7ms
INFO: Project key: demo-maven-service
INFO: Base dir: /usr/src
INFO: Working dir: /usr/src/.scannerwork
INFO: Load project settings for component key: 'demo-maven-service'
INFO: Load quality profiles
INFO: Load quality profiles (done) | time=754ms
INFO: Load active rules
INFO: Load active rules (done) | time=6033ms
WARN: SCM provider autodetection failed. Please use "sonar.scm.provider" to define SCM of your project, or disable the SCM Sensor in the project settings.
INFO: Indexing files...
INFO: Project configuration:
INFO: 1 file indexed
INFO: ------------- Run sensors on module demo-maven-service
INFO: Load metrics repository
INFO: Load metrics repository (done) | time=365ms
WARNING: An illegal reflective access operation has occurred
WARNING: Illegal reflective access by net.sf.cglib.core.ReflectUtils$1 (file:/opt/sonar-scanner/.sonar/cache/52f5340dd05620cd162e2b9a45a57124/sonar-javascript-plugin.jar) to method java.lang.ClassLoader.defineClass(java.lang.String,byte[],int,int,java.security.ProtectionDomain)
WARNING: Please consider reporting this to the maintainers of net.sf.cglib.core.ReflectUtils$1
WARNING: Use --illegal-access=warn to enable warnings of further illegal reflective access operations
WARNING: All illegal access operations will be denied in a future release
INFO: Sensor SonarCSS Rules [cssfamily]
INFO: No CSS, PHP, HTML or VueJS files are found in the project. CSS analysis is skipped.
INFO: Sensor SonarCSS Rules [cssfamily] (done) | time=1ms
INFO: Sensor JaCoCo XML Report Importer [jacoco]
INFO: 'sonar.coverage.jacoco.xmlReportPaths' is not defined. Using default locations: target/site/jacoco/jacoco.xml,target/site/jacoco-it/jacoco.xml,build/reports/jacoco/test/jacocoTestReport.xml
INFO: No report imported, no coverage information will be imported by JaCoCo XML Report Importer
INFO: Sensor JaCoCo XML Report Importer [jacoco] (done) | time=2ms
INFO: Sensor JavaXmlSensor [java]
INFO: Sensor JavaXmlSensor [java] (done) | time=0ms
INFO: Sensor HTML [web]
INFO: Sensor HTML [web] (done) | time=8ms
INFO: ------------- Run sensors on project
INFO: Sensor Zero Coverage Sensor
INFO: Sensor Zero Coverage Sensor (done) | time=9ms
INFO: SCM Publisher No SCM system was detected. You can use the 'sonar.scm.provider' property to explicitly specify it.
INFO: CPD Executor Calculating CPD for 0 files
INFO: CPD Executor CPD calculation finished (done) | time=0ms
INFO: Analysis report generated in 202ms, dir size=79 KB
INFO: Analysis report compressed in 39ms, zip size=10 KB
INFO: Analysis report uploaded in 623ms
INFO: ANALYSIS SUCCESSFUL, you can browse http://192.168.33.1:32314/dashboard?id=demo-maven-service
INFO: Note that you will be able to access the updated dashboard once the server has processed the submitted analysis report
INFO: More about the report processing at http://192.168.33.1:32314/api/ce/task?id=AXOztIcYdI8p8GdhXo8N
INFO: Analysis total time: 13.094 s
INFO: ------------------------------------------------------------------------
INFO: EXECUTION SUCCESS
INFO: ------------------------------------------------------------------------
INFO: Total time: 25.064s
INFO: Final Memory: 6M/37M
INFO: ------------------------------------------------------------------------
3.3.3 Run SonarScanner on Linux server¶
cd /usr/local/
sudo wget https://binaries.sonarsource.com/Distribution/sonar-scanner-cli/sonar-scanner-cli-4.4.0.2170-linux.zip
unzip sonar-scanner-cli-4.4.0.2170-linux.zip
mv sonar-scanner-cli-4.4.0.2170-linux sonar-scanner
cd /usr/local/sonar-scanner
$ tree bin/
bin/
├── sonar-scanner
└── sonar-scanner-debug
0 directories, 2 files
$ tree conf/
conf/
└── sonar-scanner.properties
0 directories, 1 file
sudo vim /usr/local/sonar-scanner/conf/sonar-scanner.properties
...
sonar.host.url=http://192.168.33.1:32314
sudo vim /etc/profile.d/scanner.sh
export SONAR_HOME=/usr/local/sonar-scanner/ export PATH=$PATH:$SONAR_HOME/bin
cd demo-maven-service
vim sonarqube.sh
## can run the command in script
sonar-scanner -Dsonar.host.url=http://192.168.33.1:32314 \
-Dsonar.projectKey=demomavenservice \
-Dsonar.projectName=demomavenservice \
--define sonar.login=admin \
--define sonar.password=admin \
--define sonar.projectVersion=1.0 \
--define sonar.ws.timeout=30 \
--define sonar.projectDescription="my first project" \
--define sonar.links.homepage=http://www.baidu.com \
--define sonar.sources=src \
--define sonar.sourceEncoding=UTF-8 \
--define sonar.java.binaries=target/classes \
--define sonar.java.test.binaries=target/test—classes \
--define sonar.java.surefire.report=target/surefire—reports
Run the script
source sonarqube.sh
INFO: Scanner configuration file: /usr/local/sonar-scanner/conf/sonar-scanner.properties
INFO: Project root configuration file: NONE
INFO: SonarScanner 4.4.0.2170
INFO: Java 11.0.3 AdoptOpenJDK (64-bit)
INFO: Linux 3.10.0-957.12.2.el7.x86_64 amd64
INFO: User cache: /home/vagrant/.sonar/cache
INFO: Scanner configuration file: /usr/local/sonar-scanner/conf/sonar-scanner.properties
INFO: Project root configuration file: NONE
INFO: Analyzing on SonarQube server 8.4.1
INFO: Default locale: "en_US", source code encoding: "UTF-8"
INFO: Load global settings
INFO: Load global settings (done) | time=377ms
INFO: Server id: EA8D9556-AXOeledPvj9r7r4MIG91
INFO: User cache: /home/vagrant/.sonar/cache
...
INFO: Analysis report compressed in 71ms, zip size=14 KB
INFO: Analysis report uploaded in 378ms
INFO: ANALYSIS SUCCESSFUL, you can browse http://192.168.33.1:32314/dashboard?id=demomavenservice
INFO: Note that you will be able to access the updated dashboard once the server has processed the submitted analysis report
INFO: More about the report processing at http://192.168.33.1:32314/api/ce/task?id=AXO4OmSidI8p8GdhXo8b
INFO: Analysis total time: 14.196 s
INFO: ------------------------------------------------------------------------
INFO: EXECUTION SUCCESS
INFO: ------------------------------------------------------------------------
INFO: Total time: 16.430s
INFO: Final Memory: 16M/61M
INFO: ------------------------------------------------------------------------
3.4 使用流水线进行自动化代码扫描¶
3.4.1 填写sonarqube scanner到sharedlibrary¶
JenkinslibTest/src/org/devops/sonarqube.groovy
package org.devops
//scan
def SonarScan(projectName,projectDesc,projectPath){
def scannerHome = "/usr/local/sonar-scanner/"
//定义服务器列表
def sonarServers = "http://192.168.33.1:32314"
def sonarDate = sh returnStdout: true, script: 'date +%Y%m%d%H%M%S'
sonarDate = sonarDate - "\n"
sh """
${scannerHome}/bin/sonar-scanner -Dsonar.host.url=${sonarServers} \
-Dsonar.projectKey=${projectName} \
-Dsonar.projectName=${projectName} \
--define sonar.login=admin \
--define sonar.password=admin \
--define sonar.projectVersion=${sonarDate} \
--define sonar.ws.timeout=30 \
--define sonar.projectDescription=${projectDesc} \
--define sonar.links.homepage=http://www.baidu.com \
--define sonar.sources=${projectPath} \
--define sonar.sourceEncoding=UTF-8 \
--define sonar.java.binaries=target/classes \
--define sonar.java.test.binaries=target/test—classes \
--define sonar.java.surefire.report=target/surefire—reports
"""
}
3.4.2 Pipeline调用sharedlibrary¶
#!groovy
@Library('jenkinslib@master') _
def build = new org.devops.buildtools()
def sonar = new org.devops.sonarqube()
pipeline {
agent { node { label "hostmachine" }}
parameters {
string(name: 'srcUrl', defaultValue: 'http://192.168.33.1:30088/root/demo-maven-service.git', description: '')
choice(name: 'branchName', choices: 'master\nstage\ndev', description: 'Please chose your branch')
choice(name: 'buildType', choices: 'mvn', description: 'build tool')
choice(name: 'buildShell', choices: 'clean package -DskipTest\n--version', description: 'build tool')
}
stages{
stage('Checkout') {
steps {
script {
checkout([$class: 'GitSCM', branches: [[name: "${branchName}"]], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlab-admin-user', url: "${srcUrl}"]]])
}
}
}
stage('Build') {
steps {
script {
build.Build(buildType,buildShell)
}
}
}
stage('Qa') {
steps {
script {
sonar.SonarScan("${JOB_NAME}","${JOB_NAME}","src" )
}
}
}
}
}
stage('Qa') {
steps {
script {
sonar.SonarScan("${JOB_NAME}","${JOB_NAME}","src" )
}
}
}
3.4.3 Console Output¶
...
[Pipeline] sh
+ date +%Y%m%d%H%M%S
[Pipeline] sh
+ /usr/local/sonar-scanner//bin/sonar-scanner -Dsonar.host.url=http://192.168.33.1:32314 -Dsonar.projectKey=sq4scanner -Dsonar.projectName=sq4scanner --define sonar.login=admin --define sonar.password=admin --define sonar.projectVersion=20200801135329 --define sonar.ws.timeout=30 --define sonar.projectDescription=sq4scanner --define sonar.links.homepage=http://www.baidu.com --define sonar.sources=src --define sonar.sourceEncoding=UTF-8 --define sonar.java.binaries=target/classes --define sonar.java.test.binaries=target/test—classes --define sonar.java.surefire.report=target/surefire—reports
INFO: Scanner configuration file: /usr/local/sonar-scanner/conf/sonar-scanner.properties
INFO: Project root configuration file: NONE
INFO: SonarScanner 4.4.0.2170
...
INFO: ANALYSIS SUCCESSFUL, you can browse http://192.168.33.1:32314/dashboard?id=sq4scanner
INFO: Note that you will be able to access the updated dashboard once the server has processed the submitted analysis report
INFO: More about the report processing at http://192.168.33.1:32314/api/ce/task?id=AXO4zE_WdI8p8GdhXo8n
INFO: Analysis total time: 17.732 s
INFO: ------------------------------------------------------------------------
INFO: EXECUTION SUCCESS
INFO: ------------------------------------------------------------------------
INFO: Total time: 20.804s
INFO: Final Memory: 16M/62M
3.5 使用Sonar插件完成代码扫描¶
JenkinslibTest/src/org/devops/sonarqubeadv.groovy
package org.devops
//scan
def SonarScan(projectName,projectDesc,projectPath){
withSonarQubeEnv("sonarqube"){
def scannerHome = "/usr/local/sonar-scanner/"
def sonarServers = "http://192.168.33.1:32314"
def sonarDate = sh returnStdout: true, script: 'date +%Y%m%d%H%M%S'
sonarDate = sonarDate - "\n"
sh """
${scannerHome}/bin/sonar-scanner -Dsonar.projectKey=${projectName} \
-Dsonar.projectName=${projectName} \
--define sonar.projectVersion=${sonarDate} \
--define sonar.ws.timeout=30 \
--define sonar.projectDescription=${projectDesc} \
--define sonar.links.homepage=http://www.baidu.com \
--define sonar.sources=${projectPath} \
--define sonar.sourceEncoding=UTF-8 \
--define sonar.java.binaries=target/classes \
--define sonar.java.test.binaries=target/test-classes \
--define sonar.java.surefire.report=target/surefire-reports
"""
}
}
withSonarQubeEnv("sonarqube"){
}
withSonarQubeEnv("sonarqube")配置在Jenkins中
pipeline.groovy
#!groovy
@Library('jenkinslib@master') _
def build = new org.devops.buildtools()
def sonar = new org.devops.sonarqube()
def sonaradv = new org.devops.sonarqubeadv()
pipeline {
agent { node { label "hostmachine" }}
parameters {
string(name: 'srcUrl', defaultValue: 'http://192.168.33.1:30088/root/demo-maven-service.git', description: '')
choice(name: 'branchName', choices: 'master\nstage\ndev', description: 'Please chose your branch')
choice(name: 'buildType', choices: 'mvn', description: 'build tool')
choice(name: 'buildShell', choices: 'clean package -DskipTest\n--version', description: 'build tool')
}
stages{
stage('Checkout') {
steps {
script {
checkout([$class: 'GitSCM', branches: [[name: "${branchName}"]], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlab-admin-user', url: "${srcUrl}"]]])
}
}
}
stage('Build') {
steps {
script {
build.Build(buildType,buildShell)
}
}
}
stage('Qa') {
steps {
script {
sonaradv.SonarScan("${JOB_NAME}","${JOB_NAME}","src" )
}
}
}
}
}
def sonaradv = new org.devops.sonarqubeadv()
stage('Qa') {
steps {
script {
sonaradv.SonarScan("${JOB_NAME}","${JOB_NAME}","src" )
}
}
}
- 点击
sonarqube tab
3.6 SonarQube项目管理¶

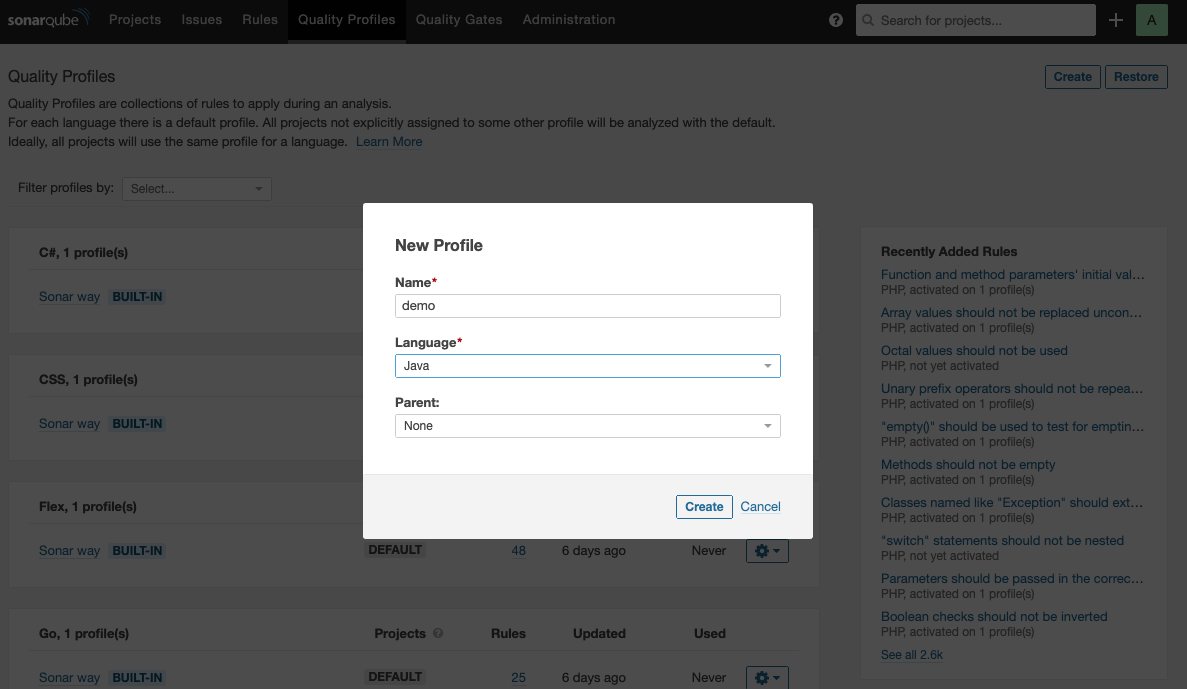

3.6.1 SonarQube - 创建新的Quality Profiles¶
- Name: demo
- Language: java

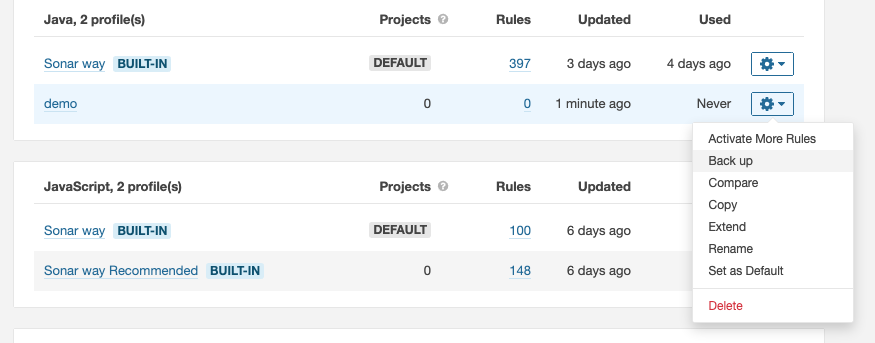

3.6.1 Activate more rules for demo Profiles¶

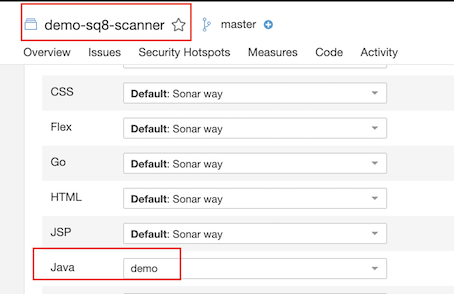

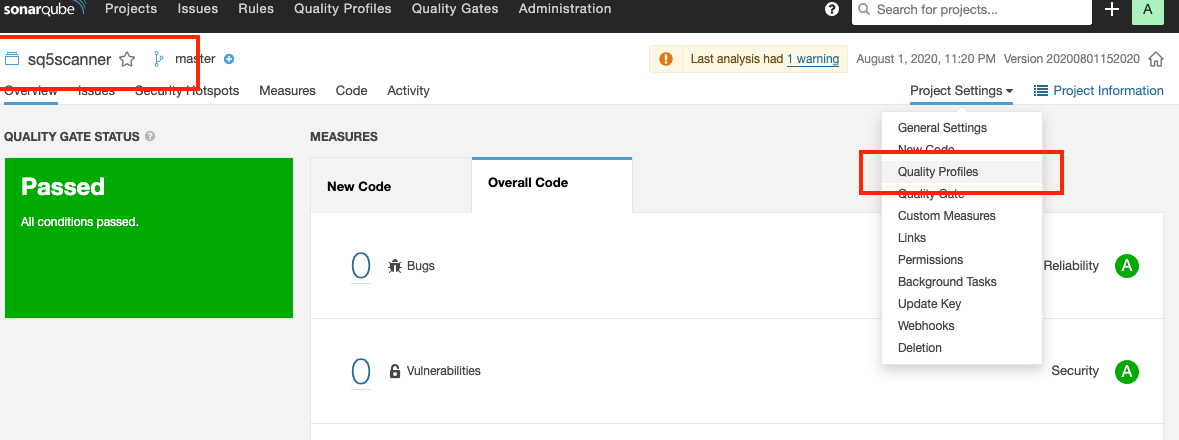

3.6.1 Add demo Profiles to the projects¶
3.6.2 SonarQube - 创建新的Quality Gates¶
3.6.2 Add condition to the Quality Gates for projects¶
Add more condition
3.6.2 Run failed becuase of condition¶
3.6.3 在jenkins pipeline获取SonarQube检测结果 (SonarQube plugin function）¶
JenkinslibTest/src/org/devops/sonarqubeadv.groovy
package org.devops
//scan
def SonarScan(projectName,projectDesc,projectPath){
withSonarQubeEnv("sonarqube"){
def scannerHome = "/usr/local/sonar-scanner/"
def sonarServers = "http://192.168.33.1:32314"
def sonarDate = sh returnStdout: true, script: 'date +%Y%m%d%H%M%S'
sonarDate = sonarDate - "\n"
sh """
${scannerHome}/bin/sonar-scanner -Dsonar.projectKey=${projectName} \
-Dsonar.projectName=${projectName} \
--define sonar.projectVersion=${sonarDate} \
--define sonar.ws.timeout=30 \
--define sonar.projectDescription=${projectDesc} \
--define sonar.links.homepage=http://www.baidu.com \
--define sonar.sources=${projectPath} \
--define sonar.sourceEncoding=UTF-8 \
--define sonar.java.binaries=target/classes \
--define sonar.java.test.binaries=target/test-classes \
--define sonar.java.surefire.report=target/surefire-reports
"""
}
def qg = waitForQualityGate()
if (qg.status != 'OK') {
error "Pipeline aborted due to quality gate failure: ${qg.status}"
}
}
def qg = waitForQualityGate()
if (qg.status != 'OK') {
error "Pipeline aborted due to quality gate failure: ${qg.status}"
}
- waitForQualityGate
- waitForQualityGate: Wait for SonarQube analysis to be completed and return quality gate status
Pipeline script
#!groovy
@Library('jenkinslib@master') _
def build = new org.devops.buildtools()
def sonar = new org.devops.sonarqube()
def sonaradv = new org.devops.sonarqubeadv()
pipeline {
agent { node { label "hostmachine" }}
parameters {
string(name: 'srcUrl', defaultValue: 'http://192.168.33.1:30088/root/demo-maven-service.git', description: '')
choice(name: 'branchName', choices: 'master\nstage\ndev', description: 'Please chose your branch')
choice(name: 'buildType', choices: 'mvn', description: 'build tool')
choice(name: 'buildShell', choices: 'clean package -DskipTest\n--version', description: 'build tool')
}
stages{
stage('Checkout') {
steps {
script {
checkout([$class: 'GitSCM', branches: [[name: "${branchName}"]], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlab-admin-user', url: "${srcUrl}"]]])
}
}
}
stage('Build') {
steps {
script {
build.Build(buildType,buildShell)
}
}
}
stage('Qa') {
steps {
script {
sonaradv.SonarScan("${JOB_NAME}","${JOB_NAME}","src" )
}
}
}
}
}
Console output
...
[Pipeline] // withSonarQubeEnv
[Pipeline] waitForQualityGate
Checking status of SonarQube task 'AXO9Z_O3dI8p8GdhXo9M' on server 'sonarqube'
SonarQube task 'AXO9Z_O3dI8p8GdhXo9M' status is 'PENDING'
SonarQube task 'AXO9Z_O3dI8p8GdhXo9M' status is 'SUCCESS'
SonarQube task 'AXO9Z_O3dI8p8GdhXo9M' completed. Quality gate is 'ERROR'
[Pipeline] error
SonarQube 的 error 会导致 pipeline 的失败
3.6.4 在jenkins pipeline获取SonarQube检测结果 (SonarQube API）¶
3.6.4 添加SonarQube credentials到Jenkins中¶
sonar-admin-user
- 查看
SonarQube API的返回
http://192.168.33.1:32314/api/qualitygates/project_status?projectKey=sq5scanner
{
"projectStatus":{
"status":"ERROR",
"conditions":[
{
"status":"OK",
"metricKey":"coverage",
"comparator":"LT",
"errorThreshold":"0",
"actualValue":"0.0"
},
{
"status":"ERROR",
"metricKey":"code_smells",
"comparator":"GT",
"errorThreshold":"1",
"actualValue":"3"
}
],
"periods":[
{
"index":1,
"mode":"PREVIOUS_VERSION",
"date":"2020-08-01T19:51:35+0000",
"parameter":"20200801195129"
}
],
"ignoredConditions":false
}
}
3.6.4 JenkinslibTest/src/org/devops/sonarapi.groovy¶
package org.devops
//封装HTTP
def HttpReq(reqType,reqUrl,reqBody){
def sonarServer = "http://192.168.33.1:32314/api"
result = httpRequest authentication: 'sonar-admin-user',
httpMode: reqType,
contentType: "APPLICATION_JSON",
consoleLogResponseBody: true,
ignoreSslErrors: true,
requestBody: reqBody,
url: "${sonarServer}/${reqUrl}"
//quiet: true
return result
}
//获取Sonar质量阈状态
def GetProjectStatus(projectName){
apiUrl = "project_branches/list?project=${projectName}"
response = HttpReq("GET",apiUrl,'')
response = readJSON text: """${response.content}"""
result = response["branches"][0]["status"]["qualityGateStatus"]
//println(response)
return result
}
3.6.4 Pipeline调用sonar api¶
#!groovy
@Library('jenkinslib@master') _
def build = new org.devops.buildtools()
def sonar = new org.devops.sonarqube()
def sonaradv = new org.devops.sonarqubeadv()
def sonarapi = new org.devops.sonarapi()
pipeline {
agent { node { label "hostmachine" }}
parameters {
string(name: 'srcUrl', defaultValue: 'http://192.168.33.1:30088/root/demo-maven-service.git', description: '')
choice(name: 'branchName', choices: 'master\nstage\ndev', description: 'Please chose your branch')
choice(name: 'buildType', choices: 'mvn', description: 'build tool')
choice(name: 'buildShell', choices: 'clean package -DskipTest\n--version', description: 'build tool')
}
stages{
stage('Checkout') {
steps {
script {
checkout([$class: 'GitSCM', branches: [[name: "${branchName}"]], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlab-admin-user', url: "${srcUrl}"]]])
}
}
}
stage('Build') {
steps {
script {
build.Build(buildType,buildShell)
}
}
}
stage('Qa') {
steps {
script {
sonaradv.SonarScan("${JOB_NAME}","${JOB_NAME}","src" )
result = sonarapi.GetProjectStatus("${JOB_NAME}")
println(result)
if(result.toString().contains("ERROR")){
error "Qaulit gate failed, please re-check ur code!"
}else{
println(result)
}
}
}
}
}
}
``` script { sonaradv.SonarScan("${JOB_NAME}","${JOB_NAME}","src" )
result = sonarapi.GetProjectStatus("${JOB_NAME}")
println(result)
if(result.toString().contains("ERROR")){
error "Qaulit gate failed, please re-check ur code!"
}else{
println(result)
}
} ```
Console Output
...
[Pipeline] httpRequest
HttpMethod: GET
URL: http://192.168.33.1:32314/api/project_branches/list?project=sq6scanner
Content-Type: application/json
Using authentication: sonar-admin-user
Sending request to url: http://192.168.33.1:32314/api/project_branches/list?project=sq6scanner
Response Code: HTTP/1.1 200
Response:
{"branches":[{"name":"master","isMain":true,"type":"BRANCH","status":{"qualityGateStatus":"OK"},"analysisDate":"2020-08-01T21:28:00+0000","excludedFromPurge":true}]}
Success code from [100‥399]
[Pipeline] readJSON
[Pipeline] echo
OK
[Pipeline] echo
OK
...
3.7 SonarQube搜索与新建项目(API WAY)¶
http://192.168.33.1:32314/web_api/api
3.7.1 查找项目¶
api/projects/search?projects=${projectName}"
//搜索Sonar项目
def SerarchProject(projectName){
apiUrl = "projects/search?projects=${projectName}"
response = HttpReq("GET",apiUrl,'')
response = readJSON text: """${response.content}"""
result = response["paging"]["total"]
if(result.toString() == "0"){
return "false"
} else {
return "true"
}
}
3.7.2 创建新项目¶
api/projects/create?name=${projectName} &project=$ {projectName} "
//创建Sonar项目
def CreateProject(projectName){
apiUrl = "projects/create?name=${projectName}&project=${projectName}"
response = HttpReq("POST",apiUrl,'')
println(response)
}
3.7.3 搜索与新建项目在Pipeline¶
stage('Qa') {
steps {
script {
result = sonarapi.SearchProject("${JOB_NAME}")
println(result)
if(result == "false"){
println("${JOB_NAME} ---- The project doesn't exist ----- ${JOB_NAME}!")
sonarapi.CreateProject("${JOB_NAME}")
} else {
println("${JOB_NAME} ---- The project already exist!")
}
sonaradv.SonarScan("${JOB_NAME}","${JOB_NAME}","src" )
result = sonarapi.GetProjectStatus("${JOB_NAME}")
println(result)
if(result.toString().contains("ERROR")){
error "Quality gate failed, please re-check ur code!"
}else{
println(result)
}
}
}
}
result = sonarapi.SearchProject("${JOB_NAME}")
println(result)
if(result == "false"){
println("${JOB_NAME} ---- The project doesn't exist ----- ${JOB_NAME}!")
sonarapi.CreateProject("${JOB_NAME}")
} else {
println("${JOB_NAME} ---- The project already exist!")
}
Console output
...
[Pipeline] { (Qa)
[Pipeline] script
[Pipeline] {
[Pipeline] httpRequest
HttpMethod: GET
URL: http://192.168.33.1:32314/api/projects/search?projects=sq7scanner
Content-Type: application/json
Using authentication: sonar-admin-user
Sending request to url: http://192.168.33.1:32314/api/projects/search?projects=sq7scanner
Response Code: HTTP/1.1 200
Response:
{"paging":{"pageIndex":1,"pageSize":100,"total":0},"components":[]}
Success code from [100‥399]
[Pipeline] readJSON
[Pipeline] echo
false
[Pipeline] echo
sq7scanner ---- The project doesn't exist ----- sq7scanner!
[Pipeline] httpRequest
HttpMethod: POST
URL: http://192.168.33.1:32314/api/projects/create?name=sq7scanner&project=sq7scanner
Content-Type: application/json
Using authentication: sonar-admin-user
Sending request to url: http://192.168.33.1:32314/api/projects/create?name=sq7scanner&project=sq7scanner
Response Code: HTTP/1.1 200
Response:
{"project":{"key":"sq7scanner","name":"sq7scanner","qualifier":"TRK","visibility":"public"}}
Success code from [100‥399]
[Pipeline] echo
Status: 200
[Pipeline] withSonarQubeEnv
Injecting SonarQube environment variables using the configuration: sonarqube
[Pipeline] {
[Pipeline] sh
+ date +%Y%m%d%H%M%S
...
3.8 配置质量规则与质量阈¶
3.8.1 配置项目质量规则¶
确保质量阈已经被创建： java -> demo

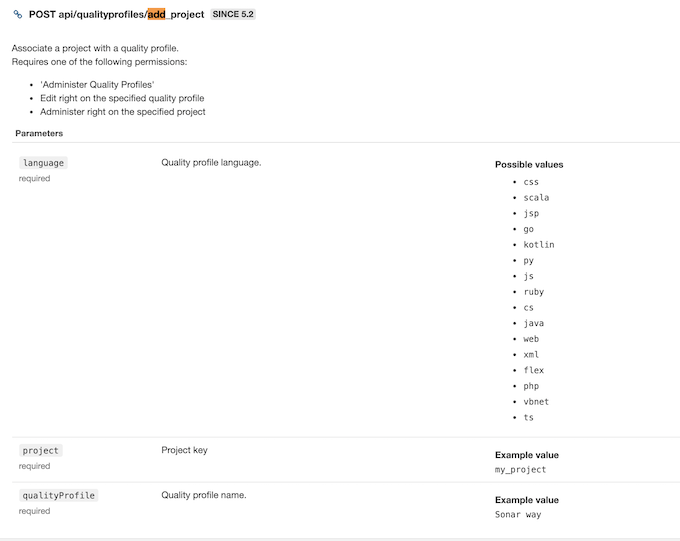

api/qualityprofiles/add_project?language=${language}&qualityProfile=${qualityProfile}&project=${projectName}"
//配置项目质量规则
def ConfigQualityProfiles(projectName,lang,qpname){
apiUrl = "qualityprofiles/add_project?language=${lang}&project=${projectName}&qualityProfile=${qpname}"
response = HttpReq("POST",apiUrl,'')
println(response)
}
stage('Qa') {
steps {
script {
result = sonarapi.SearchProject("${JOB_NAME}")
println(result)
if(result == "false"){
println("${JOB_NAME} ---- The project doesn't exist ----- ${JOB_NAME}!")
sonarapi.CreateProject("${JOB_NAME}")
} else {
println("${JOB_NAME} ---- The project already exist!")
}
qpName = "${JOB_NAME}".split("-")[0]
sonarapi.ConfigQualityProfiles("${JOB_NAME}","java",qpName)
sonaradv.SonarScan("${JOB_NAME}","${JOB_NAME}","src" )
result = sonarapi.GetProjectStatus("${JOB_NAME}")
println(result)
if(result.toString().contains("ERROR")){
error "Quality gate failed, please re-check ur code!"
}else{
println(result)
}
}
}
}
qpName = "${JOB_NAME}".split("-")[0]
sonarapi.ConfigQualityProfiles("${JOB_NAME}","java",qpName)
- job name:
demo-sq8-scanner
console output
[Pipeline] httpRequest
HttpMethod: POST
URL: http://192.168.33.1:32314/api/qualityprofiles/add_project?language=java&project=demo-sq8-scanner&qualityProfile=demo
Content-Type: application/json
Using authentication: sonar-admin-user
Sending request to url: http://192.168.33.1:32314/api/qualityprofiles/add_project?language=java&project=demo-sq8-scanner&qualityProfile=demo
Response Code: HTTP/1.1 204
Response:
null
Success code from [100‥399]
[Pipeline] echo
Status: 204
3.8.2 配置项目质量阈¶
//项目授权
api/permissions/apply_template?projectKey=${projecttKey}&templateName=${templateName}"
//获取质量阈ID
api/qualitygates/show?name=${gateName}
//更新质量阈值
api/qualitygates/select?projectKey=${projectKey}&gateId=${gateId}"
JenkinslibTest/src/org/devops/sonarqube.groovy
//获取质量阈ID
def GetQualtyGateId(gateName){
apiUrl= "qualitygates/show?name=${gateName}"
response = HttpReq("GET",apiUrl,'')
response = readJSON text: """${response.content}"""
result = response["id"]
return result
}
//配置项目质量阈
def ConfigQualityGates(projectName,gateName){
gateId = GetQualtyGateId(gateName)
apiUrl = "qualitygates/select?gateId=${gateId}&projectKey=${projectName}"
response = HttpReq("POST",apiUrl,'')
println(response)println(response)
}
sonarapi.ConfigQualityGates("${JOB_NAME}",qpName)
3.8.3 使用default QualityGates或者default Qualityfiles¶
sonarapi.ConfigQualityProfiles("${JOB_NAME}","java","Sonar%20way")
3.8.4 最终版本(sharedlib and pipeline)¶
JenkinslibTest/src/org/devops/sonarapi.groovy
package org.devops
//封装HTTP
def HttpReq(reqType,reqUrl,reqBody){
def sonarServer = "http://192.168.33.1:32314/api"
result = httpRequest authentication: 'sonar-admin-user',
httpMode: reqType,
contentType: "APPLICATION_JSON",
consoleLogResponseBody: true,
ignoreSslErrors: true,
requestBody: reqBody,
url: "${sonarServer}/${reqUrl}"
//quiet: true
return result
}
//获取Sonar质量阈状态
def GetProjectStatus(projectName){
apiUrl = "project_branches/list?project=${projectName}"
response = HttpReq("GET",apiUrl,'')
response = readJSON text: """${response.content}"""
result = response["branches"][0]["status"]["qualityGateStatus"]
//println(response)
return result
}
//获取Sonar质量阈状态(多分支)
def GetProjectStatus(projectName,branchName){
apiUrl = "qualitygates/project_status?projectKey=${projectName}&branch=${branchName}"
response = HttpReq("GET",apiUrl,'')
response = readJSON text: """${response.content}"""
result = response["projectStatus"]["status"]
//println(response)
return result
}
//搜索Sonar项目
def SearchProject(projectName){
apiUrl = "projects/search?projects=${projectName}"
response = HttpReq("GET",apiUrl,'')
response = readJSON text: """${response.content}"""
result = response["paging"]["total"]
if(result.toString() == "0"){
return "false"
} else {
return "true"
}
}
//创建Sonar项目
def CreateProject(projectName){
apiUrl = "projects/create?name=${projectName}&project=${projectName}"
response = HttpReq("POST",apiUrl,'')
println(response)
}
//配置项目质量规则
def ConfigQualityProfiles(projectName,lang,qpname){
apiUrl = "qualityprofiles/add_project?language=${lang}&project=${projectName}&qualityProfile=${qpname}"
response = HttpReq("POST",apiUrl,'')
println(response)
}
//获取质量阈ID
def GetQualtyGateId(gateName){
apiUrl= "qualitygates/show?name=${gateName}"
response = HttpReq("GET",apiUrl,'')
response = readJSON text: """${response.content}"""
result = response["id"]
return result
}
//配置项目质量阈
def ConfigQualityGates(projectName,gateName){
gateId = GetQualtyGateId(gateName)
apiUrl = "qualitygates/select?gateId=${gateId}&projectKey=${projectName}"
response = HttpReq("POST",apiUrl,'')
println(response)println(response)
}
pipeline
#!groovy
@Library('jenkinslib@master') _
def build = new org.devops.buildtools()
def sonar = new org.devops.sonarqube()
def sonaradv = new org.devops.sonarqubeadv()
def sonarapi = new org.devops.sonarapi()
pipeline {
agent { node { label "hostmachine" }}
parameters {
string(name: 'srcUrl', defaultValue: 'http://192.168.33.1:30088/root/demo-maven-service.git', description: '')
choice(name: 'branchName', choices: 'master\nstage\ndev', description: 'Please chose your branch')
choice(name: 'buildType', choices: 'mvn', description: 'build tool')
choice(name: 'buildShell', choices: 'clean package -DskipTest\n--version', description: 'build tool')
}
stages{
stage('Checkout') {
steps {
script {
checkout([$class: 'GitSCM', branches: [[name: "${branchName}"]], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlab-admin-user', url: "${srcUrl}"]]])
}
}
}
stage('Build') {
steps {
script {
build.Build(buildType,buildShell)
}
}
}
stage('Qa') {
steps {
script {
result = sonarapi.SearchProject("${JOB_NAME}")
println(result)
if(result == "false"){
println("${JOB_NAME} ---- The project doesn't exist ----- ${JOB_NAME}!")
sonarapi.CreateProject("${JOB_NAME}")
} else {
println("${JOB_NAME} ---- The project already exist!")
}
qpName = "${JOB_NAME}".split("-")[0]
sonarapi.ConfigQualityProfiles("${JOB_NAME}","java",qpName)
sonarapi.ConfigQualityGates("${JOB_NAME}",qpName)
sonaradv.SonarScan("${JOB_NAME}","${JOB_NAME}","src" )
result = sonarapi.GetProjectStatus("${JOB_NAME}")
println(result)
if(result.toString().contains("ERROR")){
error "Quality gate failed, please re-check ur code!"
}else{
println(result)
}
}
}
}
}
}

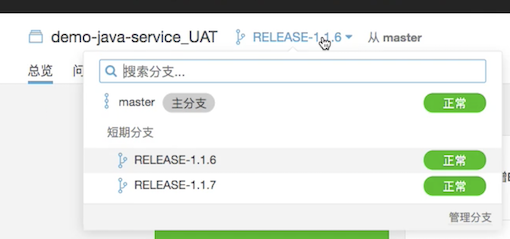

3.9 Sonar配置项目多分支模式¶
https://github.com/mc1arke/sonarqube-community-branch-plugin
-
将插件放到两个目录中，然后重启sonar
/opt/sonarqube/extensions/plugins/opt/sonarqube/lib/common- 扫描添加
--define sonar.branch.name=${branchName}-X
