一、Jenkins + K8S + Gitlab构建RLEASE打包发布更新流水线到K8S集群¶
1.1 Jenkins + K8S + Gitlab构建RLEASE打包发布更新流水线到K8S集群¶
获取运行中deploy的yaml -> 上传到gitlab -> 更新Container Image （打包jar包 -> 创建新的Image -> 上传Image到Docker Hub） -> 上传到gitlab (yaml) -> 将新的yaml apply 到集群中
1.2 配置Prod-Release流水线构建镜像¶

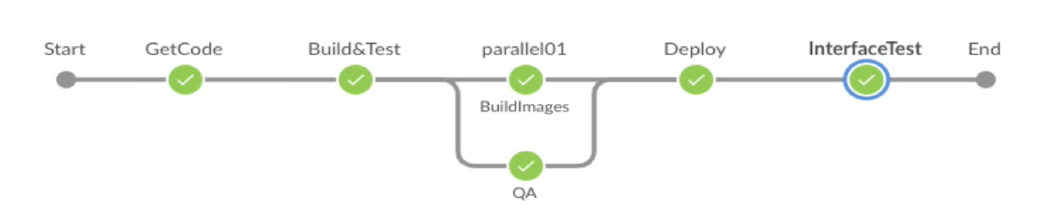

1.2.1 Release测试流水线¶
- 代码 -> 编译 -> 单测 -> 打包 -> 扫描 -> 接口测试 -> 镜像 -> 发布 -> 生成版本文件 -> 邮件通知
1.2.2 Docker in Docker配置¶
你可以在K8S 集群中 Run K8S Pod as Agent
- name: dockersock
hostPath:
path: /var/run/docker.sock
- name: dockercmd
hostPath:
path: /usr/local/bin/docker

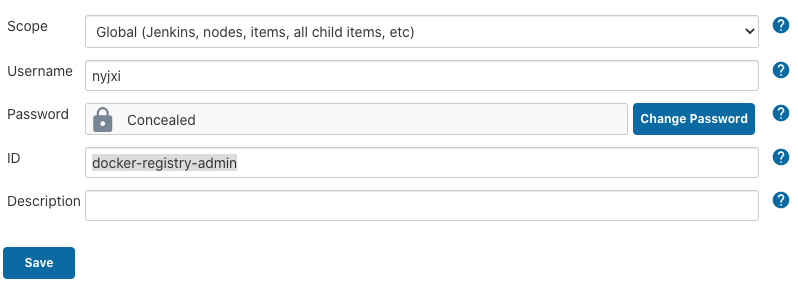

1.2.3 创建一个凭据存储registry仓库的账号和密码¶
ID: docker-registry-admin
1.2.4 添加Dockerfile到 项目中demo-maven-service¶
Dockerfile
FROM openjdk:8-alpine
MAINTAINER devops
ADD target/*.jar /app.jar
## 执行命令
ENTRYPOINT ["java","-jar","/app.jar"]
1.2.5 创建BuildImage pipeline¶
stage("BuildImages"){
steps{
script{
env.serviceName = "${JOB_NAME}".split("_")[0]
withCredentials([usernamePassword(credentialsId: 'docker-registry-admin', passwordVariable: 'password', usernameVariable: 'username')]) {
env.dockerImage = "nyjxi/${serviceName}:${branchName}"
sh """
docker login -u ${username} -p ${password}
docker build -t nyjxi/${serviceName}:${branchName} .
sleep 1
docker push nyjxi/${serviceName}:${branchName}
sleep 1
#docker rmi nyjxi/devopstest/${serviceName}:${branchName}
"""
}
}
}
}
1.2.6 Pipeline Name: demo-java-service_UAT¶
- https://github.com/Chao-Xi/JenkinslibTest/blob/master/src/org/devops/gitlab.groovy
- https://github.com/Chao-Xi/JenkinslibTest/blob/master/src/org/devops/kubernetes.groovy
#!groovy
@Library('jenkinslib@master') _
def k8s = new org.devops.kubernetes()
def gitlab = new org.devops.gitlab()
def build = new org.devops.buildtools()
pipeline {
agent { node { label "vagrant-agent" }}
parameters {
string(name: 'srcUrl', defaultValue: 'http://192.168.33.1:30088/root/demo-maven-service.git', description: '')
choice(name: 'versionName', choices: '1.0\n1.1\n1.2\n1.3', description: 'Please chose your versionName')
choice(name: 'branchName', choices: 'master\nstage\ndev', description: 'Please chose your branch')
choice(name: 'buildType', choices: 'mvn', description: 'build tool')
choice(name: 'buildShell', choices: 'clean package -DskipTest\n--version', description: 'build tool')
}
stages{
stage('Checkout') {
steps {
script {
checkout([$class: 'GitSCM', branches: [[name: "${branchName}"]], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlab-admin-user', url: "${srcUrl}"]]])
}
}
}
stage('Build') {
steps {
script {
build.Build(buildType,buildShell)
}
}
}
// 构建镜像
stage("BuildImages"){
steps{
script{
env.serviceName = "${JOB_NAME}".split("_")[0]
withCredentials([usernamePassword(credentialsId: 'docker-registry-admin', passwordVariable: 'password', usernameVariable: 'username')]) {
env.dockerImage = "nyjxi/${serviceName}:${branchName}"
sh """
docker login -u ${username} -p ${password}
docker build -t nyjxi/${serviceName}:${branchName} .
sleep 1
docker push nyjxi/${serviceName}:${branchName}
sleep 1
#docker rmi nyjxi/devopstest/${serviceName}:${branchName}
"""
}
}
}
}
//连入部署集群
stage("GetDeployment"){
agent { node { label "master" }}
steps{
script{
response = k8s.GetDeployment("demo-prod","demoapp")
response = response.content
//文件转换
base64Content = response.bytes.encodeBase64().toString()
//上传文件
// gitlab.CreateRepoFile(3,"demo-prod%2f${versionName}-prod.yaml",base64Content)
}
}
}
}
}
连入K8S部署集群
stage("GetDeployment"){
agent { node { label "master" }}
....
Console Output
...
[Pipeline] withCredentials
Masking supported pattern matches of $username or $password
[Pipeline] {
[Pipeline] sh
+ docker login -u **** -p ****
WARNING! Using --password via the CLI is insecure. Use --password-stdin.
WARNING! Your password will be stored unencrypted in /home/vagrant/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store
Login Succeeded
+ docker build -t ****/demo-java-service:master .
Sending build context to Docker daemon 150.5kB
...
Successfully built 478beebd8a2f
Successfully tagged ****/demo-java-service:master
+ sleep 1
+ docker push ****/demo-java-service:master
The push refers to repository [docker.io/****/demo-java-service]
30c0b2f82718: Preparing
ceaf9e1ebef5: Preparing
9b9b7f3d56a0: Preparing
f1b5933fe4b5: Preparing
9b9b7f3d56a0: Mounted from library/openjdk
f1b5933fe4b5: Mounted from library/openjdk
ceaf9e1ebef5: Mounted from library/openjdk
30c0b2f82718: Pushed
master: digest: sha256:e5e037dfcb67f85dce10ebd98d8cd8278e6b8378f26a4980dafe4a795e532b8b size: 1155
+ sleep 1
[Pipeline] }
...

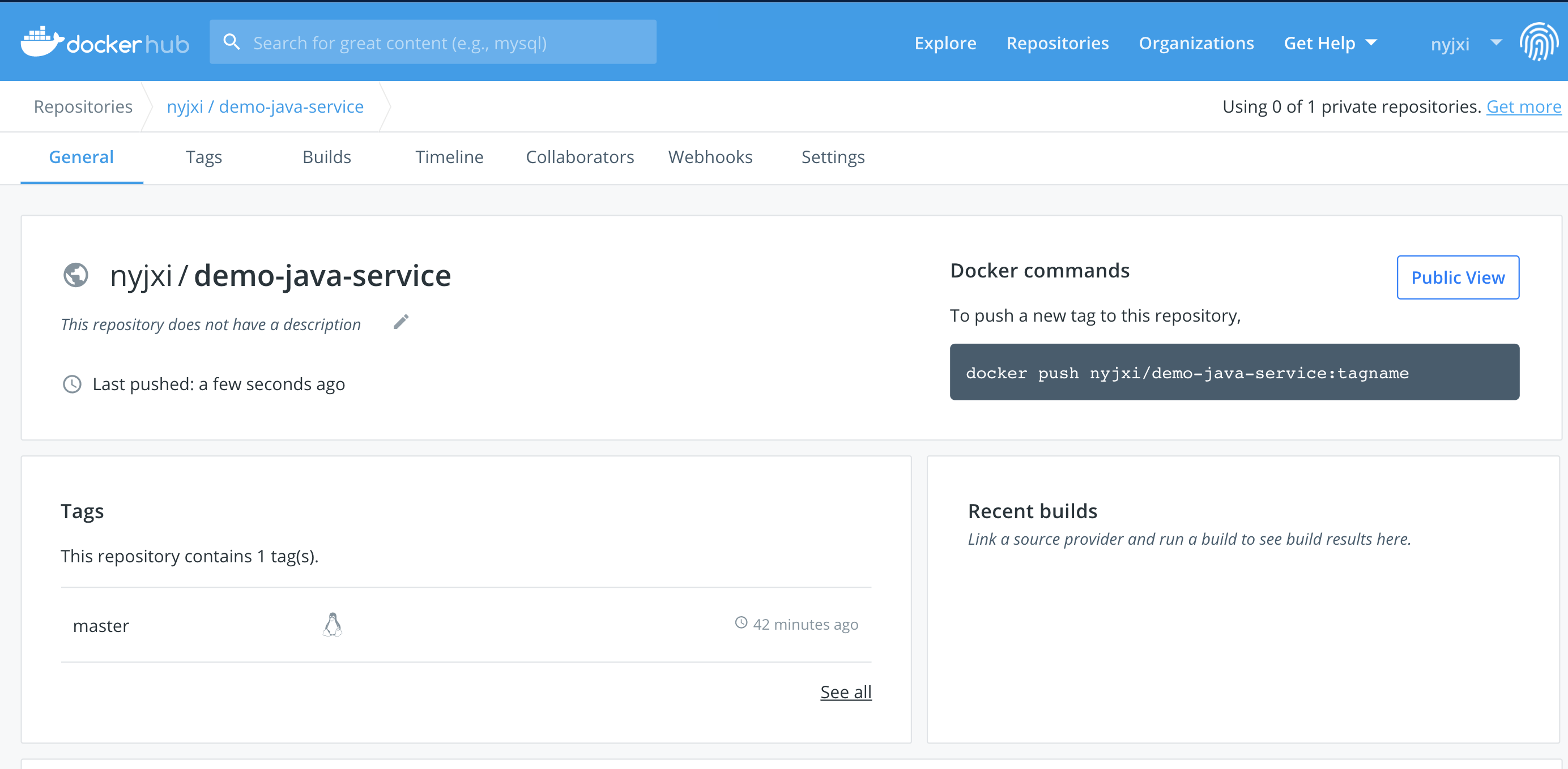

Image被push到 dockerhub中
1.3 获取Gitlab Release发布文件（k8s-yaml文件)¶
1.3.1 gitlab API获取文件内容¶
def GetRepoFile(projectId,filePath){
apiUrl = "projects/${projectId}/repository/files/${filePath}/raw?ref=master"
response = HttpReq('GET',apiUrl,'')
return response.content
}
1.3.2 Pipeline调用gitlab API获取 部署文件¶
stage('Deploy') {
steps {
script{
//下载版本库文件
// releaseVersion = "${branchName}".split("-")[-1]
releaseVersion = "${versionName}"
response = gitlab.GetRepoFile(3,"demo-prod%2f${releaseVersion}-prod.yaml")
}
}
}
- projectId: 3
-
filePath:
demo-prod%2f${releaseVersion}-prod.yaml -

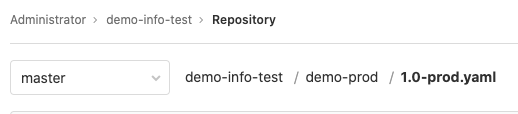

demo-info-test/-/blob/master/demo-prod/1.0-prod.yaml
完整Pipeline
#!groovy
@Library('jenkinslib@master') _
def k8s = new org.devops.kubernetes()
def gitlab = new org.devops.gitlab()
def build = new org.devops.buildtools()
pipeline {
agent { node { label "vagrant-agent" }}
parameters {
string(name: 'srcUrl', defaultValue: 'http://192.168.33.1:30088/root/demo-maven-service.git', description: '')
choice(name: 'versionName', choices: '1.0\n1.1\n1.2\n1.3', description: 'Please chose your versionName')
choice(name: 'branchName', choices: 'master\nstage\ndev', description: 'Please chose your branch')
choice(name: 'buildType', choices: 'mvn', description: 'build tool')
choice(name: 'buildShell', choices: 'clean package -DskipTest\n--version', description: 'build tool')
}
stages{
stage('Checkout') {
steps {
script {
checkout([$class: 'GitSCM', branches: [[name: "${branchName}"]], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlab-admin-user', url: "${srcUrl}"]]])
}
}
}
stage('Deploy') {
steps {
script{
//下载版本库文件
// releaseVersion = "${branchName}".split("-")[-1]
releaseVersion = "${versionName}"
response = gitlab.GetRepoFile(3,"demo-prod%2f${releaseVersion}-prod.yaml")
}
}
}
}
Console Output
...
Masking supported pattern matches of $gitlabToken
[Pipeline] {
[Pipeline] httpRequest
HttpMethod: GET
URL: http://192.168.33.1:30088/api/v4/projects/3/repository/files/demo-prod%2f1.0-prod.yaml/raw?ref=master
Content-Type: application/json
PRIVATE-TOKEN: *****
Sending request to url: http://192.168.33.1:30088/api/v4/projects/3/repository/files/demo-prod%2f1.0-prod.yaml/raw?ref=master
Response Code: HTTP/1.1 200 OK
Response:
apiVersion: apps/v1
kind: Deployment
metadata:
...
1.4 更新release流水线yaml(镜像)发布文件¶
1.4.1 gitlab API更新文件内容¶
//更新文件内容
def UpdateRepoFile(projectId,filePath,fileContent){
apiUrl = "projects/${projectId}/repository/files/${filePath}"
reqBody = """{"branch": "master","encoding":"base64", "content": "${fileContent}", "commit_message": "update a new file"}"""
response = HttpReq('PUT',apiUrl,reqBody)
println(response)
}

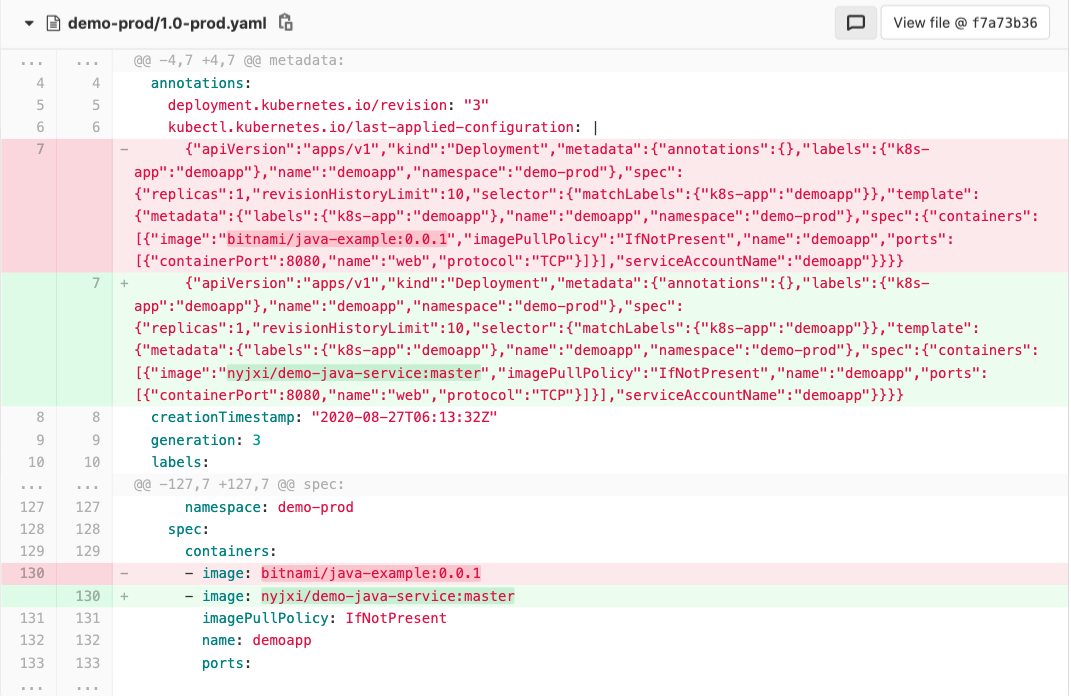

1.4.2 在pipeline中更新dockerImage并上传覆盖gitlab原有文件¶
stage('Pre-deploy') {
steps {
script{
//下载版本库文件
// releaseVersion = "${branchName}".split("-")[-1]
releaseVersion = "${versionName}"
response = gitlab.GetRepoFile(3,"demo-prod%2f${releaseVersion}-prod.yaml")
//获取文件中内容（镜像）
fileData = readYaml text: """${response}"""
println(fileData["spec"]["template"]["spec"]["containers"][0]["image"])
println(fileData["metadata"]["resourceVersion"])
// 更新新的镜像
dockerImage = "nyjxi/demo-java-service:master"
OldImage = fileData["spec"]["template"]["spec"]["containers"][0]["image"]
response = response.replace(OldImage,dockerImage)
println(response)
//更新gitlab文件内容
base64Content = response.bytes.encodeBase64().toString()
gitlab.UpdateRepoFile(3,"demo-prod%2f${releaseVersion}-prod.yaml",base64Content)
}
}
}
Console output
....
spec:
containers:
- image: nyjxi/demo-java-service:master
imagePullPolicy: IfNotPresent
name: demoapp
ports:
- containerPort: 8080
...
[Pipeline] withCredentials
Masking supported pattern matches of $gitlabToken
[Pipeline] {
[Pipeline] httpRequest
HttpMethod: PUT
URL: http://192.168.33.1:30088/api/v4/projects/3/repository/files/demo-prod%2f1.0-prod.yaml
Content-Type: application/json
PRIVATE-TOKEN: *****
Sending request to url: http://192.168.33.1:30088/api/v4/projects/3/repository/files/demo-prod%2f1.0-prod.yaml
Response Code: HTTP/1.1 200 OK
Response:
{"file_path":"demo-prod/1.0-prod.yaml","branch":"master"}
Success code from [100‥399]
[Pipeline] }
[Pipeline] // withCredentials
[Pipeline] echo
Status: 200
[Pipeline] }
1.5 配置Prod-Release流水线应用发布¶
1.5.1 Kubernetes API更新Deployment¶
def UpdateDeployment(nameSpace,deployName,deplyBody){
apiUrl = "namespaces/${nameSpace}/deployments/${deployName}"
response = HttpReq('PUT',apiUrl,deplyBody)
println(response)
}
1.5.2 Pipeline调用API更新Deployment¶
stage('Pre-deploy') {
steps {
script{
//下载版本库文件
// releaseVersion = "${branchName}".split("-")[-1]
releaseVersion = "${versionName}"
response = gitlab.GetRepoFile(3,"demo-prod%2f${releaseVersion}-prod.yaml")
//获取文件中内容（镜像）
fileData = readYaml text: """${response}"""
println(fileData["spec"]["template"]["spec"]["containers"][0]["image"])
println(fileData["metadata"]["resourceVersion"])
// 更新新的镜像
dockerImage = "nyjxi/demo-java-service:master"
oldImage = fileData["spec"]["template"]["spec"]["containers"][0]["image"]
oldVersion = fileData["metadata"]["resourceVersion"]
response = response.replace(oldImage,dockerImage)
response = response.replace(oldVersion,"")
println(response)
//更新gitlab文件内容
base64Content = response.bytes.encodeBase64().toString()
gitlab.UpdateRepoFile(3,"demo-prod%2f${releaseVersion}-prod.yaml",base64Content)
}
}
}
stage('Deploy-deploy') {
agent { node { label "master" }}
steps {
script{
k8s.UpdateDeployment("demo-prod","demoapp",response)
}
}
}
Console output
...
Running on Jenkins in /var/lib/jenkins/workspace/k8s-gitlab-updatefile
[Pipeline] {
[Pipeline] script
[Pipeline] {
[Pipeline] withCredentials
Masking supported pattern matches of $kubernetestoken
[Pipeline] {
[Pipeline] httpRequest
HttpMethod: PUT
URL: https://kubernetes.docker.internal:6443/apis/apps/v1/namespaces/demo-prod/deployments/demoapp
Authorization: *****
Content-Type: application/yaml
Accept: application/yaml
Sending request to url: https://kubernetes.docker.internal:6443/apis/apps/v1/namespaces/demo-prod/deployments/demoapp
Response Code: HTTP/1.1 200 OK
Response:
apiVersion: apps/v1
kind: Deployment
...
$ kubectl get pod -n demo-prod
NAME READY STATUS RESTARTS AGE
demoapp-564f789c47-fzkbd 1/1 Running 0 6d18h
demoapp-766654c58c-x5vgx 0/1 ContainerCreating 0 2s
...
$ kubectl logs demoapp-766654c58c-x5vgx -n demo-prod
Hello World!
1.6 完整Prod-Release应用发布流水线¶
gitlab.groovy: https://github.com/Chao-Xi/JenkinslibTest/blob/master/src/org/devops/gitlab.groovykubernetes.groovy: https://github.com/Chao-Xi/JenkinslibTest/blob/master/src/org/devops/kubernetes.groovy
1.6.1 完整Pipeline¶
- 获取运行中deploy的yaml -> 上传到gitlab -> 更新Container Image -> 上传到gitlab (yaml) -> 将新的yaml apply 到集群中

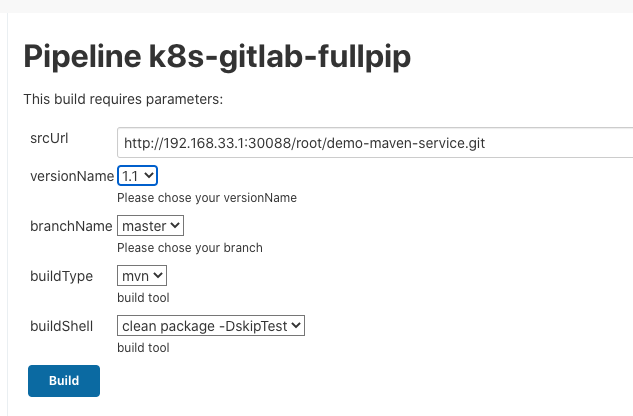

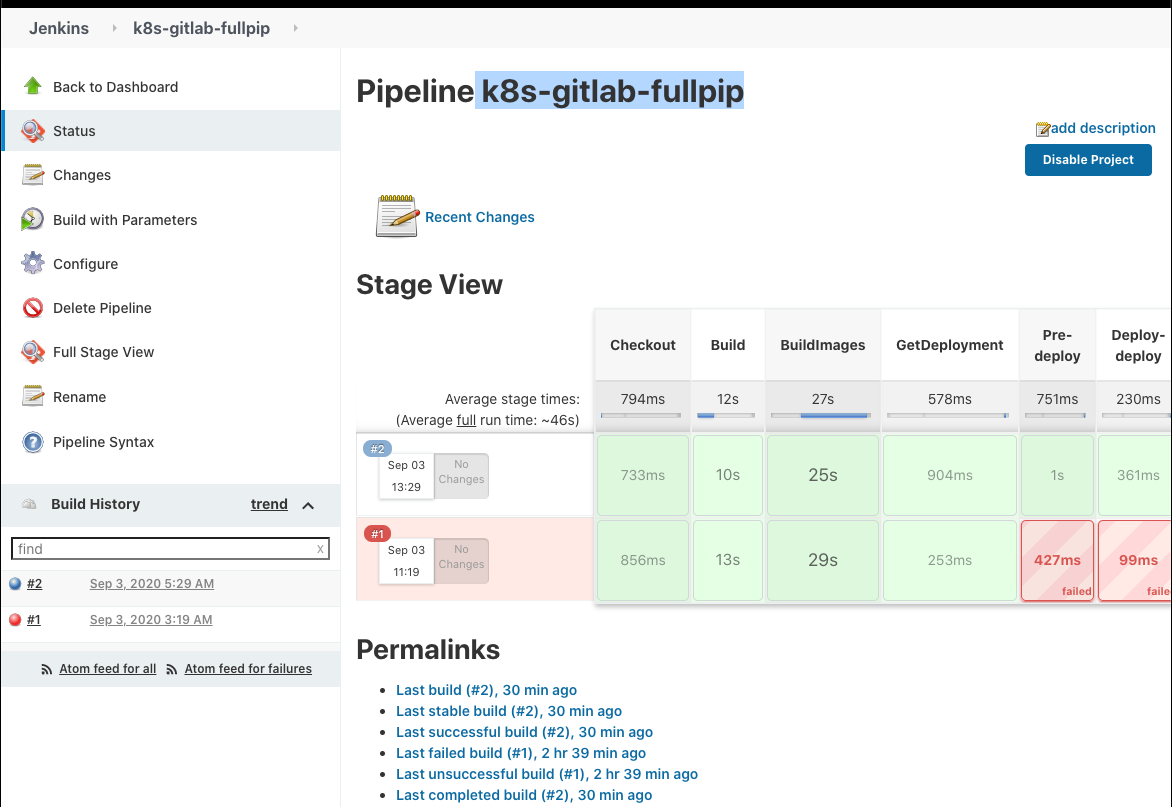

k8s-gitlab-fullpip
#!groovy
@Library('jenkinslib@master') _
def k8s = new org.devops.kubernetes()
def gitlab = new org.devops.gitlab()
def build = new org.devops.buildtools()
pipeline {
agent { node { label "vagrant-agent" }}
parameters {
string(name: 'srcUrl', defaultValue: 'http://192.168.33.1:30088/root/demo-maven-service.git', description: '')
choice(name: 'versionName', choices: '1.0\n1.1\n1.2\n1.3', description: 'Please chose your versionName')
choice(name: 'branchName', choices: 'master\nstage\ndev', description: 'Please chose your branch')
choice(name: 'buildType', choices: 'mvn', description: 'build tool')
choice(name: 'buildShell', choices: 'clean package -DskipTest\n--version', description: 'build tool')
}
stages{
stage('Checkout') {
steps {
script {
checkout([$class: 'GitSCM', branches: [[name: "${branchName}"]], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlab-admin-user', url: "${srcUrl}"]]])
}
}
}
stage('Build') {
steps {
script {
build.Build(buildType,buildShell)
}
}
}
// 构建镜像
stage("BuildImages"){
steps{
script{
env.serviceName = "${JOB_NAME}".split("_")[0]
withCredentials([usernamePassword(credentialsId: 'docker-registry-admin', passwordVariable: 'password', usernameVariable: 'username')]) {
env.dockerImage = "nyjxi/${serviceName}:${branchName}"
sh """
docker login -u ${username} -p ${password}
docker build -t nyjxi/${serviceName}:${branchName} .
sleep 1
docker push nyjxi/${serviceName}:${branchName}
sleep 1
#docker rmi nyjxi/devopstest/${serviceName}:${branchName}
"""
}
}
}
}
stage("GetDeployment"){
agent { node { label "master" }}
steps{
script{
response = k8s.GetDeployment("demo-prod","demoapp")
response = response.content
//文件转换
base64Content = response.bytes.encodeBase64().toString()
//上传文件
gitlab.CreateRepoFile(3,"demo-prod%2f${versionName}-prod.yaml",base64Content)
}
}
}
stage('Pre-deploy') {
steps {
script{
//下载版本库文件
// releaseVersion = "${branchName}".split("-")[-1]
releaseVersion = "${versionName}"
response = gitlab.GetRepoFile(3,"demo-prod%2f${releaseVersion}-prod.yaml")
//获取文件中内容（镜像）
fileData = readYaml text: """${response}"""
println(fileData["spec"]["template"]["spec"]["containers"][0]["image"])
println(fileData["metadata"]["resourceVersion"])
// 更新新的镜像
dockerImage = "nyjxi/demo-java-service:master"
oldImage = fileData["spec"]["template"]["spec"]["containers"][0]["image"]
oldVersion = fileData["metadata"]["resourceVersion"]
response = response.replace(oldImage,dockerImage)
response = response.replace(oldVersion,"")
println(response)
//更新gitlab文件内容
base64Content = response.bytes.encodeBase64().toString()
gitlab.UpdateRepoFile(3,"demo-prod%2f${releaseVersion}-prod.yaml",base64Content)
}
}
}
stage('Deploy-deploy') {
agent { node { label "master" }}
steps {
script{
k8s.UpdateDeployment("demo-prod","demoapp",response)
}
}
}
}
}
$ kubectl get pod -n demo-prod
NAME READY STATUS RESTARTS AGE
demoapp-766654c58c-28t4v 0/1 CrashLoopBackOff 12 36m
$ kubectl logs demoapp-766654c58c-28t4v -n demo-prod
Hello World!
二、版本晋级及发布流水线¶
2.1 版本晋级及发布流水线¶
- https://github.com/Chao-Xi/JenkinslibTest/blob/master/src/org/devops/gitlab.groovy
- https://github.com/Chao-Xi/JenkinslibTest/blob/master/src/org/devops/kubernetes.groovy
2.2 配置版本晋级流水线¶
晋级／版本更新流水线
- 选择晋级策略 -> 根据版本文件晋级 -> 生成新版本文件
2.2.1 晋级流水线¶

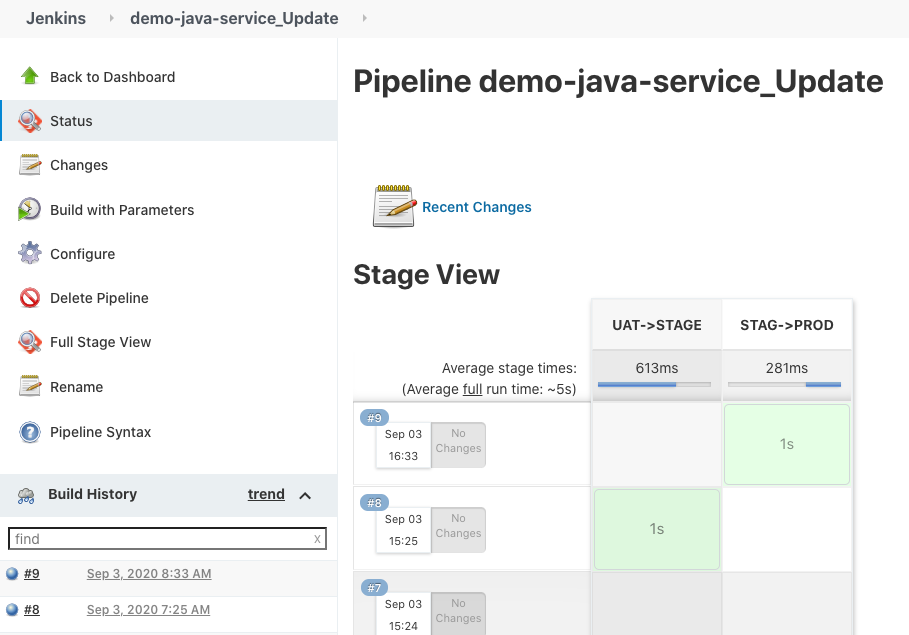

demo-java-service_Update
#!groovy
@Library('jenkinslib@master') _
def k8s = new org.devops.kubernetes()
def gitlab = new org.devops.gitlab()
// String updateType = "${env.updateType}"
// String releaseVersion = "${env.releaseVersion}"
pipeline{
agent { node { label "master" }}
parameters {
choice(name: 'releaseVersion', choices: '1.0\n1.1\n1.2\n1.3', description: 'Please chose your versionName')
choice(name: 'updateType', choices: 'UAT -> STAGE\nSTAGE -> PROD', description: 'Please chose your updateType')
}
stages{
stage("UAT->STAGE"){
when {
environment name: 'updateType', value: 'UAT -> STAGE'
}
steps {
script{
println("UAT -> STAGE")
//获取UAT文件中的images
response = gitlab.GetRepoFile(3,"demo-uat%2f${releaseVersion}-uat.yaml")
fileData = readYaml text: """${response}"""
uatImage = fileData["spec"]["template"]["spec"]["containers"][0]["image"]
println("UAT IMAGES --> ${uatImage}")
//获取最新STAG环境的deployment
stagResponse = k8s.GetDeployment("demo-stage","demoapp")
stagResponse = stagResponse.content
//获取镜像和version
stagfileData = readYaml text: """${stagResponse}"""
stagOldImage = stagfileData["spec"]["template"]["spec"]["containers"][0]["image"]
stagOldVersion = stagfileData["metadata"]["resourceVersion"]
//更新镜像和version
println("STAG OLD IMAGES --> ${stagOldImage}")
stagResponse = stagResponse.replace(stagOldImage,uatImage)
stagResponse = stagResponse.replace(stagOldVersion,"")
//生成最新的STAGE版本文件
//文件转换
base64Content = stagResponse.bytes.encodeBase64().toString()
//上传文件
try {
gitlab.CreateRepoFile(3,"demo-stage%2f${releaseVersion}-stage.yaml",base64Content)
} catch(e){
gitlab.UpdateRepoFile(3,"demo-stage%2f${releaseVersion}-stage.yaml",base64Content)
}
}
}
}
stage("STAG->PROD"){
when {
environment name: 'updateType', value: 'STAGE -> PROD'
}
steps {
script{
println("STAGE -> PROD")
//获取STAG文件中的images
response = gitlab.GetRepoFile(3,"demo-stage%2f${releaseVersion}-stage.yaml")
fileData = readYaml text: """${response}"""
stagImage = fileData["spec"]["template"]["spec"]["containers"][0]["image"]
println("STAGE IMAGES --> ${stagImage}")
//获取最新PROD环境的deployment
prodResponse = k8s.GetDeployment("demo-prod","demoapp")
prodResponse = prodResponse.content
//获取镜像和version
prodfileData = readYaml text: """${prodResponse}"""
prodOldImage = prodfileData["spec"]["template"]["spec"]["containers"][0]["image"]
prodOldVersion = prodfileData["metadata"]["resourceVersion"]
//更新镜像和version
println("PROD OLD IMAGES --> ${prodOldImage}")
prodResponse = prodResponse.replace(prodOldImage,stagImage)
prodResponse = prodResponse.replace(prodOldVersion,"")
//生成最新的PROD版本文件
//文件转换
base64Content = prodResponse.bytes.encodeBase64().toString()
//上传文件
try {
gitlab.CreateRepoFile(3,"demo-prod%2f${releaseVersion}-prod.yaml",base64Content)
} catch(e){
gitlab.UpdateRepoFile(3,"demo-prod%2f${releaseVersion}-prod.yaml",base64Content)
}
}
}
}
}
}
2.2.2 调用在kubernetes.groovy定义API方法¶
//获取Deployment
def GetDeployment(nameSpace,deployName){
apiUrl = "namespaces/${nameSpace}/deployments/${deployName}"
response = HttpReq('GET',apiUrl,'')
return response
}
2.2.3 调用在gitlab.groovy定义API方法¶
//更新文件内容
def UpdateRepoFile(projectId,filePath,fileContent){
apiUrl = "projects/${projectId}/repository/files/${filePath}"
reqBody = """{"branch": "master","encoding":"base64", "content": "${fileContent}", "commit_message": "update a new file"}"""
response = HttpReq('PUT',apiUrl,reqBody)
println(response)
}
//获取文件内容
def GetRepoFile(projectId,filePath){
apiUrl = "projects/${projectId}/repository/files/${filePath}/raw?ref=master"
response = HttpReq('GET',apiUrl,'')
return response.content
}
//创建仓库文件
def CreateRepoFile(projectId,filePath,fileContent){
apiUrl = "projects/${projectId}/repository/files/${filePath}"
reqBody = """{"branch": "master","encoding":"base64", "content": "${fileContent}", "commit_message": "create a new file"}"""
response = HttpReq('POST',apiUrl,reqBody)
println(response)
}

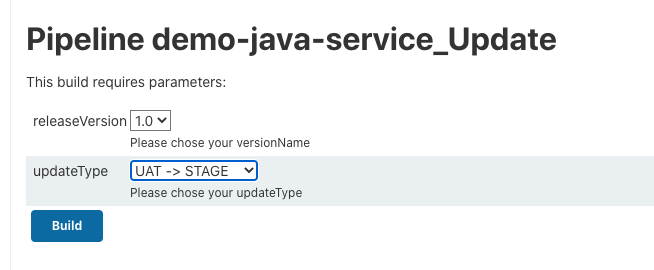

Console Output: UAT -> STAGE
STAG OLD IMAGES --> bitnami/java-example:0.0.1
[Pipeline] withCredentials
Masking supported pattern matches of $gitlabToken
[Pipeline] {
[Pipeline] httpRequest
HttpMethod: POST
URL: http://192.168.33.1:30088/api/v4/projects/3/repository/files/demo-stage%2f1.0-stage.yaml
Content-Type: application/json
PRIVATE-TOKEN: *****
Sending request to url: http://192.168.33.1:30088/api/v4/projects/3/repository/files/demo-stage%2f1.0-stage.yaml
Response Code: HTTP/1.1 201 Created
Response:

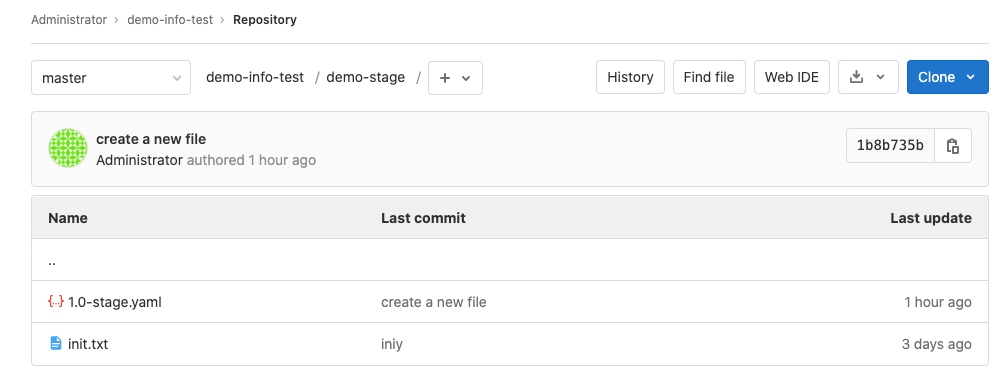

{"file_path":"demo-stage/1.0-stage.yaml","branch":"master"}
Success code from [100‥399]
[Pipeline] }
[Pipeline] // withCredentials
[Pipeline] echo
Status: 201
[Pipeline] }
[Pipeline] // script
[Pipeline] }
[Pipeline] // stage
[Pipeline] stage
[Pipeline] { (STAG->PROD)
Stage "STAG->PROD" skipped due to when conditional
[Pipeline] }

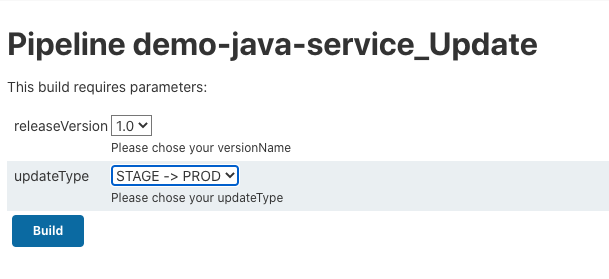

Console Output: STAGE -> PROD
Stage "UAT->STAGE" skipped due to when conditional
[Pipeline] }
...
HttpMethod: POST
URL: http://192.168.33.1:30088/api/v4/projects/3/repository/files/demo-prod%2f1.0-prod.yaml
Content-Type: application/json
PRIVATE-TOKEN: *****
Sending request to url: http://192.168.33.1:30088/api/v4/projects/3/repository/files/demo-prod%2f1.0-prod.yaml
Response Code: HTTP/1.1 400 Bad Request
Response:
{"message":"A file with this name already exists"}
[Pipeline] }
[Pipeline] // withCredentials
[Pipeline] withCredentials
Masking supported pattern matches of $gitlabToken
[Pipeline] {
[Pipeline] httpRequest
HttpMethod: PUT
URL: http://192.168.33.1:30088/api/v4/projects/3/repository/files/demo-prod%2f1.0-prod.yaml
Content-Type: application/json
PRIVATE-TOKEN: *****
Sending request to url: http://192.168.33.1:30088/api/v4/projects/3/repository/files/demo-prod%2f1.0-prod.yaml
Response Code: HTTP/1.1 200 OK
Response:
{"file_path":"demo-prod/1.0-prod.yaml","branch":"master"}
Success code from [100‥399]
[Pipeline] }
[Pipeline] // withCredentials
[Pipeline] echo
Status: 200
2.3 配置应用发布流水线¶
2.3.1 发布流水线到不同的环境(Uat, Stage, Prod)¶
STAG/PROD发布流水线
- 选择版本号 -> 获取版本文件 -> 发布应用

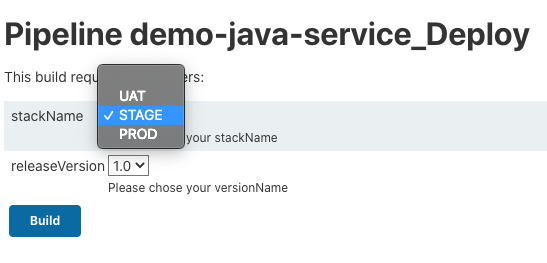

demo-java-service_Deploy
#!groovy
@Library('jenkinslib@master') _
// String stackName = "${env.stackName}"
// String releaseVersion = "${env.releaseVersion}"
def gitlab = new org.devops.gitlab()
def k8s = new org.devops.kubernetes()
pipeline{
agent { node { label "master" }}
parameters {
choice(name: 'stackName', choices: '\nUAT\nSTAGE\nPROD', description: 'Please chose your stackName')
choice(name: 'releaseVersion', choices: '1.0\n1.1\n1.2\n1.3', description: 'Please chose your versionName')
}
stages{
stage("Deploy"){
steps{
script{
//获取版本文件
stack = "${stackName}".toLowerCase()
response = gitlab.GetRepoFile(3,"demo-${stack}%2f${releaseVersion}-${stack}.yaml")
//发布应用
k8s.UpdateDeployment("demo-${stack}","demoapp",response)
}
}
}
}
}
2.3.2 调用在kubernetes.groovy定义API方法¶
//更新Deployment
def UpdateDeployment(nameSpace,deployName,deplyBody){
apiUrl = "namespaces/${nameSpace}/deployments/${deployName}"
response = HttpReq('PUT',apiUrl,deplyBody)
println(response)
}
Console Output
[Pipeline] httpRequest
HttpMethod: PUT
URL: https://kubernetes.docker.internal:6443/apis/apps/v1/namespaces/demo-stage/deployments/demoapp
Authorization: *****
Content-Type: application/yaml
Accept: application/yaml
Sending request to url: https://kubernetes.docker.internal:6443/apis/apps/v1/namespaces/demo-stage/deployments/demoapp
Response Code: HTTP/1.1 200 OK
...
Success code from [100‥399]
[Pipeline] }
[Pipeline] // withCredentials
[Pipeline] echo
Status: 200
$ kubectl get pod -n demo-stage
NAME READY STATUS RESTARTS AGE
demoapp-678d789d86-z6dkm 0/1 Terminating 0 3h22m
demoapp-7d548887f4-tm25g 0/1 Completed 1 6s
$ kubectl logs demoapp-7d548887f4-tm25g -n demo-stage
Hello World!
