一、使用Prometheus监控Jenkins¶

1.1 安装使用插件¶

https://plugins.jenkins.io/prometheus/

Alt Image Text

Default namespace: monitoring Prometheus安装的Namespace

检查 Jenkins 暴露的 promtheus 数据

http://192.168.33.1:30080/promtheus

Alt Image Text

1.2 安装Prometheus Operator安装Prometheus¶

kubectl create ns monitoring

prometheus-operator-values.yml

## We don't need the alertmanager for this demo
alertmanager:
  enabled: false

## This configuration means all ServiceMonitors in the namespsace will be picked up
## Use with caution!
prometheus:
  prometheusSpec:
    serviceMonitorSelectorNilUsesHelmValues: false
    serviceMonitorSelector: {}
grafana:
  persistence:
    enabled: true
    type: pvc
    size: 1G
    storageClassName: hostpath

$ helm install kube-prom stable/prometheus-operator -f prometheus-operator-values.yml --namespace monitoring

 kubectl get pod  -n monitoring
NAME                                                  READY   STATUS              RESTARTS   AGE
kube-prom-grafana-58dd7948b9-8pc4z                    2/2     Running             0          16h
kube-prom-grafana-test                                0/1     Error               0          16h
kube-prom-kube-state-metrics-d5554cd6-lpjtt           1/1     Running             0          16h
kube-prom-prometheus-node-exporter-w7ts8              1/1     Running             0          16h
kube-prom-prometheus-opera-admission-create-trvmv     0/1     ContainerCreating   0          16h
kube-prom-prometheus-opera-operator-8b968895f-dmd8c   2/2     Running             0          16h
prometheus-kube-prom-prometheus-opera-prometheus-0    3/3     Running             1          16h

1.3 为Jenkins Service创建ServiceMonitor¶

jenkins-sm.yaml

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: jenkins
  labels:
    prometheus: kube-prometheus
spec:
  selector:
    # note, this matches on the service, not the deployment or pod
    matchLabels:
      k8s-app: jenkins
  # jobLabel: app
  namespaceSelector:
    matchNames:
      - devops
  endpoints:
  - targetPort: 30080
    path: /prometheus
    interval: 10s

$  kubectl get servicemonitor
NAME      AGE
jenkins   14h

稍等一会儿， prometheus 会自动加载Jenkins 的 target

Alt Image Text

1.4 在Grafana中添加Jenkins的dashboard¶

1.4.1 下载Grafana json dashboard¶

https://grafana.com/grafana/dashboards/9964

Alt Image Text

1.4.2 Grafana中加载json dashboard¶

Alt Image Text

二、Jenkins+InfluxDB+Grafana收集构建数据¶

2.1 步骤与方案¶

2.1.1 具体步骤¶

1、搭建jenkins、InfluxDB、Grafana。 2、Jenkins安装插件、配置数据库地址、编写Pipeline、自定义数据。 3、InfluxDB创建数据库、创建用户。 4、Grafana建立统一的度量模板，使用变量替换固定的项目名称。

2.1.2 整体方案¶

Alt Image Text

2.2 快速安装InfluxDB¶

influxdb.yml

---
kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: influxdb
  name: influxdb
  namespace: devops
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: influxdb
  template:
    metadata:
      labels:
        k8s-app: influxdb
      namespace: devops
      name: influxdb
    spec:
      containers:
        - name: influxdb
          image: influxdb:1.7.9
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 8086
              name: web2
              protocol: TCP
          resources:
            limits:
              cpu: 1000m
              memory: 2Gi
            requests:
              cpu: 500m
              memory: 512Mi
          volumeMounts:
            - name: dbhome
              mountPath: /var/lib/influxdb
      volumes:
        - name: dbhome
          hostPath:
            path: .../Jenkins/influxdb
            type: Directory
---
apiVersion: v1
kind: Service
metadata:
 name: influxdb
 namespace: devops
 labels:
   k8s-app: influxdb
spec:
 selector:
   k8s-app: influxdb
 type: NodePort
 ports:
 - name: web
   port: 8086
   targetPort: 8086
   nodePort: 30086

$ kubectl get pod -n devops | grep inf
influxdb-6476d5bddd-vmhw2       1/1     Running   1          24h

2.3 准备工作¶

2.3.1 创建数据库¶

$ curl -G http://localhost:30086/query --data-urlencode "q=SHOW DATABASES"
{"results":[{"statement_id":0,"series":[{"name":"databases","columns":["name"],"values":[["_internal"]]}]}]}

$ curl -X POST http://localhost:30086/query --data-urlencode "q=CREATE DATABASE jenkins"

$ curl -G http://localhost:30086/query --data-urlencode "q=SHOW DATABASES"
{"results":[{"statement_id":0,"series":[{"name":"databases","columns":["name"],"values":[["_internal"],["jenkins"]]}]}]}

$ curl -X POST http://localhost:30086/query --data-urlencode "q=CREATE USER jenkins WITH PASSWORD 'root123' WITH ALL
PRIVILEGES"
{"results":[{"statement_id":0}]}

$ curl -G http://localhost:30086/query --data-urlencode "q=SHOW USERS"
{"results":[{"statement_id":0,"series":[{"columns":["user","admin"],"values":[["jenkins",true]]}]}]}

2.3.2 配置Jenkins¶

安装influxdb插件、配置Influxdb信息。

https://plugins.jenkins.io/influxdb/

Alt Image Text

2.3.3 编写pipeline代码¶

pipeline {
    agent { node { label "hostmachine"}}

    stages{
        stage("test"){

            steps{

                script{
                        measurementName = "${JOB_NAME}".split("-")[0]
    SERVICE_NAME = "${JOB_NAME}"
    BUILD_AGENT = "hostmachine"
    BUILD_RESULT = ["SUCCESS":1,"FAILURE":0]["${currentBuild.currentResult}"]
    currentBuild.description = "Trigger By admin"

    httpRequest httpMode: 'POST',
                requestBody: """${measurementName},build_number=${BUILD_ID},build_agent_name=${BUILD_AGENT} project_name=\"${SERVICE_NAME}\",build_id=${BUILD_ID},build_time=${currentBuild.duration},build_result=${BUILD_RESULT},build_desc=\"${currentBuild.description}\",tests_passed=10,tests_failed=2,tests_skipped=3 1434055564000000000""",
                url: 'http://localhost:30086/write?db=jenkins'
                }
            }
        }

    }

    post{

        success{
            script{
                currentBuild.description = "Trigger by admin"

                influxDbPublisher  customPrefix: '',
                                        customProjectName: "${JOB_NAME}",
                                        jenkinsEnvParameterField: "tests_passed=" + 10 + "\ntests_skipped=" + 2 + "\ntests_failed=" + 3, // OPTIONAL, 自定义字段
                                        measurementName: "${JOB_NAME.split('-')[0]}", // OPTIONAL, 表名称
                                        jenkinsEnvParameterTag: 'build_number=${BUILD_ID}',
                                        selectedTarget: 'influxdb'

            }
        }
    }
}

Pipeline2

try {
    //pipeline
    currentBuild.description = "构建成功"   //定义Jenkins构建描述，默认无。
} catch(err){
    currentBuild.description = "构建失败"   //定义Jenkins构建描述，默认无。
    throw err

}finally{
    step([$class: 'InfluxDbPublisher',
        customData: null,
        customDataMap: null,
        customPrefix: null,
        target: 'influxdb',         // Jenkins中配置的Influxdb。
        selectedTarget: 'influxdb', // Jenkins中配置的Influxdb。
        //jenkinsEnvParameterTag: 'KEY=' + env.PARAM,     // OPTIONAL,自定义tag
        jenkinsEnvParameterField: 'build_agent_name=' + 'master' + '\n' + 'build_status_message=' + currentBuild.description, // OPTIONAL, 自定义字段
        measurementName: 'jenkins_data', // OPTIONAL, 表名称
        replaceDashWithUnderscore: false, // OPTIONAL, 是否替换 "-"为 "_"。
    ])
}

//基于插件自定义字段名称（非完全自定义）
/*
step([$class: 'InfluxDbPublisher',
            customData: null,
            customDataMap: null,
            customPrefix: null,
            target: 'influxdb',
            selectedTarget: 'influxdb',
            jenkinsEnvParameterTag: 'project_name=' + "${JOB_NAME}".split('/')[-1] ,     // OPTIONAL, 自定义project_name
            jenkinsEnvParameterField: 'build_agent_name=' + 'master'  +  "\n" +           //自定义参数列表，每个参数加上一个换行符
                                      'build_status_message=' + currentBuild.description +  "\n" +
                                      'midwareType=' + "${midwareType}" +  "\n" +
                                      'listenPort=' + "${port}" +  "\n" +
                                      'runUser=' + "${user}" +  "\n" +
                                      'repoName=' + "${srcUrl}".split("/")[-1] - '.git' +  '\n' +
                                      'project_name=' + "${JOB_NAME}".split('/')[-1]  +  '\n' +
                                      'deployHosts=' + "${targetHosts}" ,
            measurementName: 'jenkins_data',
            replaceDashWithUnderscore: false,
        ])
*/

2.3.4 InfluxDbPublisher SharedLib （Optional)¶

package org.devops

//创建数据库
def CreateDb(dbName){
   sh """
      curl -XPOST 'http://localhost:30086/query' --data-urlencode 'q=CREATE DATABASE \"${dbName}\"'"
      """
}

def WriteData(){
    measurementName = "${JOB_NAME}".split("-")[0]
    SERVICE_NAME = "${JOB_NAME}"
    BUILD_AGENT = "master"
    BUILD_RESULT = ["SUCCESS":1,"FAILURE":0]["${currentBuild.currentResult}"]
    wrap([$class: 'BuildUser']){
        currentBuild.description = "Trigger By ${$BUILD_USER}"
    }

    httpRequest httpMode: 'POST',
            requestBody: """${measurementName},build_number=${BUILD_ID},build_agent_name=${BUILD_AGENT} project_name=\"${SERVICE_NAME}\",build_id=${BUILD_ID},build_time=${currentBuild.duration},build_result=${BUILD_RESULT},build_desc=\"${currentBuild.description}\",tests_passed=10,tests_failed=2,tests_skipped=3 1434055564000000000""",
            url: 'http://localhost:30086/write?db=jenkins'

}

2.3.5 构建测试¶

Alt Image Text

$ curl -G http://localhost:30086/query --data-urlencode "q=SHOW SERIES on jenkins"
{"results":[{"statement_id":0,"series":[{"columns":["key"],"values":[["demo,build_agent_name=master,build_number=1"],["demo,build_agent_name=master
,build_number=2"],["demo,build_agent_name=master,build_number=3"],["devops,build_agent_name=hostmachine,build_number=1"],["devops,build_agent_name=
hostmachine,build_number=2"],["devops,build_agent_name=hostmachine,build_number=3"],["test,build_agent_name=master,build_number=2"]]}]}]}

$ curl -G http://localhost:30086/query?db=jenkins --data-urlencode  "q=select * from devops"
{"results":[{"statement_id":0,"series":[{"name":"devops","columns":["time","build_agent_name","build_desc","build_id","build_number","build_result"
,"build_time","project_name","tests_failed","tests_passed","tests_skipped"],"values":[["2015-06-11T20:46:04Z","hostmachine","Trigger By admin",1,"1
",1,2860,"devops-test-service",2,10,3],["2015-06-11T20:46:04Z","hostmachine","Trigger By admin",3,"3",1,706,"devops-test-service",2,10,3],["2015-06
-11T20:46:04Z","hostmachine","Trigger By admin",2,"2",1,1512,"devops-test-service",2,10,3]]}]}]}

2.4 配置Grafana¶

2.4.1 导入influxDb DataSources¶

Alt Image Text

效果图

2.4.2 导入Dashboard Json¶

jenkins_build_status.json

Alt Image Text

三、Jenkins Python API实践¶

3.1 查询使用Jenkins Python API¶

http://jenkins_url/api/python?pretty=true
http://jenkins_url/api/

Python Jenkins API Docs

3.1.1 安装python-jenkins库¶

pip3 install python-jenkins

3.2 常用Jenkins Python API的方法¶

3.2.1 常用方法¶

test.py

import jenkins
server = jenkins.Jenkins("http://127.0.0.1:30080",username="admin",password="admin")
print(server.get_whoami())

{'_class': 'hudson.model.User', 'absoluteUrl': 'http://192.168.33.1:30080/user/admin', 'description': None, 'fullName': 'admin', 'id': 'admin', 'property': [{'_class': 'jenkins.security.ApiTokenProperty'}, {'_class': 'com.cloudbees.plugins.credentials.UserCredentialsProvider$UserCredentialsProperty'}, {'_class': 'hudson.plugins.emailext.watching.EmailExtWatchAction$UserProperty', 'triggers': []}, {'_class': 'hudson.model.MyViewsProperty'}, {'_class': 'org.jenkinsci.plugins.displayurlapi.user.PreferredProviderUserProperty'}, {'_class': 'hudson.model.PaneStatusProperties'}, {'_class': 'jenkins.security.seed.UserSeedProperty'}, {'_class': 'hudson.search.UserSearchProperty', 'insensitiveSearch': True}, {'_class': 'hudson.model.TimeZoneProperty'}, {'_class': 'hudson.security.HudsonPrivateSecurityRealm$Details'}, {'_class': 'hudson.tasks.Mailer$UserProperty', 'address': 'admin@sap.com'}, {'_class': 'jenkins.security.LastGrantedAuthoritiesProperty'}]}

import jenkins
server = jenkins.Jenkins("http://127.0.0.1:30080",username="admin",password="admin")
print(dir(server))

['__class__', '__delattr__', '__dict__', '__dir__', '__doc__', '__eq__', '__format__', '__ge__', '__getattribute__', '__gt__', '__hash__', '__init__', '__init_subclass__', '__le__', '__lt__', '__module__', '__ne__', '__new__', '__reduce__', '__reduce_ex__', '__repr__', '__setattr__', '__sizeof__', '__str__', '__subclasshook__', '__weakref__', '_add_missing_builds', '_auth_resolved', '_auths', '_build_url', '_get_encoded_params', '_get_job_folder', '_get_tag_text', '_get_view_jobs', '_maybe_add_auth', '_request', '_response_handler', '_session', '_timeout_warning_issued', 'assert_credential_exists', 'assert_folder', 'assert_job_exists', 'assert_node_exists', 'assert_promotion_exists', 'assert_view_exists', 'auth', 'build_job', 'build_job_url', 'cancel_queue', 'check_jenkinsfile_syntax', 'copy_job', 'create_credential', 'create_folder', 'create_job', 'create_node', 'create_promotion', 'create_view', 'credential_exists', 'crumb', 'debug_job_info', 'delete_build', 'delete_credential', 'delete_job', 'delete_node', 'delete_promotion', 'delete_view', 'disable_job', 'disable_node', 'enable_job', 'enable_node', 'get_all_jobs', 'get_build_console_output', 'get_build_env_vars', 'get_build_info', 'get_build_test_report', 'get_credential_config', 'get_credential_info', 'get_info', 'get_job_config', 'get_job_info', 'get_job_info_regex', 'get_job_name', 'get_jobs', 'get_node_config', 'get_node_info', 'get_nodes', 'get_plugin_info', 'get_plugins', 'get_plugins_info', 'get_promotion_config', 'get_promotion_name', 'get_promotions', 'get_promotions_info', 'get_queue_info', 'get_queue_item', 'get_running_builds', 'get_version', 'get_view_config', 'get_view_name', 'get_views', 'get_whoami', 'install_plugin', 'is_folder', 'jenkins_open', 'jenkins_request', 'job_exists', 'jobs_count', 'list_credentials', 'maybe_add_crumb', 'node_exists', 'promotion_exists', 'quiet_down', 'reconfig_credential', 'reconfig_job', 'reconfig_node', 'reconfig_promotion', 'reconfig_view', 'rename_job', 'run_script', 'server', 'set_next_build_number', 'stop_build', 'timeout', 'upsert_job', 'view_exists', 'wait_for_normal_op', 'wipeout_job_workspace']

Alt Image Text

3.2.2 Job方法测试¶

3.2.2 手工创建模板job¶

Alt Image Text

3.2.2 查询job的config¶

print(server.get_job_config('test-devops-service'))

<?xml version='1.1' encoding='UTF-8'?>
<flow-definition plugin="workflow-job@2.39">
  <description></description>
  <keepDependencies>false</keepDependencies>
  <properties>
    <com.dabsquared.gitlabjenkins.connection.GitLabConnectionProperty plugin="gitlab-plugin@1.5.13">
      <gitLabConnection>gitlab-conn</gitLabConnection>
    </com.dabsquared.gitlabjenkins.connection.GitLabConnectionProperty>
    <hudson.model.ParametersDefinitionProperty>
      <parameterDefinitions>
        <hudson.model.StringParameterDefinition>
          <name>srcType</name>
          <description></description>
          <defaultValue>svn</defaultValue>
          <trim>false</trim>
        </hudson.model.StringParameterDefinition>
      </parameterDefinitions>
    </hudson.model.ParametersDefinitionProperty>
  </properties>
  <definition class="org.jenkinsci.plugins.workflow.cps.CpsFlowDefinition" plugin="workflow-cps@2.82">
    <script></script>
    <sandbox>true</sandbox>
  </definition>
  <triggers/>
  <disabled>false</disabled>
</flow-definition>

3.2.2 利用模板job的config文件创建新的job¶

import jenkins
server = jenkins.Jenkins("http://127.0.0.1:30080",username="admin",password="admin")

config_xml = server.get_job_config('test-devops-service')

if(server.job_exists("test-job-service-demo")== True):
    print("The job already exists")
else:
    server.create_job("test-job-service-demo",config_xml)
    print("Create new job...")

Alt Image Text

3.2.2 Copy模板job到新的Job¶

import jenkins
server = jenkins.Jenkins("http://127.0.0.1:30080",username="admin",password="admin")

if (server.job_exists("test-job-service-copy") != True):
    print("The Dest job doesnt exists")
    server.copy_job("test-job-service-demo","test-job-service-copy")
else:
    print("The Dest job exists")

Alt Image Text

3.3 Jenkins Python API脚本创建Job¶

jobs.py

将srcType 从 svn 改到 git

import jenkins

## login
serverUrl = "http://127.0.0.1:30080"
username = "admin"
password = "admin"

server = jenkins.Jenkins(serverUrl,username,password)

defProjectName = "test-devops-service"
newProjectName = "test-devops-service02"

if server.job_exists(newProjectName) != True:

    print("The project doesnt exist")

    config_xml = server.get_job_config(defProjectName)
    newconfig_xml = config_xml.replace("<defaultValue>svn</defaultValue>","<defaultValue>git</defaultValue>" )

    print(newconfig_xml)

    server.create_job(newProjectName,newconfig_xml)
else:
    print("The project exist")

Alt Image Text

四、Jenkins REST API使用实践¶

4.1 Jenkins REST API介绍¶

Job API: http://127.0.0.1:30080/job/jobname/api/
View API: http://192.168.33.11:8080/view/viewname/api/

Alt Image Text

4.1.1 获取项目信息¶

接口： http://127.0.0.1:30080/job/{projectNarne}/api/json 。
方式：GET
实例：http://127.0.0.1:30080/job/demo-test-03/api/json

4.1.2 获取项目构建信息¶

接口: http://127.0.0.1:30080/job/{projectName}/{buildNumber}/api/json
方式：GET
实例： http://127.0.0.1:30080/job/demo-test-03/1/api/json 。

4.1.3 获取项目配置¶

接口： http://127.0.0.1:30080/job/{projectName}/config.xml 。
实例： http://127.0.0.1:30080/job/test-devops-service/config.xml 。
方式：GET

4.1.4 创建项目¶

接口： http://127.0.0.1:30080/createltem?name={projectName}
参数：--data-binary@conflg.xml
头部：-H "Content-Type:text/xml"
方式：POST

4.1.5 禁用项目¶

接口：http://127.0.0.1:30080/job/{projectName}/disable 。
方式：POST

4.1.6 删除项目¶

接口：http://127.0.0.1:30080/job/{projectName}/doDelete
方式：POST

4.1.7 构建项目¶

接口：http://127.0.0.1:30080/job/{projectName}/build
方式：POST

4.1.8 参数化构建¶

接口：http://127.0.0.1:30080/job/{projectName}/buiidWithParameters
方式：POST

4.2 Jenkins REST API共享库封装¶

4.2.1 使用httprequest封装请求¶

如果没有做认证集成：用户名＋密码
如果做了集成：用户名＋token

Alt Image Text

admin
11e59da9409d0bae602b1d70ac9041f2d0
api-token

Alt Image Text

4.2.2 测试httprequest请求Pipeline¶

Disable job: test-devops-service

pipeline{
    agent { node { label "master"}}

    stages{
        stage('test'){
            steps{
                script{
                    httpRequest authentication: 'api-token',
                            httpMode: 'POST',
                            responseHandle: 'NONE',
                            url: 'http://127.0.0.1:30080/job/test-devops-service/disable'
                }
            }
        }
    }
}

Console Output

[Pipeline] httpRequest
HttpMethod: POST
URL: http://127.0.0.1:30080/job/test-devops-service/disable
Using authentication: api-token
Sending request to url: http://127.0.0.1:30080/job/test-devops-service/disable
Response Code: HTTP/1.1 302 Found
Success code from [100‥399]

Alt Image Text

4.2.3 jenkinsapi共享库代码¶

jenkinsapi.groovy

package org.devops

//封装HTTP请求
def HttpReq(reqType,reqUrl,reqBody){
    def jenkinsServer = 'http://127.0.0.1:30080'
    result = httpRequest authentication: 'api-token',
                        httpMode: reqType,
                        consoleLogResponseBody: true,
                        ignoreSslErrors: true,
                        requestBody: reqBody,
                        url: "${jenkinsServer}/${reqUrl}"
                        //quiet: true

}

//新建项目

def CreateProject(projectName){

    withCredentials([usernamePassword(credentialsId: 'api-token', passwordVariable: 'password', usernameVariable: 'username')]) {

        sh """

           curl -u ${username}:${password} -X GET 'http://127.0.0.10:30080/job/test-devops-service/config.xml' -o config.xml
           ls -l

           curl -u ${username}:${password} -X POST 'http://127.0.0.1:30080/createItem?name=${projectName}' -H 'Content-Type:text/xml' --data-binary @config.xml

        """
    }
}

//禁用项目

def Project(projectName,option){

    println(projectName)
    println(option)

    options = [ "DisableProject": "disable",
                "EnableProject":"enable",
                "DeleteProject":"doDelete",
                "BuildProject":"build"]

    result = HttpReq('POST',"job/${projectName}/${options[option]}",'')

}

4.2.4 项目操作流水线¶

创建一个流水线项目具有两个参数，一个字符参数projectName用于填写用户名称。一个选项参数manageOpts用于项目的操作

manageOpts:

CreateProject 创建项目
DisableProject 禁用项目
EnableProject 启动项目
DeleteProject 删除项目
Build Project 构建项目

@Library('jenkinslib@master') _

def jenkinsapi = new org.devops.jenkinsapi()

// String projectName = "${env.projectName}"
// String manageOpts = "${env.manageOpts}"

pipeline {

    agent { node {label "master"}}

    parameters {
        string(name: 'projectName', defaultValue: '', description: 'Please add your projectName')
        choice(name: 'manageOpts', choices: 'DisableProject\nEnableProject\nDeleteProject\nBuildProject\nCreateProject', description: 'Please chose your manageOpts')
    }

    stages{
        stage("test"){
            steps{
                script{

                    if (manageOpts == "CreateProject"){
                        jenkinsapi.CreateProject(projectName)
                    } else {
                        jenkinsapi.Project(projectName,manageOpts)
                    }
                }
            }
        }
    }
}

Alt Image Text

CreateProject: test Console Output

...
[Pipeline] sh
+ curl -u ****:**** -X GET http://127.0.0.10:30080/job/test-devops-service/config.xml -o config.xml
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed

  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0
100  1056  100  1056    0     0   253k      0 --:--:-- --:--:-- --:--:--  343k
+ ls -l
total 4
-rw-r--r-- 1 jenkins jenkins 1056 Sep  9 03:03 config.xml
+ curl -u ****:**** -X POST http://127.0.0.1:30080/createItem?name=test -H Content-Type:text/xml --data-binary @config.xml
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed

  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0
100  1056    0     0  100  1056      0  81670 --:--:-- --:--:-- --:--:-- 88000
[Pipeline] }
..

五、Jenkins Core Api & Job DSL创建项目¶

5.1 Jenkins Core Api & Job DSL创建项目¶

在大规模的Jenkins实践中创建项目也是一个问题，如何通过模板自动化的创建Jenkins项目呢？可以通过安装Job Dsl插件后，通过 Dsl直接创建项目。也可以通过工具将dsl转换为xml，然后再通过Jenkins API创建项目。相对比较第一种方式更加直接一些，由于时间问题今天暂时分享第二种创建项目的方式。

5.2 Jenkins Job DSL应用实践¶

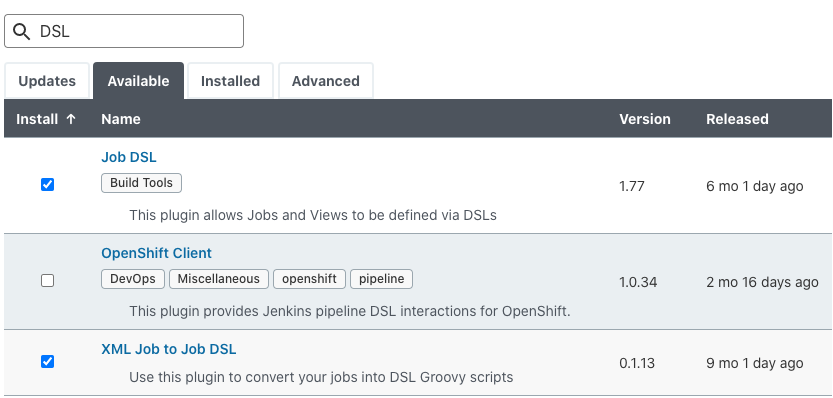

5.2.1 安装插件¶

job DSL
- 用于扩展，可以通过插件自带的dsl方法来完成一些的操作。
XML job to Job DSL
- 将一个项目转换成DSL格式

Alt Image Text

5.2.2 资源文件¶

DSL 语法
- https://jenkinsci.github.io/job-dsl-plugin/#path/pipelinejob
- DSL转换XML
- http://job-dsl.herokuapp.com/

5.2.3 使用DSL¶

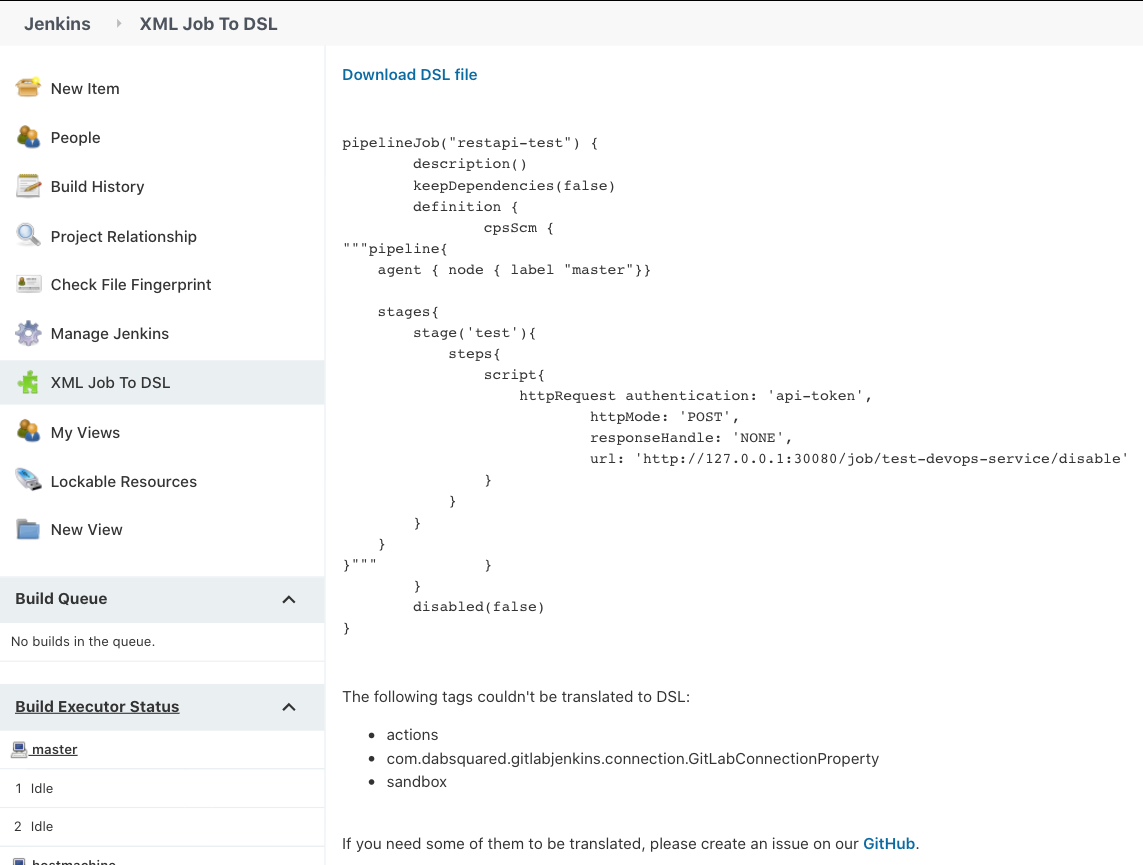

通过XML Job TO dsl 生成DSL语句

Example

pipelineJob("test-schdule-service") {
  description("this is my first job")
  keepDependencies(false)
  parameters {
    choiceParam("test", [1, 2, 3], "")
  }
  definition {
    cpsScm {
      scm {
        git {
          remote {
            github("https://gitlab.com/xxx/xxx.git", "https")
            credentials("24982560-17fc-4589-819b-bc5bea89da77")
          }
          branch("*/master")
        }
      }
      scriptPath("Jenkinsfile")
    }
  }
  disabled(false)
}

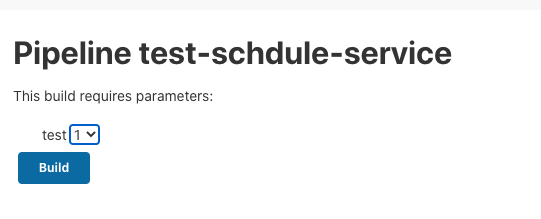

Alt Image Text

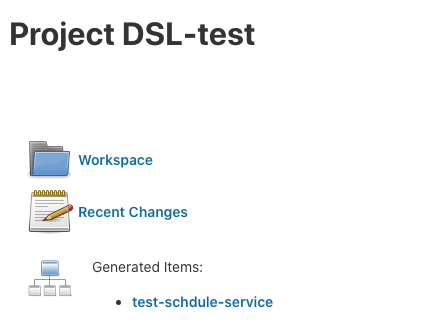

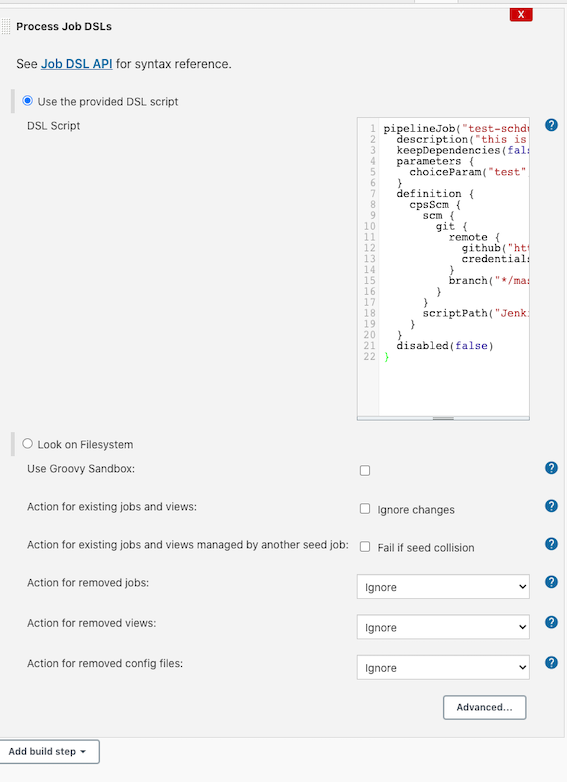

建立Free style job

Alt Image Text

5.3 Jenkins Core API应用¶

https://javadoc.jenkins-ci.org/

5.3.1 通过Jenkins Core Api创建项目¶

import javax.xml.transform.stream.StreamSource
import jenkins.model.Jenkins

//创建项目
void createOrUpdateJob(String name, String xml) {
    def j = Jenkins.instance
    String fullName = name
    if(name.contains('/')) {
        j = j.getItemByFullName(name.tokenize('/')[0..-2])
        name = name.tokenize('/')[-1]
    }
    Jenkins.checkGoodName(name)
    if(j.getItem(name) == null) {
        println "Created job \"${fullName}\"."
        j.createProjectFromXML(name, new ByteArrayInputStream(xml.getBytes()))
        j.save()
    }
    else if(j.getItem(name).configFile.asString().trim() != xml.trim()) {
        j.getItem(name).updateByXml(new StreamSource(new ByteArrayInputStream(xml.getBytes())))
        j.getItem(name).save()
        println "Job \"${fullName}\" already exists.  Updated using XML."
    }
    else {
        println "Nothing changed.  Job \"${fullName}\" already exists."
    }
}

try {
    //just by trying to access properties should throw an exception
    // itemName == null
    // xmlData == null
    // isPropertiesSet = true
} catch(MissingPropertyException e) {
    println 'ERROR Can\'t create job.'
    println 'ERROR Missing properties: itemName, xmlData'
    return
}

String xmlData = """<!-- 1. test-schdule-service -->
<flow-definition>
    <actions></actions>
    <description>this is my first job</description>
    <keepDependencies>false</keepDependencies>
    <properties>
        <hudson.model.ParametersDefinitionProperty>
            <parameterDefinitions>
                <hudson.model.ChoiceParameterDefinition>
                    <choices class='java.util.Arrays$ArrayList'>
                        <a class='string-array'>
                            <string>1</string>
                            <string>2</string>
                            <string>3</string>
                        </a>
                    </choices>
                    <name>test</name>
                    <description></description>
                </hudson.model.ChoiceParameterDefinition>
            </parameterDefinitions>
        </hudson.model.ParametersDefinitionProperty>
        <com.coravy.hudson.plugins.github.GithubProjectProperty>
            <projectUrl>https://github.com/https://gitlab.com/xxx/xxx.git/</projectUrl>
        </com.coravy.hudson.plugins.github.GithubProjectProperty>
    </properties>
    <triggers></triggers>
    <definition class='org.jenkinsci.plugins.workflow.cps.CpsScmFlowDefinition'>
        <scriptPath>Jenkinsfile</scriptPath>
        <lightweight>false</lightweight>
        <scm class='hudson.plugins.git.GitSCM'>
            <userRemoteConfigs>
                <hudson.plugins.git.UserRemoteConfig>
                    <url>https://github.com/https://gitlab.com/xxx/xxx.git.git</url>
                    <credentialsId>24982560-17fc-4589-819b-bc5bea89da77</credentialsId>
                </hudson.plugins.git.UserRemoteConfig>
            </userRemoteConfigs>
            <branches>
                <hudson.plugins.git.BranchSpec>
                    <name>*/master</name>
                </hudson.plugins.git.BranchSpec>
            </branches>
            <configVersion>2</configVersion>
            <doGenerateSubmoduleConfigurations>false</doGenerateSubmoduleConfigurations>
            <gitTool>Default</gitTool>
            <browser class='hudson.plugins.git.browser.GithubWeb'>
                <url>https://github.com/https://gitlab.com/xxx/xxx.git/</url>
            </browser>
        </scm>
    </definition>
    <disabled>false</disabled>
</flow-definition>
"""
String itemName = "my-first-pipeline"

createOrUpdateJob(itemName, xmlData)

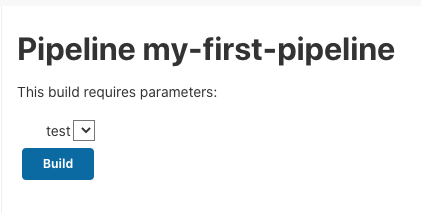

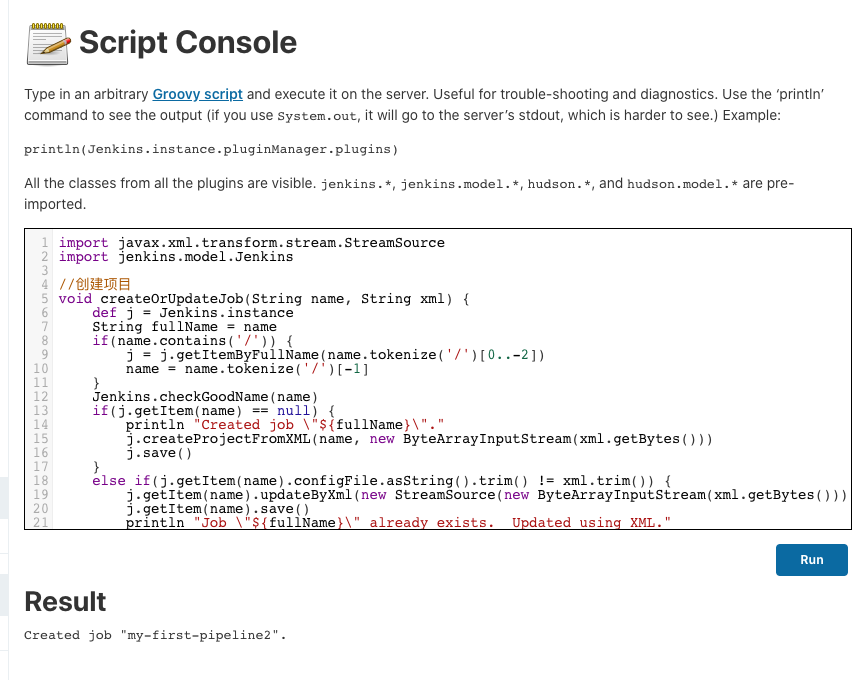

5.3.2 通过Jenkins Script Console运行¶

Alt Image Text

一、使用Prometheus监控Jenkins¶

1.1 安装使用插件¶

1.2 安装Prometheus Operator安装Prometheus¶

1.3 为Jenkins Service创建ServiceMonitor¶

1.4 在Grafana中 添加Jenkins的dashboard¶

1.4.1 下载Grafana json dashboard¶

1.4.2 Grafana中加载json dashboard¶

二、Jenkins+InfluxDB+Grafana收集构建数据¶

2.1 步骤与方案¶

2.1.1 具体步骤¶

2.1.2 整体方案¶

2.2 快速安装InfluxDB¶

2.3 准备工作¶

2.3.1 创建数据库¶

2.3.2 配置Jenkins¶

2.3.3 编写pipeline代码¶

2.3.4 InfluxDbPublisher SharedLib （Optional)¶

2.3.5 构建测试¶

2.4 配置Grafana¶

2.4.1 导入influxDb DataSources¶

2.4.2 导入Dashboard Json¶

三、Jenkins Python API实践¶

3.1 查询使用Jenkins Python API¶

3.1.1 安装python-jenkins库¶

3.2 常用Jenkins Python API的方法¶

3.2.1 常用方法¶

3.2.2 Job方法测试¶

3.2.2 手工创建模板job¶

3.2.2 查询job的config¶

3.2.2 利用模板job的config文件创建新的job¶

3.2.2 Copy模板job到新的Job¶

3.3 Jenkins Python API脚本创建Job¶

四、Jenkins REST API使用实践¶

4.1 Jenkins REST API介绍¶

4.1.1 获取项目信息¶

4.1.2 获取项目构建信息¶

4.1.3 获取项目配置¶

4.1.4 创建项目¶

4.1.5 禁用项目¶

4.1.6 删除项目¶

4.1.7 构建项目¶

4.1.8 参数化构建¶

4.2 Jenkins REST API共享库封装¶

4.2.1 使用httprequest封装请求¶

4.2.2 测试httprequest请求Pipeline¶

4.2.3 jenkinsapi共享库代码¶

4.2.4 项目操作流水线¶

五、Jenkins Core Api & Job DSL创建项目¶

5.1 Jenkins Core Api & Job DSL创建项目¶

5.2 Jenkins Job DSL应用实践¶

5.2.1 安装插件¶

5.2.2 资源文件¶

5.2.3 使用DSL¶

5.3 Jenkins Core API应用¶

5.3.1 通过Jenkins Core Api创建项目¶

5.3.2 通过Jenkins Script Console运行¶

评论区

1.4 在Grafana中添加Jenkins的dashboard¶
