一、部署模式和方法¶
注意:
- 从minio.RELEASE.2025-05-24T17-08-30Z 版本开始界面变化较大,功能很大的缺失
- 建议使用前一个功能完整的版本: minio.RELEASE.2025-04-22T22-12-26Z
部署模式
- 单机单硬盘
- 单机多硬盘
- 多机多硬盘
部署方法
-
包安装
-
二进制安装
-
Docker 容器化安装
-

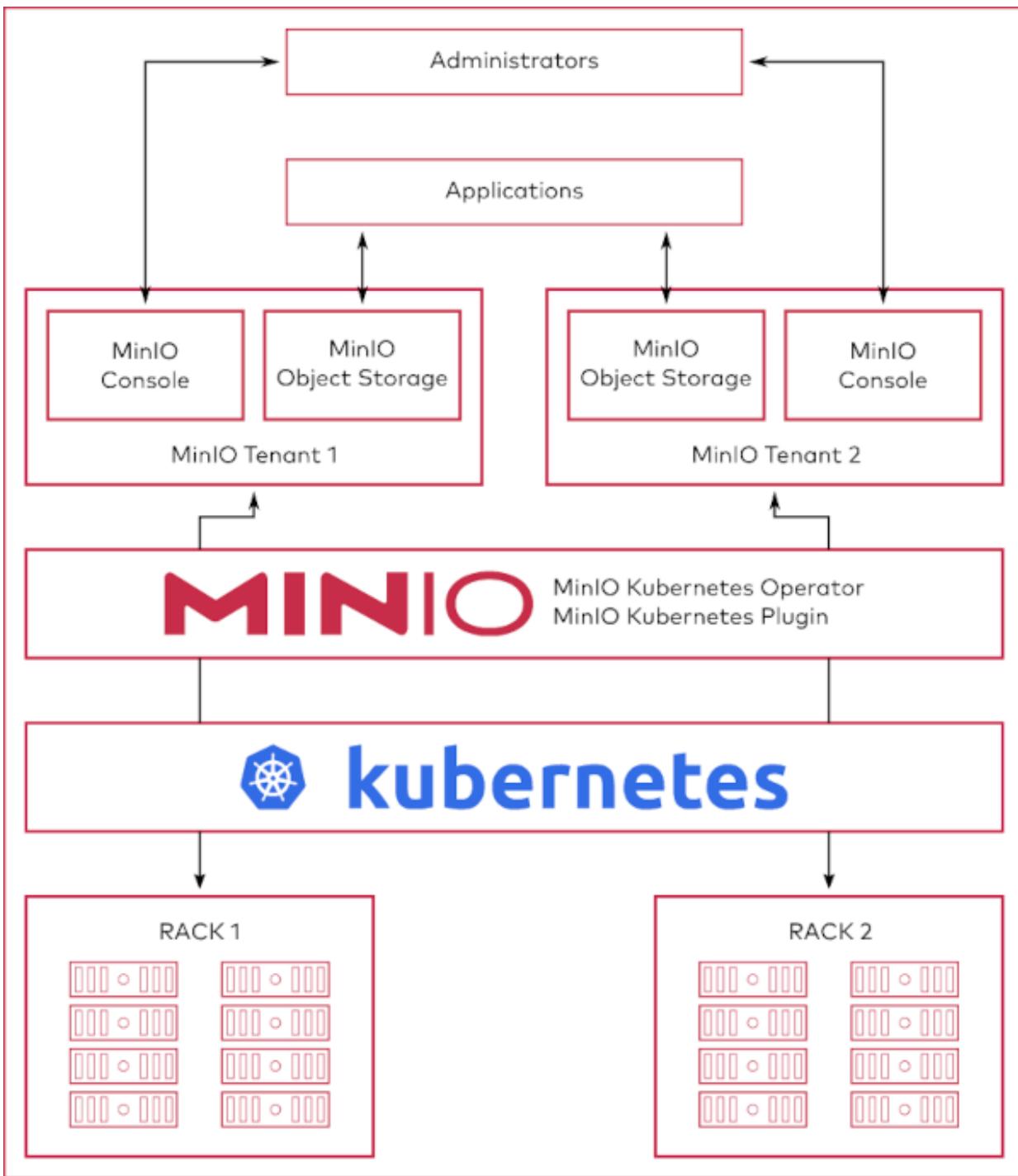

基于 Kubernetes 部署
二、单机部署¶
2.1 单机部署说明¶
https://min.io/docs/minio/linux/operations/install-deploy-manage/deploy-miniosingle-node-single-drive.html
https://min.io/docs/minio/linux/operations/install-deploy-manage/deploy-miniosingle-node-multi-drive.html
https://min.io/docs/minio/linux/index.html
https://www.minio.org.cn/docs/minio/linux/index.html
minio server的standalone模式，即单机模式，所有管理的磁盘都在一个主机上。
该启动模式一般仅用于实验环境、测试环境、开发环境的验证和学习使用。
在standalone模式下，还可以分为non-erasure code mode和erasure code mode(纠删码)。
1、non-erasure code mode
当minio server 运行时只传入一个本地磁盘参数。即为 non-erasure code mode
在此启动模式下，对于每一份对象数据， minio直接存储这份数据，不会建立副本，也不会启用纠删码机制。
因此,这种模式无论是服务实例还是磁盘都是”单点"，无任何高可用保障，磁盘损坏就意味着数据丢失。
2、erasure code mode
此模式需要为minio server实例传入多个本地磁盘参数。
一旦遇到多于一 个磁盘的参数， minio server会自动启用erasure code mode.
erasure code对磁盘的个数是有要求的，至少4个磁盘, 如不满足要求，实例启动将失败。
erasure code启用后，要求传给minio server的endpoint(standalone模式下，即本地磁盘上的目录)至少为4个。
2.2 包安装¶
2.2.1 Debian/Ubuntu包安装¶
https://www.minio.org.cn/docs/minio/linux/index.html

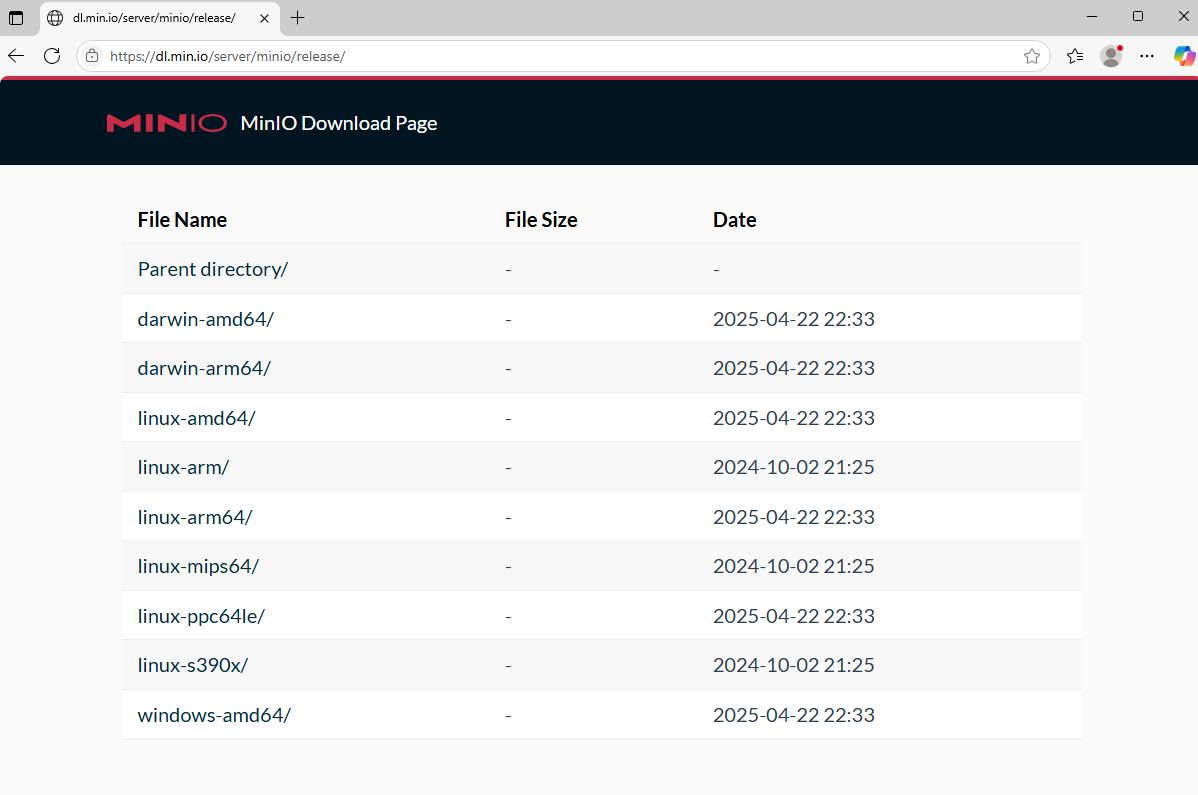

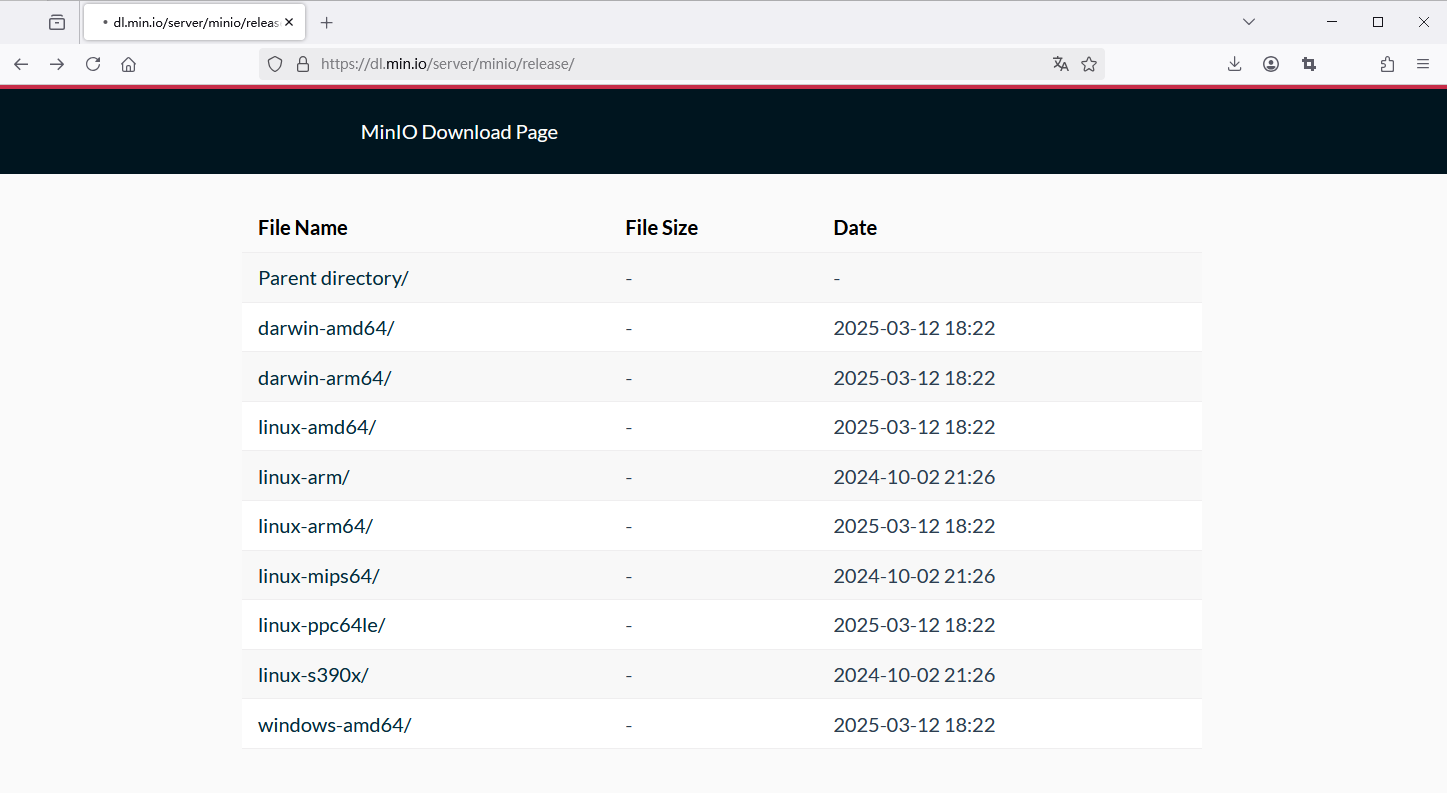

https://dl.min.io/server/minio/release/
范例: Debian/Ubuntu包安装
#安装指定版本,建议使用minio.RELEASE.2025-04-22T22-12-26Z学习,注意:minio-05-24T17-08-30Z 版本以后界面功能功能缺失
[root@ubuntu2204 ~]#MINIO_VERION=20250422221226.0.0
[root@ubuntu2204 ~]#MINIO_VERION=20241013133411.0.0
[root@ubuntu2204 ~]#MINIO_VERION=20230829230735.0.0
[root@ubuntu2204 ~]#wget https://dl.min.io/server/minio/release/linux-amd64/archive/minio_${MINIO_VERION}_amd64.deb -O minio.deb
[root@ubuntu2204 ~]#dpkg -i minio.deb
[root@ubuntu2204 ~]#dpkg -L minio
/lib
/lib/systemd
/lib/systemd/system
/lib/systemd/system/minio.service
/usr
/usr/local
/usr/local/bin
/usr/local/bin/minio
[root@ubuntu2204 ~]#which minio
/usr/local/bin/minio
[root@ubuntu2204 ~]#minio -v
minio version RELEASE.2023-08-29T23-07-35Z (commit-id=07b1281046c8934c47184d1b56c78995ef960f7d)
Runtime: go1.19.12 linux/amd64
License: GNU AGPLv3 <https://www.gnu.org/licenses/agpl-3.0.html>
Copyright: 2015-2023 MinIO, Inc.
#新版service文件
[root@ubuntu2404 ~]#grep -Ev "#|^$" /lib/systemd/system/minio.service
[Unit]
Description=MinIO
Documentation=https://docs.min.io
Wants=network-online.target
After=network-online.target
AssertFileIsExecutable=/usr/local/bin/minio
[Service]
Type=notify
WorkingDirectory=/usr/local
User=minio-user
Group=minio-user
ProtectProc=invisible
EnvironmentFile=-/etc/default/minio
ExecStart=/usr/local/bin/minio server $MINIO_OPTS $MINIO_VOLUMES
Restart=always
LimitNOFILE=1048576
MemoryAccounting=no
TasksMax=infinity
TimeoutSec=infinity
OOMScoreAdjust=-1000
SendSIGKILL=no
[Install]
WantedBy=multi-user.target
#缺失环境变量定义，导致无法启动
[root@ubuntu2404 ~]#ls /etc/default/minio
ls: cannot access '/etc/default/minio': No such file or directory
[root@ubuntu2404 ~]#systemctl enable --now minio.service
Created symlink /etc/systemd/system/multi-user.target.wants/minio.service → /usr/lib/systemd/system/minio.service.
Job for minio.service failed because the control process exited with error code.
See "systemctl status minio.service" and "journalctl -xeu minio.service" for details.
#查看service文件
[root@ubuntu2204 ~]#grep -Ev "#|^$" /lib/systemd/system/minio.service
[Unit]
Description=MinIO
Documentation=https://docs.min.io
Wants=network-online.target
After=network-online.target
AssertFileIsExecutable=/usr/local/bin/minio
[Service]
Type=notify
WorkingDirectory=/usr/local
User=minio-user
Group=minio-user
ProtectProc=invisible
EnvironmentFile=-/etc/default/minio
ExecStartPre=/bin/bash -c "if [ -z \"${MINIO_VOLUMES}\" ]; then echo \"Variable MINIO_VOLUMES not set in /etc/default/minio\"; exit 1; fi"
ExecStart=/usr/local/bin/minio server $MINIO_OPTS $MINIO_VOLUMES
Restart=always
LimitNOFILE=1048576
TasksMax=infinity
TimeoutStopSec=infinity
SendSIGKILL=no
[Install]
WantedBy=multi-user.target
#需要手动创建用户
#方法1：
[root@ubuntu2204 ~]#useradd -M -r -s /sbin/nologin minio-user
#方法2：
[root@ubuntu2204 ~]#groupadd -r minio-user
[root@ubuntu2204 ~]#useradd -M -r -s /sbin/nologin -g minio-user minio-user
#准备多个数据目录,minio数据目录不允许和根文件系统在一起，注意：新版允许
[root@ubuntu2204 ~]#mkdir -p /data
[root@ubuntu2204 ~]#lvcreate -n minio -L 10G ubuntu-vg
[root@ubuntu2204 ~]#mkfs.ext4 /dev/ubuntu-vg/minio
[root@ubuntu2204 ~]#echo /dev/ubuntu-vg/minio /data ext4 defaults 0 0 >> /etc/fstab
[root@ubuntu2204 ~]#mount -a
[root@ubuntu2204 ~]#mkdir -p /data/minio{1..4}
[root@ubuntu2204 ~]#chown -R minio-user.minio-user /data/
[root@ubuntu2204 ~]#ll -d /data/minio{1..4}
drwxr-xr-x 3 minio-user minio-user 4096 Oct 17 15:33 /data/minio1/
drwxr-xr-x 3 minio-user minio-user 4096 Oct 17 15:33 /data/minio2/
drwxr-xr-x 3 minio-user minio-user 4096 Oct 17 15:33 /data/minio3/
drwxr-xr-x 3 minio-user minio-user 4096 Oct 17 15:33 /data/minio4/
[root@ubuntu2204 ~]#cat > /etc/default/minio <<EOF
MINIO_ROOT_USER=admin #默认minioadmin
MINIO_ROOT_PASSWORD=12345678 #默认minioadmin，密码不能低于8位
MINIO_VOLUMES="/data/minio{1...4}" #必选项
MINIO_OPTS='--console-address :9001' #默认使用随机端口，可以访问9000进行跳转到此随机端口
#MINIO_CONSOLE_ADDRESS=":9001" #功能同上
MINIO_PROMETHEUS_AUTH_TYPE="public" #支持promethues监控：curl -s http://127.:9000/minio/v2/metrics/cluster
EOF
[root@ubuntu2204 ~]#systemctl enable --now minio.service
Created symlink /etc/systemd/system/multi-user.target.wants/minio.service → /lib/systemd/system/minio.service.
[root@ubuntu2204 ~]#systemctl status minio.service
● minio.service - MinIO
Loaded: loaded (/lib/systemd/system/minio.service; enabled; vendor preset: enabled)
Active: active (running) since Tue 2023-10-17 15:42:50 CST; 5s ago
Docs: https://docs.min.io
Process: 1871 ExecStartPre=/bin/bash -c if [ -z "${MINIO_VOLUMES}" ]; then echo "Variable MINIO_VOLUMES not set i>
Main PID: 1873 (minio)
Tasks: 7
Memory: 87.7M
CPU: 362ms
CGroup: /system.slice/minio.service
└─1873 /usr/local/bin/minio server --console-address :9001 /data/minio{1...4}
Oct 17 15:42:49 ubuntu2204 systemd[1]: Starting MinIO...
Oct 17 15:42:50 ubuntu2204 systemd[1]: Started MinIO.
Oct 17 15:42:50 ubuntu2204 minio[1873]: MinIO Object Storage Server
Oct 17 15:42:50 ubuntu2204 minio[1873]: Copyright: 2015-2023 MinIO, Inc.
Oct 17 15:42:50 ubuntu2204 minio[1873]: License: GNU AGPLv3 <https://www.gnu.org/licenses/agpl-3.0.html>
Oct 17 15:42:50 ubuntu2204 minio[1873]: Version: RELEASE.2023-08-29T23-07-35Z (go1.19.12 linux/amd64)
Oct 17 15:42:50 ubuntu2204 minio[1873]: Status: 4 Online, 0 Offline.
Oct 17 15:42:50 ubuntu2204 minio[1873]: S3-API: http://10.0.0.100:9000 http://127.0.0.1:9000
Oct 17 15:42:50 ubuntu2204 minio[1873]: Console: http://10.0.0.100:9001 http://127.0.0.1:9001
Oct 17 15:42:50 ubuntu2204 minio[1873]: Documentation: https://min.io/docs/minio/linux/index.html
[root@ubuntu2204 ~]#ss -ntlp|grep minio
LISTEN 0 4096 127.0.0.1:9000 0.0.0.0:* users:(("minio",pid=1873,fd=10))
LISTEN 0 4096 *:9000 *:* users:(("minio",pid=1873,fd=11))
LISTEN 0 4096 [::1]:9000 [::]:* users:(("minio",pid=1873,fd=12))
LISTEN 0 4096 *:9001 *:* users:(("minio",pid=1873,fd=7))

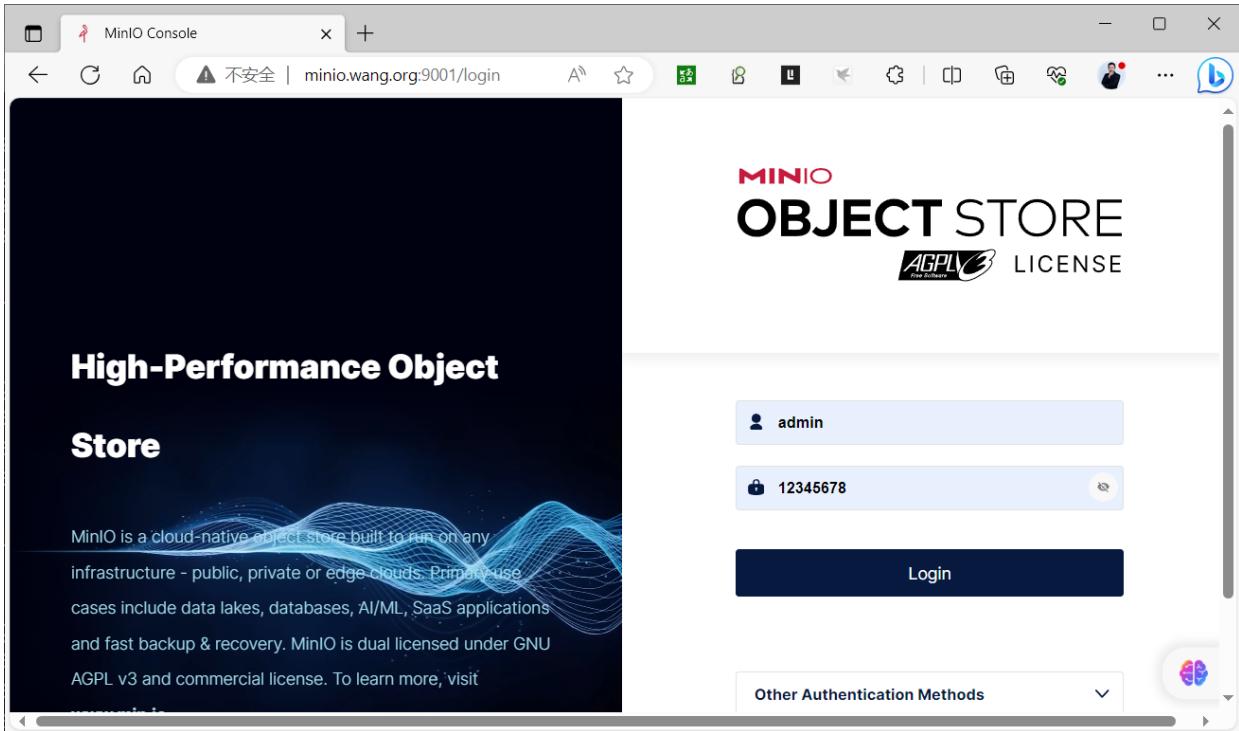

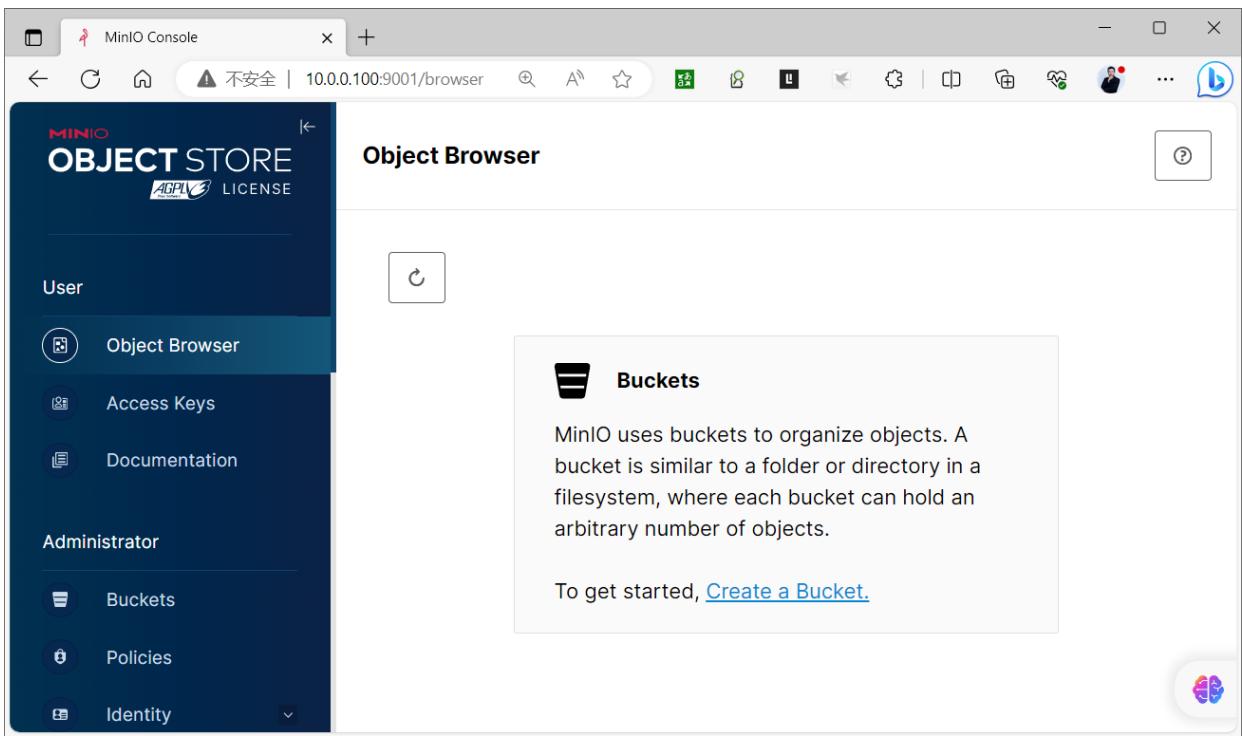

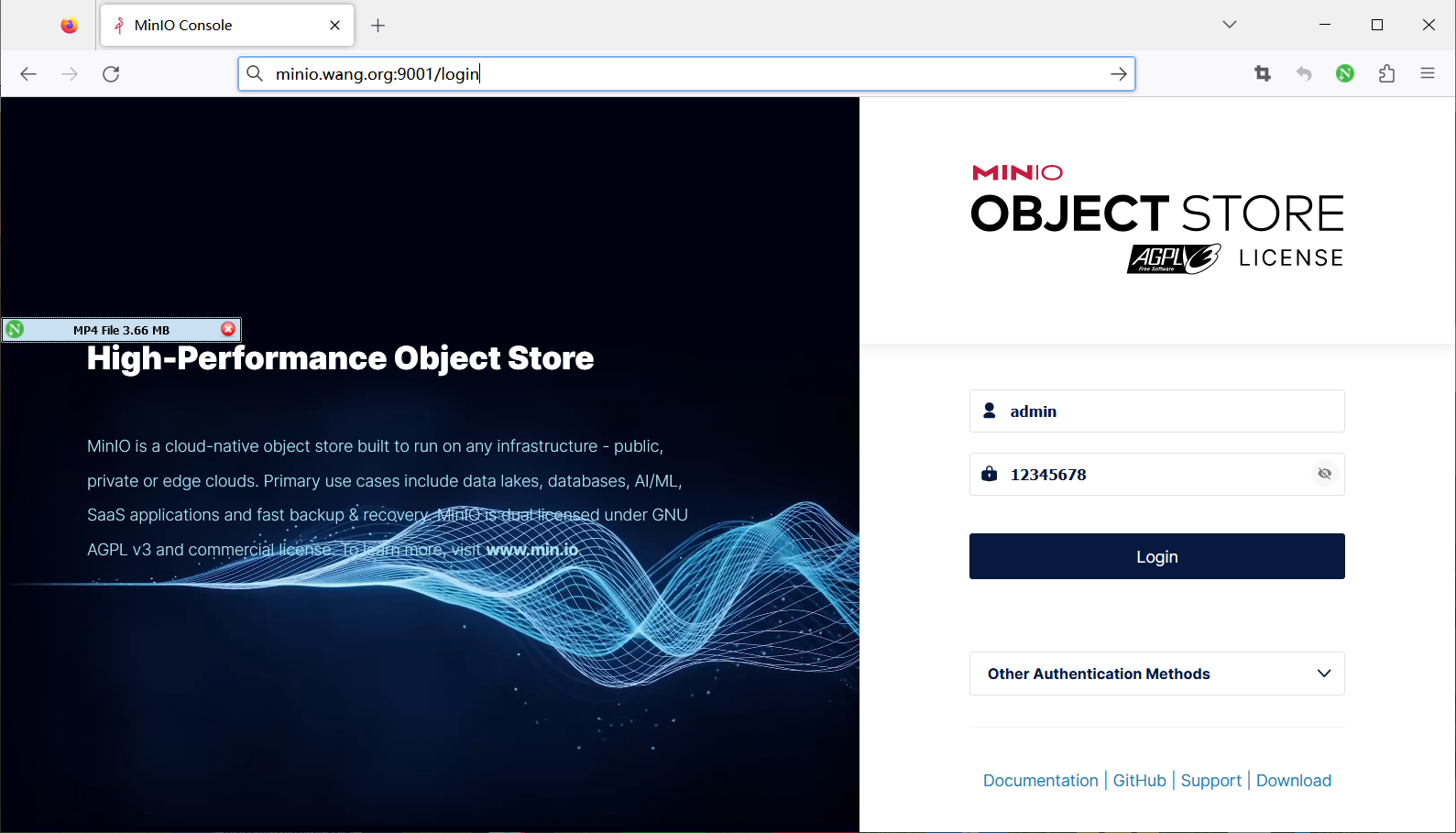

#登录 http://10.0.0.100:9001/用户名密码 admin/12345678
2.2.2 红帽系统包安装¶

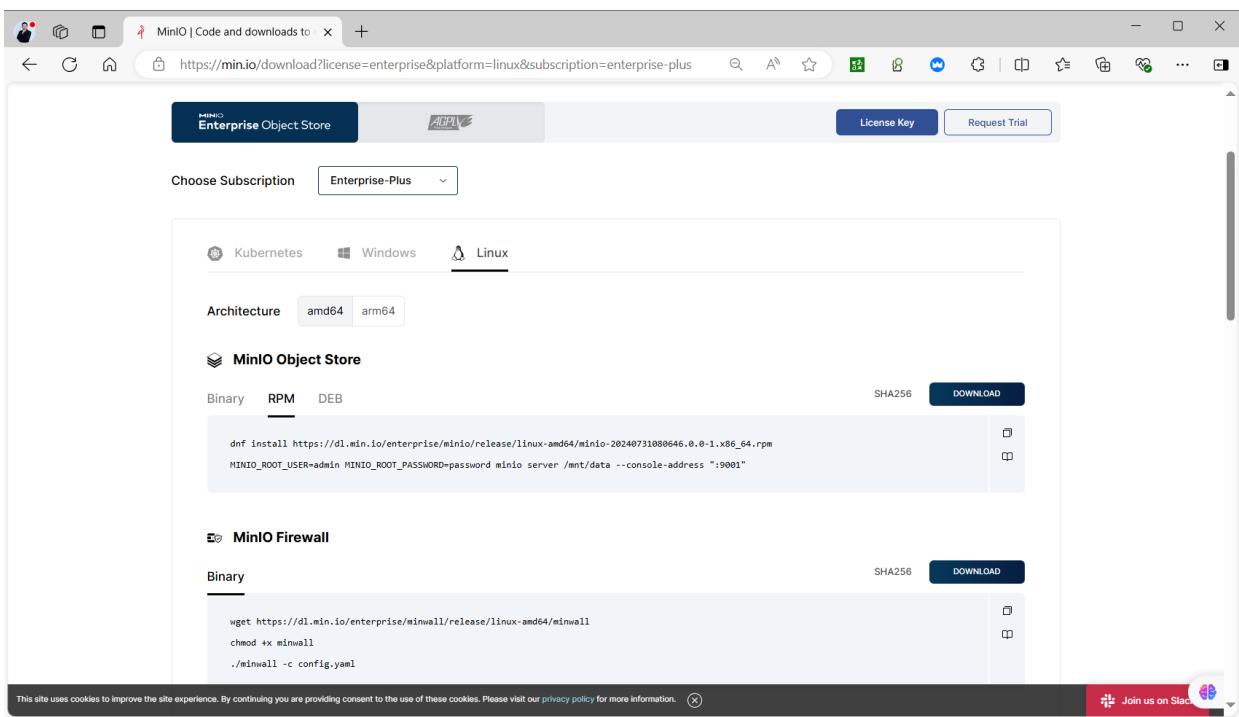

https://min.io/download? license=enterprise&platform=linux&subscription=enterprise-plus
dnf install https://dl.min.io/enterprise/minio/release/linux-amd64/minio-20240731080646.0.0-1.x86_64.rpm MINIO_ROOT_USER=admin MINIO_ROOT_PASSWORD=password minio server /mnt/data -- console-address ":9001"
范例: 红帽系统包安装
wget https://dl.min.io/server/minio/release/linux-amd64/archive/minio-20230829230735.0.0.x86_64.rpm -o minio.rpm
sudo df install minio.rpm
mkdir ~/minio
minio server ~/minio --console-address :9090
#默认用户和密码
#RootUser: minioadmin
#RootPass: minioadmin
2.3 二进制部署¶
2.3.1 二进制部署单机单磁盘模式¶
注意:建议minio.RELEASE.2025-04-22T22-12-26Z安装, 从minio-05-24T17-08-30Z 版本后界面变大较大功能缩水
https://dl.min.io/server/minio/release/

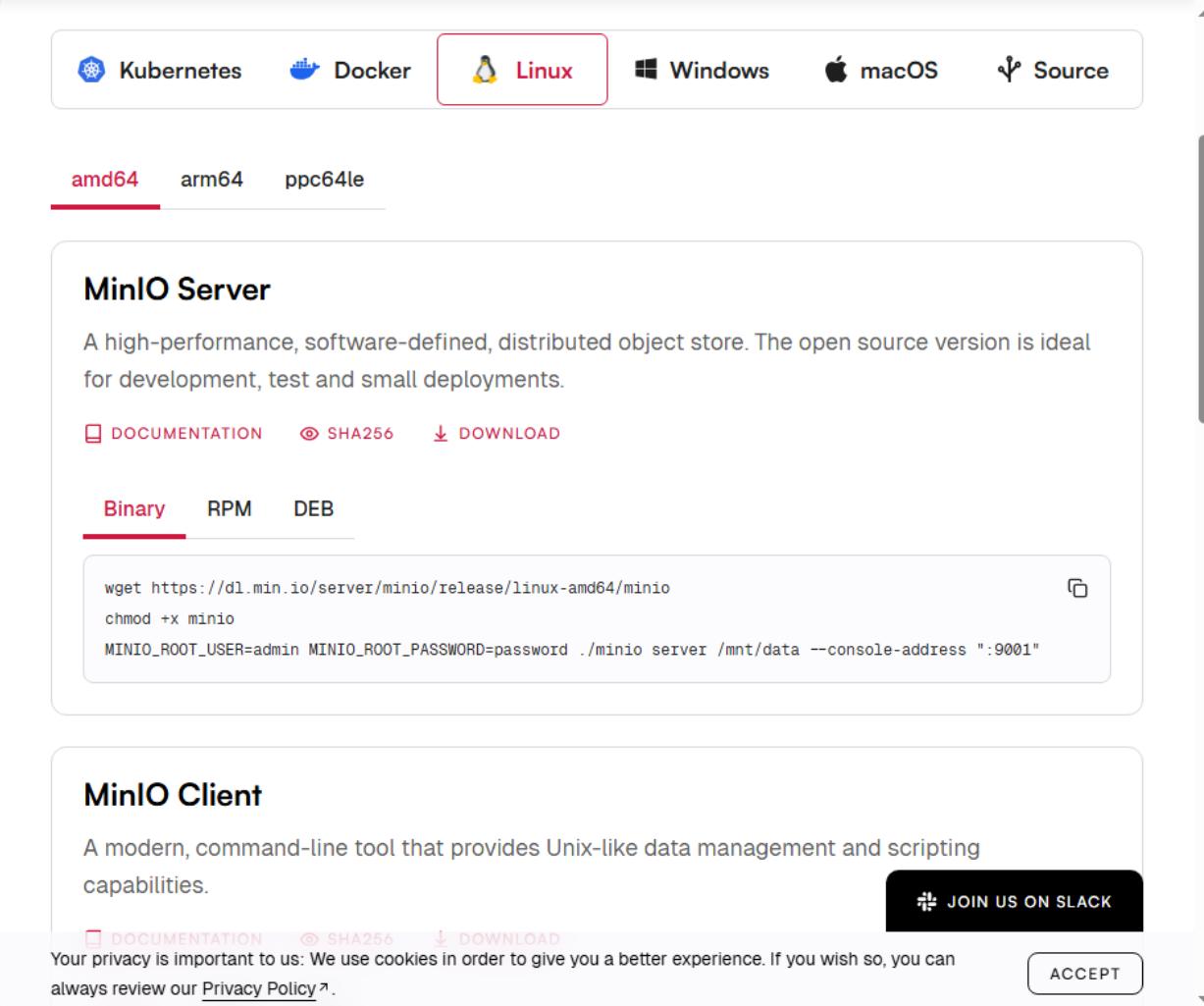

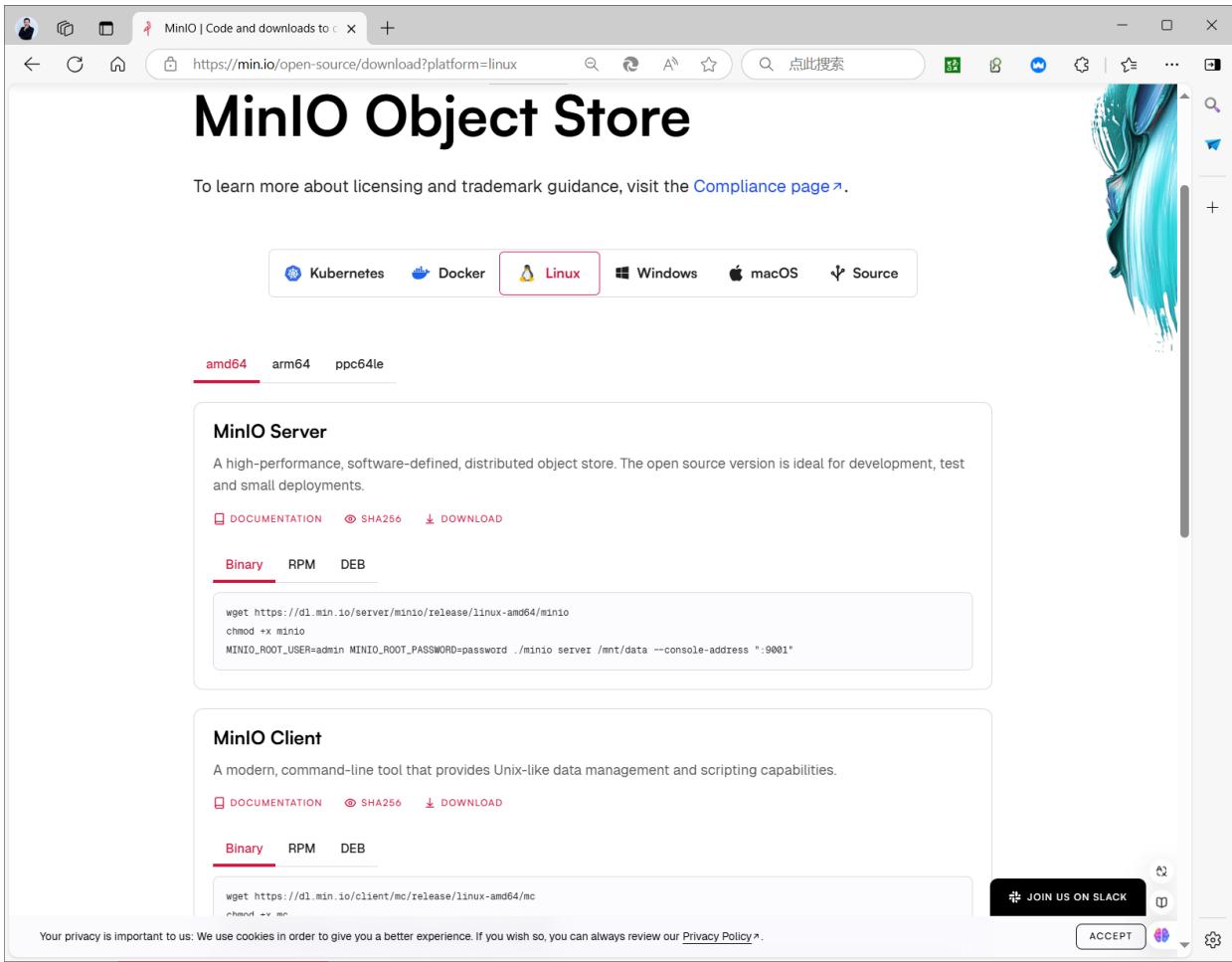

https://min.io/download?
license=enterprise&platform=linux&subscription=enterprise-plus
wget https://dl.min.io/server/minio/release/linux-amd64/minio
nmod +x minio
MINIO_ROOT_USER=admin MINIO_ROOT_PASSWORD=password ./minio server /mnt/data --console-address ':9001'
范例: 二进制部署单机单磁盘
#如果启动报错：原因是下载了enterpise版本
FATAL Unable to validate license, terminating process...: license: no license found
#国内镜像下载推荐使用
[root@ubuntu2204 ~]#wget https://dl.minio.org.cn/server/minio/release/linux-amd64/minio
[root@ubuntu2204 ~]#install minio /usr/local/bin/
#准备数据目录,建议此目录为LVM
[root@ubuntu2204 ~]#mkdir -p /data/minio
#启动服务命令选项说明
#示例: minio server /data/minio --console-address :9090
server #表示start object storage server
--console-address #指定管理后面端口,管理后台登录用户和密码,默认为minioadmin/minioadmin.
也可以通过还境变量MINIO_ROOT_USER（至少3个字符）和MINIO_ROOT_PASSWORD（至少8个字符）进行指定
#手动执行启动
[root@ubuntu2204 ~]#minio server /data/minio --console-address :9090
#输出信息如下
Formatting 1st pool, 1 set(s), 1 drives per set.
WARNING: Host local has more than 0 drives of set. A host failure will result in data becoming unavailable.
WARNING: Detected default credentials 'minioadmin:minioadmin', we recommend that you change these values with 'MINIO_ROOT_USER' and 'MINIO_ROOT_PASSWORD'
environment variables
MinIO Object Storage Server
Copyright: 2015-2023 MinIO, Inc.
License: GNU AGPLv3 <https://www.gnu.org/licenses/agpl-3.0.html>
Version: RELEASE.2023-08-29T23-07-35Z (go1.19.12 linux/amd64)
Status: 1 Online, 0 Offline.
S3-API: http://10.0.0.101:9000 http://10.10.53.81:9000 http://127.0.0.1:9000
RootUser: minioadmin
RootPass: minioadmin
Console: http://10.0.0.101:9090 http://10.10.53.81:9090 http://127.0.0.1:9090
RootUser: minioadmin
RootPass: minioadmin
Command-line: https://min.io/docs/minio/linux/reference/minio-mc.html#quickstart
$ mc alias set myminio http://10.0.0.101:9000 minioadmin minioadmin
Documentation: https://min.io/docs/minio/linux/index.html
Warning: The standard parity is set to 0. This can lead to data loss.
[root@ubuntu2404 ~]#useradd -r -s /sbin/nologin minio
[root@ubuntu2404 ~]#chown minio: /data/minio/
#创建service启动
[root@ubuntu2404 ~]#cat /lib/systemd/system/minio.service
[Unit]
Description=Minio
After=systemd-networkd.service systemd-resolved.service
Documentation=https://min.io
[Service]
Type=simple
Environment=MINIO_ROOT_USER=admin MINIO_ROOT_PASSWORD=12345678
ExecStart=/usr/local/bin/minio server /data/minio --console-address ":9001"
Restart=on-failure
User=minio
Group=minio
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
OOMScoreAdjust=-1000
[Install]
WantedBy=multi-user.target
[root@ubuntu2404 ~]#systemctl daemon-reload
[root@ubuntu2404 ~]#systemctl enable --now minio.service
2.3.2 Shell 脚本实现单机单磁盘模式¶
范例: 一键安装Shell 脚本实现单机单磁盘模式
[root@ubuntu2204 ~]#cat install_minio_single_node.sh
#!/bin/bash
#支持在线和离线安装
#管理后台用户和密码,注意:用户名至少3个字符,密码至少8个字符,如果不指定下面环境变量，默认用户名/密码为minioadmin/minioadmin
MINIO_ROOT_USER=admin
MINIO_ROOT_PASSWORD=12345678
#管理后台监听端口

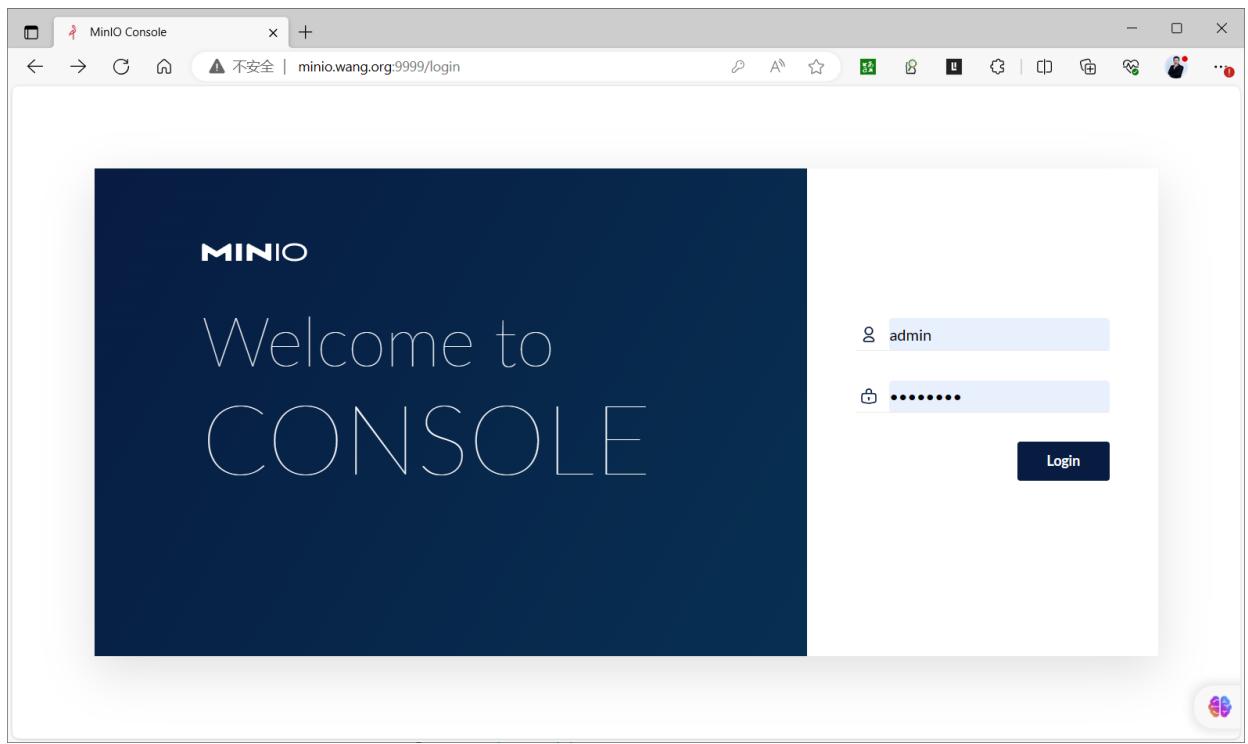

MINIO_PORT=9999
#数据目录
MINIO_DATA=/data/minio
#文件名和下载URL
MINIO_FILE=minio
MINIO_URL="https://dl.minio.org.cn/server/minio/release/linux-amd64/${MINIO_FILE}"
#MINIO_URL="https://dl.min.io/server/minio/release/linux-amd64/${MINIO_FILE}"
HOST_IP=`hostname -I|awk '{print $1}'`
COLOR_SUCCESS="echo -e \\033[1;32m"
COLOR_FAILURE="echo -e \\033[1;31m"
END="\033[m"
color () {
RES_COL=60
MOVE_TO_COL="echo -en \\033[${RES_COL}G"
SETCOLOR_SUCCESS="echo -en \\033[1;32m"
SETCOLOR_FAILURE="echo -en \\033[1;31m"
SETCOLOR_WARNING="echo -en \\033[1;33m"
SETCOLOR_NORMAL="echo -en \E[0m"
echo -n "$1" && $MOVE_TO_COL
echo -n "["
if [ $2 = "success" -o $2 = "0" ] ;then
${SETCOLOR_SUCCESS}
echo -n $" OK "
elif [ $2 = "failure" -o $2 = "1" ] ;then
${SETCOLOR_FAILURE}
echo -n $"FAILED"
else
${SETCOLOR_WARNING}
echo -n $"WARNING"
fi
${SETCOLOR_NORMAL}
echo -n "]"
echo
}
install_minio(){
if [ ! -e ${MINIO_FILE} ] ;then
wget ${MINIO_URL} || ${COLOR_FAILURE} "下载失败!" ${END}
fi
install ${MINIO_FILE} /usr/local/bin/minio
useradd -s /sbin/nologin -r minio
mkdir -p ${MINIO_DATA}
chown -R minio:minio ${MINIO_DATA}
cat > /lib/systemd/system/minio.service <<EOF
[Unit]
Description=Minio
After=systemd-networkd.service systemd-resolved.service
Documentation=https://min.io
[Service]
Type=simple
Environment=MINIO_ROOT_USER=${MINIO_ROOT_USER}
Environment=MINIO_ROOT_PASSWORD=${MINIO_ROOT_PASSWORD}
ExecStart=/usr/local/bin/minio server ${MINIO_DATA} --console-address ":${MINIO_PORT}"
Restart=on-failure
User=minio
Group=minio
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
OOMScoreAdjust=-1000
[Install]
WantedBy=multi-user.target
EOF
systemctl daemon-reload
systemctl enable --now minio.service &>/dev/null
systemctl is-active minio.service &>/dev/null
if [ $? -eq 0 ];then
echo
color "MinIO 安装完成!" 0
echo "------------------------------------------------------------------"
echo -e "请访问链接: \E[32;1mhttp://${HOST_IP}:${MINIO_PORT}/\E[0m"
echo -e "用户和密码: \E[32;1m${MINIO_ROOT_USER}/${MINIO_ROOT_PASSWORD}\E[0m"
else
color "MinIO 安装失败!" 1
exit
fi
}
install_minio
2.4 容器化部署¶
https://min.io/docs/minio/container/index.html
范例: 容器化部署单机单磁盘
docker pull registry.cn-beijing.aliyuncs.com/wangxiaochun/minio:RELEASE.2024-11-07T00-52-20Z
docker pull minio/minio
#可选
mkdir -p /data/minio
#docker部署
docker run -d \
-p 9000:9000 \
-p 9090:9090 \
--name minio \
-v /data/minio:/data \
-e "MINIO_ROOT_USER=admin" \
-e "MINIO_ROOT_PASSWORD=12345678" \
registry.cn-beijing.aliyuncs.com/wangxiaochun/minio:RELEASE.2025-04-22T22-12-26Z server /data --console-address ":9090"
#registry.cn-beijing.aliyuncs.com/wangxiaochun/minio:RELEASE.2024-11-07T00-52-20Z server /data --console-address ":9090"
#minio/minio server /data --console-address ":9090"
#podman 部署
podman run -p 9000:9000 -p 9001:9001 minio/minio server /data/minio --console-address ":9001"
范例: Docker 部署单机多磁盘启用纠删除码功能
[root@ubuntu2204 ~]#docker run -d \
-p 9000:9000 \
-p 9999:9999 \
--name minio \
-e "MINIO_ROOT_USER=admin" \
-e "MINIO_ROOT_PASSWORD=12345678" \
-v /minio/data1:/data1 \
-v /minio/data2:/data2 \
-v /minio/data3:/data3 \
-v /minio/data4:/data4 \
-v /minio/data5:/data5 \
-v /minio/data6:/data6 \
-v /minio/data7:/data7 \
-v /minio/data8:/data8 \
registry.cn-beijing.aliyuncs.com/wangxiaochun/minio:RELEASE.2025-04-22T22-12-26Z server /data{1...8} --console-address ":9999"
#registry.cn-beijing.aliyuncs.com/wangxiaochun/minio:RELEASE.2024-11-07T00-52-20Z server /data{1...8} --console-address ":9999"
#minio/minio server /data{1...8} --console-address ":9999"

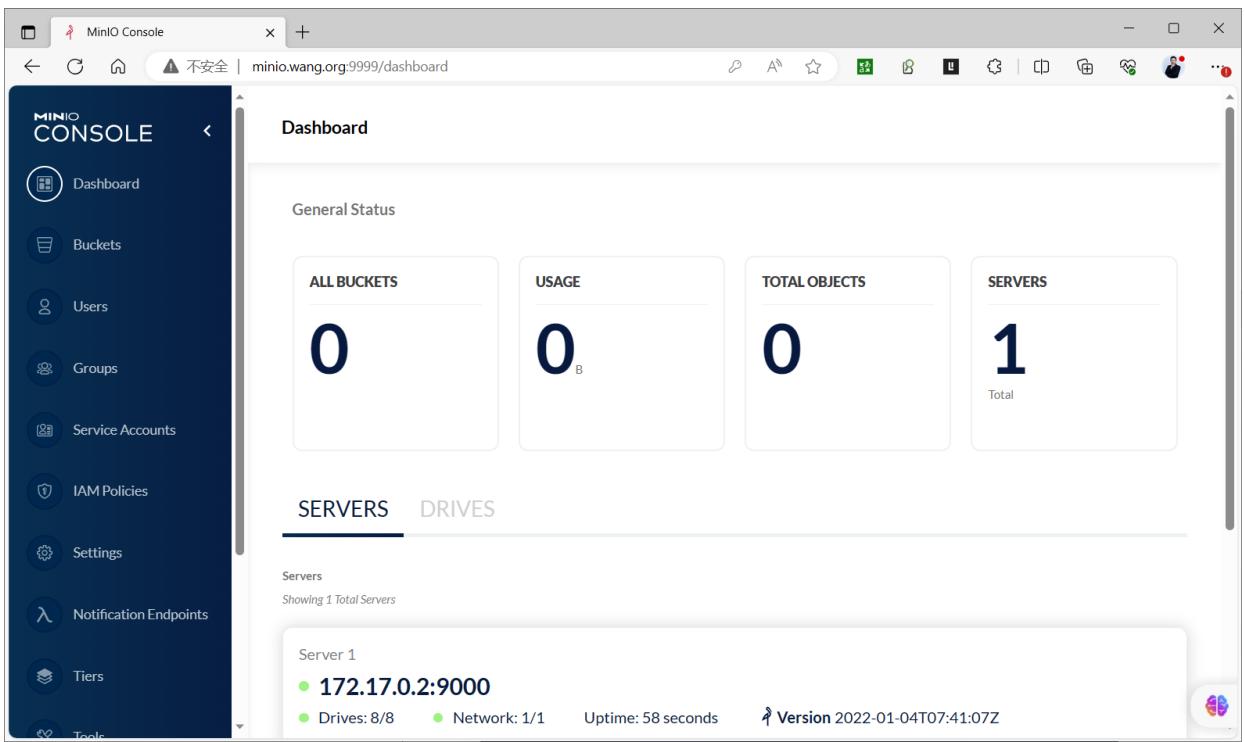

[root@ubuntu2204 ~]#docker logs minio
Automatically configured API requests per node based on available memory on the system: 17
Status: 8 Online, 0 Offline.
API: http://172.17.0.2:9000 http://127.0.0.1:9000
Console: http://172.17.0.2:9999 http://127.0.0.1:9999
Documentation: https://docs.min.io
You are running an older version of MinIO released 2 years ago
Update:
Run `mc admin update`
[root@ubuntu2204 ~]#tree /minio/
/minio/
├── data1
├── data2
├── data3
├── data4
├── data5
├── data6
├── data7
└── data8
8 directories, 0 files
2.5 基于 Docker Compose 部署¶
https://github.com/minio/minio/tree/master/docs/orchestration/docker-compose
范例：基于 Docker Compose 部署单节点
[root@ubuntu2404 ~]#cat docker-compose.yaml
version: '3.8'
services:
minio:
#image: minio/minio:RELEASE.2024-11-07T00-52-20Z
#image: registry.cn-beijing.aliyuncs.com/wangxiaochun/minio:RELEASE.2024-11-07T00-52-20Z
image: registry.cn-beijing.aliyuncs.com/wangxiaochun/minio:RELEASE.2025-04-22T22-12-26Z
container_name: minio
restart: always
environment:
MINIO_ROOT_USER: 'admin'
MINIO_ROOT_PASSWORD: '12345678'
MINIO_ADDRESS: ':9000'
MINIO_CONSOLE_ADDRESS: ':9001'
ports:
- "9000:9000"
- "9001:9001"
networks:
- minio_net
volumes:
- ./data:/data
healthcheck:
test: ["CMD", "curl", "-f", "http://localhost:9000/minio/health/live"]
interval: 30s
timeout: 20s
retries: 3
command: server /data
#command: server --console-address ":9001" /data
networks:
minio_net:
driver: bridge
[root@ubuntu2404 ~]#apt update && apt -y install docker-compose python3-pip
[root@ubuntu2404 ~]#docker-compose version
docker-compose version 1.29.2, build unknown
docker-py version: 5.0.3
CPython version: 3.12.3
OpenSSL version: OpenSSL 3.0.13 30 Jan 2024
[root@ubuntu2404 ~]#docker-compose up -d
[root@ubuntu2404 ~]#docker-compose up -d
[root@ubuntu2404 ~]#docker-compose ps
Name Command State Ports
---------------------------------------------------------------------------------------------------------------------------------------
minio /usr/bin/docker-entrypoint ... Up (healthy) 0.0.0.0:9000->9000/tcp,:::9000->9000/tcp, 0.0.0.0:9001->9001/tcp,:::9001->9001/tcp
[root@ubuntu2404 ~]#docker network ls
NETWORK ID NAME DRIVER SCOPE
dc0d93c3c604 bridge bridge local
92408dddfe8e host host local
f26890b252b5 none null local
6354afd6686a root_minio_net bridge local
范例: 基于 Docker Compose 部署多服务节点多设备集群并利用 Nginx实现反向代理负载均衡
https://github.com/minio/minio/blob/master/docs/orchestration/docker-compose/docker-compose.yaml
[root@ubuntu2204 minio]#ls
docker-compose.yaml nginx.conf
[root@ubuntu2204 minio]#cat docker-compose.yaml
version: '3.7'
# Settings and configurations that are common for all containers
x-minio-common: &minio-common
image: registry.cn-beijing.aliyuncs.com/wangxiaochun/minio:RELEASE.2025-04-22T22-12-26Z
command: server --console-address ":9001" http://minio{1...4}/data{1...2}
expose:
- "9000"
- "9001"
environment:
MINIO_ROOT_USER: admin
MINIO_ROOT_PASSWORD: 12345678
healthcheck:
test: ["CMD", "curl", "-f", "http://localhost:9000/minio/health/live"]
interval: 30s
timeout: 20s
retries: 3
# starts 4 docker containers running minio server instances.
# using nginx reverse proxy, load balancing, you can access
# it through port 9000.
services:
minio1:
<<: *minio-common
hostname: minio1
volumes:
- data1-1:/data1
- data1-2:/data2
minio2:
<<: *minio-common
hostname: minio2
volumes:
- data2-1:/data1
- data2-2:/data2
minio3:
<<: *minio-common
hostname: minio3
volumes:
- data3-1:/data1
- data3-2:/data2
minio4:
<<: *minio-common
hostname: minio4
volumes:
- data4-1:/data1
- data4-2:/data2
nginx:
image: nginx:1.19.2-alpine
hostname: nginx
volumes:
- ./nginx.conf:/etc/nginx/nginx.conf:ro
ports:
- "9000:9000"
- "9001:9001"
depends_on:
- minio1
- minio2
- minio3
- minio4
## By default this config uses default local driver,
## For custom volumes replace with volume driver configuration.
volumes:
data1-1:
data1-2:
data2-1:
data2-2:
data3-1:
data3-2:
data4-1:
data4-2:
[root@ubuntu2204 minio]#cat nginx.conf
user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log warn;
pid /var/run/nginx.pid;
events {
worker_connections 4096;
}
http {
include /etc/nginx/mime.types;
default_type application/octet-stream;
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';
access_log /var/log/nginx/access.log main;
sendfile on;
keepalive_timeout 65;
# include /etc/nginx/conf.d/*.conf;
upstream minio {
server minio1:9000;
server minio2:9000;
server minio3:9000;
server minio4:9000;
}
upstream console {
ip_hash;
server minio1:9001;
server minio2:9001;
server minio3:9001;
server minio4:9001;
}
server {
listen 9000;
listen [::]:9000;
server_name localhost;
# To allow special characters in headers
ignore_invalid_headers off;
# Allow any size file to be uploaded.
# Set to a value such as 1000m; to restrict file size to a specific value
client_max_body_size 0;
# To disable buffering
proxy_buffering off;
proxy_request_buffering off;
location / {
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_connect_timeout 300;
# Default is HTTP/1, keepalive is only enabled in HTTP/1.1
proxy_http_version 1.1;
proxy_set_header Connection "";
chunked_transfer_encoding off;
proxy_pass http://minio;
}
}
server {
listen 9001;
listen [::]:9001;
server_name localhost;
# To allow special characters in headers
ignore_invalid_headers off;
# Allow any size file to be uploaded.
# Set to a value such as 1000m; to restrict file size to a specific value
client_max_body_size 0;
# To disable buffering
proxy_buffering off;
proxy_request_buffering off;
location / {
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-NginX-Proxy true;
# This is necessary to pass the correct IP to be hashed
real_ip_header X-Real-IP;
proxy_connect_timeout 300;
# To support websocket
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "upgrade";
chunked_transfer_encoding off;
proxy_pass http://console;
}
}
}
#浏览器访问代理:http://minio.wang.org:9001,用户名密码:minioadmin/minioadmin
三、分布式集群部署¶

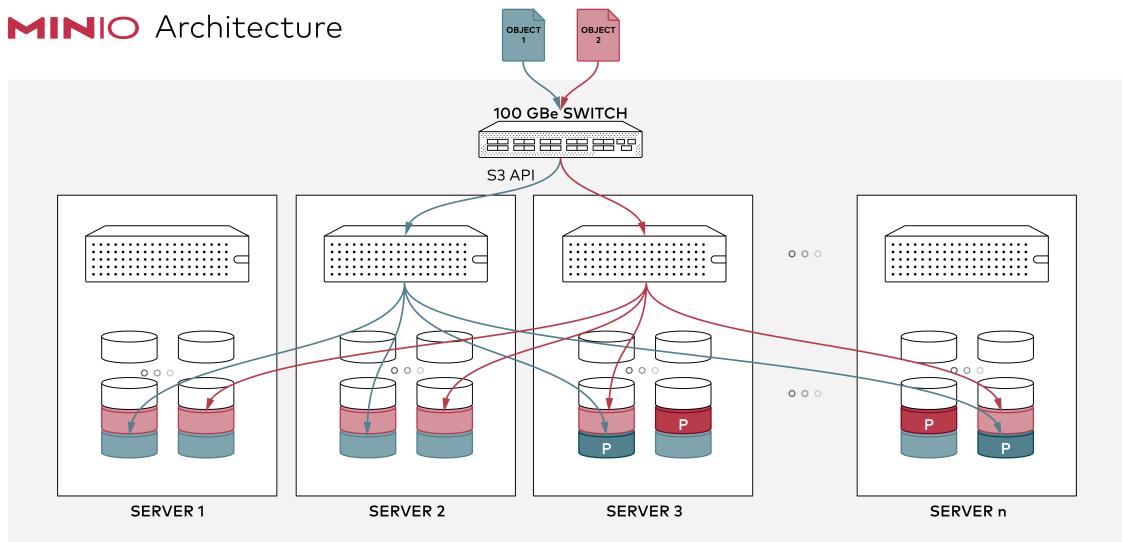

3.1 分布式集群机制¶
分布式Minio 将在不同的机器上的多块硬盘组成一个对象存储服务。
由于硬盘分布在不同的节点上,分布式MInio有更好的性能，同时避免了单点故障。
minio server http://host{1...n}/export{1...m}
3.1.1 分布式Minio优势¶
数据保护
分布式Minio采用纠删码来防范多个节点宕机和位衰减bit rot。
分布式Minio至少需要4个硬盘，使用分布式Minio 会自动引入纠删码功能。
高可用
单机Minio服务存在单点故障，相反，如果是一个有N块硬盘的分布式Minio,只要有N/2硬盘在线，数据就是安全的。不过你需要至少有 $\mathsf { N } / 2 + \mathsf { 1 }$ 个硬盘来创建新的对象。
例如，一个16节点Minio集群，每个节点16块硬盘，就算8台服务器宕机，这个集群仍然可读的，不过需要9台服务器才能写数据。
性能
多个节点负载均衡，提升性能
一致性
Minio在分布式和单机模式下，所有读写操作都严格遵守read-after-write一致性模型。
3.1.2 分布式Minio实现条件¶
在所有节点运行同样的命令启动一个分布式Minio实例，只需要把硬盘位置做为参数传给minioserver命令即可
分布式Minio中的所有节点需要有同样的环境变量MINIO_ACCESS_KEY和MINIO_SECRET_KEY，才能建立分布式集群
注意：新版本使用环境变量 MINIO_ROOT_USER和MINIO_ROOT_PASSWORD
分布式Minio使用的磁盘里必须是干净的，里面没有数据
分布式Minio里的节点时间差不能超过3秒，可以使用NTP来保证时间一致。
3.1.3 分布式Minio注意事项¶
minio服务器多块数据磁盘需要使用独立的磁盘，在物理底层要相互独立避免遇到磁盘io竞争，导致minio性能直线下降,如果性能下降严重，数据量大时甚至会导致集群不可用
minio数据磁盘最大不超过2T,如果使用lvm逻辑卷，逻辑卷大小也不要超过2T，过大的磁盘或文件系统会导致后期IO延迟较高导致minio性能降低
minio集群共M节点每个节点N块数据磁盘，磁盘只要存活M*N/2，minio集群数据就是安全的，在节点数剩余M/2+1时节点可以正常读写
如果使用lvm方式扩展集群容量，请在部署阶段minio数据目录就使用lvm。
如果需要备份minio集群数据，请准备存放minio集群所有对象数据的空间容量
比如: 一个2T/盘4块/节点8节点=64T的集群所有容量的一半存储空间即32T服务器，配置内存CPU配置不需要太高
如果网络环境允许请把minio集群节点配置双网卡，节点通信网络与客户端访问网络分开避免网络瓶颈

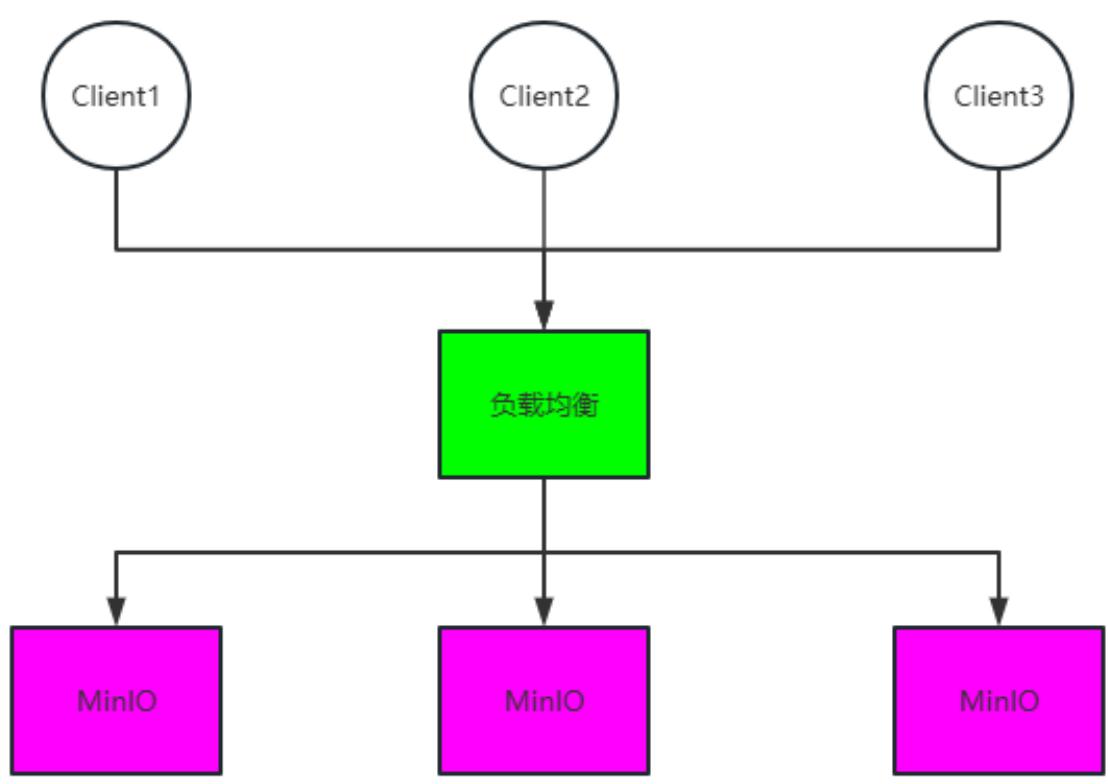

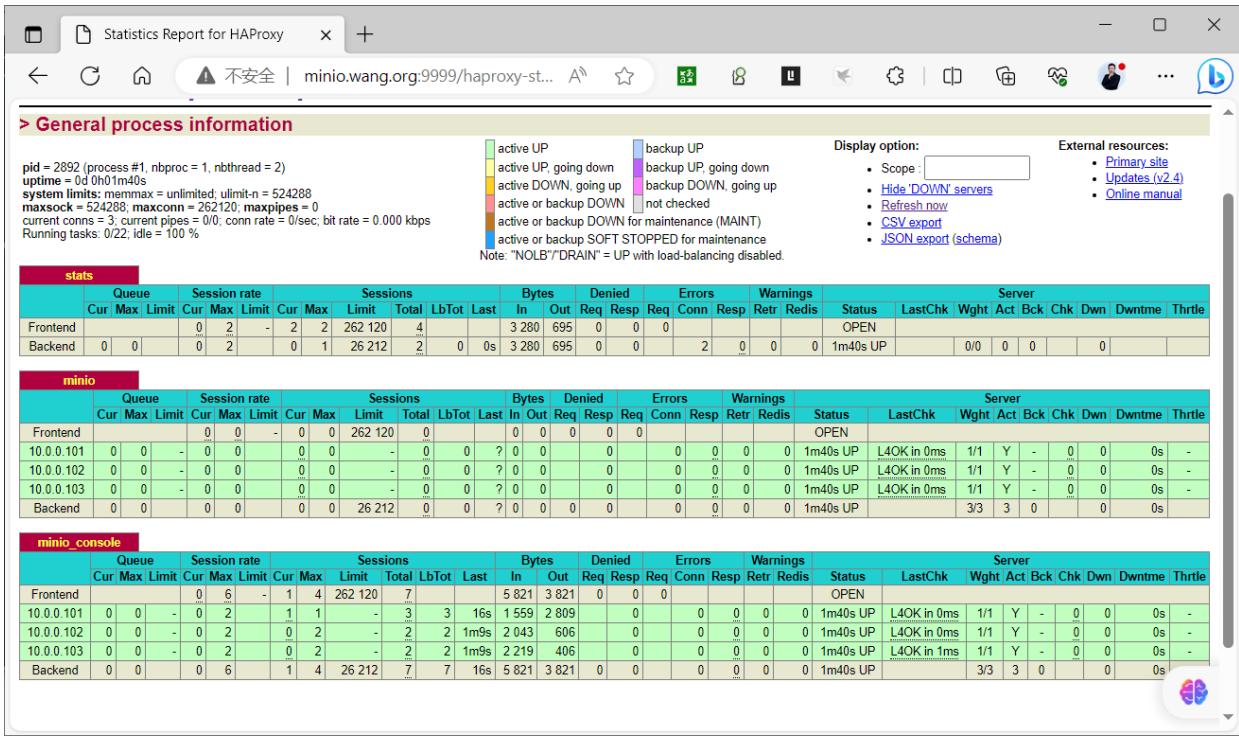

配置反向代理实现MinIO的负载均衡, 可以使用云服务SLB或者2台haproxy/nginx结合keepalived实现高可用
minio系统中不要安装消耗IO较高的应用,比如:updatedb程序，如安装请排除扫描minio数据目录,否则可以会导致磁盘io延迟过高，会导致cpu负载过高，从而降低minio性能
3.2 分布式集群部署案例¶
https://min.io/docs/minio/linux/operations/install-deploy-manage/deploy-minio-multi-node-multi-drive.html
注意:每个数据目录默认不能使用系统的根文件系统 rootfs,必须为独立的文件系统
3.2.1 二进制部署分布式集群¶
范例：3个节点，每节点1块盘
#启动分布式Minio实例，3个节点，每节点1块盘，需要在每个节点上都运行下面的命令
#先在每个主机上将磁盘格式化并挂载至/data/minio目录下，
export MINIO_ROOT_USER=admin
export MINIO_ROOT_PASSWORD=12345678
minio server http://10.0.0.{101..103}:9000/data/minio --console-address :50000
范例：3个节点,每节点4块盘
#先每个主机的四块磁盘格式化,并分别挂载到/minio/dirve{1..4}上
export MINIO_ROOT_USER=admin
export MINIO_ROOT_PASSWORD=12345678
minio server https://10.0.0.{101..103}/minio/drive{1..4} --console-address :50000
#输出信息
Waiting for all MinIO sub-systems to be initialize...
Automatically configured API requests per node based on available memory on the system: 16
All MinIO sub-systems initialized successfully in 3.683865209s
MinIO Object Storage Server
Copyright: 2015-2023 MinIO, Inc.
License: GNU AGPLv3 <https://www.gnu.org/licenses/agpl-3.0.html>
Version: RELEASE.2023-08-29T23-07-35Z (go1.19.12 linux/amd64)
Use `mc admin info` to look for latest server/drive info
Status: 8 Online, 4 Offline.
S3-API: http://10.0.0.101:9000 http://127.0.0.1:9000
RootUser: admin
RootPass: 12345678

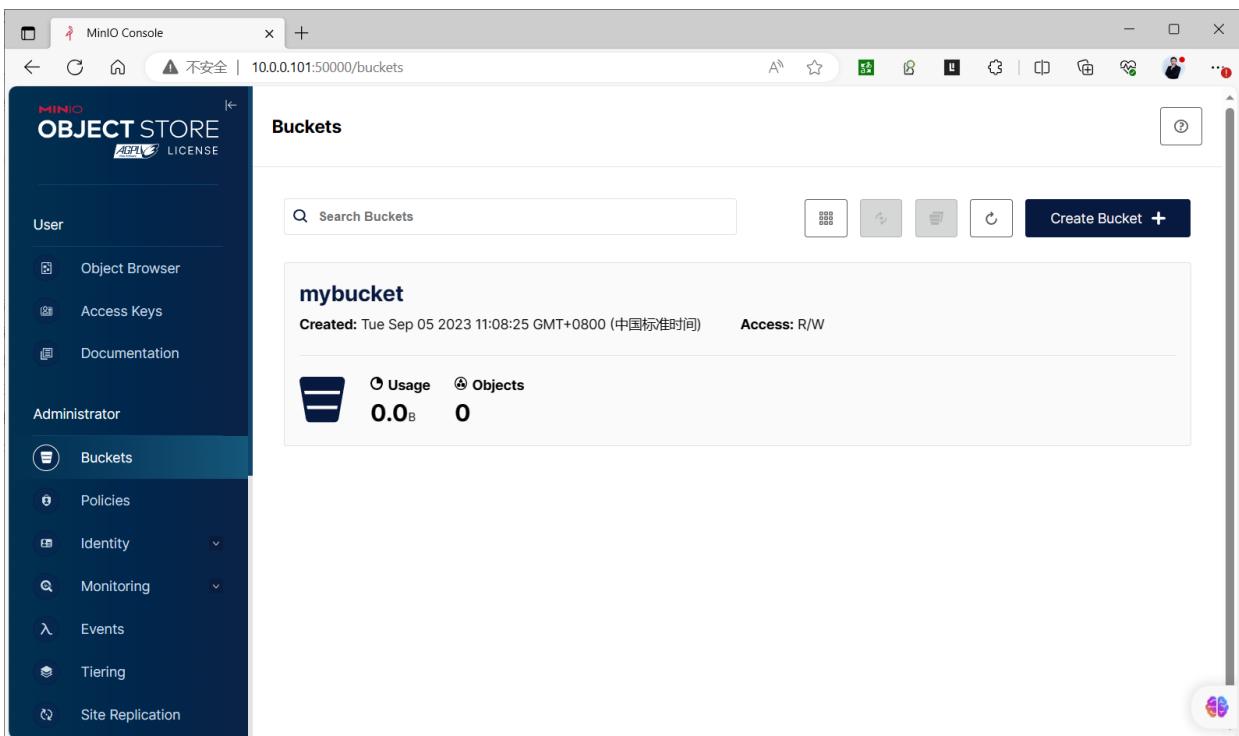

Console: http://10.0.0.101:50000 http://127.0.0.1:50000
RootUser: admin
RootPass: 12345678
Command-line: https://min.io/docs/minio/linux/reference/minio-mc.html#quickstart

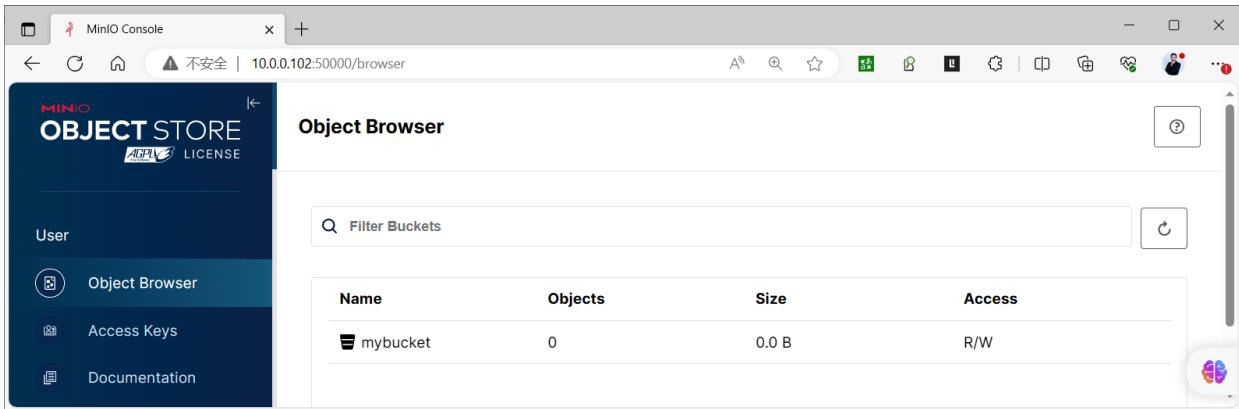

$ mc alias set myminio http://10.0.0.102:9000 admin 12345678
在每个节点上创建新的bucket和上传文件,在集群中的其它节点上也可以查看到此bucket和上传的文件
范例：4个节点每节点4块盘集群
在4个节点都执行下面指令
#在4个节点都执行下面指令
export MINIO_ROOT_USER=admin
export MINIO_ROOT_PASSWORD=12345678
minio server http://10.0.0.101/export1 \
http://10.0.0.101/export2 \
http://10.0.0.101/export3 \
http://10.0.0.101/export4 \
http://10.0.0.102/export1 \
http://10.0.0.102/export2 \
http://10.0.0.102/export3 \
http://10.0.0.102/export4 \
http://10.0.0.103/export1 \
http://10.0.0.103/export2 \
http://10.0.0.103/export3 \
http://10.0.0.103/export4 \
http://10.0.0.104/export1 \
http://10.0.0.104/export2 \
http://10.0.0.104/export3 \
http://10.0.0.104/export4 \
--console-address :50000
#或者下面用法
minio server http://10.0.0.10{1..4}/export{1..4} --console-address :50000
范例: 基于LVM实现二进制部署MinIO 实现3节点的分布式高可用集群(练习)
#准备三台主机,在所有节点上做好名称解析
[root@minio1 ~]#cat /etc/hosts
10.0.0.101 minio1.wang.org
10.0.0.102 minio2.wang.org
10.0.0.103 minio3.wang.org
#在所有节点上准备数据目录和用户
#当前环境中有LV，并且VG中有空闲空间，所以基于当前环境创建新LV实现MiniO存储
[root@ubuntu2204 ~]#lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sda 8:0 0 200G 0 disk
├─sda1 8:1 0 1M 0 part
├─sda2 8:2 0 2G 0 part /boot
└─sda3 8:3 0 198G 0 part
└─ubuntu--vg-ubuntu--lv 253:0 0 99G 0 lvm /
sr0 11:0 1 1024M 0 rom
[root@minio1 ~]#pvs
PV VG Fmt Attr PSize PFree
/dev/sda3 ubuntu-vg lvm2 a-- <198.00g 99.00g
[root@minio1 ~]#vgs
VG #PV #LV #SN Attr VSize VFree
ubuntu-vg 1 1 0 wz--n- <198.00g 99.00g
[root@minio1 ~]#lvs
LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert
ubuntu-lv ubuntu-vg -wi-ao---- <99.00g
#基于当前VG创建LV
[root@minio1 ~]#lvcreate -n minio -L 10G ubuntu-vg
[root@minio1 ~]#lvs
LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert
minio ubuntu-vg -wi-a----- 10.00g
ubuntu-lv ubuntu-vg -wi-ao---- <99.00g
#XFS
[root@minio1 ~]#mkfs.xfs /dev/ubuntu-vg/minio
[root@minio1 ~]#echo /dev/ubuntu-vg/minio /data/ xfs defaults 0 0 >> /etc/fstab
#EXT4
[root@minio1 ~]#mkfs.ext4 /dev/ubuntu-vg/minio
[root@minio1 ~]#echo /dev/ubuntu-vg/minio /data/ ext4 defaults 0 0 >> /etc/fstab
[root@minio1 ~]#mkdir /data/
[root@minio1 ~]#mount -a
[root@minio1 ~]#mkdir -p /data/minio{1..4}
[root@minio1 ~]#useradd -r -s /sbin/nologin minio
[root@minio1 ~]#chown -R minio: /data/minio*
#在所有节点上下载二进制程序
[root@minio1 ~]#wget https://dl.minio.org.cn/server/minio/release/linux-amd64/minio
[root@minio1 ~]#install minio /usr/local/bin/minio
#在所有节点上准备环境变量文件
[root@minio1 ~]#cat > /etc/default/minio
MINIO_ROOT_USER=admin
MINIO_ROOT_PASSWORD=12345678
MINIO_VOLUMES='http://minio{1...3}.wang.org:9000/data/minio{1...4}'
MINIO_OPTS='--console-address :9001'
MINIO_PROMETHEUS_AUTH_TYPE="public"
#注意事项
#MINIO_ROOT_USER管理员用户名，MINIO_ROOT_PASSWORD管理员密码
#如果minio服务器IP地址连续可以直接写IP地址写法，如果IP地址不连续,则使用前面在本地hosts解析文件配置的连续的主机名
#方法例如：MINIO_VOLUMES="http://10.0.0.10{1...3}:9000/data/minio{1..4}"
#在所有节点上创建service文件
[root@minio1 ~]#cat > /lib/systemd/system/minio.service
[Unit]
Description=MinIO
Documentation=https://docs.min.io
Wants=network-online.target
After=network-online.target
[Service]
WorkingDirectory=/usr/local
User=minio
Group=minio
EnvironmentFile=-/etc/default/minio
ExecStartPre=/bin/bash -c "if [ -z \"${MINIO_VOLUMES}\" ]; then echo \"Variable MINIO_VOLUMES not set in /etc/default/minio\"; exit 1; fi"
ExecStart=/usr/local/bin/minio server $MINIO_OPTS $MINIO_VOLUMES
Restart=always
LimitNOFILE=1048576
TasksMax=infinity
OOMScoreAdjust=-1000
[Install]
WantedBy=multi-user.target
#在所有节点启动服务
[root@minio1 ~]#systemctl daemon-reload
[root@minio1 ~]#systemctl enable --now minio.service
[root@minio1 ~]#systemctl status minio.service
● minio.service - MinIO
Loaded: loaded (/lib/systemd/system/minio.service; enabled; vendor preset: enabled)
Active: active (running) since Tue 2023-10-17 16:28:02 CST; 6s ago
Docs: https://docs.min.io
Process: 1614 ExecStartPre=/bin/bash -c if [ -z "${MINIO_VOLUMES}" ]; then echo "Variable MINIO_VOLUMES not set i>
Main PID: 1615 (minio)
Tasks: 8 (limit: 2193)
Memory: 145.8M
CPU: 1.008s
CGroup: /system.slice/minio.service
└─1615 /usr/local/bin/minio server --console-address :9001 http://minio{1...3}.wang.org:9000/data/minio{>
Oct 17 16:28:03 minio1.wang.org minio[1615]: All MinIO sub-systems initialized successfully in 10.007151ms
Oct 17 16:28:03 minio1.wang.org minio[1615]: MinIO Object Storage Server
Oct 17 16:28:03 minio1.wang.org minio[1615]: Copyright: 2015-2023 MinIO, Inc.
Oct 17 16:28:03 minio1.wang.org minio[1615]: License: GNU AGPLv3 <https://www.gnu.org/licenses/agpl-3.0.html>
Oct 17 16:28:03 minio1.wang.org minio[1615]: Version: RELEASE.2023-10-16T04-13-43Z (go1.21.3 linux/amd64)
Oct 17 16:28:03 minio1.wang.org minio[1615]: Use `mc admin info` to look for latest server/drive info
Oct 17 16:28:03 minio1.wang.org minio[1615]: Status: 8 Online, 4 Offline.
Oct 17 16:28:03 minio1.wang.org minio[1615]: S3-API: http://10.0.0.103:9000 http://127.0.0.1:9000
Oct 17 16:28:03 minio1.wang.org minio[1615]: Console: http://10.0.0.103:9001 http://127.0.0.1:9001
Oct 17 16:28:03 minio1.wang.org minio[1615]: Documentation: https://min.io/docs/minio/linux/index.html
[root@minio1 ~]#ss -ntlp |grep minio
LISTEN 0 4096 127.0.0.1:9000 0.0.0.0:* users:(("minio",pid=2685,fd=10))
LISTEN 0 4096 *:9000 *:* users:(("minio",pid=2685,fd=11))
LISTEN 0 4096 [::1]:9000 [::]:* users:(("minio",pid=2685,fd=12))
LISTEN 0 4096 *:9001 *:* users:(("minio",pid=2685,fd=24))

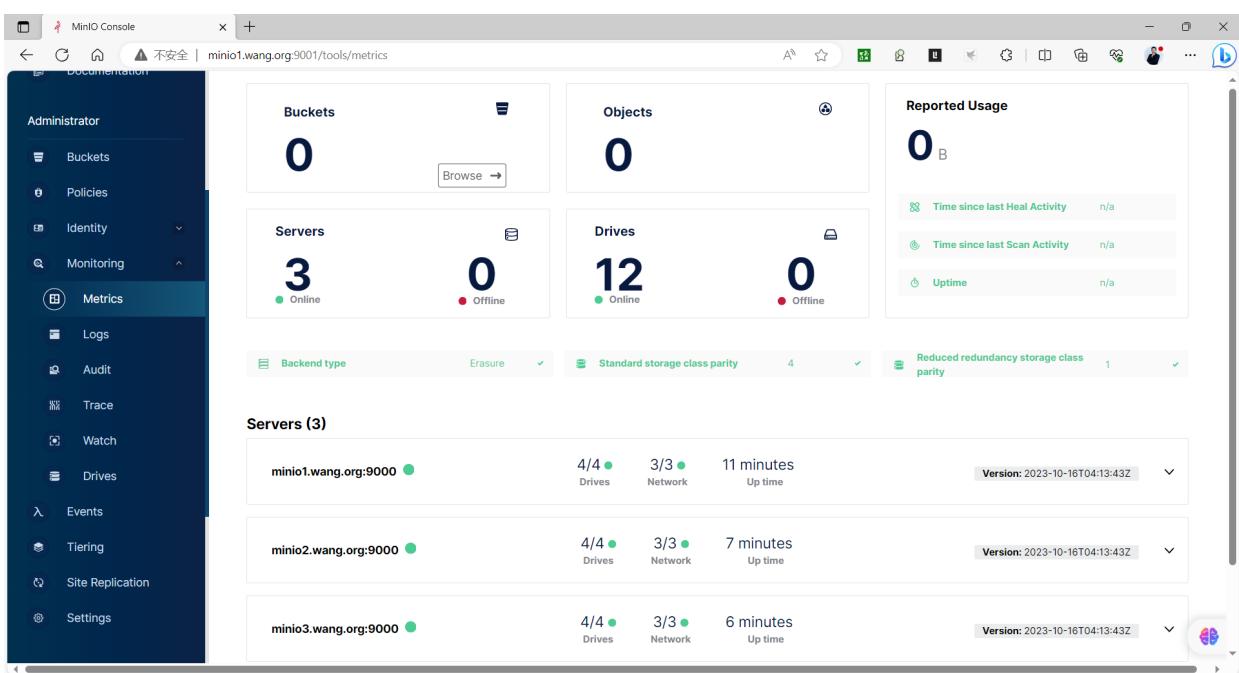

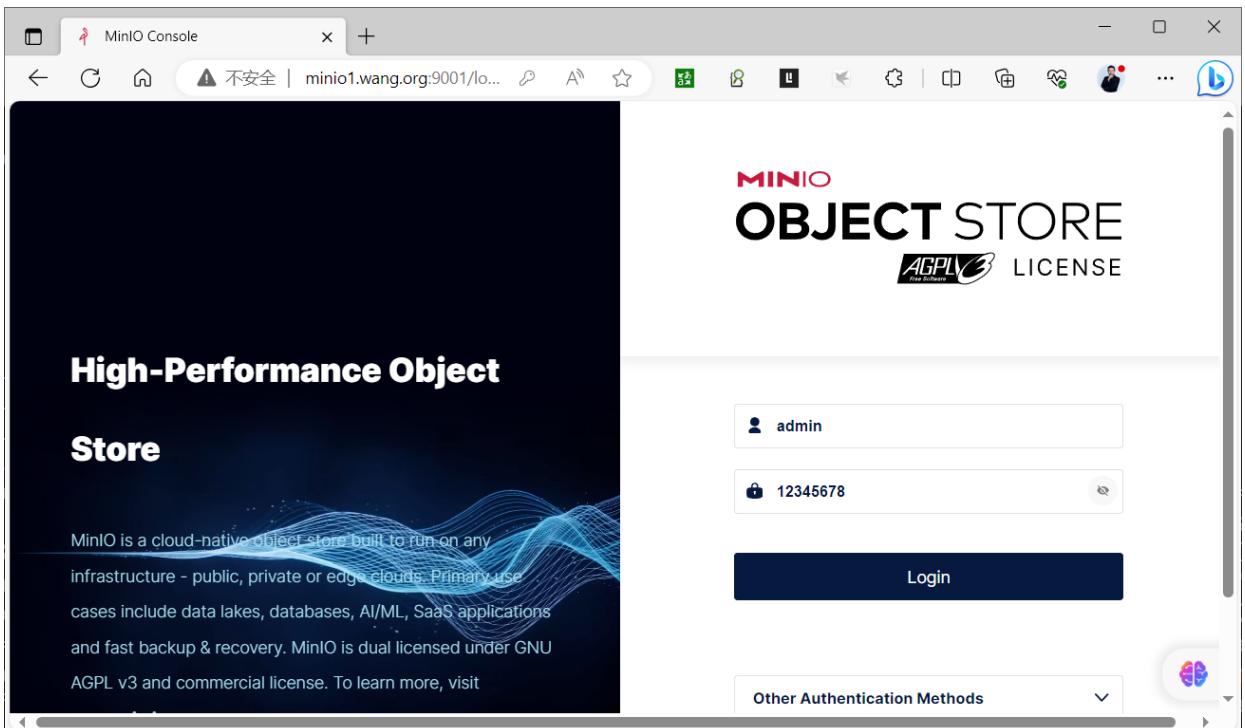

#浏览器访问 http://minio{1..3}.wang.org:9001/ 用户名密码:admin/12345678
#配置反向代理,通过Haproxy或者Nginx实现minio的反向代理
#方式1:Haproxy配置
[root@ubuntu2204 ~]#apt update && apt -y install haproxy
[root@ubuntu2204 ~]#cat /etc/haproxy/haproxy.cfg
......
listen stats
mode http
bind 0.0.0.0:9999
stats enable
log global
stats uri /haproxy-status
stats auth admin:123456
listen minio
bind 10.0.0.100:9000
mode http
log global
server 10.0.0.101 10.0.0.101:9000 check inter 3000 fall 2 rise 5
server 10.0.0.102 10.0.0.102:9000 check inter 3000 fall 2 rise 5
server 10.0.0.103 10.0.0.103:9000 check inter 3000 fall 2 rise 5
listen minio_console
bind 10.0.0.100:9001
mode http
log global
server 10.0.0.101 10.0.0.101:9001 check inter 3000 fall 2 rise 5
server 10.0.0.102 10.0.0.102:9001 check inter 3000 fall 2 rise 5
server 10.0.0.103 10.0.0.103:9001 check inter 3000 fall 2 rise 5
#方式2:nginx配置文件实现反向代理
[root@ubuntu2204 ~]#apt update && apt -y install nginx
[root@ubuntu2204 ~]#vim /etc/nginx/nginx.conf
....
http {
upstream minio {
server 10.0.0.101:9000;
server 10.0.0.102:9000;
server 10.0.0.103:9000;
}
upstream console {
#ip_hash;
hash $remote_addr;
server 10.0.0.101:9001;
server 10.0.0.102:9001;
server 10.0.0.103:9001;
}
server {
listen 9000;
listen [::]:9000;
server_name localhost;
# To allow special characters in headers
ignore_invalid_headers off;
# Allow any size file to be uploaded.
# Set to a value such as 1000m; to restrict file size to a specific value
client_max_body_size 0;
# To disable buffering
proxy_buffering off;
location / {
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_connect_timeout 300;
# Default is HTTP/1, keepalive is only enabled in HTTP/1.1
proxy_http_version 1.1;
proxy_set_header Connection "";
chunked_transfer_encoding off;
proxy_pass http://minio;
}
}
server {
listen 9001;
listen [::]:9001;
server_name localhost;
# To allow special characters in headers
ignore_invalid_headers off;
# Allow any size file to be uploaded.
# Set to a value such as 1000m; to restrict file size to a specific value
client_max_body_size 0;
# To disable buffering
proxy_buffering off;
location / {
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-NginX-Proxy true;
# This is necessary to pass the correct IP to be hashed
real_ip_header X-Real-IP;
proxy_connect_timeout 300;
# Default is HTTP/1, keepalive is only enabled in HTTP/1.1
proxy_http_version 1.1;
proxy_set_header Connection "";
chunked_transfer_encoding off;
proxy_pass http://console;
}
}
}
#通过Keepalived服务实现Nginx的高可用
略

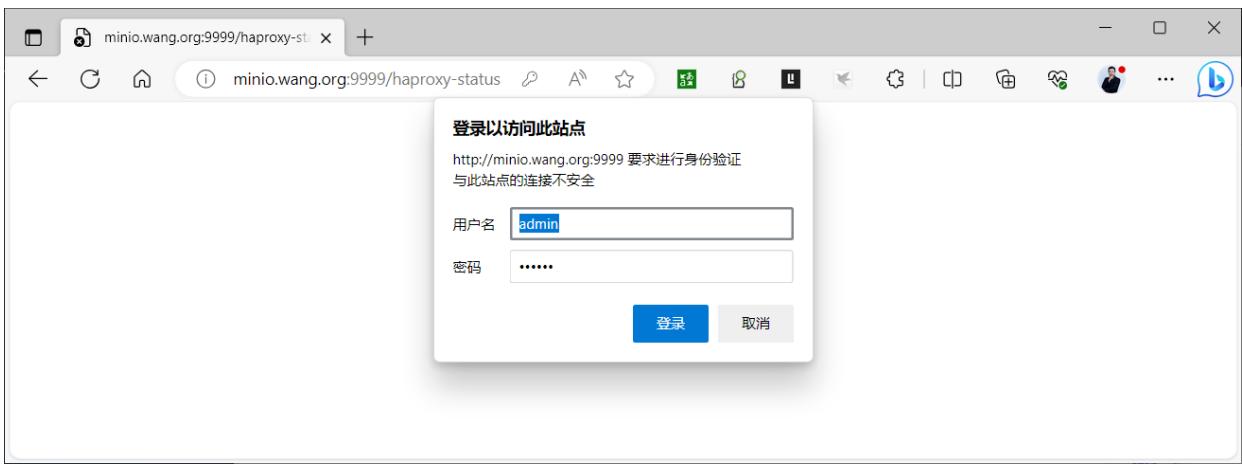

#访问代理查看集群状态, 用户名密码:admin/123456
http://minio.wang.org:9999/haproxy-status

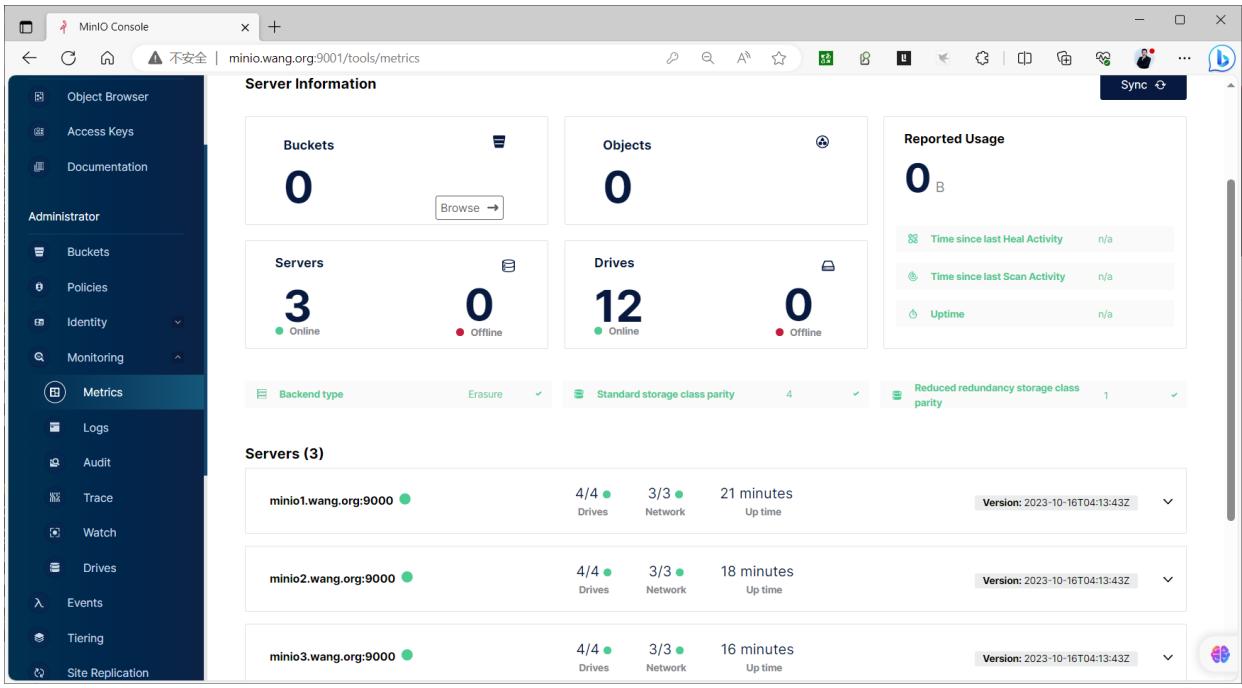

通过代理访问minio的控制台,用户名密码:admin/12345678
http://minio.wang.org:9001/
3.2.2 容器化部署分布式集群¶
范例：容器化部署
[root@localhost ~]# docker network create -d macvlan --subnet=192.168.100.0/24 --ip-range=192.168.100.0/24 --gateway=192.168.100.1 -o parent=eth0 minio-net
#启动三个节点的容器
[root@localhost ~]#docker run --name minio1 -d --restart always --network minio-net --ip=192.168.100.101 -v /data/node1/export1:/export1 -v /data/node1/export2:/export2 -e "MINIO_ROOT_USER=admin" -e "MINIO_ROOT_PASSWORD=123456" -p 9000:9000 -p 9001:9001 minio/minio server http://192.168.100.10{1..3}/export{1..2} --console-address ":9001"
[root@localhost ~]#docker run --name minio2 -d --restart always --network minio-net --ip=192.168.100.102 -v /data/node2/export1:/export1 -v /data/node2/export2:/export2 -e "MINIO_ROOT_USER=admin" -e "MINIO_ROOT_PASSWORD=123456" -p 9000:9000 -p 9001:9001 minio/minio server http://192.168.100.10{1..3}/export{1..2} --console-address ":9001"
[root@localhost ~]#docker run --name minio3 -d --restart always --network minio-net --ip=192.168.100.103 -v /data/node3/export1:/export1 -v /data/node3/export2:/export2 -e "MINIO_ROOT_USER=admin" -e "MINIO_ROOT_PASSWORD=123456" -p 9000:9000 -p 9001:9001 minio/minio server http://192.168.100.10{1..3}/export{1..2} --console-address ":9001"
[root@localhost ~]#docker logs minio1
[root@localhost ~]#docker logs minio2
[root@localhost ~]#docker logs minio3
四、基于Kubernetes 部署¶
https://github.com/minio/minio/tree/master/docs/orchestration/kubernetes
基于Kubernetes 部署 MinIO 有多种方法
- Manifest YAML 清单文件
- MinIO Operator
- Helm
4.1 YAML清单文件¶
环境要求: 依赖于一个支持PV动态置备的名称为sc-nfs的StorageClass
service 资源
#minio-service.yaml
---
kind: Service
apiVersion: v1
metadata:
name: minio-headless
labels:
app: minio
spec:
clusterIP: None
#publishNotReadyAddresses: true
selector:
app: minio
ports:
- name: http
port: 9000
targetPort: 9000
---
apiVersion: v1
kind: Service
metadata:
name: minio
spec:
type: LoadBalancer
selector:
app: minio
ports:
- port: 9000
targetPort: 9000
name: http
- port: 9001
targetPort: 9001
name: console
secret 资源
#minio-secret.yaml
apiversion: v1
kind: Secret
metadata:
name: minio-secret
data:
MINIO_ROOT_USER: YwRtaw4=
# username: admin
MINIO_ROOT_PASSWORD: MTIzNDU2Nzg=
# root password: 12345678
statefulset 资源
#minio-statefulset.yaml
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: minio
labels:
app: minio
spec:
serviceName: "minio-headless"
replicas: 4
podManagementPolicy: "Parallel" #并行启动pod，不配置的话模式是按顺序启动pod，minio、nacos都需要配置并行启动
selector:
matchLabels:
app: minio
template:
metadata:
labels:
app: minio
annotations:
prometheus.io/scrape: "true"
prometheus.io/port: "9000"
prometheus.io/path: "/minio/v2/metrics/node"
#prometheus.io/path: "/minio/v2/metrics/cluster"
#prometheus.io/path: "/minio/v2/metrics/bucket"
spec:
containers:
- name: minio
#image: minio/minio:RELEASE.2023-12-02T10-51-33Z
image: minio/minio:RELEASE.2024-08-03T04-33-23Z
volumeMounts:
- name: data
mountPath: /data
args:
- server
- http://minio-{0...3}.minio-headless.$(MINIO_POD_NAMESPACE).svc.cluster.local/data
- "--address=:9000"
- "--console-address=:9001"
env:
# MinIO access key and secret key
- name: MINIO_ROOT_USER
valueFrom:
secretKeyRef:
name: minio-secret
key: MINIO_ROOT_USER
- name: MINIO_ROOT_PASSWORD
valueFrom:
secretKeyRef:
name: minio-secret
key: MINIO_ROOT_PASSWORD
- name: MINIO_POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- name: MINIO_PROMETHEUS_AUTH_TYPE
value: "public"
livenessProbe:
failureThreshold: 3
httpGet:
path: /minio/health/live
port: http
scheme: HTTP
initialDelaySeconds: 120
periodSeconds: 15
successThreshold: 1
timeoutSeconds: 10
ports:
- containerPort: 9000
name: http
protocol: TCP
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 10Gi
storageClassName: "sc-nfs"
ingress 资源
#minio-ingress.yaml
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: minio
spec:
ingressClassName: nginx
rules:
- host: minio.wang.org
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: minio
port:
number: 9001
4.2 MinIO Operator¶
https://github.com/minio/operator/blob/master/README.md
4.3 Helm 安装¶
https://github.com/minio/minio/tree/master/helm/minio
Configure MinIO Helm repo
helm repo add minio https://charts.min.io/
Installing the Chart
Install this chart using:
helm install --namespace minio --set rootUser=rootuser,rootPassword=rootpass123 --generate-name minio/minio
The command deploys MinIO on the Kubernetes cluster in the default configuration. The configuration section lists the parameters that can be configured during installation.
Installing the Chart (toy-setup)
Minimal toy setup for testing purposes can be deployed using:
helm install --set resources.requests.memory=512Mi --set replicas=1 --set
persistence.enabled=false --set mode=standalone --set
rootUser=rootuser,rootPassword=rootpass123 --generate-name minio/minio
Upgrading the Chart
You can use Helm to update MinIO version in a live release. Assuming your release is named as my-release , get the values using the command:
helm get values my-release > old_values.yaml
Then change the field image.tag in old_values.yaml file with MinIO image tag you want to use. Now update the chart using
helm upgrade -f old_values.yaml my-release minio/minio
Default upgrade strategies are specified in the values.yaml file. Update these fields if you'd like to use a different strategy.
Configuration
Refer the Values file for all the possible config fields.
You can specify each parameter using the --set key=value[,key=value] argument to helm
install . For example,
helm install --name my-release --set persistence.size=1Ti minio/minio
The above command deploys MinIO server with a 1Ti backing persistent volume.
Alternately, you can provide a YAML file that specifies parameter values while installing the chart.For example,
helm install --name my-release -f values.yaml minio/minio
Persistence
This chart provisions a PersistentVolumeClaim and mounts corresponding persistent volume to
default location /export . You'll need physical storage available in the Kubernetes cluster for this to work. If you'd rather use emptyDir , disable PersistentVolumeClaim by:
helm install --set persistence.enabled=false minio/minio
Existing PersistentVolumeClaim
If a Persistent Volume Claim already exists, specify it during installation.
- Create the PersistentVolume
- Create the PersistentVolumeClaim
- Install the chart
helm install --set persistence.existingClaim=PVC_NAME minio/minio
