一、Nacos 部署¶

1.1 Nacos 部署说明¶

https://nacos.io/zh-cn/docs/v2/quickstart/quick-start.html 版本选择

推荐使用稳定版本

https://github.com/alibaba/nacos/releases

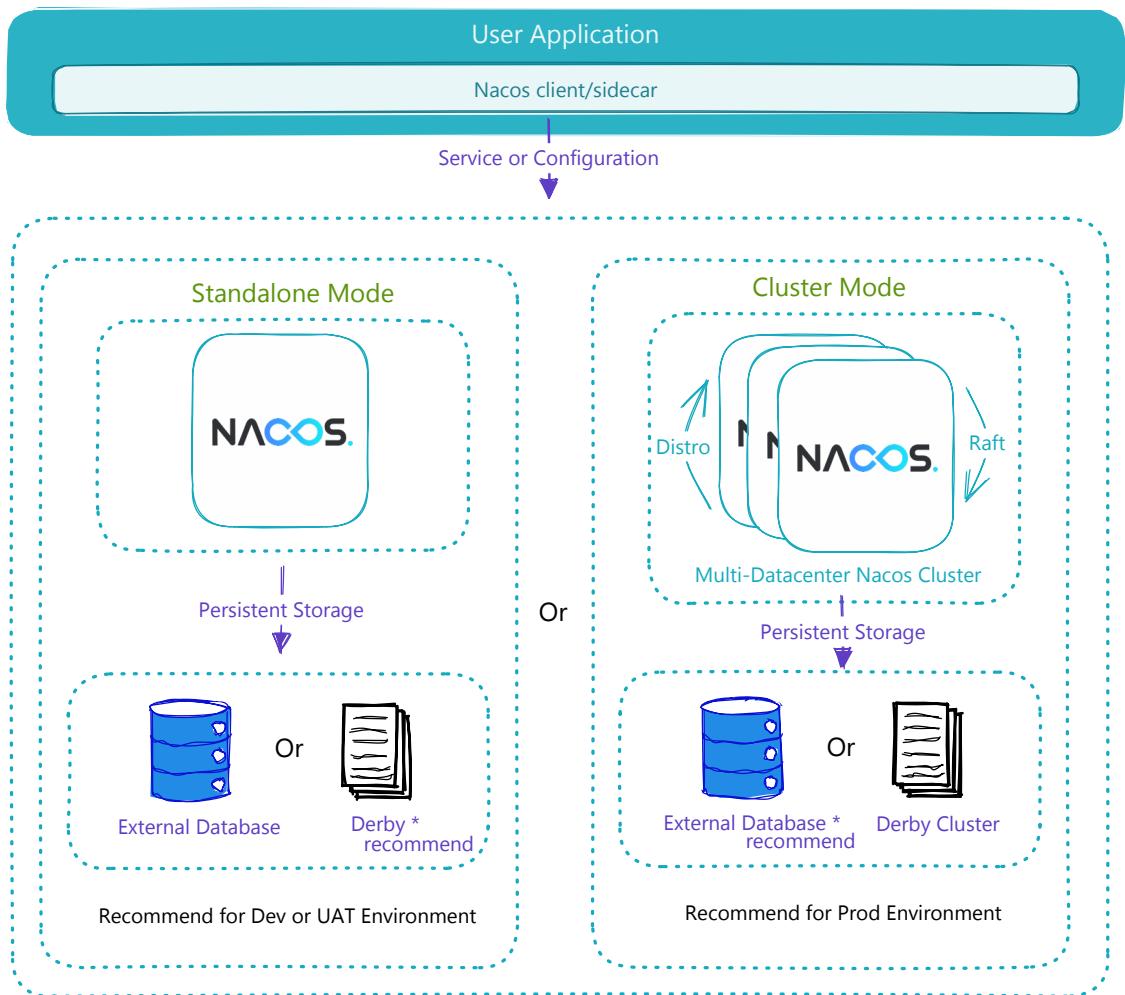

Nacos 支持三种部署模式

单机模式 - 用于测试和单机试用

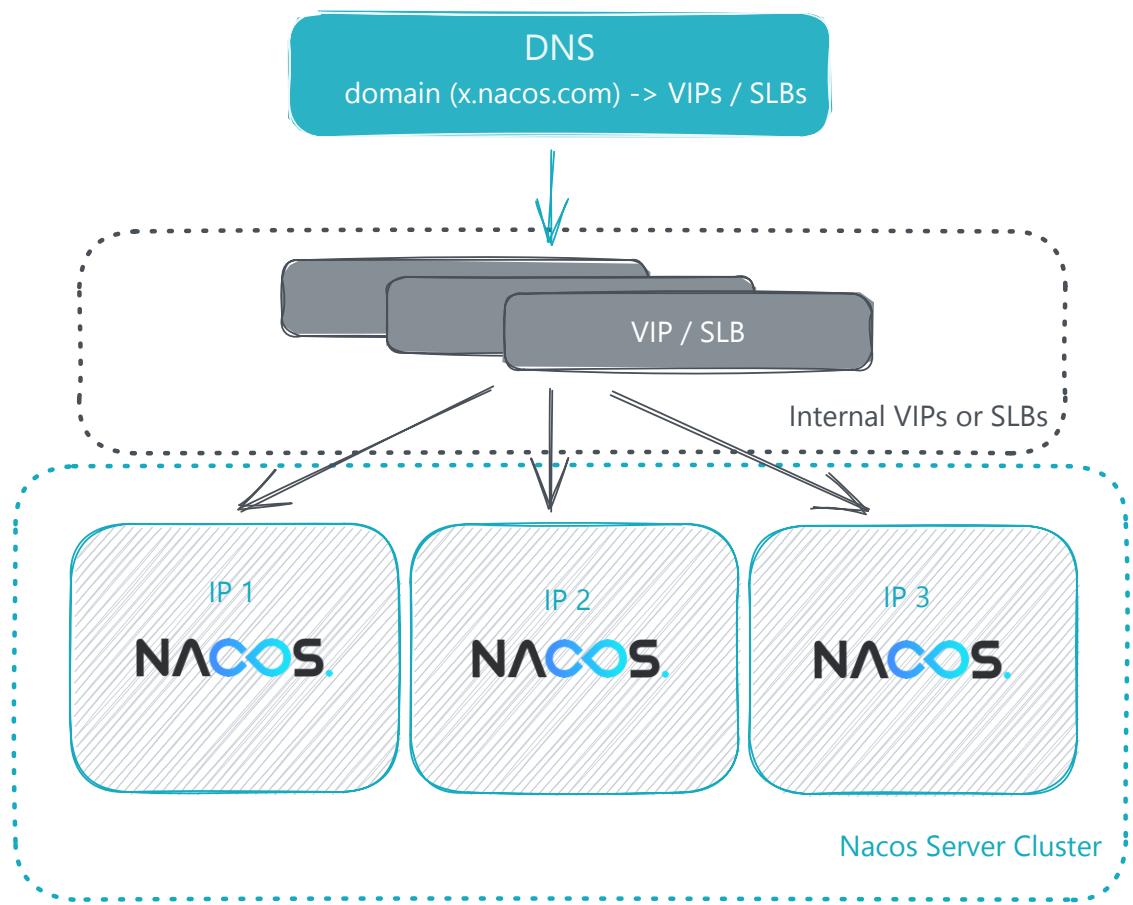

集群模式 - 用于生产环境，确保高可用
多集群模式 - 用于多数据中心场景

环境准备

安装好 JDK，需要 1.8 及其以上版本
建议: 2核 CPU / 4G 内存及其以上
建议: 生产环境 3 个节点及其以上

1.2 Nacos 单机部署¶

https://nacos.io/zh-cn/docs/quick-start.html

1.2.1 预备环境准备¶

Nacos 依赖 Java 环境来运行。如果您是从代码开始构建并运行Nacos，还需要为此配置 Maven环境，请确保是在以下版本环境中安装使用:

64 bit OS，支持 Linux/Unix/Mac/Windows，推荐选用 Linux/Unix/Mac。
64 bit JDK $1 . 8 +$ ；下载 & 配置。
Maven 3.2.x+；下载 & 配置。

1.2.2 下载源码或者二进制安装包¶

你可以通过源码和发行包两种方式来获取 Nacos。

1.2.2.1 从 Github 上下载源码编译安装方式¶

git clone https://github.com/alibaba/nacos.git
cd nacos/
mvn -Prelease-nacos -Dmaven.test.skip=true clean install -U ls -a distribution/target/

// change the $version to your actual path
cd distribution/target/nacos-server-$version/nacos/bin

1.2.2.2 下载编译后二进制压缩包方式¶

您可以从最新稳定版本下载 nacos-server-$version.zip 包。

unzip nacos-server-$version.zip 或者 tar -xvf nacos-server-$version.tar.gz
cd nacos/bin

范例: 二进制安装Nacos-3.X

[root@ubuntu2404 ~]#apt update && apt -y install openjdk-21-jdk
[root@ubuntu2404 ~]#wget https://github.com/alibaba/nacos/releases/download/3.1.1/nacos-server-3.1.1.zip
[root@ubuntu2404 ~]#unzip nacos-server-3.1.1.zip -d /usr/local
[root@ubuntu2404 ~]#/usr/local/nacos/bin/startup.sh -m standalone
The initial key used to generate JWT tokens (the original string must be over 32 characters and Base64 encoded).
用于密码生成JWT Token的初始密钥（原串长度32位以上做Base64格式化）。
`nacos.core.auth.plugin.nacos.token.secret.key` is missing, please set with Base64 string:
MOsB3zo+oMyUIYjGFsq49Kmudn9A4nJStwidH3O6Tpc=
`nacos.core.auth.plugin.nacos.token.secret.key` Updated:
nacos.core.auth.plugin.nacos.token.secret.key=MOsB3zo+oMyUIYjGFsq49Kmudn9A4nJStwidH3O6Tpc=
----------------------------------
`nacos.core.auth.server.identity.key` is missing, please set: wang
`nacos.core.auth.server.identity.key` Updated:
nacos.core.auth.server.identity.key=wang
----------------------------------
`nacos.core.auth.server.identity.value` is missing, please set: m65
`nacos.core.auth.server.identity.value` Updated:
nacos.core.auth.server.identity.value=wang
[root@ubuntu2404 ~]#tail /usr/local/nacos/logs/startup.log
2025-11-28 18:00:29,033 INFO Root WebApplicationContext: initialization completed in 369 ms
2025-11-28 18:00:29,135 INFO Adding welcome page: class path resource [static/index.html]
2025-11-28 18:00:29,272 INFO Exposing 1 endpoint beneath base path '/actuator'
2025-11-28 18:00:29,286 INFO Tomcat started on port 8080 (http) with context path '/'
2025-11-28 18:00:29,293 INFO Nacos Console started successfully in 650 ms

范例: 二进制安装Nacos-2.X

[root@ubuntu2404 ~]#apt update && apt -y install openjdk-21-jdk
[root@ubuntu2404 ~]#java -version
openjdk version "21.0.6" 2025-01-21
OpenJDK Runtime Environment (build 21.0.6+7-Ubuntu-124.04.1)
OpenJDK 64-Bit Server VM (build 21.0.6+7-Ubuntu-124.04.1, mixed mode, sharing)
[root@ubuntu2404 ~]#apt update && apt -y install openjdk-17-jdk
[root@ubuntu2404 ~]#apt update && apt -y install openjdk-11-jdk
#或者
[root@ubuntu2404 ~]#apt update && apt -y install openjdk-8-jdk
[root@ubuntu2404 ~]#wget https://github.com/alibaba/nacos/releases/download/2.2.3/nacos-server-2.2.3.tar.gz
[root@ubuntu2404 ~]#tar xf nacos-server-2.2.3.tar.gz -C /usr/local/
[root@ubuntu2404 ~]#ls /usr/local/nacos/
bin conf data LICENSE logs NOTICE target
[root@ubuntu2404 ~]#ls /usr/local/nacos/bin/
shutdown.cmd shutdown.sh startup.cmd startup.sh
[root@ubuntu2404 ~]#ls /usr/local/nacos/target/
nacos-server.jar
[root@ubuntu2404 ~]#ls /usr/local/nacos/conf/
1.4.0-ipv6_support-update.sql application.properties         cluster.conf.example mysql-schema.sql
announcement.conf             application.properties.example derby-schema.sql     nacos-logback.xml
#修改配置，可选
[root@ubuntu2404 ~]#vi /usr/local/nacos/conf/application.properties
server.servlet.contextPath=/nacos
#***********Expose prometheus and health **************************#
#取消下面行注释开启prometheus监控，指标路径：http://127.0.0.1:8848/nacos/actuator/prometheus
management.endpoints.web.exposure.include=prometheus,health

#添加PATH变量中，可选
[root@ubuntu2404 ~]#echo 'PATH=/usr/local/nacos/bin:$PATH' >> /etc/profile
[root@ubuntu2404 ~]#. /etc/profile

1.2.3 启动和关闭服务器¶

注：Nacos的运行建议至少在2C4G 60G的机器配置下运行。

1.2.3.1 启动服务¶

Linux/Unix/Mac

启动命令(standalone代表着单机模式运行，非集群模式):

sh startup.sh -m standalone

如果您使用的是ubuntu系统，或者运行脚本报错提示[[符号找不到，可尝试如下运行：

bash startup.sh -m standalone

Windows

启动命令(standalone代表着单机模式运行，非集群模式):

startup.cmd -m standalone

1.2.3.1.1 Nacos 2.X 之前版本启动服务¶

范例: Nacos 2.X 之前版本启动

#启动
[root@ubuntu2404 ~]#/usr/local/nacos/bin/startup.sh -m standalone
/usr/lib/jvm/java-8-openjdk-amd64/bin/java -Djava.ext.dirs=/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext:/usr/lib/jvm/java-8-openjdk-amd64/lib/ext  -Xms512m -Xmx512m -Xmn256m -Dnacos.standalone=true -Dnacos.member.list= -Xloggc:/usr/local/nacos/logs/nacos_gc.log -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintGCTimeStamps -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=100M -Dloader.path=/usr/local/nacos/plugins,/usr/local/nacos/plugins/health,/usr/local/nacos/plugins/cmdb,/usr/local/nacos/plugins/selector -Dnacos.home=/usr/local/nacos -jar /usr/local/nacos/target/nacos-server.jar  --spring.config.additional-location=file:/usr/local/nacos/conf/ --logging.config=/usr/local/nacos/conf/nacos-logback.xml --server.max-http-header-size=524288
nacos is starting with standalone
nacos is starting，you can check the /usr/local/nacos/logs/start.out

[root@ubuntu2404 ~]#tail -f /usr/local/nacos/logs/start.out
'   : | ; .' ," .--.; |'   ; :__|   :   | `----.   \
|   | '`--' / / ,. |'   | '.'|\   \ / / /`--' /
'   : |     ; :   .'   \   :   : `----' '--'.     /
;   |.'     | ,     .-./\   \ /           `--'---'
'---'        `--`---'     `----'
2023-06-04 17:12:25,379 INFO Tomcat initialized with port(s): 8848 (http)
2023-06-04 17:12:25,468 INFO Root WebApplicationContext: initialization completed in 3089 ms
2023-06-04 17:12:30,773 INFO Adding welcome page: class path resource [static/index.html]
2023-06-04 17:12:31,344 WARN You are asking Spring Security to ignore Ant [pattern='/**']. This is not recommended -- please use permitAll via HttpSecurity#authorizeHttpRequests instead.
2023-06-04 17:12:31,345 INFO Will not secure Ant [pattern='/**']
2023-06-04 17:12:31,378 INFO Will secure any request with [org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter@754777cd, org.springframework.security.web.context.SecurityContextPersistenceFilter@4b6166aa, org.springframework.security.web.header.HeaderWriterFilter@4089713, org.springframework.security.web.csrf.CsrfFilter@7cbee484, org.springframework.security.web.authentication.logout.LogoutFilter@791cbf87, org.springframework.security.web.savedrequest.RequestCacheAwareFilter@4fd4cae3, org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter@a1217f9, org.springframework.security.web.authentication.AnonymousAuthenticationFilter@2b52c0d6, org.springframework.security.web.session.SessionManagementFilter@7807ac2c, org.springframework.security.web.access.ExceptionTranslationFilter@62923ee6]
2023-06-04 17:12:31,448 INFO Exposing 1 endpoint(s) beneath base path '/actuator'
2023-06-04 17:12:31,511 INFO Tomcat started on port(s): 8848 (http) with context path '/nacos'
2023-06-04 17:12:31,549 INFO Nacos started successfully in stand alone mode. use embedded storage
2023-06-04 17:12:53,942 INFO Initializing Servlet 'dispatcherServlet'
2023-06-04 17:12:53,947 INFO Completed initialization in 5 ms

#查看端口
[root@ubuntu2404 ~]#ss -ntlp|grep java
LISTEN 0      4096                *:7848           *:*   users:(("java",pid=4336,fd=188))
LISTEN 0      100                 *:8848           *:*   users:(("java",pid=4336,fd=230))
LISTEN 0      4096                *:9848           *:*   users:(("java",pid=4336,fd=185))
LISTEN 0      4096                *:9849           *:*   users:(("java",pid=4336,fd=186))

1.2.3.1.2 Nacos 3.X 之后版本启动服务¶

范例: Nacos 3.X 以后版本默认要求必须开启鉴权才能启动

Nacos 3.0.0 首次启动时需要输入鉴权的相关信息

#Nacos 3.0.0 首次启动时需要输入鉴权的相关信息
[root@ubuntu2404 ~]#/usr/local/nacos/bin/startup.sh -m standalone
`nacos.core.auth.server.identity.key` is missing, please set: VGhpc0lzTXlDdXN0b21TZWNyZXRLZXkwMTIzNDU2Nzg=
`nacos.core.auth.server.identity.key` is missing, please set: wang
`nacos.core.auth.server.identity.key` Updated:
nacos.core.auth.server.identity.key=wang
----------------------------------
`nacos.core.auth.server.identity.value` is missing, please set: wang
`nacos.core.auth.server.identity.value` Updated:
nacos.core.auth.server.identity.value=wang
----------------------------------
/usr/lib/jvm/java-21-openjdk-amd64/bin/java    -Xms512m -Xmx512m -Xmn256m -Dnacos.standalone=true -Dnacos.member.list= -Xlog:gc*:file=/usr/local/nacos/logs/nacos_gc.log:time,tags:filecount=10,filesize=100m -Dnacos.deployment.type=merged -Dloader.path=/usr/local/nacos/plugins,/usr/local/nacos/plugins/health,/usr/local/nacos/plugins/cmdb,/usr/local/nacos/plugins/selector -Dnacos.home=/usr/local/nacos -jar /usr/local/nacos/target/nacos-server.jar  --spring.config.additional-location=file:/usr/local/nacos/conf/ --logging.config=/usr/local/nacos/conf/nacos-logback.xml --server.max-http-request-header-size=524288
nacos is starting with standalone
nacos is starting. you can check the /usr/local/nacos/logs/startup.log

#查看文件中添加鉴权信息
[root@ubuntu2404 ~]#vim /usr/local/nacos/conf/application.properties
#修改了下面三行
nacos.core.auth.server.identity.key=wang
nacos.core.auth.server.identity.value=wang
nacos.core.auth.plugin.nacos.token.secret.key=VGhpc0lzTXlDdXN0b21TZWNyZXRLZXkwMTIzNDU2Nzg=

#Nacos 3.0.0默认控制台使用8080端口,而8848端口用于API访问
[root@ubuntu2404 ~]#ss -ntlp|grep java
LISTEN 0      100                 *:8080           *:*   users:(("java",pid=57765,fd=227))
LISTEN 0      4096                *:9848           *:*   users:(("java",pid=57765,fd=165))
LISTEN 0      4096                *:9849           *:*   users:(("java",pid=57765,fd=166))
LISTEN 0      4096                *:7848           *:*   users:(("java",pid=57765,fd=167))
LISTEN 0      100                 *:8848           *:*   users:(("java",pid=57765,fd=222))

1.2.3.2 关闭服务¶

Linux/Unix/Mac

sh shutdown.sh

Windows

shutdown.cmd

或者双击shutdown.cmd运行文件。

1.2.3.3 准备Sevice文件¶

[root@ubuntu2404 ~]#id nacos &> /dev/null || useradd -r -s /sbin/nologin nacos
[root@ubuntu2404 ~]#chown -R nacos: /usr/local/nacos/
[root@ubuntu2404 ~]#cat > /lib/systemd/system/nacos.service
[Unit]
Description=nacos.service
After=network.target
[Service]
Type=forking
ExecStart=/usr/local/nacos/bin/startup.sh -m standalone
ExecStop=/usr/local/nacos/bin/shutdown.sh
User=nacos
Group=nacos
[Install]
wantedBy=multi-user.target
[root@ubuntu2404 ~]#systemctl daemon-reload
[root@ubuntu2404 ~]#systemctl enable --now nacos.service

1.2.4 服务注册&发现和配置管理¶

注意：启用验证后，将无法直接用下面的curl命令访问

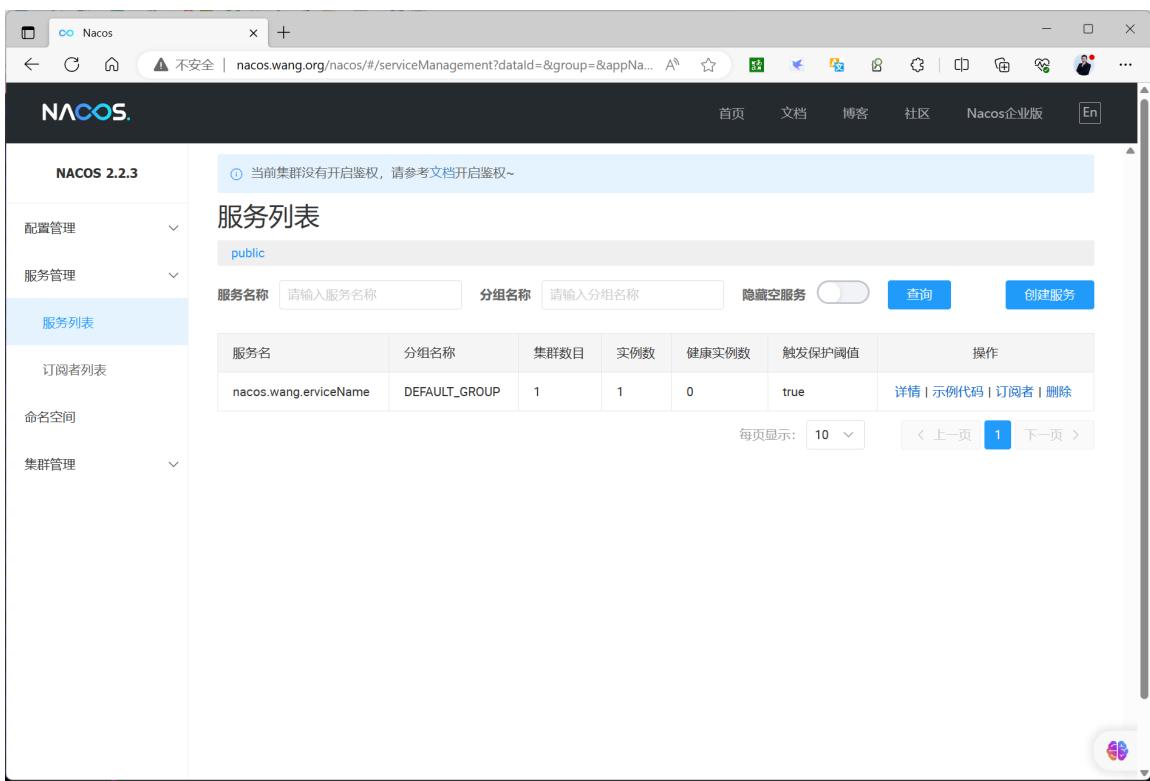

服务注册

curl -x POST 'http://127.0.0.1:8848/nacos/v1/ns/instance?serviceName=nacos.wang.serviceName&ip=1.2.3.4&port=8080'

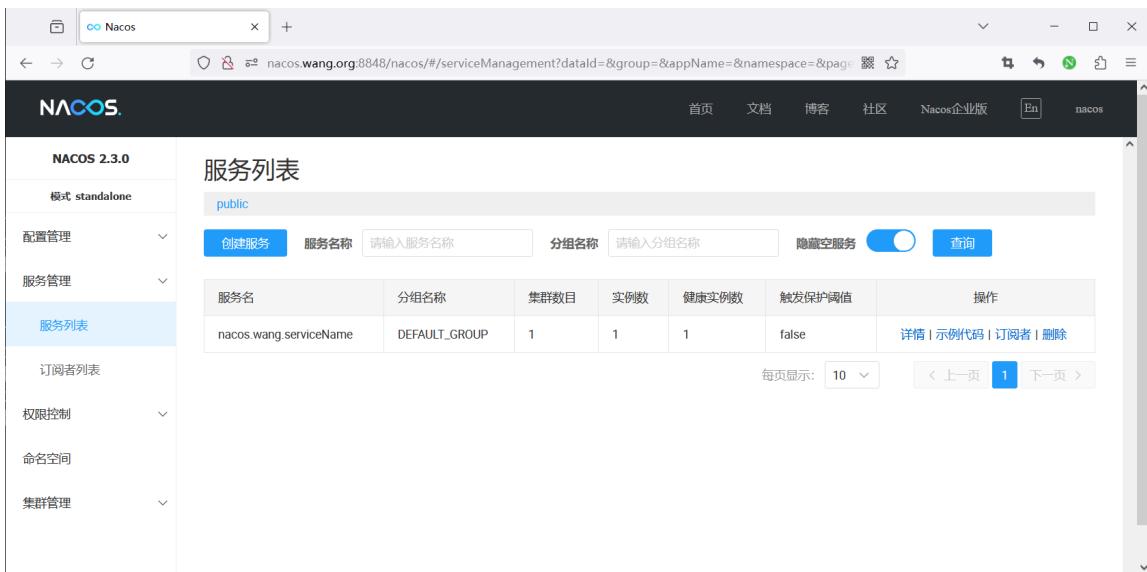

服务发现

curl -x GET 'http://127.0.0.1:8848/nacos/v1/ns/instance/list?serviceName=nacos.wang.serviceName'

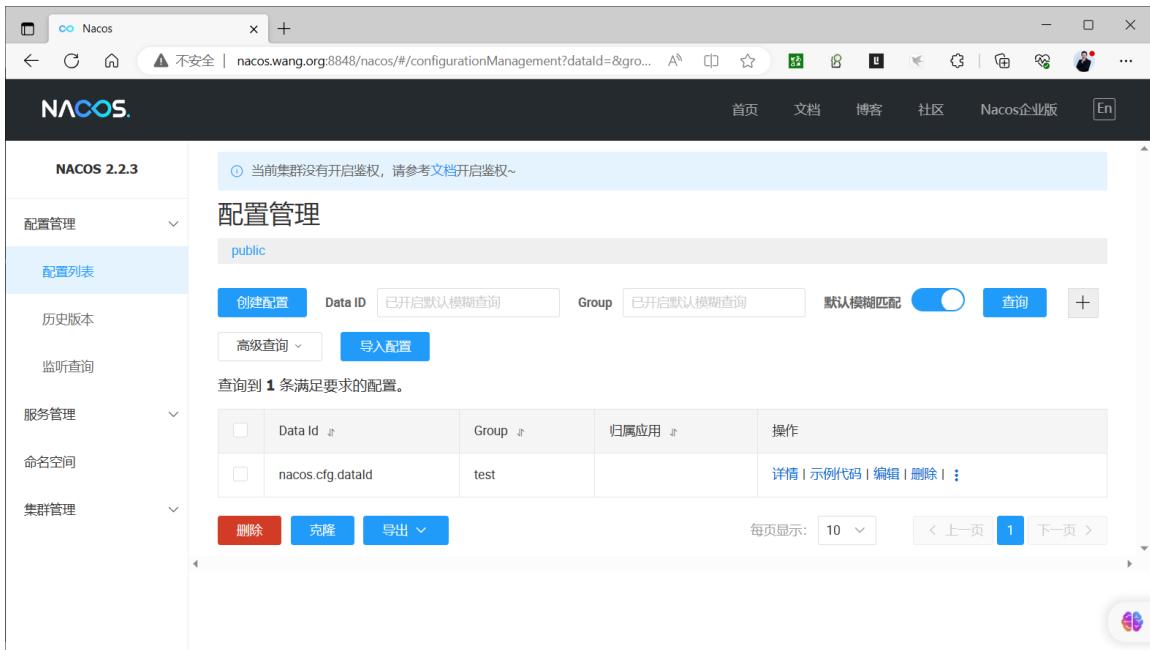

发布配置

curl -x POST "http://127.0.0.1:8848/nacos/v1/cs/params?dataId=nacos.cfg.dataId&group=test&content=Helloworld"

获取配置

curl -X GET "http://127.0.0.1:8848/nacos/v1/cs/configs?dataId=nacos.cfg.dataId&group $\equiv$ test"

3.X版本

https://nacos.io/docs/latest/manual/user/open-api/?spm=5238cd80.7e0be31.0.0.56dbcd36aRVJdx https://nacos.io/docs/latest/manual/admin/admin-api/?spm=5238cd80.7e0be31.0.0.56dbcd36aRVJdx

范例：3.X版本

#注册
curl -X POST "127.0.0.1:8848/nacos/v3/client/ns/instance" -d "serviceName=test1&ip=127.0.0.1&port=3306"
curl -X POST "127.0.0.1:8848/nacos/v3/client/ns/instance" -d
"serviceName=test1&ip=127.0.0.1&port=3306&heartBeat=true"
#查看服务
curl -X GET '127.0.0.1:8848/nacos/v3/client/ns/instance/list?serviceName=test1'
#查看配置
curl -X GET '127.0.0.1:8848/nacos/v3/client/cs/config?dataId=test&groupName=test'

范例：将配置文件上传生成配置信息

curl --location --request POST 'http://127.0.0.1:8848/nacos/v1/cs/configs?import=true&namespace=public' \
--form 'policy=OVERWRITE' \
--form 'file=@"/PATH/ZIP_FILE"'

#示例：将配置文件nacos_config.zip上传到dev名称空间
[root@ubuntu2404 ~]#curl --location --request POST 'http://127.0.0.1:8848/nacos/v1/cs/configs?import=true&namespace=dev' --form 'policy=OVERWRITE' --form 'file=@"./nacos_config.zip"'

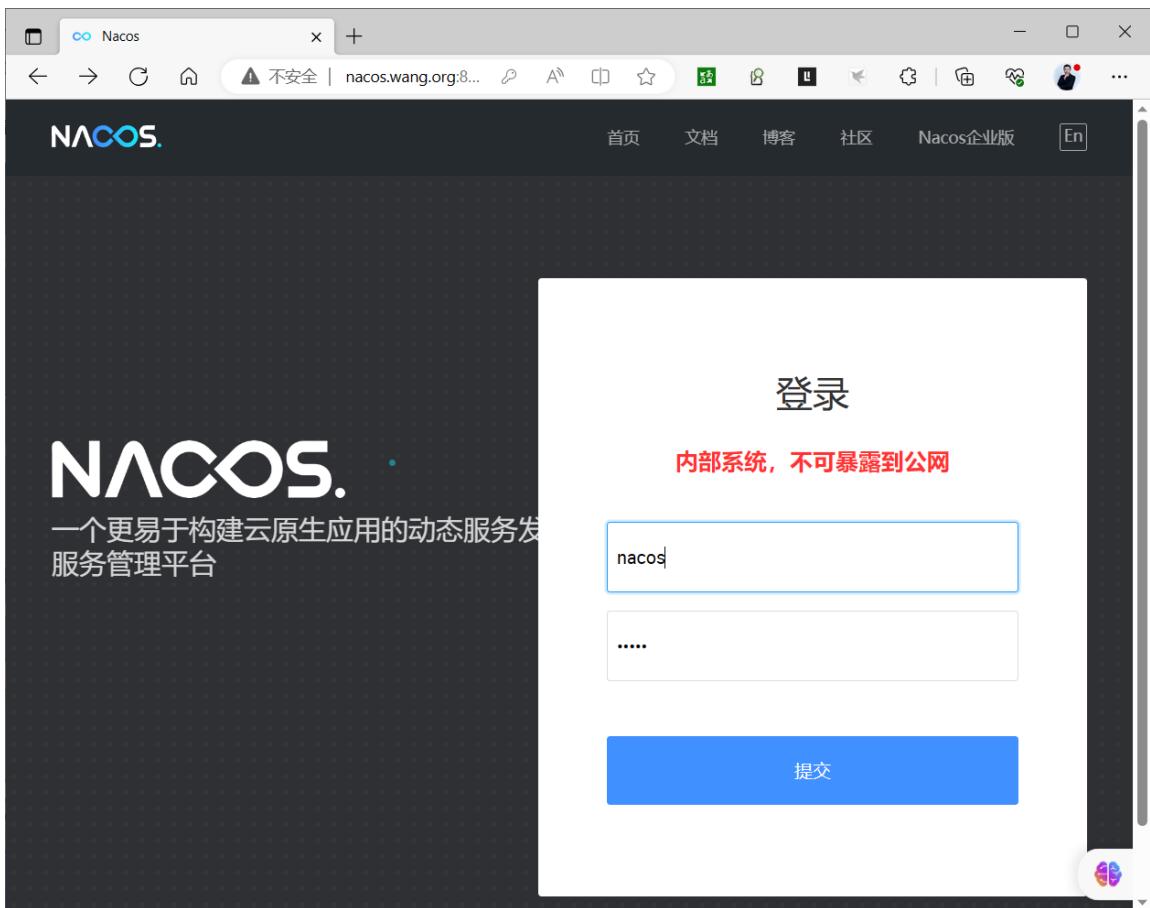

1.2.5 Web 访问¶

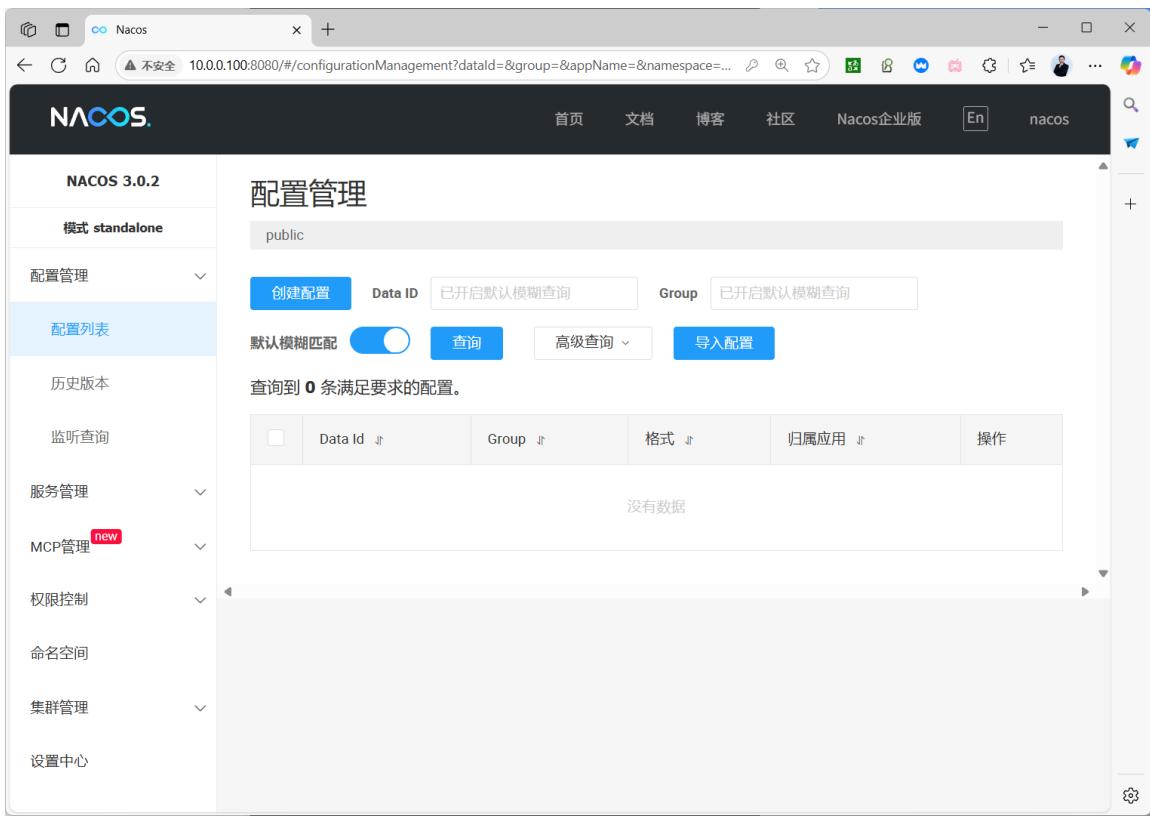

从3.0开始

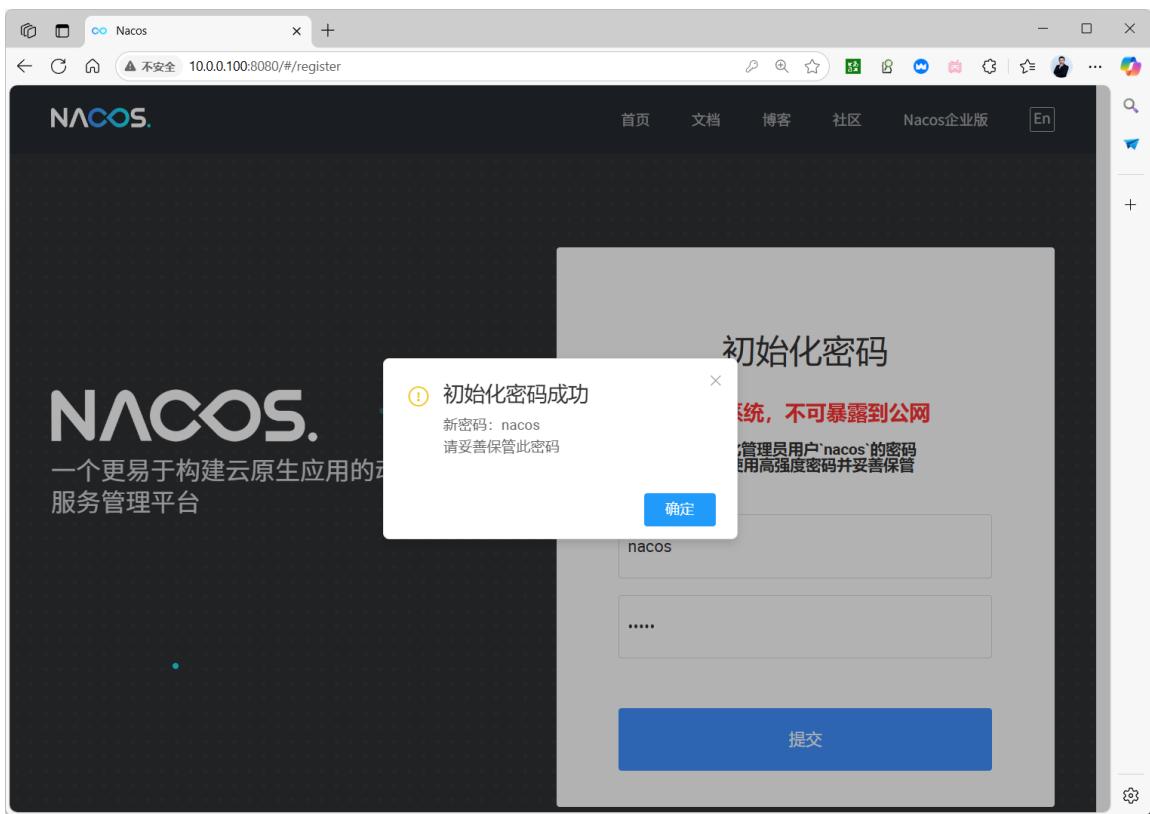

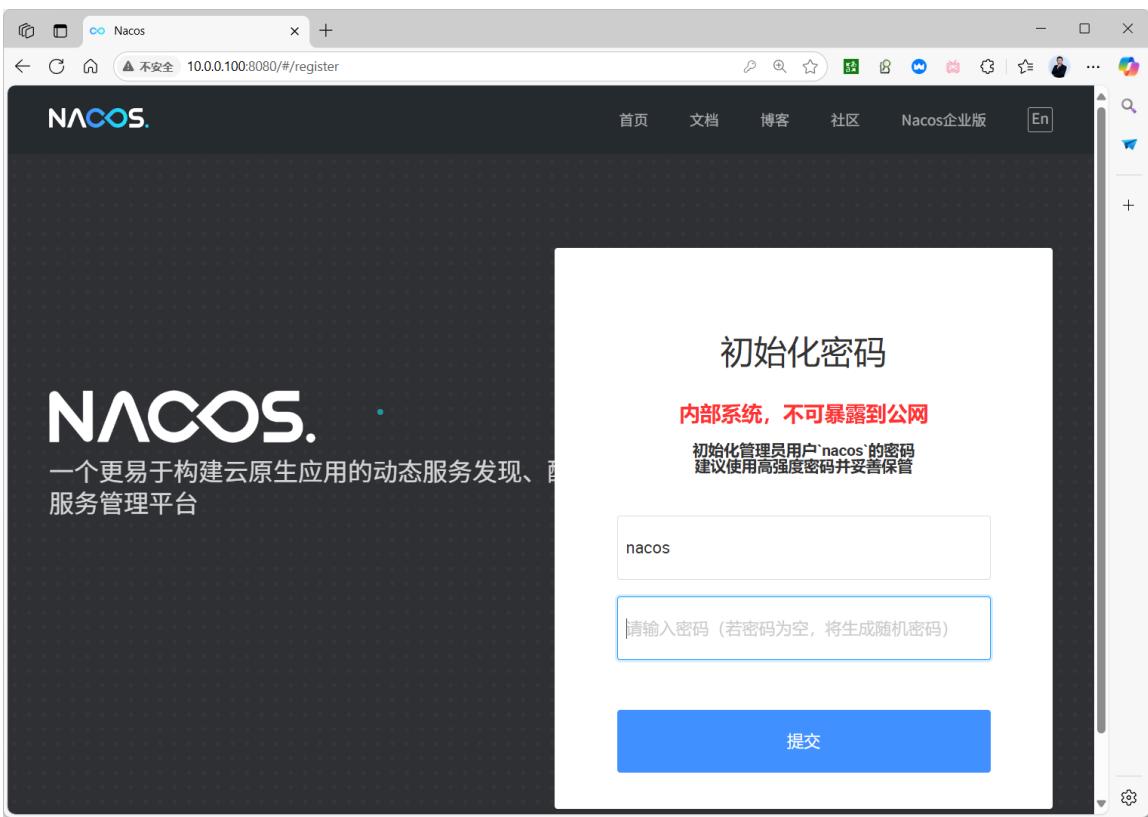

http://nacos.wang.org:8080 首次登录时需要初始化设置密码

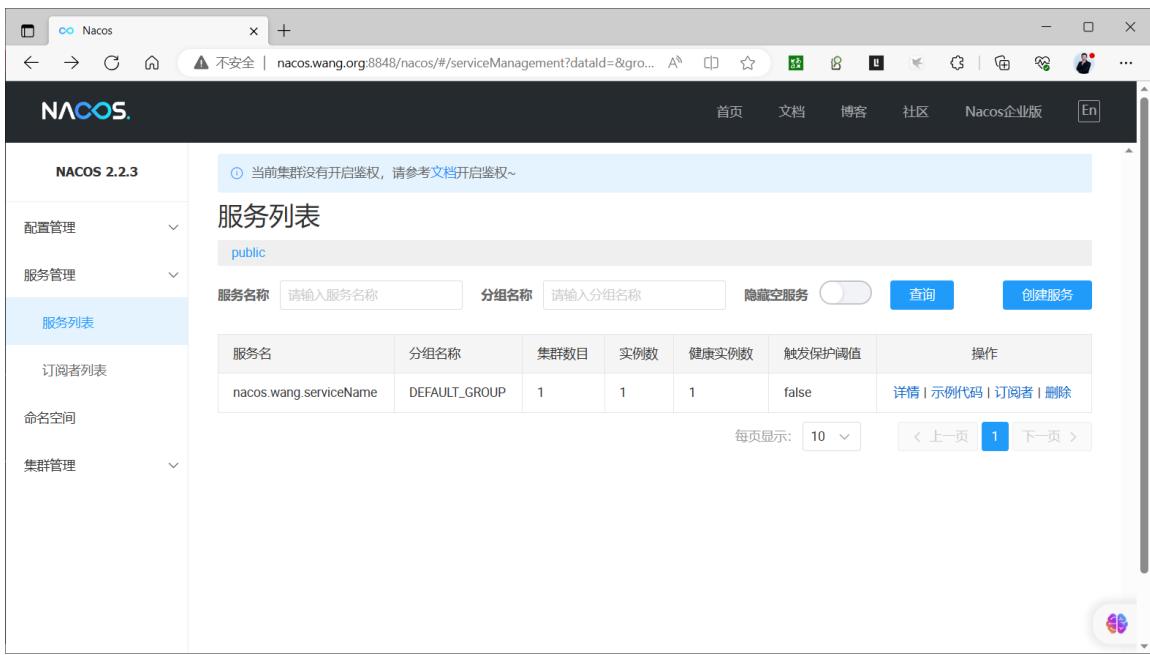

2.X之前

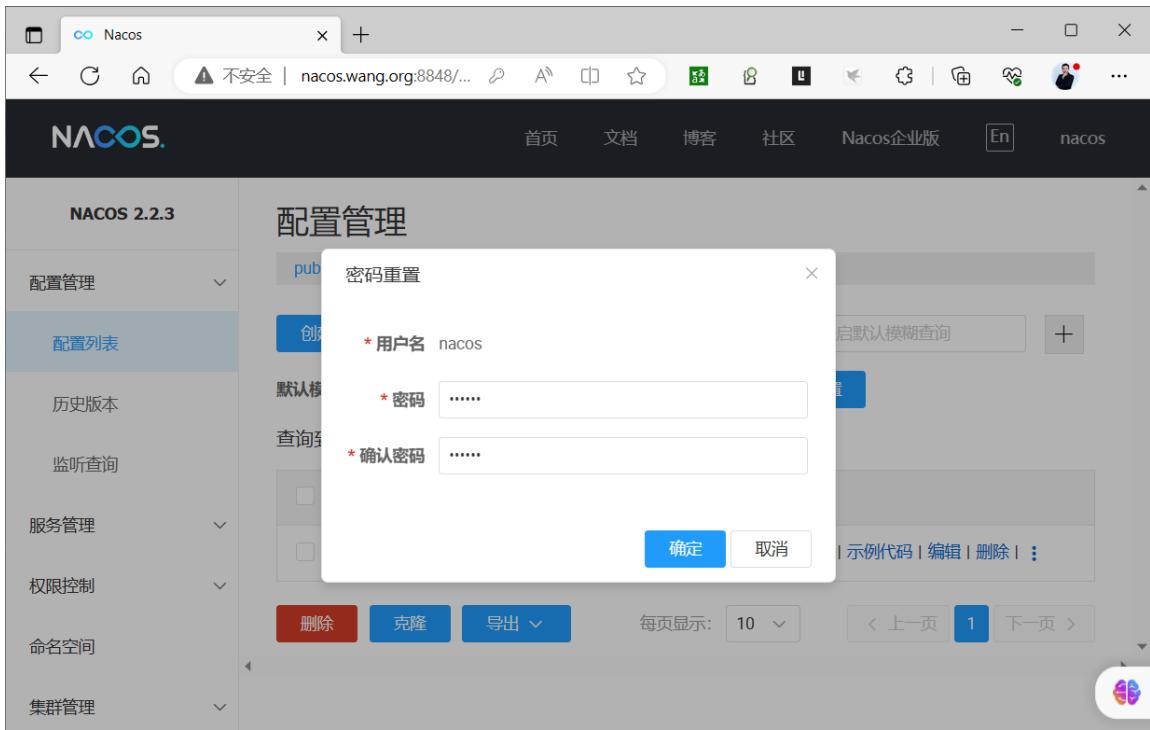

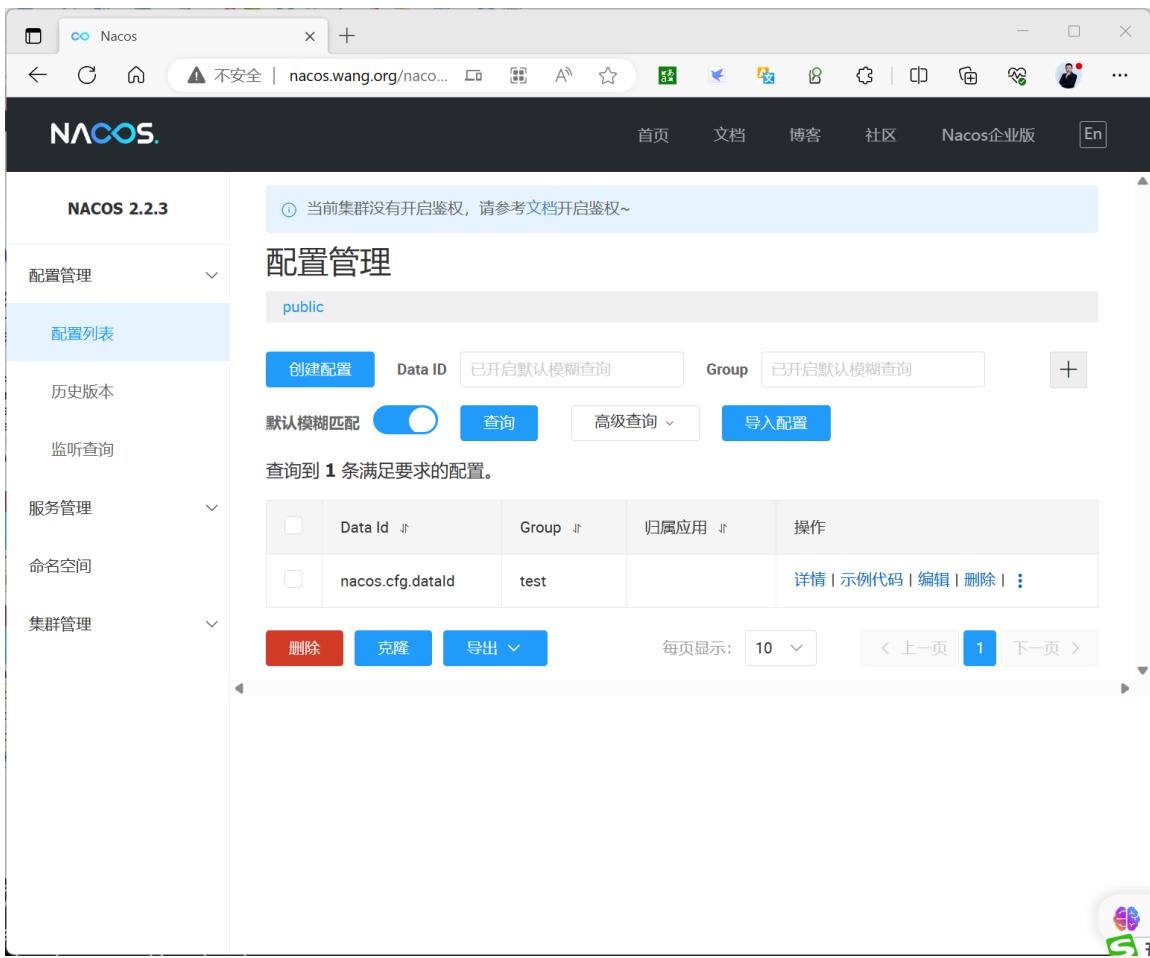

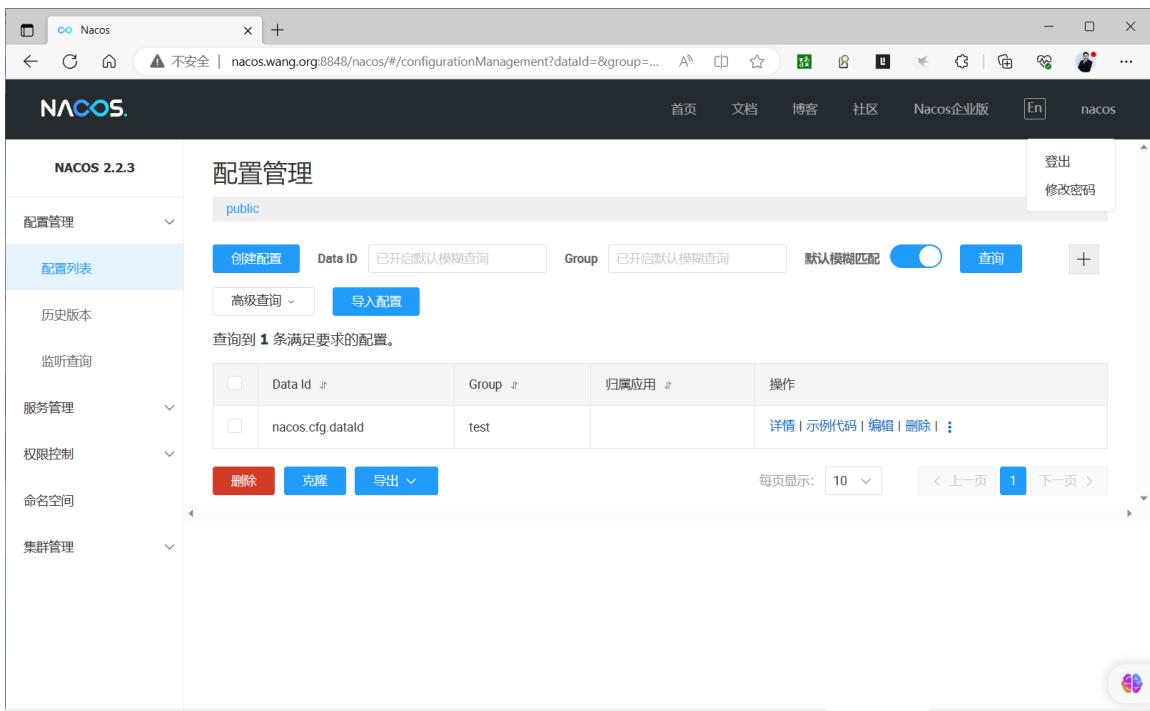

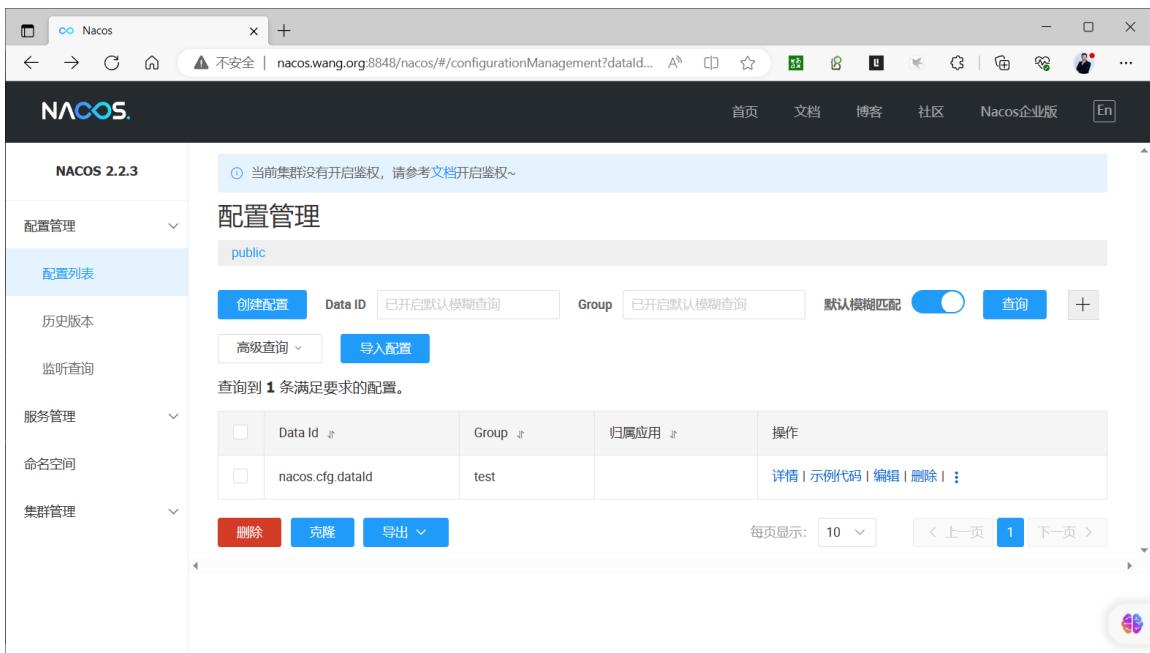

http://nacos.wang.org:8848/nacos/

1.2.6 单机模式支持 MySQL¶

https://nacos.io/zh-cn/docs/deployment.html

#MySQL的表结构

https://gitee.com/lbtooth/RuoYi-Cloud/blob/master/docker/mysql/db/ry_config_20231204.sql

在0.7版本之前，在单机模式时nacos使用嵌入式数据库实现数据的存储，不方便观察数据存储的基本情况。

0.7版本增加了支持MySQL数据源能力，具体的操作步骤：

安装数据库，版本要求：5.6.5+
创建数据库nacos和用户nacos，并授权
执行数据库初始化脚本 mysql-schema.sql

修改conf/application.properties文件，增加支持MySQL数据源配置（目前只支持mysql），添加mysql数据源的url、用户名和密码。

spring.datasource.platform=mysql

db.num=1
db.url.0=jdbc:mysql://127.0.0.1:3306/nacos?
characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true
db.user=nacos
db.password=123456

再以单机模式启动nacos，nacos所有写嵌入式数据库的数据都写到了mysql

范例: 单机模式支持 MySQL,内存至少3G

[root@ubuntu2404 ~]#apt update && apt -y install mysql-server
[root@ubuntu2404 ~]#sed -i '/127.0.0.1/s/^/#/' /etc/mysql/mysql.conf.d/mysqld.cnf
[root@ubuntu2404 ~]#systemctl restart mysql
[root@ubuntu2404 ~]#ss -tnlp|grep mysql
LISTEN 0      151                *:3306            *:*   users:(("mysqld",pid=5875,fd=33))
LISTEN 0      70                 *:33060           *:*   users:(("mysqld",pid=5875,fd=21))

[root@ubuntu2404 ~]#mysql
Server version: 8.0.33-0ubuntu0.22.04.4 (Ubuntu)
mysql> create database nacos;
mysql> create user nacos@'%' identified with mysql_native_password by '123456';
mysql> grant all on nacos.* to nacos@'%';

[root@ubuntu2404 ~]#mysql -unacos -p123456 -h127.0.0.1 nacos < /usr/local/nacos/conf/mysql-schema.sql

[root@ubuntu2404 ~]#vim /usr/local/nacos/conf/application.properties
spring.sql.init.platform=mysql
db.num=1
db.url.0=jdbc:mysql://127.0.0.1:3306/nacos?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=UTC
db.user.0=nacos
db.password.0=123456

[root@ubuntu2404 ~]#/usr/local/nacos/bin/shutdown.sh
[root@ubuntu2404 ~]#/usr/local/nacos/bin/startup.sh -m standalone

[root@ubuntu2404 ~]#tail -f /usr/local/nacos/logs/start.out
         ,--.
       ,--.'|
   ,--,: : |                          Nacos 2.2.3
,`--.'`|  ' :                       ,---.               Running in stand alone mode, All function modules
|   : : | |                      '   ,'\   .--.--.     Port: 8848
:   |   \ | : ,--.--.       ,---. /   /   | / /    '    Pid: 6587
|   : ' '; | /       \   /     \.   ; ,. :| : /`./     Console: http://10.0.0.200:8848/nacos/index.html
'   ' ;.   ;.--. .-. | /   / ''   | |: :| : ;_
|   | | \   | \__\/: . ..    ' / '   | .; : \ \    `.     https://nacos.io
'   : | ; .' ," .--.; |'   ; :__|   :   | `----.   \
|   | '`--' / / ,. |'   | '.'|\   \ / / /`--' /
'   : |     ; :   .'   \   :   : `----' '--'.     /
;   |.'     | ,     .-./\   \ /           `--'---'
'---'        `--`---'     `----'

2023-06-04 17:30:59,801 INFO Tomcat initialized with port(s): 8848 (http)
2023-06-04 17:30:59,884 INFO Root WebApplicationContext: initialization completed in 3317 ms
2023-06-04 17:31:04,055 INFO Adding welcome page: class path resource [static/index.html]
2023-06-04 17:31:04,804 WARN You are asking Spring Security to ignore Ant [pattern='/**']. This is not recommended -- please use permitAll via HttpSecurity#authorizeHttpRequests instead.
2023-06-04 17:31:04,805 INFO Will not secure Ant [pattern='/**']
2023-06-04 17:31:04,838 INFO Will secure any request with [org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter@ec0c838, org.springframework.security.web.context.SecurityContextPersistenceFilter@f9b7332, org.springframework.security.web.header.HeaderWriterFilter@2c177f9e, org.springframework.security.web.csrf.CsrfFilter@290b1b2e, org.springframework.security.web.authentication.logout.LogoutFilter@b672aa8, org.springframework.security.web.savedrequest.RequestCacheAwareFilter@6fefce9e, org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter@1bdf8190, org.springframework.security.web.authentication.AnonymousAuthenticationFilter@6e46d9f4, org.springframework.security.web.session.SessionManagementFilter@209775a9, org.springframework.security.web.access.ExceptionTranslationFilter@33617539]
2023-06-04 17:31:04,875 INFO Exposing 1 endpoint(s) beneath base path '/actuator'
2023-06-04 17:31:04,940 INFO Tomcat started on port(s): 8848 (http) with context path '/nacos'
2023-06-04 17:31:04,981 INFO Nacos started successfully in stand alone mode. use external storage

测试访问,可看到下面页面

http://nacos.wang.org:8848/nacos

1.2.7 开启鉴权¶

注意：3.X 版本默认开启，2.X版本默认不开启

https://nacos.io/zh-cn/docs/auth.htm1

Nacos是一个内部微服务组件，需要在可信的内部网络中运行，不可暴露在公网环境，防止带来安全风险。

Nacos提供简单的鉴权实现，为防止业务错用的弱鉴权体系，不是防止恶意攻击的强鉴权体系。

如果运行在不可信的网络环境或者有强鉴权诉求，请参考官方简单实现做替换增强。

Nacos 2.X 和 3.X 区别

Nacos 2.x 版本

在 Nacos 2.x 版本中，Nacos 的认证开关 ( nacos.core.auth.enabled ) 是全局性的。
当前 Nacos 的认证机制是“全有或全无”：

当 nacos.core.auth.enabled=true 时，所有访问（包括控制台 UI 和 所有 OpenAPI）都需要认证。

当 nacos.core.auth.enabled=false 时，所有访问都无需认证。

Nacos 3.x 的认证机制变化：

全局认证开关 ( nacos.core.auth.enabled=false ) 时：控制台访问：需要使用默认账号 nacos和密码（密码在启动日志中查找）登录。API 访问：无需认证，可以直接调用 OpenAPI。
全局认证开关 ( nacos.core.auth.enabled=true ) 时：控制台访问：需要使用在控制台中创建的用户账号登录。

API 访问：需要认证，必须携带有效的 Token 或使用账号密码

默认无需登录就可管理nacos,基于安全可以启用登录验证功能

非Docker环境

按照官方文档配置启动,默认是不需要登录的，这样会导致配置中心对外直接暴露。而启用鉴权之后，需要在使用用户名和密码登录之后，才能正常使用nacos。

开启鉴权之前，application.properties中的配置信息为：

### If turn on auth system:
nacos.core.auth.enabled=false

开启鉴权之后，application.properties中的配置信息为：

### If turn on auth system:
nacos.core.auth.system.type=nacos
nacos.core.auth.enabled=true

Docker环境

如果使用官方镜像，请在启动docker容器时，添加如下环境变量

NACOS_AUTH_ENABLE=true

例如，可以通过如下命令运行开启了鉴权的容器:

docker run --env PREFER_HOST_MODE=hostname --env MODE=standalone --env NACOS_AUTH_ENABLE=true -p 8848:8848 nacos/nacos-server

注意：启用验证后，将无法直接用curl命令访问,需要先获取Token才能访问

范例: Nacos 2.X 开启鉴权

#生成token的值，至少32位，否则无法启动
[root@ubuntu2404 ~]#openssl rand -base64 33
YfmvRi6Kx8tuI+k0lRBr5nm2WNi1I5h0SFBREpPFZ36R

#修改配置文件,共四行内容
[root@ubuntu2404 ~]#vim /usr/local/nacos/conf/application.properties
#*************** Access Control Related Configurations ***************#
nacos.core.auth.system.type=nacos
nacos.core.auth.enabled=true
nacos.core.auth.server.identity.key=wang
nacos.core.auth.server.identity.value=wang
nacos.core.auth.plugin.nacos.token.secret.key=YfmvRi6Kx8tuI+k0lRBr5nm2WNi1I5h0SFBREpPFZ36R

#重启服务生效
[root@ubuntu2404 ~]#/usr/local/nacos/bin/shutdown.sh
[root@ubuntu2404 ~]#/usr/local/nacos/bin/startup.sh -m standalone

测试访问第一次登录需要指定nacos的新密码，默认用户名和密码都是nacos

http://nacos.wang.org:8848/nacos

修改密码

密码保存在nacos库中的users表中

[root@ubuntu2404 ~]#mysql -unacos -pnacos -h127.0.0.1 nacos -e 'select * from users'
mysql: [Warning] Using a password on the command line interface can be insecure.
+----------+--------------------------------------------------------------+---------+
| username | password                                                     | enabled |
+----------+--------------------------------------------------------------+---------+
| nacos    | $2a$10$EuWPZHzz32dJN7jexM34MOeYirDdFAZm2kuWj7VEOJhhZkDrxfvUu |       1 |
+----------+--------------------------------------------------------------+---------+

后续访问需要经过鉴权后才能访问

#直接访问失败
[root@ubuntu2404 ~]#curl -X POST 'http://127.0.0.1:8848/nacos/v1/ns/instance?serviceName=nacos.wang.serviceName&ip=1.2.3.4&port=8080'
#返回失败提示如下
{"timestamp":"2023-12-07T11:57:20.434+08:00","status":403,"error":"Forbidden","message":"user not found!","path":"/nacos/v1/ns/instance"}

#登录验证,获取Token
[root@ubuntu2404 ~]#curl -X POST 'http://127.0.0.1:8848/nacos/v1/auth/login' -d 'username=nacos&password=nacos'
{"accessToken":"eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJuYWNvcyIsImV4cCI6MTcwMTkzOTA5M30.Bd1tCAxPXHDp_yxDYUfcDKmm0eWI26b0_gAyaN9i8mM","tokenTtl":18000,"globalAdmin":true,"username":"nacos"}

#利用Token访问
[root@ubuntu2404 ~]#TOKEN=eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJuYWNvcyIsImV4cCI6MTcwMTkzOTA5M30.Bd1tCAxPXHDp_yxDYUfcDKmm0eWI26b0_gAyaN9i8mM

#服务注册
[root@ubuntu2404 ~]#curl -X POST "http://127.0.0.1:8848/nacos/v1/ns/instance?accessToken=$TOKEN&serviceName=nacos.wang.serviceName&ip=1.2.3.4&port=8080"

#后续服务访问需要在原URL后添加 &accessToken=你的Token
#服务发现
[root@ubuntu2404 ~]#curl -X GET "http://127.0.0.1:8848/nacos/v1/ns/instance/list?accessToken=$TOKEN&serviceName=nacos.wang.serviceName"
{"name":"DEFAULT_GROUP@@nacos.wang.serviceName","groupName":"DEFAULT_GROUP","clusters":"","cacheMillis":10000,"hosts":[{"instanceId":"1.2.3.4#8080#DEFAULT#DEFAULT_GROUP@@nacos.wang.serviceName","ip":"1.2.3.4","port":8080,"weight":1.0,"healthy":true,"enabled":true,"ephemeral":true,"clusterName":"DEFAULT","serviceName":"DEFAULT_GROUP@@nacos.wang.serviceName","metadata":{},"instanceHeartBeatInterval":5000,"instanceHeartBeatTimeOut":15000,"ipDeleteTimeout":30000,"instanceIdGenerator":"simple"}],"lastRefTime":1701921969338,"checksum":"","allIPs":false,"reachProtectionThreshold":false,"valid":true}

#发布配置
[root@ubuntu2404 ~]#curl -X POST "http://127.0.0.1:8848/nacos/v1/cs/configs?accessToken=$TOKEN&dataId=nacos.cfg.dataId&group=test&content=HelloWorld"
true

#获取配置
[root@ubuntu2404 ~]#curl -X GET "http://127.0.0.1:8848/nacos/v1/cs/configs?accessToken=$TOKEN&dataId=nacos.cfg.dataId&group=test"
HelloWorld

#登录nacos控制台验证访问成功

1.2.8 Nacos 单机部署脚本¶

#!/bin/bash

#支持在线和离线安装,建议离线安装,在线可能下载很慢
NACOS_VERSION=2.4.3
#NACOS_VERSION=2.4.0.1
#NACOS_VERSION=2.3.2
#NACOS_VERSION=2.3.0
#NACOS_VERSION=2.2.3
NACOS_FILE=nacos-server-${NACOS_VERSION}.tar.gz
GITHUB_PROXY=https://mirror.ghproxy.com/
NACOS_URL=https://github.com/alibaba/nacos/releases/download/${NACOS_VERSION}/${NACOS_FILE}
INSTALL_DIR=/usr/local/nacos
HOST=`hostname -I|awk '{print $1}'`
. /etc/os-release

color () {
    RES_COL=60
    MOVE_TO_COL="echo -en \\033[${RES_COL}G"
    SETCOLOR_SUCCESS="echo -en \\033[1;32m"
    SETCOLOR_FAILURE="echo -en \\033[1;31m"
    SETCOLOR_WARNING="echo -en \\033[1;33m"
    SETCOLOR_NORMAL="echo -en \E[0m"
    echo -n "$1" && $MOVE_TO_COL
    echo -n "["
    if [ $2 = "success" -o $2 = "0" ] ;then
        ${SETCOLOR_SUCCESS}
        echo -n $" OK "
    elif [ $2 = "failure" -o $2 = "1" ] ;then
        ${SETCOLOR_FAILURE}
        echo -n $"FAILED"
    else
        ${SETCOLOR_WARNING}
        echo -n $"WARNING"
    fi
    ${SETCOLOR_NORMAL}
    echo -n "]"
    echo
}

install_jdk() {
    java -version &>/dev/null && { color "JDK 已安装!" 1 ; return; }
    if command -v yum &>/dev/null ; then
        yum -y install java-1.8.0-openjdk-devel || { color "安装JDK失败!" 1; exit 1; }
    elif command -v apt &>/dev/null ; then
        apt update
        apt install openjdk-17-jdk -y || { color "安装JDK失败!" 1; exit 1; }
        #apt install openjdk-11-jdk -y || { color "安装JDK失败!" 1; exit 1; }
        #apt install openjdk-8-jdk -y || { color "安装JDK失败!" 1; exit 1; }
    else
        color "不支持当前操作系统!" 1
        exit 1
    fi
    java -version && { color "安装 JDK 完成!" 0 ; } || { color "安装JDK失败!" 1; exit 1; }
}

install_nacos() {
    if [ -f ${NACOS_FILE} ] ;then
        cp ${NACOS_FILE} /usr/local/src/
    else
        wget -P /usr/local/src/ --no-check-certificate ${GITHUB_PROXY}$NACOS_URL || { color  "下载失败!" 1 ;exit ; }
    fi
    tar xf /usr/local/src/${NACOS_FILE} -C /usr/local
    id nacos &> /dev/null || useradd -r -s /sbin/nologin nacos
    chown -R nacos:nacos /usr/local/nacos*
    echo "PATH=${INSTALL_DIR}/bin:\$PATH" >> /etc/profile
    . /etc/profile
}

start_nacos () {
    cat > /lib/systemd/system/nacos.service <<EOF
[Unit]
Description=nacos.service
After=network.target

[Service]
Type=forking
ExecStart=${INSTALL_DIR}/bin/startup.sh -m standalone
ExecStop=${INSTALL_DIR}/bin/shutdown.sh
User=nacos
Group=nacos
Restart=on-failure
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target
EOF
    systemctl daemon-reload
    systemctl enable --now nacos.service
    systemctl is-active nacos.service
    if [ $? -eq 0 ] ;then
        color "nacos 安装成功!" 0
        echo "-------------------------------------------------------------------"
        echo -e "请访问链接: \E[32;1mhttp://$HOST:8848/nacos/\E[0m"
        echo -e "默认账号/密码：\E[32;1mnacos/nacos\E[0m"
    else
        color "nacos 安装失败!" 1
        exit 1
    fi
}

install_jdk
install_nacos
start_nacos

1.3 Nacos 集群部署¶

1.3.1 集群部署说明¶

https://nacos.io/zh-cn/docs/cluster-mode-quick-start.html

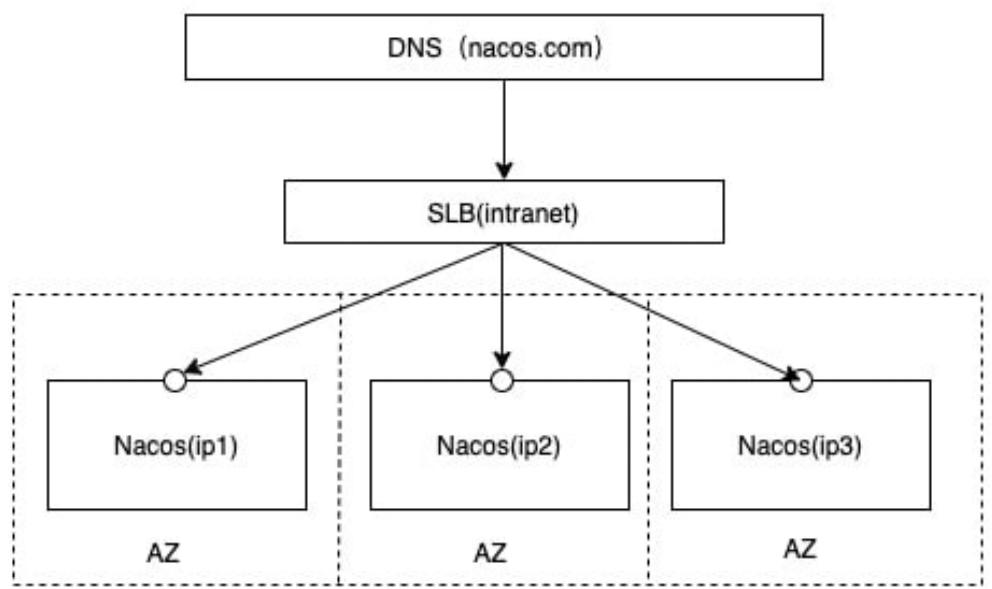

集群部署架构

http://ip1:port/openAPI 直连ip模式，机器挂则需要修改ip才可以使用。
http://SLB:port/openAPI 挂载SLB模式(内网SLB，不可暴露到公网，以免带来安全风险)，直连SLB即可，下面挂server真实ip，可读性不好。
http://nacos.com:port/openAPI 域名 + SLB模式(内网SLB，不可暴露到公网，以免带来安全风险)，可读性好，而且换ip方便，推荐模式

以上三种模式，推荐使用第三种，即用户把所有服务列表放到一个vip下面，然后挂到一个域名下面

端口情况

端口	与主端口的偏移量	描述
8848	0	主端口，客户端、控制台及OpenAPI所使用的HTTP端口
9848	1000	客户端gRPC请求服务端端口，用于客户端向服务端发起连接和请求
9849	1001	服务端gRPC请求服务端端口，用于服务间同步等
7848	-1000	raft请求服务端端口，用于处理服务端间的Raft相关请求

注意：

使用VIP/nginx请求时，需要配置成TCP转发，不能配置http2转发，否则连接会被nginx断开
9849和7848端口为服务端之间的通信端口，请勿暴露到外部网络环境和客户端测。

1.3.2 部署案例¶

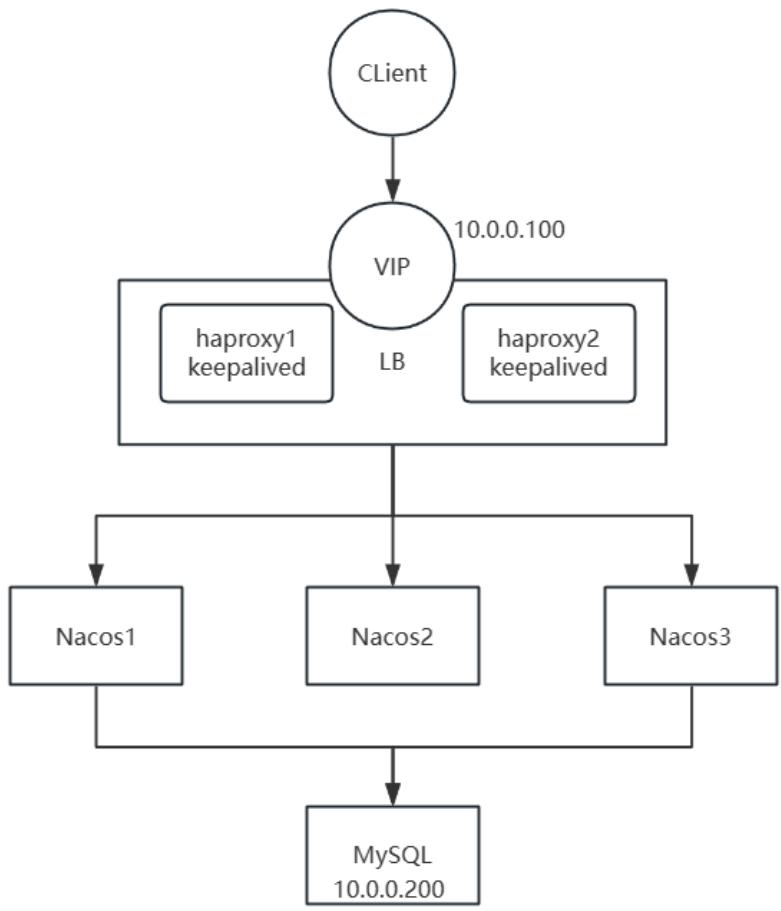

角色	地址
VIP	10.0.0.100
haproxy1+keepalived	10.0.0.101
haproxy2+keepalived	10.0.0.102
nacos1	10.0.0.201
nacos2	10.0.0.202
nacos3	10.0.0.203
MySQL	10.0.0.200

1.3.2.1 预备环境准备¶

请确保是在环境中安装使用:

64 bit OS Linux/Unix/Mac，推荐使用Linux系统
64 bit JDK 1.8+；下载. 配置

Maven $3 . 2 . x +$ ；下载 & 配置

3个或3个以上Nacos节点才能构成集群

1.3.2.2 下载源码或者安装包¶

你可以通过两种方式来获取 Nacos。

从 Github 上下载源码方式

apt update && apt -y install git openjdk-8-jdk maven
git clone https://github.com/alibaba/nacos.git
unzip nacos-develop.zip
cd nacos-develop
mvn -Prelease-nacos clean install -U
cd distribution/target/nacos-server-2.3.0-SNAPSHOT/nacos/

范例：二进制安装 Nacos

[root@ubuntu2404 ~]#apt update && apt -y install openjdk-21-jdk
[root@ubuntu2404 ~]#apt update && apt -y install openjdk-17-jdk
[root@ubuntu2404 ~]#apt update && apt -y install openjdk-11-jdk
[root@ubuntu2404 ~]#wget https://github.com/alibaba/nacos/releases/download/2.5.2/nacos-server-2.5.2.tar.gz
[root@ubuntu2404 ~]#tar xf nacos-server-2.5.2.tar.gz -c /usr/local/

1.3.2.3 确定数据源¶

如果使用内置数据源

无需进行任何配置

使用外置数据源

生产使用建议至少主备模式，或者采用高可用数据库。
初始化 MySQL 数据库
sql语句源文件

范例: 部署MySQL做为数据源

[root@ubuntu2404 ~]#apt update && apt -y install mysql-server
[root@ubuntu2404 ~]#sed -i '/127.0.0.1/s/^/#/' /etc/mysql/mysql.conf.d/mysqld.cnf
[root@ubuntu2404 ~]#systemctl restart mysql
[root@ubuntu2404 ~]#mysql
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 25
Server version: 8.0.33-0ubuntu0.22.04.4 (Ubuntu)
mysql> create database nacos;
mysql> create user nacos@'%' identified with mysql_native_password by '123456';
mysql> grant all on nacos.* to nacos@'%' ;
[root@node01 ~]#apt update && apt -y install mysql-client
[root@node01 ~]#mysql -unacos -p123456 -h10.0.0.200 nacos < /usr/local/nacos/conf/mysql-schema.sql

1.3.2.4 配置集群配置文件¶

在nacos的解压目录nacos/的conf目录下，有配置文件cluster.conf，请每行配置成ip:port。

在所有集群节点修改下面文件

[root@node1 ~]#vim /usr/local/nacos/conf/cluster.conf
# ip:port
10.0.0.201:8848
10.0.0.202:8848
10.0.0.203:8848

#所有节点同步配置
[root@node1 ~]#id nacos &> /dev/null || useradd -r -s /sbin/nologin nacos
[root@node1 ~]#chown -R nacos: /usr/local/nacos
[root@node1 ~]#scp /usr/local/nacos/conf/cluster.conf node2:/usr/local/nacos/conf/cluster.conf
[root@node1 ~]#scp /usr/local/nacos/conf/cluster.conf node3:/usr/local/nacos/conf/cluster.conf

1.3.2.5 修改 Nacos 配置文件 application.properties¶

如果使用内置数据源无需修改配置

如果使用MySQL数据源，在所有集群节点上需要执行下面操作

[root@node1 ~]#vi /usr/local/nacos/conf/application.properties
#*************** Config Module Related Configurations ***************#
### If use MySQL as datasource:
### Deprecated configuration property, it is recommended to use `spring.sql.init.platform` replaced.
# spring.datasource.platform=mysql
spring.sql.init.platform=mysql
### Count of DB:
db.num=1
### Connect URL of DB:
db.url.0=jdbc:mysql://10.0.0.200:3306/nacos?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=UTC
db.user.0=nacos
db.password.0=123456

[root@node1 ~]#cd /usr/local/nacos/conf/
[root@node1 conf]#ls
1.4.0-ipv6_support-update.sql application.properties         cluster.conf         derby-schema.sql nacos-logback.xml
announcement.conf             application.properties.example cluster.conf.example mysql-schema.sql

#将配置同步到其它的节点
[root@node1 conf]#scp application.properties cluster.conf 10.0.0.202:/usr/local/nacos/conf
[root@node1 conf]#scp application.properties cluster.conf 10.0.0.203:/usr/local/nacos/conf

1.3.2.6 启动和关闭服务¶

Linux/Unix/Mac

集群模式启动

使用内置数据源

/usr/local/nacos/bin/startup.sh -p embedded

使用外置数据源

#在所有集群节点执行启动
[root@node1 ~]#/usr/local/nacos/bin/startup.sh
[root@node1 ~]#cat /usr/local/nacos/logs/start.out
/usr/lib/jvm/java-8-openjdk-amd64/bin/java -Djava.ext.dirs=/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext:/usr/lib/jvm/java-8-openjdk-amd64/lib/ext  -server -Xms2g -Xmx2g -Xmn1g -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=320m -XX:-OmitStackTraceInFastThrow -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/usr/local/nacos/logs/java_heapdump.hprof -XX:-UseLargePages -Dnacos.member.list= -Xloggc:/usr/local/nacos/logs/nacos_gc.log -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintGCTimeStamps -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=100M -Dloader.path=/usr/local/nacos/plugins,/usr/local/nacos/plugins/health,/usr/local/nacos/plugins/cmdb,/usr/local/nacos/plugins/selector -Dnacos.home=/usr/local/nacos -jar /usr/local/nacos/target/nacos-server.jar  --spring.config.additional-location=file:/usr/local/nacos/conf/ --logging.config=/usr/local/nacos/conf/nacos-logback.xml --server.max-http-header-size=524288
         ,--.
       ,--.'|
   ,--,: : |                          Nacos 2.2.3
,`--.'`|  ' :                       ,---.               Running in cluster mode, All function modules
|   : : | |                      '   ,'\   .--.--.     Port: 8848
:   |   \ | : ,--.--.       ,---. /   /   | / /    '    Pid: 82453
|   : ' '; | /       \   /     \.   ; ,. :| : /`./     Console: http://10.0.0.201:8848/nacos/index.html
'   ' ;.   ;.--. .-. | /   / ''   | |: :| : ;_
|   | | \   | \__\/: . ..    ' / '   | .; : \ \    `.     https://nacos.io
'   : | ; .' ," .--.; |'   ; :__|   :   | `----.   \
|   | '`--' / / ,. |'   | '.'|\   \ / / /`--' /
'   : |     ; :   .'   \   :   : `----' '--'.     /
;   |.'     | ,     .-./\   \ /           `--'---'
'---'        `--`---'     `----'

2023-06-03 22:32:23,223 INFO The server IP list of Nacos is [10.0.0.201:8848, 10.0.0.202:8848, 10.0.0.203:8848]
2023-06-03 22:32:24,228 INFO Nacos is starting...
2023-06-03 22:32:31,150 INFO Nacos started successfully in cluster mode. use external storage

[root@node2 ~]#/usr/local/nacos/bin/startup.sh
/usr/lib/jvm/java-8-openjdk-amd64/bin/java -Djava.ext.dirs=/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext:/usr/lib/jvm/java-8-openjdk-amd64/lib/ext  -server -Xms2g -Xmx2g -Xmn1g -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=320m -XX:-OmitStackTraceInFastThrow -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/usr/local/nacos/logs/java_heapdump.hprof -XX:-UseLargePages -Dnacos.member.list= -Xloggc:/usr/local/nacos/logs/nacos_gc.log -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintGCTimeStamps -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=100M -Dloader.path=/usr/local/nacos/plugins,/usr/local/nacos/plugins/health,/usr/local/nacos/plugins/cmdb,/usr/local/nacos/plugins/selector -Dnacos.home=/usr/local/nacos -jar /usr/local/nacos/target/nacos-server.jar  --spring.config.additional-location=file:/usr/local/nacos/conf/ --logging.config=/usr/local/nacos/conf/nacos-logback.xml --server.max-http-header-size=524288
nacos is starting with cluster
nacos is starting，you can check the /usr/local/nacos/logs/start.out

[root@node2 ~]#tail -f /usr/local/nacos/logs/start.out
2023-06-03 21:57:55,128 INFO Nacos is starting...
2023-06-03 21:58:01,105 INFO Nacos started successfully in cluster mode. use external storage

[root@node3 ~]#/usr/local/nacos/bin/startup.sh
/usr/lib/jvm/java-8-openjdk-amd64/bin/java -Djava.ext.dirs=/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext:/usr/lib/jvm/java-8-openjdk-amd64/lib/ext  -server -Xms2g -Xmx2g -Xmn1g -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=320m -XX:-OmitStackTraceInFastThrow -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/usr/local/nacos/logs/java_heapdump.hprof -XX:-UseLargePages -Dnacos.member.list= -Xloggc:/usr/local/nacos/logs/nacos_gc.log -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintGCTimeStamps -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=100M -Dloader.path=/usr/local/nacos/plugins,/usr/local/nacos/plugins/health,/usr/local/nacos/plugins/cmdb,/usr/local/nacos/plugins/selector -Dnacos.home=/usr/local/nacos -jar /usr/local/nacos/target/nacos-server.jar  --spring.config.additional-location=file:/usr/local/nacos/conf/ --logging.config=/usr/local/nacos/conf/nacos-logback.xml --server.max-http-header-size=524288
nacos is starting with cluster
nacos is starting，you can check the /usr/local/nacos/logs/start.out

[root@node3 ~]#tail -f /usr/local/nacos/logs/start.out
2023-06-03 21:57:58,660 INFO Nacos is starting...
2023-06-03 21:58:03,513 INFO Nacos started successfully in cluster mode. use external storage

关闭服务

Linux/Unix/Mac

[root@node1 ~]#/usr/local/nacos/bin/shutdown.sh

范例：service方式启动

[root@ubuntu2404 ~]#cat > /lib/systemd/system/nacos.service
[Unit]
Description=nacos.service
After=network.target
[Service]
Type=forking
ExecStart=/usr/local/nacos/bin/startup.sh
ExecStop=/usr/local/nacos/bin/shutdown.sh
User=nacos
Group=nacos
[Install]
WantedBy=multi-user.target

[root@ubuntu2404 ~]#systemctl daemon-reload && systemctl enable --now nacos.service

1.3.2.7 服务注册&发现和配置管理¶

服务注册

curl -x POST 'http://127.0.0.1:8848/nacos/v1/ns/instance?'serviceName=nacos.wang.serviceName&ip=1.2.3.4&port=8080'

注意：如果开启默认鉴权插件，需要在Header中带上用户名密码。

服务发现

curl -x GET 'http://127.0.0.1:8848/nacos/v1/ns/instance/list?serviceName=nacos.wang.serviceName'

注意：如果开启默认鉴权插件，需要在Header中带上用户名密码。

发布配置

curl -x POST "http://127.0.0.1:8848/nacos/v1/cs/configs?dataId=nacos.cfg.dataId&group $\equiv$ test&content $\equiv$ helloworld"

注意：如果开启默认鉴权插件，需要在Header中带上用户名密码。

获取配置

curl -x GET "http://127.0.0.1:8848/nacos/v1/cs/configs?dataId=nacos.cfg.dataId&group $\equiv$ test"

注意：如果开启默认鉴权插件，需要在Header中带上用户名密码。

1.3.2.8 配置 haproxy 和 keepalived 实现负载均衡和高可用¶

1.3.2.8.1 配置 haproxy 实现负载均衡¶

#修改内核参数
[root@ubuntu2404 ~]#echo net.ipv4.ip_nonlocal_bind = 1 >> /etc/sysctl.conf
[root@ubuntu2404 ~]#sysctl -p

#在两台服务器上安装配置haproxy实现负载均衡反向代理和高可用
[root@ubuntu2404 ~]#apt update && apt -y install haproxy

[root@ubuntu2404 ~]#vim /etc/haproxy/haproxy.cfg
#添加下面行
listen stats
   mode http
   bind 0.0.0.0:9999
   stats enable
   log global
   stats uri     /haproxy-status
   stats auth    admin:123456

listen nacos-8848
   mode tcp
   bind 10.0.0.100:8848
   server nacos01 10.0.0.201:8848 check
   server nacos02 10.0.0.202:8848 check
   server nacos03 10.0.0.203:8848 check

listen nacos-9848
   mode tcp
   bind 10.0.0.100:9848
   server nacos01 10.0.0.201:9848 check
   server nacos02 10.0.0.202:9848 check
   server nacos03 10.0.0.203:9848 check

[root@ubuntu2404 ~]#systemctl reload haproxy

1.3.2.8.2 配置keepalived实现高可用¶

在两台服务器上安装配置keepalived实现高可用

#在两台服务器上安装配置keepalived实现高可用
[root@ubuntu2404 ~]#apt update && apt -y install keepalived

#在10.0.0.101上配置
[root@ubuntu2404 ~]#vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
   router_id ka1
}
vrrp_script chk_haproxy {
       script "killall -0 haproxy"
       interval 1
       weight -30
}
vrrp_instance VI_1 {
   interface eth0
   virtual_router_id 66
   state MASTER
   priority 100
   advert_int 1
   authentication {
       auth_type PASS
       auth_pass 123456
   }
   virtual_ipaddress {
        10.0.0.100/24 dev eth0 label eth0:1
   }
   track_script {
       chk_haproxy
   }
}
[root@ubuntu2404 ~]#systemctl restart keepalived

#在10.0.0.102上配置
[root@ubuntu2404 ~]#cat /etc/keepalived/keepalived.conf
global_defs {
   router_id ka2
}
vrrp_instance VI_1 {
   interface eth0
   virtual_router_id 66
   state BACKUP
   priority 80
   advert_int 1
   authentication {
       auth_type PASS
       auth_pass 123456
   }
   virtual_ipaddress {
        10.0.0.100/24 dev eth0 label eth0:1
   }
}

[root@ubuntu2404 ~]#systemctl restart keepalived

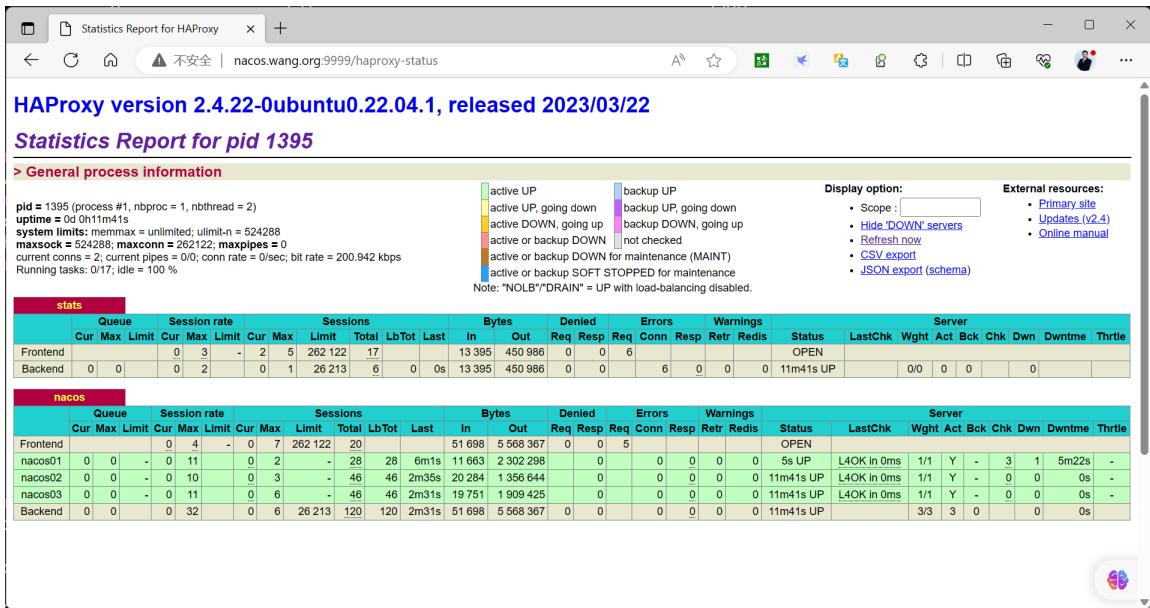

#浏览器访问haproxy管理页面
http://10.0.0.100:9999/haproxy-status
#账号密码：admin/123456#在两台服务器上安装配置keepalived实现高可用
[root@ubuntu2404 ~]#apt update && apt -y install keepalived

#在10.0.0.101上配置
[root@ubuntu2404 ~]#vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
   router_id ka1
}
vrrp_script chk_haproxy {
       script "killall -0 haproxy"
       interval 1
       weight -30
}
vrrp_instance VI_1 {
   interface eth0
   virtual_router_id 66
   state MASTER
   priority 100
   advert_int 1
   authentication {
       auth_type PASS
       auth_pass 123456
   }
   virtual_ipaddress {
        10.0.0.100/24 dev eth0 label eth0:1
   }
   track_script {
       chk_haproxy
   }
}
[root@ubuntu2404 ~]#systemctl restart keepalived

#在10.0.0.102上配置
[root@ubuntu2404 ~]#cat /etc/keepalived/keepalived.conf
global_defs {
   router_id ka2
}
vrrp_instance VI_1 {
   interface eth0
   virtual_router_id 66
   state BACKUP
   priority 80
   advert_int 1
   authentication {
       auth_type PASS
       auth_pass 123456
   }
   virtual_ipaddress {
        10.0.0.100/24 dev eth0 label eth0:1
   }
}

[root@ubuntu2404 ~]#systemctl restart keepalived

#浏览器访问haproxy管理页面
http://10.0.0.100:9999/haproxy-status
#账号密码：admin/123456#在两台服务器上安装配置keepalived实现高可用
[root@ubuntu2404 ~]#apt update && apt -y install keepalived

#在10.0.0.101上配置
[root@ubuntu2404 ~]#vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
   router_id ka1
}
vrrp_script chk_haproxy {
       script "killall -0 haproxy"
       interval 1
       weight -30
}
vrrp_instance VI_1 {
   interface eth0
   virtual_router_id 66
   state MASTER
   priority 100
   advert_int 1
   authentication {
       auth_type PASS
       auth_pass 123456
   }
   virtual_ipaddress {
        10.0.0.100/24 dev eth0 label eth0:1
   }
   track_script {
       chk_haproxy
   }
}
[root@ubuntu2404 ~]#systemctl restart keepalived

#在10.0.0.102上配置
[root@ubuntu2404 ~]#cat /etc/keepalived/keepalived.conf
global_defs {
   router_id ka2
}
vrrp_instance VI_1 {
   interface eth0
   virtual_router_id 66
   state BACKUP
   priority 80
   advert_int 1
   authentication {
       auth_type PASS
       auth_pass 123456
   }
   virtual_ipaddress {
        10.0.0.100/24 dev eth0 label eth0:1
   }
}

[root@ubuntu2404 ~]#systemctl restart keepalived

#浏览器访问haproxy管理页面
http://10.0.0.100:9999/haproxy-status
#账号密码：admin/123456#在两台服务器上安装配置keepalived实现高可用
[root@ubuntu2404 ~]#apt update && apt -y install keepalived

#在10.0.0.101上配置
[root@ubuntu2404 ~]#vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
   router_id ka1
}
vrrp_script chk_haproxy {
       script "killall -0 haproxy"
       interval 1
       weight -30
}
vrrp_instance VI_1 {
   interface eth0
   virtual_router_id 66
   state MASTER
   priority 100
   advert_int 1
   authentication {
       auth_type PASS
       auth_pass 123456
   }
   virtual_ipaddress {
        10.0.0.100/24 dev eth0 label eth0:1
   }
   track_script {
       chk_haproxy
   }
}
[root@ubuntu2404 ~]#systemctl restart keepalived

#在10.0.0.102上配置
[root@ubuntu2404 ~]#cat /etc/keepalived/keepalived.conf
global_defs {
   router_id ka2
}
vrrp_instance VI_1 {
   interface eth0
   virtual_router_id 66
   state BACKUP
   priority 80
   advert_int 1
   authentication {
       auth_type PASS
       auth_pass 123456
   }
   virtual_ipaddress {
        10.0.0.100/24 dev eth0 label eth0:1
   }
}

[root@ubuntu2404 ~]#systemctl restart keepalived

#浏览器访问haproxy管理页面
http://10.0.0.100:9999/haproxy-status
#账号密码：admin/123456

1.3.2.9 访问集群创建配置¶

创建配置，10.0.0.100的LB的VIP地址

[root@ubuntu2404 ~]#curl -X POST "http://10.0.0.100:8848/nacos/v1/cs/configs?

dataId=nacos.cfg.dataId&group=test&content=HelloWorld"

1.3.2.10 Web 页面访问¶

http://nacos.wang.org/nacos

1.4 Nacos 基于 Docker 部署¶

https://nacos.io/zh-cn/docs/quick-start-docker.html

1.4.1 Docker 部署启动¶

当前最新精简版

docker run --name nacos -e MODE=standalone --network host -d --restart always registry.cn-
beijing.aliyunics.com/zhangqing/nacos-server:v2.4.3-slim
docker run --name nacos -e MODE=standalone --network host -d --restart always registry.cn-
beijing.aliyunics.com/zhangqing/nacos-server:v2.2.3-slim
docker run --name nacos -e MODE=standalone --network host -d --restart always nacos/nacos-server:v2.2.3-slim
docker run --name nacos -e MODE=standalone -p 8848:8848 -p 9848:9848 -d --restart always nacos/nacos-
server:v2.2.3-slim

#当前最新版
docker run --name nacos -e MODE $\equiv$ standalone -p 8848:8848 -p 9848:9848 -d --restart always nacos/nacosserver:v2.2.3

#旧版
docker run --name nacos -e MODE $\equiv$ standalone -p 8848:8848 -p 9848:9848 -d nacos/nacos-server:v2.2.0
docker run --name nacos -e MODE $\equiv$ standalone -p 8848:8848 -p 9848:9848 -d nacos/nacos-server:v2.2.0-sli
docker run --name nacos -e MODE $\equiv$ standalone -p 8848:8848 -p 9848:9848 -d nacos/nacos-server:2.0.3
docker run --name nacos -e MODE $\equiv$ standalone -p 8848:8848 -p 9848:9848 -d nacos/nacos-server:2.0.3-slim

1.4.2 docker compose 部署启动¶

https://github.com/nacos-group/nacos-docker 注意：内存需要4G

Clone 项目

git clone https://github.com/nacos-group/nacos-docker.git
cd nacos-docker

单机模式 Derby 德比

#example/standalone-derby.yaml 内容
version: "2"
services:
  nacos:
    image: nacos/nacos-server:${NACOS_VERSION}
    container_name: nacos-standalone
    environment:
      - PREFER_HOST_MODE=hostname
      - MODE=standalone
      - NACOS_AUTH_IDENTITY_KEY=serverIdentity
      - NACOS_AUTH_IDENTITY_VALUE=security
      - NACOS_AUTH_TOKEN=SecretKey012345678901234567890123456789012345678901234567890123456789
    volumes:
      - ./standalone-logs/:/home/nacos/logs
    ports:
      - "8848:8848"
      - "9848:9848"
  prometheus:
    container_name: prometheus
    image: prom/prometheus:latest
    volumes:
      - ./prometheus/prometheus-standalone.yaml:/etc/prometheus/prometheus.yml
    ports:
      - "9090:9090"
    depends_on:
      - nacos
    restart: on-failure
  grafana:
    container_name: grafana
    image: grafana/grafana:latest
    ports:
      - 3000:3000
    restart: on-failure

docker-compose -f example/standalone-derby.yaml up

单机模式 MySQL

如果希望使用MySQL5.7

# example/standalone-mysql-5.7.yaml
version: "3.8"
services:
  nacos:
    image: nacos/nacos-server:${NACOS_VERSION}
    container_name: nacos-standalone-mysql
    env_file:
      - ../env/custom-application-config.env
    volumes:
      - ./standalone-logs/:/home/nacos/logs
      - ./init.d/application.properties:/home/nacos/conf/application.properties
    ports:
      - "8848:8848"
      - "9848:9848"
    depends_on:
      mysql:
        condition: service_healthy
    restart: on-failure
  mysql:
    container_name: mysql
    build:
      context: .
      dockerfile: ./image/mysql/5.7/Dockerfile
    image: example/mysql:5.7
    env_file:
      - ../env/mysql.env
    volumes:
      - ./mysql:/var/lib/mysql
    ports:
      - "3306:3306"
    healthcheck:
      test: [ "CMD", "mysqladmin" ,"ping", "-h", "localhost" ]
      interval: 5s
      timeout: 10s
      retries: 10

# ../env/mysql.env
MYSQL_ROOT_PASSWORD=root
MYSQL_DATABASE=nacos_devtest
MYSQL_USER=nacos
MYSQL_PASSWORD=nacos
LANG=C.UTF-8

docker-compose -f example/standalone-mysql-5.7.yaml up

如果希望使用MySQL8

# example/standalone-mysql-8.yaml
version: "3.8"
services:
  nacos:
    image: nacos/nacos-server:${NACOS_VERSION}
    container_name: nacos-standalone-mysql
    env_file:
      - ../env/nacos-standlone-mysql.env
    volumes:
      - ./standalone-logs/:/home/nacos/logs
    ports:
      - "8848:8848"
      - "9848:9848"
    depends_on:
      mysql:
        condition: service_healthy
    restart: always
  mysql:
    container_name: mysql
    build:
      context: .
      dockerfile: ./image/mysql/8/Dockerfile
    image: example/mysql:8.0.30
    env_file:
      - ../env/mysql.env
    volumes:
      - ./mysql:/var/lib/mysql
    ports:
      - "3306:3306"
    healthcheck:
      test: [ "CMD", "mysqladmin" ,"ping", "-h", "localhost" ]
      interval: 5s
      timeout: 10s
      retries: 10

# ../env/nacos-standlone-mysql.env
PREFER_HOST_MODE=hostname
MODE=standalone
SPRING_DATASOURCE_PLATFORM=mysql
MYSQL_SERVICE_HOST=mysql
MYSQL_SERVICE_DB_NAME=nacos_devtest
MYSQL_SERVICE_PORT=3306
MYSQL_SERVICE_USER=nacos
MYSQL_SERVICE_PASSWORD=nacos
MYSQL_SERVICE_DB_PARAM=characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useSSL=false&allowPublicKeyRetrieval=true
NACOS_AUTH_IDENTITY_KEY=2222
NACOS_AUTH_IDENTITY_VALUE=2xxx
NACOS_AUTH_TOKEN=SecretKey012345678901234567890123456789012345678901234567890123456789

docker-compose -f example/standalone-mysql-8.yaml up

集群模式

# example/cluster-hostname.yaml 内容
version: "3.8"
services:
  nacos1:
    hostname: nacos1
    container_name: nacos1
    image: nacos/nacos-server:${NACOS_VERSION}
    volumes:
      - ./cluster-logs/nacos1:/home/nacos/logs
    ports:
      - "7848:7848"
      - "8848:8848"
      - "9868:9848"
      - "9850:9849"
    env_file:
      - ../env/nacos-hostname.env
    restart: always
    depends_on:
      mysql:
        condition: service_healthy
  nacos2:
    hostname: nacos2
    image: nacos/nacos-server:${NACOS_VERSION}
    container_name: nacos2
    volumes:
      - ./cluster-logs/nacos2:/home/nacos/logs
    ports:
      - "7849:7848"
      - "8849:8848"
      - "9869:9848"
      - "9851:9849"
    env_file:
      - ../env/nacos-hostname.env
    restart: always
    depends_on:
      mysql:
        condition: service_healthy
  nacos3:
    hostname: nacos3
    image: nacos/nacos-server:${NACOS_VERSION}
    container_name: nacos3
    volumes:
      - ./cluster-logs/nacos3:/home/nacos/logs
    ports:
      - "7850:7848"
      - "8850:8848"
      - "9870:9848"
      - "9852:9849"
    env_file:
      - ../env/nacos-hostname.env
    restart: always
    depends_on:
      mysql:
        condition: service_healthy
  mysql:
    container_name: mysql
    build:
      context: .
      dockerfile: ./image/mysql/5.7/Dockerfile
    image: example/mysql:5.7
    env_file:
      - ../env/mysql.env
    volumes:
      - ./mysql:/var/lib/mysql
    ports:
      - "3306:3306"
    healthcheck:
      test: [ "CMD", "mysqladmin" ,"-uroot","-proot","ping", "-h", "localhost" ]
      interval: 5s
      timeout: 10s
      retries: 10

# ../env/nacos-hostname.env 内容
PREFER_HOST_MODE=hostname
NACOS_SERVERS=nacos1:8848 nacos2:8849 nacos3:8850
SPRING_DATASOURCE_PLATFORM=mysql
MYSQL_SERVICE_HOST=mysql
MYSQL_SERVICE_DB_NAME=nacos_devtest
MYSQL_SERVICE_PORT=3306
MYSQL_SERVICE_USER=nacos
MYSQL_SERVICE_PASSWORD=nacos
MYSQL_SERVICE_DB_PARAM=characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useSSL=false&allowPublicKeyRetrieval=true
NACOS_AUTH_IDENTITY_KEY=2222
NACOS_AUTH_IDENTITY_VALUE=2xxx
NACOS_AUTH_TOKEN=SecretKey012345678901234567890123456789012345678901234567890123456789

docker-compose -f example/cluster-hostname.yaml up
nacos3    | 2023-09-18 10:30:43,276 INFO Nacos started successfully in cluster mode. use external storage
nacos3    |
nacos2    | 2023-09-18 10:30:43,658 INFO Nacos started successfully in cluster mode. use external storage

[root@ubuntu2404 nacos-docker-master]#docker-compose -f example/cluster-hostname.yaml ps
 Name                 Command                                                              State                    Ports
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
mysql    docker-entrypoint.sh mysql ...   Up (healthy)   0.0.0.0:3306->3306/tcp,:::3306->3306/tcp, 33060/tcp
nacos1   bin/docker-startup.sh            Up             0.0.0.0:7848->7848/tcp,:::7848->7848/tcp, 0.0.0.0:8848->8848/tcp,:::8848->8848/tcp,
                                                           0.0.0.0:9868->9848/tcp,:::9868->9848/tcp, 0.0.0.0:9850->9849/tcp,:::9850->9849/tcp
nacos2   bin/docker-startup.sh            Up             0.0.0.0:7849->7848/tcp,:::7849->7848/tcp, 0.0.0.0:8849->8848/tcp,:::8849->8848/tcp,
                                                           0.0.0.0:9869->9848/tcp,:::9869->9848/tcp, 0.0.0.0:9851->9849/tcp,:::9851->9849/tcp
nacos3   bin/docker-startup.sh            Up             0.0.0.0:7850->7848/tcp,:::7850->7848/tcp, 0.0.0.0:8850->8848/tcp,:::8850->8848/tcp,
                                                           0.0.0.0:9870->9848/tcp,:::9870->9848/tcp, 0.0.0.0:9852->9849/tcp,:::9852->9849/tcp

1.4.3 服务访问¶

服务注册

curl -x POST 'http://127.0.0.1:8848/nacos/v1/ns/instance?serviceName=nacos.naming.serviceName&ip=20.18.7.10&port=8080'

服务发现

curl -X GET 'http://127.0.0.1:8848/nacos/v1/ns/instance/list?serviceName=nacos.naming.serviceName'

发布配置

curl -x POST "http://127.0.0.1:8848/nacos/v1/cs/configs? dataId=nacos.cfg.dataId&group $\equiv$ test&content $\equiv$ helloWorld"

获取配置

curl -x GET "http://127.0.0.1:8848/nacos/v1/cs/configs?dataId=nacos.cfg.dataId&group $\equiv$ test"

Nacos 控制台

link: http://127.0.0.1:8848/nacos/

Common property configuration

属性名称	描述	选项
MODE	系统启动方式: 集群/单机	cluster/standalone默认: cluster
NACOS_SERVERS	集群地址	p1:port1空格:p2:port2空格:p3:port3
PREFER_HOST_MODE	支持中还是域名模式	hostname/p 默认ip
NACOS_SERVER_PORT	Nacos 运行端口	默认:8848
NACOS_SERVER_IP	多网卡模式下可以指定IP
SPRING_DATASOURCEPLATFORM	单机模式下支持MYSQ数据库	mysql / 空默认:空
MYSQL_SERVICE_HOST	数据库连接地址
MYSQL_SERVICE_PORT	数据库端口	默认:3306
MYSQL_SERVICE_DB_NAME	数据库库名
MYSQL_SERVICE_USER	数据库用户名
MYSQL_SERVICE_PASSWORD	数据库用户密码
MYSQL_SERVICE_DB_PARAMETER	数据连接参数	default: characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useSSL=false
MYSQL_DATABSE_NUM	数据库编号	默认:1
jvm_XMS	-xms	默认:1g
jvm_xmx	-xmx	默认:1g
jvm_xMN	-xmn	默认:512m
jvm_M5	-XXMaxMetaspacedSize	默认:128m
jvm_MMS	-XXMaxMetaspacedSize	默认:320m
NACOS_DEBUG	是否开启远程 DEBUG	y/n 默认:n
TOMCAT_ACCESSLOG_ENABLED	server.tomcat.accesslog.enabled	默认: false
NACOS_AUTHSystem_TYPE	权限系统类型选择,目前只支持nacos类型	默认:nacos
NACOS_AUTH_ENABLE	是否开启权限系统	默认: false
NACOS_AUTH_TOKEN_EXPIRE_SECOND	token失效时间	默认:18000
NACOS_AUTH_TOKEN	token	默认:SecretKey012345678901234567890123456789012345678901234567890123456789
NACOS_AUTH_CACHE_ENABLE	权限缓存开关,开启后权限缓存的更新默认有15秒的延迟	默认: false
MEMBER_LIST	通过环境变量的方式设置集群地址	例子:192.168.16.101:8847raft_port=8807,192.168.16.101raft_port=8808,192.168.16.101:8849raft_port=8809
EMBEDDED STORAGE	是否开启集群嵌入式存储模式	embedded 默认: none
NACOS_AUTH_CACHE_ENABLE	nacos.core.auth.caching.enabled	default: false
NACOS_AUTH_USER_AGENT_AUTHWhite_ENABLE	nacos.core.auth.authenticated.userAgentAuthWhite	default: false
NACOS_AUTHidentity_KEY	nacos.core.auth.serverIdentitykey	default: serverIdentity
NACOS_AUTHidentity_VALUE	nacos.core.auth.serverIdentity.value	default: security
NACOS.SecurityIGNORE URLs	nacos.security:Ignore URLs	default: ./error,//.css,//.js,//.html,//.map,//.png,//.ico, /console-fe/public/,/v1/auth/,/v1 console/health/,/actuator/,v1 console/server/**

1.5 Nacos 基于 Kubernetes 的YAML方式部署¶

https://nacos.io/zh-cn/docs/use-nacos-with-kubernetes.html

本项目包含一个可构建的Nacos Docker Image，旨在利用StatefulSets在Kubernetes上部署Nacos

推荐使用Nacos Operator在Kubernetes部署Nacos Server

例子部署环境

机器配置

内网IP	主机名	配置
10.0.0.200	k8s-master	Ubuntu22.04 Single-core processor Mem 4G disk 40G
10.0.0.201	node01	Ubuntu22.04 Single-core processor Mem 4G disk 40G
10.0.0.202	node02	Ubuntu22.04 Single-core processor Mem 4G disk 40G

Kubernetes

NFS 版本：在k8s-master进行安装Server端，并且指定共享目录，本项目指定的/data/nfs-share

1.5.1 基本功能实现¶

Clone 项目

git clone https://github.com/nacos-group/nacos-k8s.git

简单例子

如果你使用简单方式快速启动,请注意这是没有使用持久化卷的,可能存在数据丢失风险

cd nacos-k8s
chmod +x quick-startup.sh
./quick-startup.sh

cat ./quick-startup.sh
#!/usr/bin/env bash
echo "mysql mysql startup"
kubectl create -f ./deploy/mysql/mysql-local.yaml
echo "nacos quick startup"
kubectl create -f ./deploy/nacos/nacos-start.yaml

#单机MySQL
cat ./deploy/mysql/mysql-local.yaml
apiVersion: v1
kind: ReplicationController
metadata:
 name: mysql
 labels:
   name: mysql
spec:
 replicas: 1
 selector:
   name: mysql
 template:
   metadata:
     labels:
       name: mysql
   spec:
     containers:
      - name: mysql
       image: nacos/nacos-mysql:5.7
       ports:
        - containerPort: 3306
       volumeMounts:
        - name: mysql-data
         mountPath: /var/lib/mysql
       env:
        - name: MYSQL_ROOT_PASSWORD
         value: "root"
        - name: MYSQL_DATABASE
         value: "nacos_devtest"
        - name: MYSQL_USER
         value: "nacos"
        - name: MYSQL_PASSWORD
         value: "nacos"
     volumes:
      - name: mysql-data
        hostPath:
          path: /var/lib/mysql
---
apiVersion: v1
kind: Service
metadata:
 name: mysql
 labels:
   name: mysql
spec:
 ports:
  - port: 3306
    targetPort: 3306
 selector:
   name: mysql

#cat ./deploy/nacos/nacos-start.yaml
---
apiVersion: v1
kind: Service
metadata:
 name: nacos-headless
 labels:
   app: nacos-headless
spec:
 type: ClusterIP
 clusterIP: None
 ports:
    - port: 8848
      name: server
      targetPort: 8848
    - port: 9848
      name: client-rpc
      targetPort: 9848
    - port: 9849
      name: raft-rpc
      targetPort: 9849
    ## 兼容1.4.x版本的选举端口
    - port: 7848
      name: old-raft-rpc
      targetPort: 7848
 selector:
   app: nacos
---
apiVersion: v1
kind: ConfigMap
metadata:
 name: nacos-cm
data:
 mysql.host: "mysql"
 mysql.db.name: "nacos_devtest"
 mysql.port: "3306"
 mysql.user: "nacos"
 mysql.password: "nacos"
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
 name: nacos
spec:
 serviceName: nacos-headless
 replicas: 3
 template:
   metadata:
     labels:
       app: nacos
     annotations:
       pod.alpha.kubernetes.io/initialized: "true"
   spec:
     affinity:
       podAntiAffinity:
         requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                  - key: "app"
                    operator: In
                    values:
                      - nacos
              topologyKey: "kubernetes.io/hostname"
     containers:
        - name: nacos
          imagePullPolicy: Always
          image: nacos/nacos-server:latest
          resources:
            requests:
              memory: "2Gi"
              cpu: "500m"
          ports:
            - containerPort: 8848
              name: client
            - containerPort: 9848
              name: client-rpc
            - containerPort: 9849
              name: raft-rpc
            - containerPort: 7848
              name: old-raft-rpc
          env:
            - name: NACOS_REPLICAS
              value: "3"
            - name: MYSQL_SERVICE_HOST
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.host
            - name: MYSQL_SERVICE_DB_NAME
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.db.name
            - name: MYSQL_SERVICE_PORT
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.port
            - name: MYSQL_SERVICE_USER
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.user
            - name: MYSQL_SERVICE_PASSWORD
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.password
            - name: SPRING_DATASOURCE_PLATFORM
              value: "mysql"
            - name: NACOS_SERVER_PORT
              value: "8848"
            - name: NACOS_APPLICATION_PORT
              value: "8848"
            - name: PREFER_HOST_MODE
              value: "hostname"
            - name: NACOS_SERVERS
              value: "nacos-0.nacos-headless.default.svc.cluster.local:8848 nacos-1.nacos-headless.default.svc.cluster.local:8848 nacos-2.nacos-headless.default.svc.cluster.local:8848"
 selector:
   matchLabels:
     app: nacos

测试

服务注册

curl -x POST 'http://cluster-ip:8848/nacos/v1/ns/instance?'serviceName=nacos.naming.serviceName&ip=20.18.7.10&port=8080'

服务发现

curl -x GET 'http://cluster-ip:8848/nacos/v1/ns/instance/list?serviceName=nacos.naming.serviceName'

发布配置

curl -x POST "http://cluster-ip:8848/nacos/v1/cs/configs? dataId=nacos.cfg.dataId&group $\equiv$ test&content $\equiv$ helloworld"

获取配置

curl -x GET "http://cluster-ip:8848/nacos/v1/cs/configs?dataId=nacos.cfg.dataId&group $\equiv$ test"

1.5.2 高级功能实现¶

在高级使用中,Nacos在K8S拥有自动扩容缩容和数据持久特性

请注意如果需要使用这部分功能请使用PVC持久卷,Nacos的自动扩容缩容需要依赖持久卷,以及数据持久化也是一样

本例中使用的是NFS来使用PVC.

1.5.2.1 部署 NFS¶

创建角色

~#kubectl create -f deploy/nfs/rbac.yaml
~#cat deploy/nfs/rbac.yaml

# RBAC 授权配置文件：deploy/nfs/rbac.yaml
# 用于 NFS 存储分配器权限
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: nfs-client-provisioner-runner
rules:
- apiGroups: [""]
  resources: ["persistentvolumes"]
  verbs: ["get", "list", "watch", "create", "delete"]
- apiGroups: [""]
  resources: ["persistentvolumeclaims"]
  verbs: ["get", "list", "watch", "update"]
- apiGroups: [""]
  resources: ["endpoints"]
  verbs: ["get", "list", "watch", "create", "update", "patch"]
- apiGroups: ["storage.k8s.io"]
  resources: ["storageclasses"]
  verbs: ["get", "list", "watch"]
- apiGroups: [""]
  resources: ["events"]
  verbs: ["create", "update", "patch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: run-nfs-client-provisioner
subjects:
- kind: ServiceAccount
  name: nfs-client-provisioner
  namespace: default
roleRef:
  kind: ClusterRole
  name: nfs-client-provisioner-runner
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: leader-locking-nfs-client-provisioner
rules:
- apiGroups: [""]
  resources: ["endpoints"]
  verbs: ["get", "list", "watch", "create", "update", "patch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: leader-locking-nfs-client-provisioner
subjects:
- kind: ServiceAccount
  name: nfs-client-provisioner
  namespace: default
roleRef:
  kind: Role
  name: leader-locking-nfs-client-provisioner
  apiGroup: rbac.authorization.k8s.io

如果的K8S命名空间不是default，请在部署RBAC之前执行以下脚本:

# Set the subject of the RBAC objects to the current namespace where the provisioner is being deployed
$ NS=$(kubectl config get-contexts|grep -e "^\*" |awk '{print $5}')
$ NAMESPACE=${NS:-default}
$ sed -i'' "s/namespace:.*/namespace: $NAMESPACE/g" ./deploy/nfs/rbac.yaml

创建 ServiceAccount 和部署 NFS-Client Provisioner

# deploy/nfs/deployment.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nfs-client-provisioner
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nfs-client-provisioner
spec:
  replicas: 1
  strategy:
    type: Recreate
  selector:
    matchLabels:
      app: nfs-client-provisioner
  template:
    metadata:
      labels:
        app: nfs-client-provisioner
    spec:
      serviceAccount: nfs-client-provisioner
      containers:
        - name: nfs-client-provisioner
          image: quay.io/external_storage/nfs-client-provisioner:latest
          volumeMounts:
            - name: nfs-client-root
              mountPath: /persistentvolumes
          env:
            - name: PROVISIONER_NAME
              value: fuseim.pri/ifs
            - name: NFS_SERVER
              value: 172.17.79.3
            - name: NFS_PATH
              value: /data/nfs-share
      volumes:
        - name: nfs-client-root
          nfs:
            server: 172.17.79.3
            path: /data/nfs-share

创建 NFS StorageClass

~#kubectl create -f deploy/nfs/class.yaml
~#cat deploy/nfs/class.yaml
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
 name: managed-nfs-storage
provisioner: fuseim.pri/ifs
parameters:
 archiveOnDelete: "false

验证NFS部署成功

~#kubectl get pod -l app=nfs-client-provisioner

1.5.2.2 部署数据库¶

~#cd nacos-k8s
~#kubectl create -f deploy/mysql/mysql-nfs.yaml

# deploy/mysql/mysql-nfs.yaml
apiVersion: v1
kind: ReplicationController
metadata:
  name: mysql
  labels:
    name: mysql
spec:
  replicas: 1
  selector:
    name: mysql
  template:
    metadata:
      labels:
        name: mysql
    spec:
      containers:
      - name: mysql
        image: nacos/nacos-mysql:5.7
        ports:
        - containerPort: 3306
        volumeMounts:
        - name: mysql-data
          mountPath: /var/lib/mysql
        env:
        - name: MYSQL_ROOT_PASSWORD
          value: "root"
        - name: MYSQL_DATABASE
          value: "nacos_devtest"
        - name: MYSQL_USER
          value: "nacos"
        - name: MYSQL_PASSWORD
          value: "nacos"
      volumes:
      - name: mysql-data
        nfs:
          server: 172.17.79.3
          path: /data/mysql
---
apiVersion: v1
kind: Service
metadata:
  name: mysql
  labels:
    name: mysql
spec:
  ports:
  - port: 3306
    targetPort: 3306
  selector:
    name: mysql

验证数据库是否正常工作

kubectl get pod
NAME                     READY   STATUS    RESTARTS   AGE
mysql-gf2vd              1/1     Running   0          111m

执行数据库初始化语句

数据库初始化语句位置 https://github.com/alibaba/nacos/blob/develop/distribution/conf/nacos-mysql.sql

1.5.2.3 部署Nacos¶

修改 deploy/nacos/nacos-pvc-nfs.yaml

data:
 mysql.host: "数据库地址"
 mysql.db.name: "数据库名称"
 mysql.port: "端口"
 mysql.user: "用户名"
 mysql.password: "密码"

创建 Nacos

~#kubectl create -f nacos-k8s/deploy/nacos/nacos-pvc-nfs.yaml
~#cat ./deploy/nacos/nacos-pvc-nfs.yaml
# 请阅读Wiki文章
# https://github.com/nacos-group/nacos-k8s/wiki/%E4%BD%BF%E7%94%A8peerfinder%E6%89%A9%E5%AE%B9%E6%8F%92%E4%BB%B6

# ./deploy/nacos/nacos-pvc-nfs.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: nacos-headless
  labels:
    app: nacos
spec:
  publishNotReadyAddresses: true
  ports:
    - port: 8848
      name: server
      targetPort: 8848
    - port: 9848
      name: client-rpc
      targetPort: 9848
    - port: 9849
      name: raft-rpc
      targetPort: 9849
    ## 兼容1.4.x版本的选举端口
    - port: 7848
      name: old-raft-rpc
      targetPort: 7848
  clusterIP: None
  selector:
    app: nacos
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: nacos-cm
data:
  mysql.host: "mysql"
  mysql.db.name: "nacos_devtest"
  mysql.port: "3306"
  mysql.user: "nacos"
  mysql.password: "nacos"
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: nacos
spec:
  podManagementPolicy: Parallel
  serviceName: nacos-headless
  replicas: 3
  template:
    metadata:
      labels:
        app: nacos
      annotations:
        pod.alpha.kubernetes.io/initialized: "true"
    spec:
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                  - key: "app"
                    operator: In
                    values:
                      - nacos
              topologyKey: "kubernetes.io/hostname"
      serviceAccountName: nfs-client-provisioner
      initContainers:
        - name: peer-finder-plugin-install
          image: nacos/nacos-peer-finder-plugin:1.1
          imagePullPolicy: Always
          volumeMounts:
            - mountPath: /home/nacos/plugins/peer-finder
              name: data
              subPath: peer-finder
      containers:
        - name: nacos
          imagePullPolicy: Always
          image: nacos/nacos-server:latest
          resources:
            requests:
              memory: "2Gi"
              cpu: "500m"
          ports:
            - containerPort: 8848
              name: client-port
            - containerPort: 9848
              name: client-rpc
            - containerPort: 9849
              name: raft-rpc
            - containerPort: 7848
              name: old-raft-rpc
          env:
            - name: NACOS_REPLICAS
              value: "3"
            - name: SERVICE_NAME
              value: "nacos-headless"
            - name: DOMAIN_NAME
              value: "cluster.local"
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.namespace
            - name: MYSQL_SERVICE_HOST
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.host
            - name: MYSQL_SERVICE_DB_NAME
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.db.name
            - name: MYSQL_SERVICE_PORT
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.port
            - name: MYSQL_SERVICE_USER
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.user
            - name: MYSQL_SERVICE_PASSWORD
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.password
            - name: SPRING_DATASOURCE_PLATFORM
              value: "mysql"
            - name: NACOS_SERVER_PORT
              value: "8848"
            - name: NACOS_APPLICATION_PORT
              value: "8848"
            - name: PREFER_HOST_MODE
              value: "hostname"
          volumeMounts:
            - name: data
              mountPath: /home/nacos/plugins/peer-finder
              subPath: peer-finder
            - name: data
              mountPath: /home/nacos/data
              subPath: data
            - name: data
              mountPath: /home/nacos/logs
              subPath: logs
  volumeClaimTemplates:
    - metadata:
        name: data
        annotations:
          volume.beta.kubernetes.io/storage-class: "managed-nfs-storage"
      spec:
        accessModes: [ "ReadWriteMany" ]
        resources:
          requests:
            storage: 20Gi
  selector:
    matchLabels:
      app: nacos

验证Nacos节点启动成功

kubectl get pod -l app=nacos
NAME     READY   STATUS   RESTARTS   AGE
nacos-0   1/1     Running   0         19h
nacos-1   1/1     Running   0         19h
nacos-2   1/1     Running   0         19h

1.5.2.4 扩容测试¶

在扩容前，使用 kubectl exec 获取在pod中的Nacos集群配置文件信息

for i in 0 1; do echo nacos-$i; kubectl exec nacos-$i cat conf/cluster.conf; done

StatefulSet控制器根据其序数索引为每个Pod提供唯一的主机名。主机名采用 - 的形式。因为nacos StatefulSet的副本字段设置为2，所以当前集群文件中只有两个Nacos节点地址

使用kubectl scale 对Nacos动态扩容

kubectl scale sts nacos --replicas=3

在扩容后，使用 kubectl exec 获取在pod中的Nacos集群配置文件信息

for i in 0 1 2; do echo nacos-$i; kubectl exec nacos-$i cat conf/cluster.conf; done

使用 kubectl exec 执行Nacos API 在每台节点上获取当前Leader是否一致

for i in 0 1 2; do echo nacos-$i; kubectl exec nacos-$i curl -X GET
"http://localhost:8848/nacos/v1/ns/raft/state"; done

到这里你可以发现新节点已经正常加入Nacos集群当中

1.5.2.5 持久化¶

必须要使用持久卷，否则会出现数据丢失的情况

项目目录

目录	描述
plugin	帮助Nacos集群进行动态扩容的插件Docker镜像源码
deploy	K8s 部署文件

配置属性

nacos-pvc-nfs.yaml or nacos-start.yaml

名称	必要	描述
mysql.host	Y	自建数据库地址,使用外部数据库时必须指定
mysql.db.name	Y	数据库名称
mysql.port	N	数据库端口
mysql.user	Y	数据库用户名(请不要含有符号, )
mysql.password	Y	数据库密码(请不要含有符号, )
SPRING_DATASOURCEPLATFORM	Y	数据库类型,默认为embedded嵌入式数据库,参数只支持mysql或embedded
NACOS_REPLICAS	N	确定执行Nacos启动节点数量,如果不适用动态扩容插件,就必须配置这个属性,否则使用扩容插件后不会生效
NACOS_SERVER_PORT	N	Nacos端口为peer_finder插件提供端口
NACOSAPPLICATION_PORT	N	Nacos端口
PREFER_HOST_MODE	Y	启动Nacos集群按域名解析

nfs deployment.yaml

名称	必要	描述
NFS_SERVER	Y	NFS 服务端地址
NFS_PATH	Y	NFS 共享目录
server	Y	NFS 服务端地址
path	Y	NFS 共享目录

mysql

名称	必要	描述
MYSQL_ROOT_PASSWORD	N	ROOT密码
MYSQL_database	Y	数据库名称
MYSQL_USER	Y	数据库用户名
MYSQL_PASSWORD	Y	数据库密码
MYSQL_REPLICATION_USER	Y	数据库复制用户
MYSQL_REPLICATION_PASSWORD	Y	数据库复制用户密码
Nfs:server	N	NFS服务端地址，如果使用本地部署不需要配置
Nfs:path	N	NFS共享目录，如果使用本地部署不需要配置

1.6 Nacos 基于 Kubernetes 的nacos-operator方式部署¶

https://github.com/nacos-group/nacos-k8s/blob/master/operator/README-CN.md

nacos-operator项目，快速在K8s上面部署构建nacos。

1.6.1 与nacos-k8s的项目区别¶

优点

通过operator快速构建nacos集群，指定简单的cr.yaml文件，既可以实现各种类型的nacos集群(数据库选型、standalone/cluster模式等)
增加一定的运维能力，在status中增加对nacos集群状态的检查、自动化运维等(后续扩展更多功能)

1.6.2 快速开始¶

直接使用helm方式安装operator

#直接使用helm方式安装operator
helm install nacos-operator ./chart/nacos-operator

# 如果没有helm, 使用kubectl进行安装, 默认安装在default下面
kubectl apply -f chart/nacos-operator/nacos-operator-all.yaml

1.6.3 启动单实例，standalone模式¶

查看crd文件

cat config/samples/nacos.yaml
apiVersion: nacos.io/v1alpha1
kind: Nacos
metadata:
 name: nacos
spec:
 type: standalone
 image: nacos/nacos-server:1.4.1
 replicas: 1

# 安装demo standalone模式
kubectl apply -f config/samples/nacos.yaml

查看nacos实例

kubectl get nacos
NAME   REPLICAS   READY     TYPE         DBTYPE   VERSION   CREATETIME
nacos   1         Running   standalone            1.4.1     2021-03-14T09:21:49Z
kubectl get pod  -o wide
NAME                 READY   STATUS   RESTARTS   AGE   IP               NODE       NOMINATED NODE
READINESS GATES
nacos-0   1/1     Running   0         84s    10.168.247.38   slave-100   <none>           <none>
kubectl get nacos nacos -o yaml
...
status
 conditions:
  - instance: 10.168.247.38
   nodeName: slave-100
   podName: nacos-0
   status: "true"
   type: leader
 phase: Running
 version: 1.4.1

清除

make demo clear=true

1.6.4 启动集群模式¶

cat config/samples/nacos_cluster.yaml
apiVersion: nacos.io/v1alpha1
kind: Nacos
metadata:
 name: nacos
spec:
 type: cluster
 image: nacos/nacos-server:1.4.1
 replicas: 3

# 创建nacos集群
kubectl apply -f config/samples/nacos_cluster.yaml

# 查看Pod状态
kubectl get po -o wide
NAME          READY   STATUS    RESTARTS   AGE     IP               NODE         NOMINATED NODE   READINESS GATES
nacos-0       1/1     Running   0          111s    10.168.247.39    slave-100    <none>           <none>
nacos-1       1/1     Running   0          109s    10.168.152.186   master-212   <none>           <none>
nacos-2       1/1     Running   0          108s    10.168.207.209   slave-214    <none>           <none>

# 查看Nacos集群资源
kubectl get nacos
NAME    REPLICAS   READY     TYPE      DBTYPE   VERSION   CREATETIME
nacos   3          Running   cluster            1.4.1     2021-03-14T09:33:09Z

# 实时查看Nacos集群详情（Leader/Follower状态）
kubectl get nacos nacos -o yaml -w
...
status:
  conditions:
  - instance: 10.168.247.39
    nodeName: slave-100
    podName: nacos-0
    status: "true"
    type: leader
  - instance: 10.168.152.186
    nodeName: master-212
    podName: nacos-1
    status: "true"
    type: Followers
  - instance: 10.168.207.209
    nodeName: slave-214
    podName: nacos-2
    status: "true"
    type: Followers
  event:
  - code: -1
    firstAppearTime: "2021-03-05T08:35:03Z"
    lastTransitionTime: "2021-03-05T08:35:06Z"
    message: The number of ready pods is too small[]
    status: false
  - code: 200
    firstAppearTime: "2021-03-05T08:36:09Z"
    lastTransitionTime: "2021-03-05T08:36:48Z"
    status: true
  phase: Running
  version: 1.4.1

清除

make demo clear=true

1.6.5 设置模式¶

目前支持standalone和cluster模式

通过配置spec.type 为 standalone/cluster

1.6.6 数据库配置¶

embedded数据库

# nacos-standalone.yaml
apiVersion: nacos.io/v1alpha1
kind: Nacos
metadata:
  name: nacos
spec:
  type: standalone
  image: nacos/nacos-server:1.4.1
  replicas: 1
  database:
    type: embedded
  # 启用数据卷，防止重启后数据丢失
  volume:
    enabled: true
    requests:
      storage: 1Gi
    storageClass: default

mysql数据库

该模式下需要提供外部mysql连接信息，会自动创建创建nacos数据库，并执行初始化sql

apiVersion: nacos.io/v1alpha1
kind: Nacos
metadata:
 name: nacos
spec:
 type: standalone
 image: nacos/nacos-server:1.4.1
 replicas: 1
 database:
   type: mysql
   mysqlHost: mysql
   mysqlDb: nacos
   mysqlUser: root
   mysqlPort: "3306"
   mysqlPassword: "123456"

1.6.7 自定义配置¶

1、通过环境变量配置兼容nacos-docker项目， https://github.com/nacos-group/nacos-docker

apiVersion: nacos.io/v1alpha1
kind: Nacos
metadata:
 name: nacos
spec:
 type: standalone
 env:
 - key: JVM_XMS
   value: 2g

2、通过properties文件配置

https://github.com/nacos-group/nacos-docker/blob/master/build/bin/docker-startup.sh

export CUSTOM_SEARCH_NAMES="application,custom"
export CUSTOM_SEARCH_LOCATIONS=${BASE_DIR}/init.d/,file:${BASE_DIR}/conf/

支持自定义配置文件，spec.config 会直接映射成custom.properties文件

apiVersion: nacos.io/v1alpha1
kind: Nacos
metadata:
 name: nacos
spec:
...
 config:|
   management.endpoints.web.exposure.include=*

一、Nacos 部署¶

1.1 Nacos 部署说明¶

1.2 Nacos 单机部署¶

1.2.1 预备环境准备¶

1.2.2 下载源码或者二进制安装包¶

1.2.2.1 从 Github 上下载源码编译安装方式¶

1.2.2.2 下载编译后二进制压缩包方式¶

1.2.3 启动和关闭服务器¶

1.2.3.1 启动服务¶

1.2.3.1.1 Nacos 2.X 之前版本启动服务¶

1.2.3.1.2 Nacos 3.X 之后版本启动服务¶

1.2.3.2 关闭服务¶

1.2.3.3 准备Sevice文件¶

1.2.4 服务注册&发现和配置管理¶

1.2.5 Web 访问¶

1.2.6 单机模式支持 MySQL¶

1.2.7 开启鉴权¶

1.2.8 Nacos 单机部署脚本¶

1.3 Nacos 集群部署¶

1.3.1 集群部署说明¶

1.3.2 部署案例¶

1.3.2.1 预备环境准备¶

1.3.2.2 下载源码或者安装包¶

1.3.2.3 确定数据源¶

1.3.2.4 配置集群配置文件¶

1.3.2.5 修改 Nacos 配置文件 application.properties¶

1.3.2.6 启动和关闭服务¶

1.3.2.7 服务注册&发现和配置管理¶

1.3.2.8 配置 haproxy 和 keepalived 实现负载均衡和高可用¶

1.3.2.8.1 配置 haproxy 实现负载均衡¶

1.3.2.8.2 配置keepalived实现高可用¶

1.3.2.9 访问集群创建配置¶

1.3.2.10 Web 页面访问¶

1.4 Nacos 基于 Docker 部署¶

1.4.1 Docker 部署启动¶

1.4.2 docker compose 部署启动¶

1.4.3 服务访问¶

1.5 Nacos 基于 Kubernetes 的YAML方式部署¶

1.5.1 基本功能实现¶

1.5.2 高级功能实现¶

1.5.2.1 部署 NFS¶

1.5.2.2 部署数据库¶

1.5.2.3 部署Nacos¶

1.5.2.4 扩容测试¶

1.5.2.5 持久化¶

1.6 Nacos 基于 Kubernetes 的nacos-operator方式部署¶

1.6.1 与nacos-k8s的项目区别¶

1.6.2 快速开始¶

1.6.3 启动单实例，standalone模式¶

1.6.4 启动集群模式¶

1.6.5 设置模式¶

1.6.6 数据库配置¶

1.6.7 自定义配置¶

评论区
