一、应用管理-Helm¶
1.1 添加Chart仓库¶

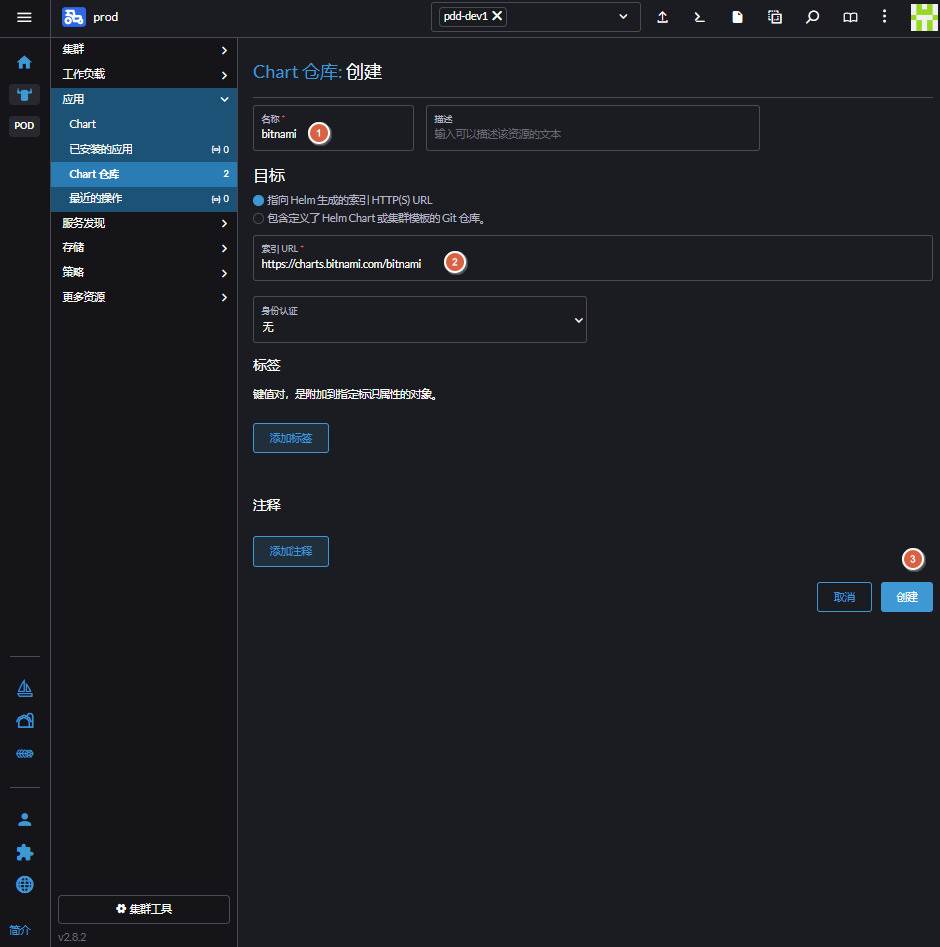

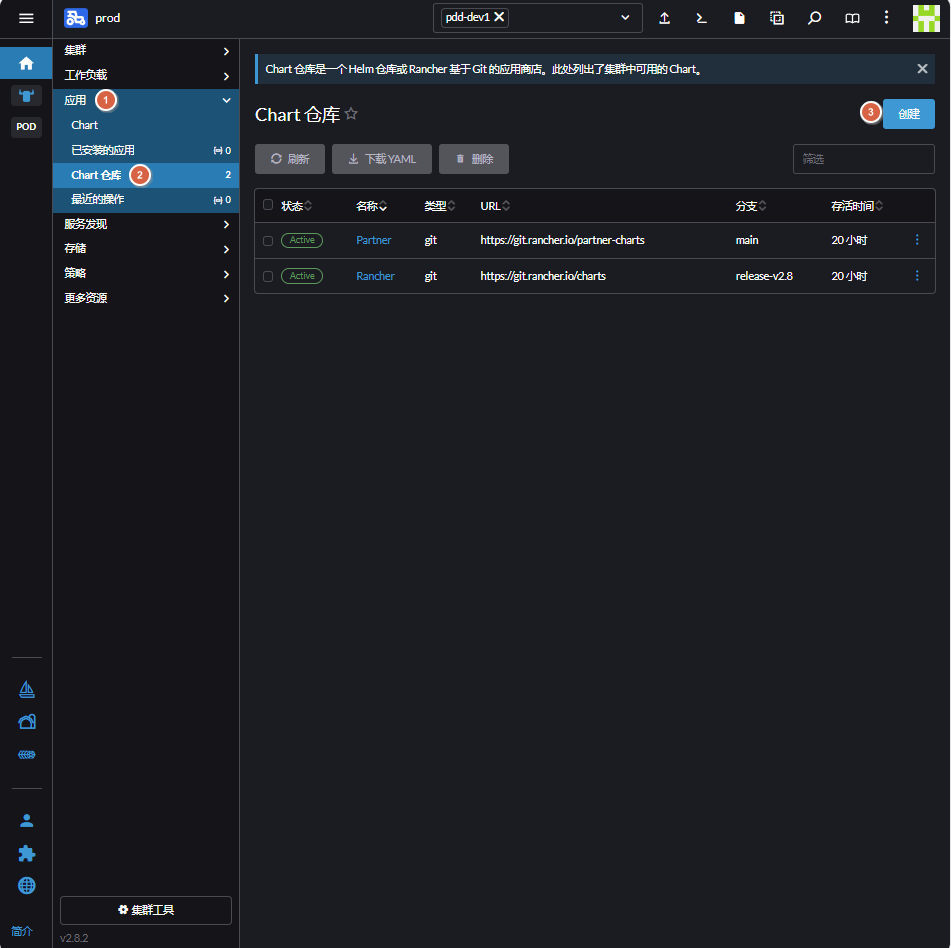

1、添加名为bitnami的chart仓库，链接为https://charts.bitnami.com/bitnami

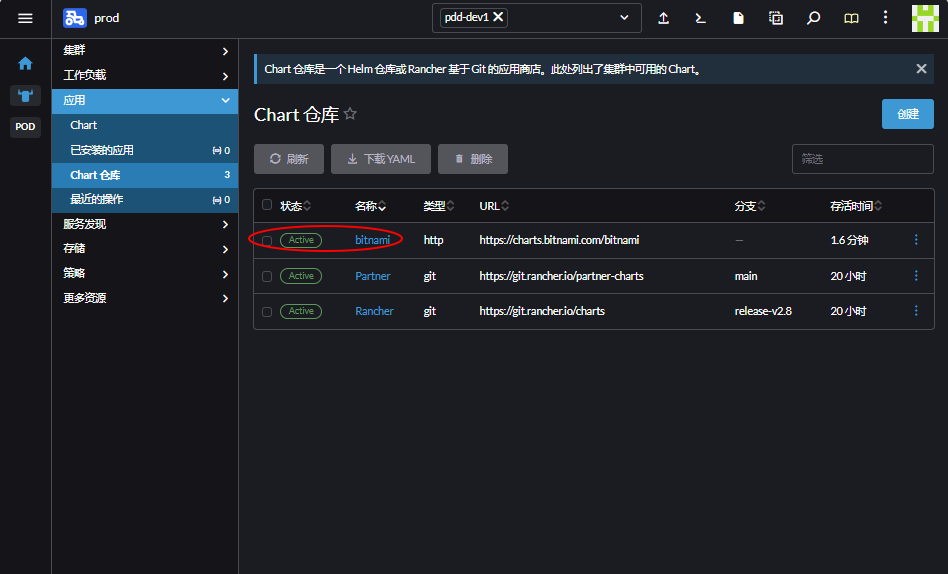

2、查看状态，观察到已经变为Active
二、使用Helm安装Redis¶

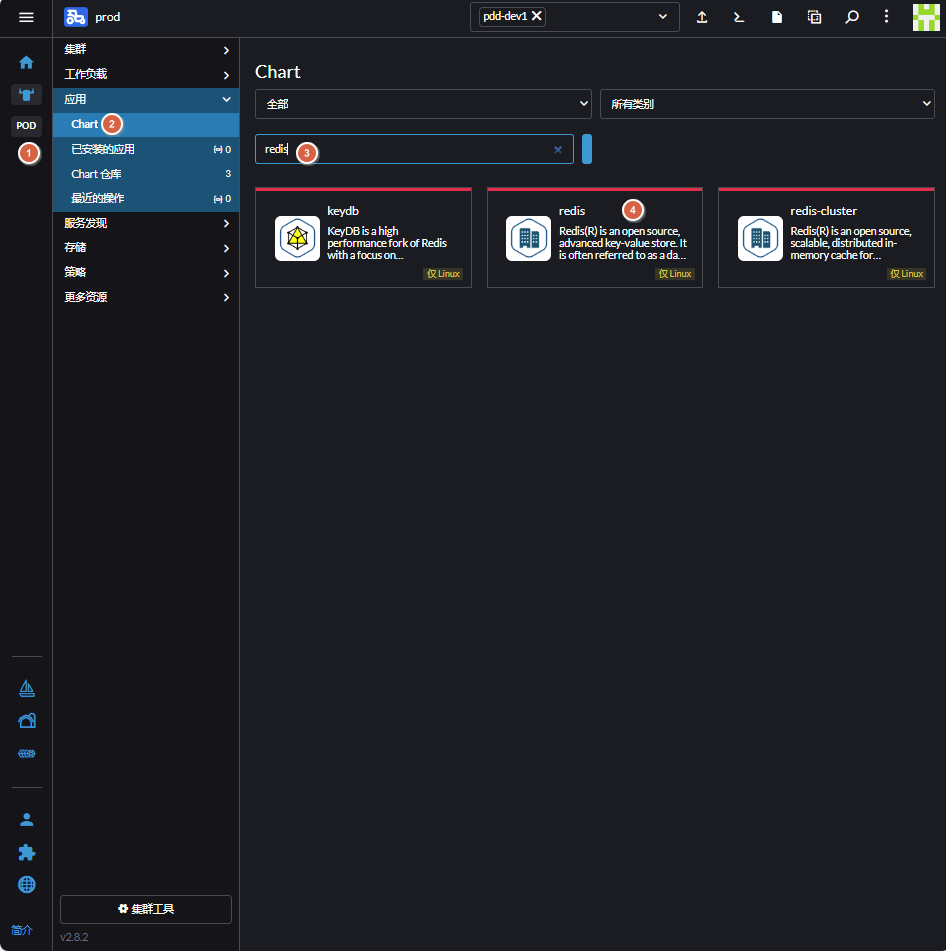

1、依次点击【应用】-【Chart】，搜索redis

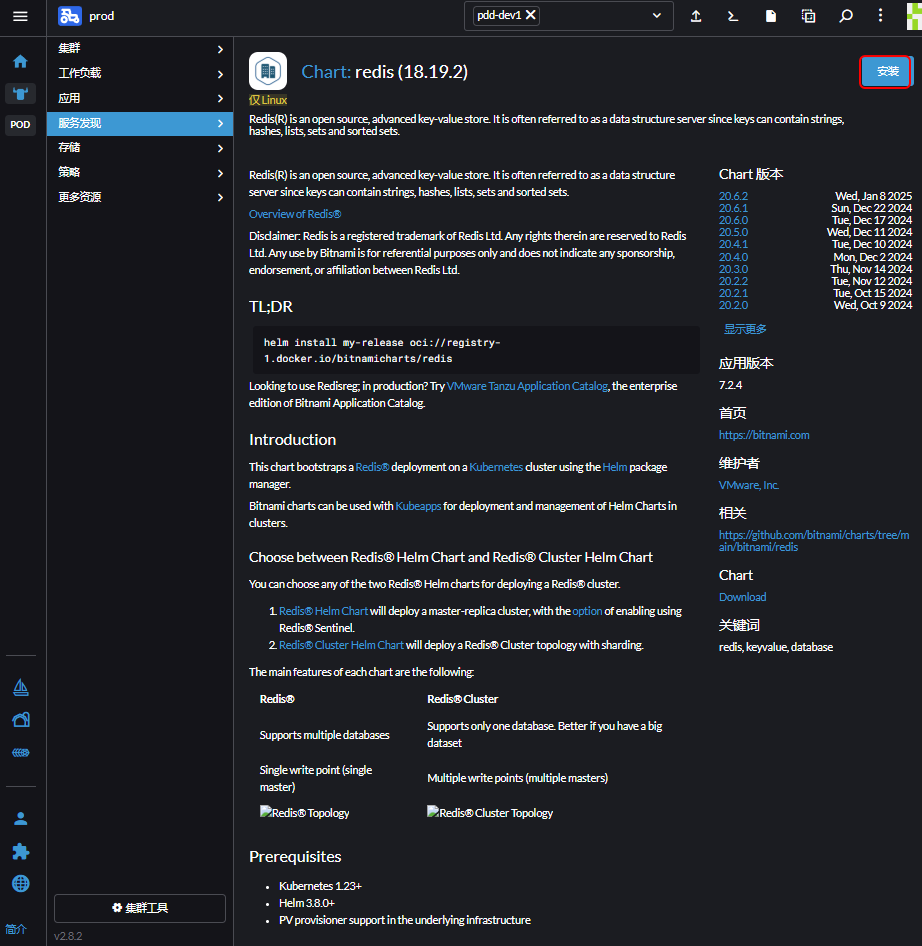

2、这里选择版本为18.19.2后，点击【安装】

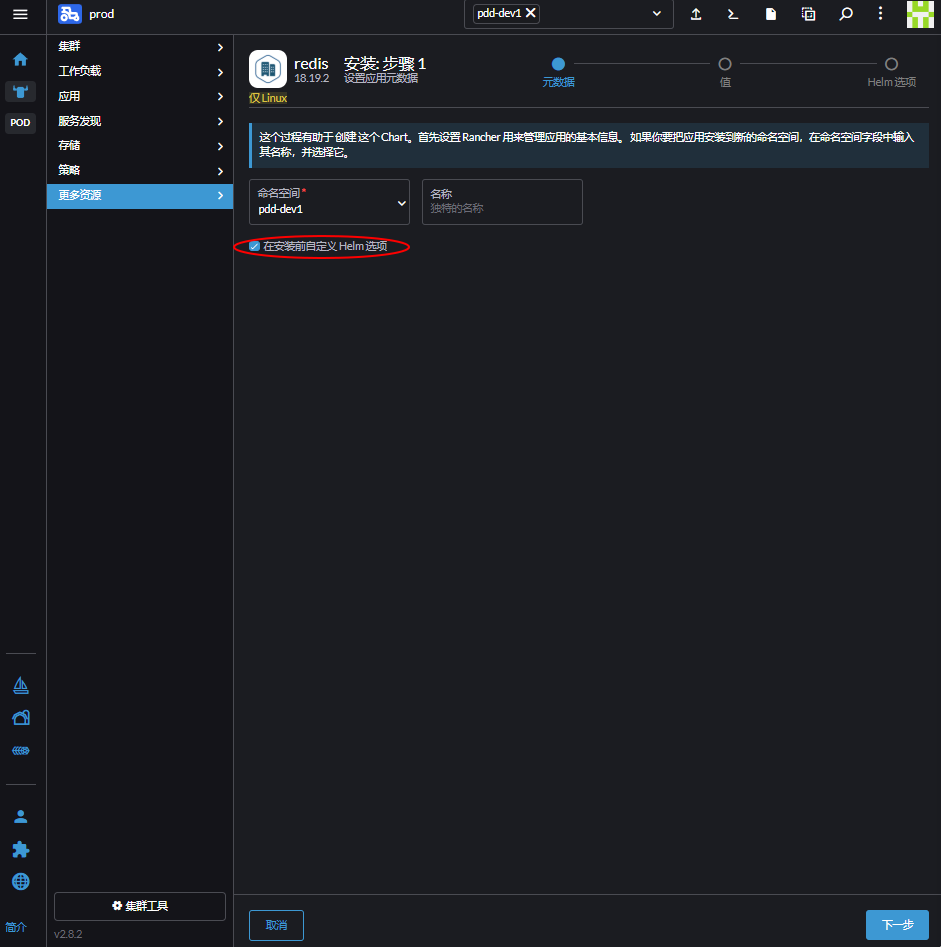

3、勾选【在安装前自定义Helm选项】后，点击【下一步】
4、因为是演示，需要将某些配置设置为false。设置完成后点击【下一步】
...
...
auth:
enabled: false
existingSecret: ''
existingSecretPasswordKey: ''
password: ''
sentinel: false
...
...
persistence:
accessModes:
- ReadWriteOnce
annotations: {}
dataSource: {}
enabled: false
...
...
最终配置如下：
architecture: replication
auth:
enabled: false
existingSecret: ''
existingSecretPasswordKey: ''
password: ''
sentinel: false
usePasswordFileFromSecret: false
usePasswordFiles: false
clusterDomain: cluster.local
commonAnnotations: {}
commonConfiguration: |-
# Enable AOF https://redis.io/topics/persistence#append-only-file
appendonly yes
# Disable RDB persistence, AOF persistence already enabled.
save ""
commonLabels: {}
diagnosticMode:
args:
- infinity
command:
- sleep
enabled: false
existingConfigmap: ''
extraDeploy: []
fullnameOverride: ''
global:
compatibility:
openshift:
adaptSecurityContext: disabled
imagePullSecrets: []
imageRegistry: ''
redis:
password: ''
storageClass: ''
image:
debug: true
digest: ''
pullPolicy: IfNotPresent
pullSecrets: []
registry: registry.cn-hangzhou.aliyuncs.com
repository: abroad_images/redis
tag: 7.2.4-debian-12-r9
kubeVersion: ''
kubectl:
command:
- /opt/bitnami/scripts/kubectl-scripts/update-master-label.sh
image:
digest: ''
pullPolicy: IfNotPresent
pullSecrets: []
registry: docker.io
repository: bitnami/kubectl
tag: 1.29.2-debian-12-r3
resources:
limits: {}
requests: {}
master:
affinity: {}
args: []
automountServiceAccountToken: false
command: []
configuration: ''
containerPorts:
redis: 6379
containerSecurityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
enabled: true
readOnlyRootFilesystem: false
runAsGroup: 0
runAsNonRoot: true
runAsUser: 1001
seLinuxOptions: null
seccompProfile:
type: RuntimeDefault
count: 1
customLivenessProbe: {}
customReadinessProbe: {}
customStartupProbe: {}
disableCommands:
- FLUSHDB
- FLUSHALL
dnsConfig: {}
dnsPolicy: ''
enableServiceLinks: true
extraEnvVars: []
extraEnvVarsCM: ''
extraEnvVarsSecret: ''
extraFlags: []
extraVolumeMounts: []
extraVolumes: []
hostAliases: []
initContainers: []
kind: StatefulSet
lifecycleHooks: {}
livenessProbe:
enabled: true
failureThreshold: 5
initialDelaySeconds: 20
periodSeconds: 5
successThreshold: 1
timeoutSeconds: 5
minReadySeconds: 0
nodeAffinityPreset:
key: ''
type: ''
values: []
nodeSelector: {}
persistence:
accessModes:
- ReadWriteOnce
annotations: {}
dataSource: {}
enabled: false
existingClaim: ''
labels: {}
medium: ''
path: /data
selector: {}
size: 8Gi
sizeLimit: ''
storageClass: ''
subPath: ''
subPathExpr: ''
persistentVolumeClaimRetentionPolicy:
enabled: false
whenDeleted: Retain
whenScaled: Retain
podAffinityPreset: ''
podAnnotations: {}
podAntiAffinityPreset: soft
podLabels: {}
podSecurityContext:
enabled: true
fsGroup: 1001
fsGroupChangePolicy: Always
supplementalGroups: []
sysctls: []
preExecCmds: []
priorityClassName: ''
readinessProbe:
enabled: true
failureThreshold: 5
initialDelaySeconds: 20
periodSeconds: 5
successThreshold: 1
timeoutSeconds: 1
resources: {}
resourcesPreset: none
schedulerName: ''
service:
annotations: {}
clusterIP: ''
externalIPs: []
externalTrafficPolicy: Cluster
extraPorts: []
internalTrafficPolicy: Cluster
loadBalancerClass: ''
loadBalancerIP: ''
loadBalancerSourceRanges: []
nodePorts:
redis: ''
ports:
redis: 6379
sessionAffinity: None
sessionAffinityConfig: {}
type: ClusterIP
serviceAccount:
annotations: {}
automountServiceAccountToken: false
create: true
name: ''
shareProcessNamespace: false
sidecars: []
startupProbe:
enabled: false
failureThreshold: 5
initialDelaySeconds: 20
periodSeconds: 5
successThreshold: 1
timeoutSeconds: 5
terminationGracePeriodSeconds: 30
tolerations: []
topologySpreadConstraints: []
updateStrategy:
type: RollingUpdate
metrics:
command: []
containerPorts:
http: 9121
containerSecurityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
enabled: true
readOnlyRootFilesystem: false
runAsGroup: 0
runAsNonRoot: true
runAsUser: 1001
seLinuxOptions: null
seccompProfile:
type: RuntimeDefault
customLivenessProbe: {}
customReadinessProbe: {}
customStartupProbe: {}
enabled: false
extraArgs: {}
extraEnvVars: []
extraVolumeMounts: []
extraVolumes: []
image:
digest: ''
pullPolicy: IfNotPresent
pullSecrets: []
registry: docker.io
repository: bitnami/redis-exporter
tag: 1.58.0-debian-12-r4
livenessProbe:
enabled: true
failureThreshold: 5
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 5
podAnnotations:
prometheus.io/port: '9121'
prometheus.io/scrape: 'true'
podLabels: {}
podMonitor:
additionalEndpoints: []
additionalLabels: {}
enabled: false
honorLabels: false
interval: 30s
metricRelabelings: []
namespace: ''
podTargetLabels: []
port: metrics
relabellings: []
sampleLimit: false
scrapeTimeout: ''
targetLimit: false
prometheusRule:
additionalLabels: {}
enabled: false
namespace: ''
rules: []
readinessProbe:
enabled: true
failureThreshold: 3
initialDelaySeconds: 5
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 1
redisTargetHost: localhost
resources: {}
resourcesPreset: none
service:
annotations: {}
clusterIP: ''
enabled: true
externalTrafficPolicy: Cluster
extraPorts: []
loadBalancerClass: ''
loadBalancerIP: ''
loadBalancerSourceRanges: []
ports:
http: 9121
type: ClusterIP
serviceMonitor:
additionalEndpoints: []
additionalLabels: {}
enabled: false
honorLabels: false
interval: 30s
metricRelabelings: []
namespace: ''
podTargetLabels: []
port: http-metrics
relabellings: []
sampleLimit: false
scrapeTimeout: ''
targetLimit: false
startupProbe:
enabled: false
failureThreshold: 5
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 5
nameOverride: ''
nameResolutionThreshold: 5
nameResolutionTimeout: 5
namespaceOverride: ''
networkPolicy:
allowExternal: true
allowExternalEgress: true
enabled: true
extraEgress: []
extraIngress: []
ingressNSMatchLabels: {}
ingressNSPodMatchLabels: {}
metrics:
allowExternal: true
ingressNSMatchLabels: {}
ingressNSPodMatchLabels: {}
pdb:
create: false
maxUnavailable: ''
minAvailable: 1
podSecurityPolicy:
create: false
enabled: false
rbac:
create: false
rules: []
replica:
affinity: {}
args: []
automountServiceAccountToken: false
autoscaling:
enabled: false
maxReplicas: 11
minReplicas: 1
targetCPU: ''
targetMemory: ''
command: []
configuration: ''
containerPorts:
redis: 6379
containerSecurityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
enabled: true
readOnlyRootFilesystem: false
runAsGroup: 0
runAsNonRoot: true
runAsUser: 1001
seLinuxOptions: null
seccompProfile:
type: RuntimeDefault
customLivenessProbe: {}
customReadinessProbe: {}
customStartupProbe: {}
disableCommands:
- FLUSHDB
- FLUSHALL
dnsConfig: {}
dnsPolicy: ''
enableServiceLinks: true
externalMaster:
enabled: false
host: ''
port: 6379
extraEnvVars: []
extraEnvVarsCM: ''
extraEnvVarsSecret: ''
extraFlags: []
extraVolumeMounts: []
extraVolumes: []
hostAliases: []
initContainers: []
kind: StatefulSet
lifecycleHooks: {}
livenessProbe:
enabled: true
failureThreshold: 5
initialDelaySeconds: 20
periodSeconds: 5
successThreshold: 1
timeoutSeconds: 5
minReadySeconds: 0
nodeAffinityPreset:
key: ''
type: ''
values: []
nodeSelector: {}
persistence:
accessModes:
- ReadWriteOnce
annotations: {}
dataSource: {}
enabled: false
existingClaim: ''
labels: {}
medium: ''
path: /data
selector: {}
size: 8Gi
sizeLimit: ''
storageClass: ''
subPath: ''
subPathExpr: ''
persistentVolumeClaimRetentionPolicy:
enabled: false
whenDeleted: Retain
whenScaled: Retain
podAffinityPreset: ''
podAnnotations: {}
podAntiAffinityPreset: soft
podLabels: {}
podManagementPolicy: ''
podSecurityContext:
enabled: true
fsGroup: 1001
fsGroupChangePolicy: Always
supplementalGroups: []
sysctls: []
preExecCmds: []
priorityClassName: ''
readinessProbe:
enabled: true
failureThreshold: 5
initialDelaySeconds: 20
periodSeconds: 5
successThreshold: 1
timeoutSeconds: 1
replicaCount: 3
resources: {}
resourcesPreset: none
schedulerName: ''
service:
annotations: {}
clusterIP: ''
externalTrafficPolicy: Cluster
extraPorts: []
internalTrafficPolicy: Cluster
loadBalancerClass: ''
loadBalancerIP: ''
loadBalancerSourceRanges: []
nodePorts:
redis: ''
ports:
redis: 6379
sessionAffinity: None
sessionAffinityConfig: {}
type: ClusterIP
serviceAccount:
annotations: {}
automountServiceAccountToken: false
create: true
name: ''
shareProcessNamespace: false
sidecars: []
startupProbe:
enabled: true
failureThreshold: 22
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 5
terminationGracePeriodSeconds: 30
tolerations: []
topologySpreadConstraints: []
updateStrategy:
type: RollingUpdate
secretAnnotations: {}
sentinel:
annotations: {}
args: []
automateClusterRecovery: false
command: []
configuration: ''
containerPorts:
sentinel: 26379
containerSecurityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
enabled: true
readOnlyRootFilesystem: false
runAsGroup: 0
runAsNonRoot: true
runAsUser: 1001
seLinuxOptions: null
seccompProfile:
type: RuntimeDefault
customLivenessProbe: {}
customReadinessProbe: {}
customStartupProbe: {}
downAfterMilliseconds: 60000
enableServiceLinks: true
enabled: false
externalMaster:
enabled: false
host: ''
port: 6379
extraEnvVars: []
extraEnvVarsCM: ''
extraEnvVarsSecret: ''
extraVolumeMounts: []
extraVolumes: []
failoverTimeout: 180000
getMasterTimeout: 90
image:
debug: false
digest: ''
pullPolicy: IfNotPresent
pullSecrets: []
registry: docker.io
repository: bitnami/redis-sentinel
tag: 7.2.4-debian-12-r7
lifecycleHooks: {}
livenessProbe:
enabled: true
failureThreshold: 6
initialDelaySeconds: 20
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 5
masterSet: mymaster
parallelSyncs: 1
persistence:
accessModes:
- ReadWriteOnce
annotations: {}
dataSource: {}
enabled: false
labels: {}
medium: ''
selector: {}
size: 100Mi
sizeLimit: ''
storageClass: ''
persistentVolumeClaimRetentionPolicy:
enabled: false
whenDeleted: Retain
whenScaled: Retain
preExecCmds: []
quorum: 2
readinessProbe:
enabled: true
failureThreshold: 6
initialDelaySeconds: 20
periodSeconds: 5
successThreshold: 1
timeoutSeconds: 1
redisShutdownWaitFailover: true
resources: {}
resourcesPreset: none
service:
annotations: {}
clusterIP: ''
createMaster: false
externalTrafficPolicy: Cluster
extraPorts: []
headless:
annotations: {}
loadBalancerClass: ''
loadBalancerIP: ''
loadBalancerSourceRanges: []
nodePorts:
redis: ''
sentinel: ''
ports:
redis: 6379
sentinel: 26379
sessionAffinity: None
sessionAffinityConfig: {}
type: ClusterIP
startupProbe:
enabled: true
failureThreshold: 22
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 5
terminationGracePeriodSeconds: 30
serviceAccount:
annotations: {}
automountServiceAccountToken: false
create: true
name: ''
serviceBindings:
enabled: false
sysctl:
command: []
enabled: false
image:
digest: ''
pullPolicy: IfNotPresent
pullSecrets: []
registry: docker.io
repository: bitnami/os-shell
tag: 12-debian-12-r16
mountHostSys: false
resources: {}
resourcesPreset: none
tls:
authClients: true
autoGenerated: false
certCAFilename: ''
certFilename: ''
certKeyFilename: ''
certificatesSecret: ''
dhParamsFilename: ''
enabled: false
existingSecret: ''
useExternalDNS:
additionalAnnotations: {}
annotationKey: external-dns.alpha.kubernetes.io/
enabled: false
suffix: ''
useHostnames: true
volumePermissions:
containerSecurityContext:
runAsUser: 0
seLinuxOptions: null
enabled: false
image:
digest: ''
pullPolicy: IfNotPresent
pullSecrets: []
registry: docker.io
repository: bitnami/os-shell
tag: 12-debian-12-r16
resources: {}
resourcesPreset: none

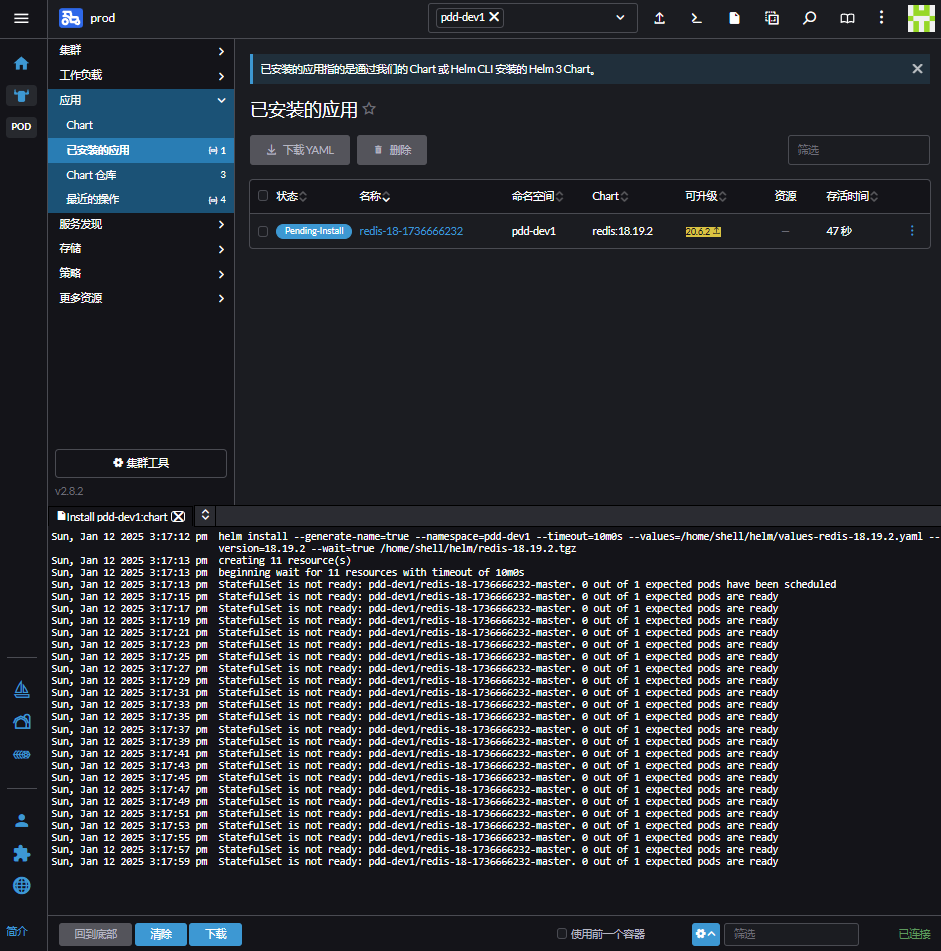

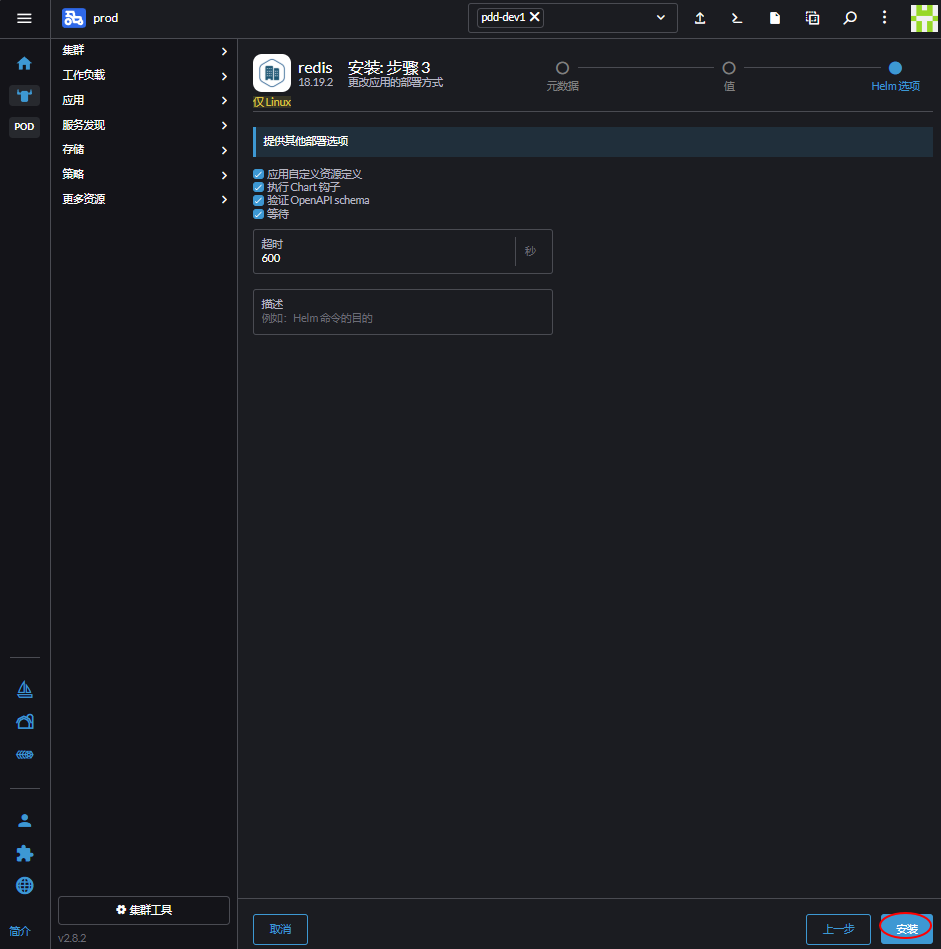

5、点击【安装】，等待启动即可

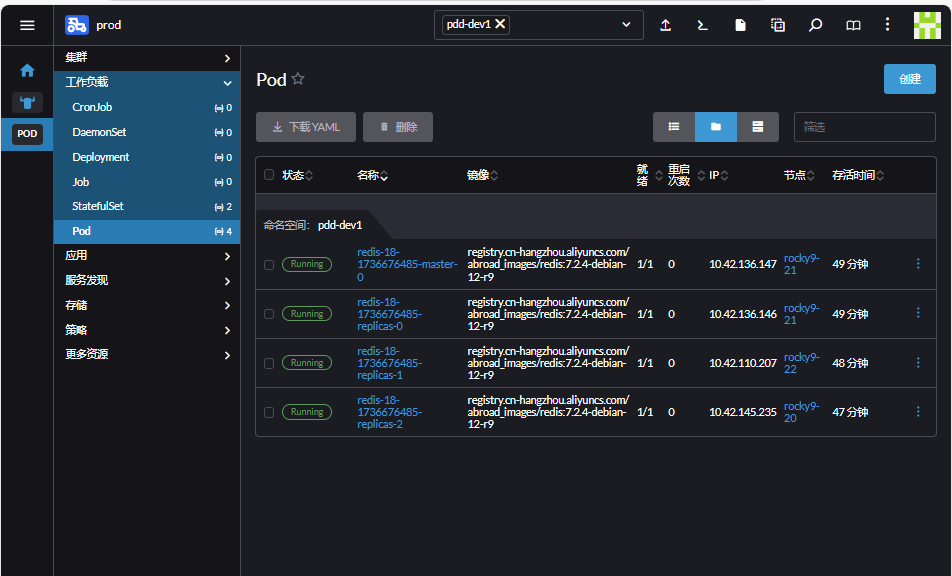

6、点击【工作负载】-【Pod】,观察到pod都已成功建立

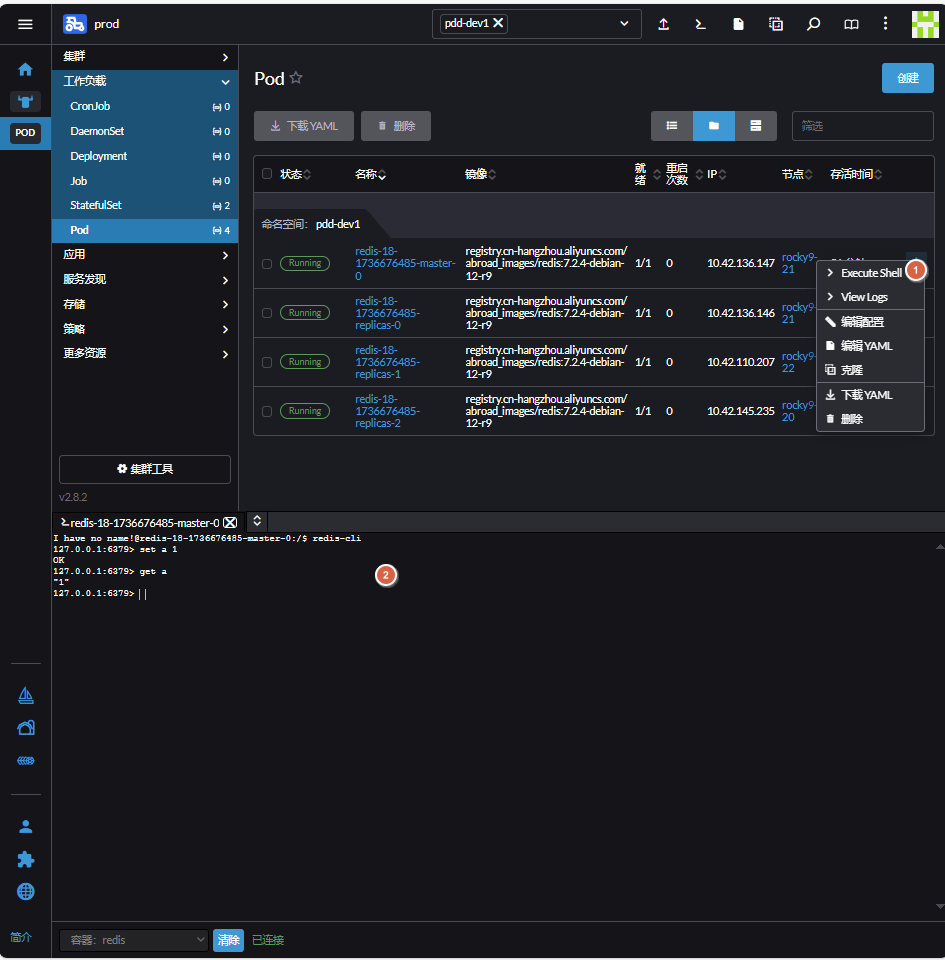

7、打开终端，执行命令进行测试
I have no name!@redis-18-1736676485-master-0:/$ redis-cli
127.0.0.1:6379> set a 1
OK
127.0.0.1:6379> get a
"1"
