一、官方数据¶

官方数据：https://argocd.devops.gold/operator-manual/notifications/

ArgoCD Notifications 是一个强大的通知系统，它持续监控ArgoCD应用程序的状态，并提供了一种灵活的方式，让用户能够及时了解应用程序状态的重要变化。

通过使用灵活的触发器和模板机制，我们可以利用预定义的触发器和模板，无需重新造轮子，即可实现灵活和高效的监控与通知机制。

这里我们就以 ArgoCD Notifications 为例来说明如何使用企业微信来通知 Argo CD 的同步状态通知。

二、ArgoCD Notifications¶

这里我们就以 ArgoCD Notifications 为例来说明如何使用企业微信来通知 Argo CD 的同步状态通知。

ArgoCD Notifications 默认已经随着 Argo CD 安装了：

[root@master01 17]# kubectl get pods -n argocd |grep notifications

argocd-notifications-controller-6c4b6b59d4-5tzqm   1/1     Running   1 (9h ago)    23h

三、企微群里创建一个机器人¶

企业微信管理后台：https://work.weixin.qq.com/wework_admin/frame#contacts

to_party获取位置

agent_id获取位置

api_secret获取位置

corp_id获取位置

访问令牌获取

curl -H "Content-Type: application/json" \

     -d '{"corpid": "<corp-id>", "corpsecret": "<corp-secret>"}' \

     "https://qyapi.weixin.qq.com/cgi-bin/gettoken"

# 回显内容

{"errcode":0,"errmsg":"ok","access_token":"<qywx-access-token>","expires_in":7200}

企业可信IP获取

curl -H "Content-Type: application/json" -d '{

  "toparty": 4,

  "msgtype": "text",

  "agentid": 1000005,

  "text": {

    "content": "告警测试"

  },

  "safe": 0

}' "https://qyapi.weixin.qq.com/cgi-bin/message/send?access_token=<qywx-access-token>"

# 回显内容

{"errcode":60020,"errmsg":"not allow to access from your ip, hint: [1744441094419152176073175], from ip: <trusted-ip>, more info at https://open.work.weixin.qq.com/devtool/query?e=60020"}

最终汇总获取信息：

to_party：4
agent_id：1000005
api_secret：<corp-secret>
corp_id：<corp-id>
企业可信IP：<trusted-ip>
访问令牌：<qywx-access-token>

四、配置基于企微的webhook¶

下载 install.yaml

[root@master01 17]# mkdir notifications && cd notifications/

[root@master01 notifications]# wget https://raw.githubusercontent.com/argoproj-labs/argocd-notifications/stable/manifests/install.yaml

修改 install.yaml 文件中的镜像为国内镜像

[root@master01 notifications]# sed -i s#argoprojlabs/argocd-notifications:v1.2.1#registry.cn-hangzhou.aliyuncs.com/abroad_images/argocd-notifications:v1.2.1#g install.yaml

# 验证

[root@master01 notifications]# grep -ri "image:" install.yaml

        image: registry.cn-hangzhou.aliyuncs.com/abroad_images/argocd-notifications:v1.2.1

修改 install.yaml 文件中的 argocd-notifications-cm 添加相关配置才能支持企业微信机器人。

# 在官网下载的配置文件下新增如下内容

apiVersion: v1

kind: ConfigMap

metadata:

  name: argocd-notifications-cm

data:

  service.webhook.qywx: |

    url: https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key=<qywx-webhook-key>

    headers:

    - name: Content-Type

      value: application/json

  context: |

    argocdUrl: https://argocd.example.com

  template.app-sync-change: |

    webhook:

      qywx:

        method: POST

        body: |

          {

            "msgtype": "markdown",

            "markdown": {

              "content": "

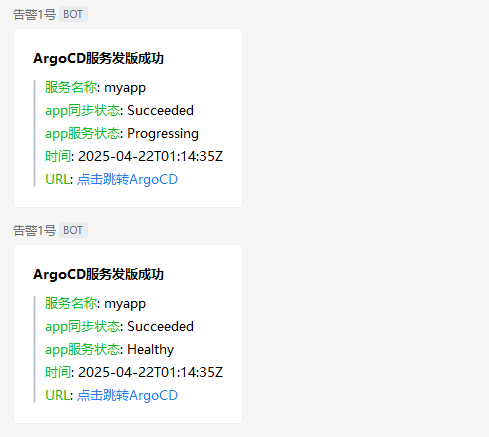

### ArgoCD服务发版成功

> <font color=\"info\">服务名称</font>: {{.app.metadata.name}}

> <font color=\"info\">app同步状态</font>: {{.app.status.operationState.phase}}

> <font color=\"info\">app服务状态</font>: {{.app.status.health.status}}

> <font color=\"info\">时间</font>: {{.app.status.operationState.startedAt}}

> <font color=\"info\">URL</font>: [点击跳转ArgoCD]({{.context.argocdUrl}}/applications/{{.app.metadata.name}}?operation=true)"

            }

          }

  template.app-sync-degraded: |

    webhook:

      qywx:

        method: POST

        body: |

          {

            "msgtype": "markdown",

            "markdown": {

              "content": "

### ArgoCD服务发版失败

> <font color=\"warning\">服务名称</font>: {{.app.metadata.name}}

> <font color=\"warning\">app同步状态</font>: {{.app.status.operationState.phase}}

> <font color=\"warning\">app服务状态</font>: {{.app.status.health.status}}

> <font color=\"warning\">时间</font>: {{.app.status.operationState.startedAt}}

> <font color=\"warning\">URL</font>: [点击跳转ArgoCD]({{.context.argocdUrl}}/applications/{{.app.metadata.name}}?operation=true)"

            }

          }

  trigger.on-deployed: |

    - description: Application is synced and healthy. Triggered once per commit.

      send: [app-sync-change] # template names

      # trigger condition

      when: app.status.operationState.phase in ['Succeeded'] and app.status.health.status == 'Healthy'

  trigger.on-health-degraded: |

    - description: Application has degraded

      send: [app-sync-degraded]

      when: app.status.health.status == 'Degraded'

  trigger.on-sync-failed: |

    - description: Application syncing has failed

      send: [app-sync-degraded] # template names

      when: app.status.operationState.phase in ['Error', 'Failed']

  trigger.on-sync-running: |

    - description: Application is being synced

      send: [app-sync-change] # template names

      when: app.status.operationState.phase in ['Running']

  trigger.on-sync-status-unknown: |

    - description: Application status is 'Unknown'

      send: [app-sync-degraded] # template names

      when: app.status.sync.status == 'Unknown'

  trigger.on-sync-succeeded: |

    - description: Application syncing has succeeded

      send: [app-sync-change] # template names

      when: app.status.operationState.phase in ['Succeeded']

  subscriptions: |

    - recipients: [qywx]

      triggers: [on-deployed, on-sync-failed, on-health-degraded]

# 完整配置文件

[root@master01 notifications]# vim install.yaml

apiVersion: v1

kind: ServiceAccount

metadata:

  name: argocd-notifications-controller

---

apiVersion: rbac.authorization.k8s.io/v1

kind: Role

metadata:

  name: argocd-notifications-controller

rules:

- apiGroups:

  - argoproj.io

  resources:

  - applications

  - appprojects

  verbs:

  - get

  - list

  - watch

  - update

  - patch

- apiGroups:

  - ""

  resources:

  - configmaps

  - secrets

  verbs:

  - list

  - watch

- apiGroups:

  - ""

  resourceNames:

  - argocd-notifications-cm

  resources:

  - configmaps

  verbs:

  - get

- apiGroups:

  - ""

  resourceNames:

  - argocd-notifications-secret

  resources:

  - secrets

  verbs:

  - get

---

apiVersion: rbac.authorization.k8s.io/v1

kind: RoleBinding

metadata:

  name: argocd-notifications-controller

roleRef:

  apiGroup: rbac.authorization.k8s.io

  kind: Role

  name: argocd-notifications-controller

subjects:

- kind: ServiceAccount

  name: argocd-notifications-controller

---

apiVersion: v1

kind: ConfigMap

metadata:

  creationTimestamp: null

  name: argocd-notifications-cm

---

apiVersion: v1

kind: Secret

metadata:

  name: argocd-notifications-secret

type: Opaque

---

apiVersion: v1

kind: Service

metadata:

  labels:

    app.kubernetes.io/name: argocd-notifications-controller-metrics

  name: argocd-notifications-controller-metrics

spec:

  ports:

  - name: metrics

    port: 9001

    protocol: TCP

    targetPort: 9001

  selector:

    app.kubernetes.io/name: argocd-notifications-controller

---

apiVersion: apps/v1

kind: Deployment

metadata:

  name: argocd-notifications-controller

spec:

  selector:

    matchLabels:

      app.kubernetes.io/name: argocd-notifications-controller

  strategy:

    type: Recreate

  template:

    metadata:

      labels:

        app.kubernetes.io/name: argocd-notifications-controller

    spec:

      containers:

      - command:

        - /app/argocd-notifications-backend

        - controller

        image: registry.cn-hangzhou.aliyuncs.com/abroad_images/argocd-notifications:v1.2.1

        imagePullPolicy: Always

        livenessProbe:

          tcpSocket:

            port: 9001

        name: argocd-notifications-controller

        volumeMounts:

        - mountPath: /app/config/tls

          name: tls-certs

        - mountPath: /app/config/reposerver/tls

          name: argocd-repo-server-tls

        workingDir: /app

      securityContext:

        runAsNonRoot: true

      serviceAccountName: argocd-notifications-controller

      volumes:

      - configMap:

          name: argocd-tls-certs-cm

        name: tls-certs

      - name: argocd-repo-server-tls

        secret:

          items:

          - key: tls.crt

            path: tls.crt

          - key: tls.key

            path: tls.key

          - key: ca.crt

            path: ca.crt

          optional: true

          secretName: argocd-repo-server-tls

---

apiVersion: v1

kind: ConfigMap

metadata:

  name: argocd-notifications-cm

data:

  service.webhook.qywx: |

    url: https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key=<qywx-webhook-key>

    headers:

      - name: Content-Type

        value: application/json

  subscriptions: |

    - recipients:

      - qywx

      triggers: [on-sync-running, on-deployed, on-sync-failed, on-sync-succeeded]

  context: |

    argocdUrl: https://argocd.example.com

  template.app-sync-change: |

    webhook:

      qywx:

        method: POST

        body: |

          {

              "msgtype": "markdown",

              "markdown": {

                  "content": "

                  ### ArgoCD服务发版成功

                  > <font color=\"info\">服务名称</font>: {{.app.metadata.name}}

                  > <font color=\"info\">app同步状态</font>: {{.app.status.operationState.phase}}

                  > <font color=\"info\">app服务状态</font>: {{.app.status.health.status}}

                  > <font color=\"info\">时间</font>: {{.app.status.operationState.startedAt}}

                  > <font color=\"info\">URL</font>: [点击跳转ArgoCD]({{.context.argocdUrl}}/applications/{{.app.metadata.name}}?operation=true)"

              }

          }

  template.app-sync-degraded: |

    webhook:

      qywx:

        method: POST

        body: |

          {

              "msgtype": "markdown",

              "markdown": {

                  "content": "

                  ### ArgoCD服务发版失败

                  > <font color=\"warning\">服务名称</font>: {{.app.metadata.name}}

                  > <font color=\"warning\">app同步状态</font>: {{.app.status.operationState.phase}}

                  > <font color=\"warning\">app服务状态</font>: {{.app.status.health.status}}

                  > <font color=\"warning\">时间</font>: {{.app.status.operationState.startedAt}}

                  > <font color=\"warning\">URL</font>: [点击跳转ArgoCD]({{.context.argocdUrl}}/applications/{{.app.metadata.name}}?operation=true)"

              }

          }

  trigger.on-deployed: |

    - description: Application is synced and healthy. Triggered once per commit.

      send: [app-sync-change]  # template names

      # trigger condition

      when: app.status.operationState.phase in ['Succeeded'] and app.status.health.status == 'Healthy'

  trigger.on-health-degraded: |

    - description: Application has degraded

      send: [app-sync-degraded]

      when: app.status.health.status == 'Degraded'

  trigger.on-sync-failed: |

    - description: Application syncing has failed

      send: [app-sync-degraded]  # template names

      when: app.status.operationState.phase in ['Error', 'Failed']

  trigger.on-sync-running: |

    - description: Application is being synced

      send: [app-sync-change]  # template names

      when: app.status.operationState.phase in ['Running']

  trigger.on-sync-status-unknown: |

    - description: Application status is 'Unknown'

      send: [app-sync-degraded]  # template names

      when: app.status.sync.status == 'Unknown'

  trigger.on-sync-succeeded: |

    - description: Application syncing has succeeded

      send: [app-sync-change]  # template names

      when: app.status.operationState.phase in ['Succeeded']

配置完成，更新整个资源清单文件：

[root@master01 notifications]# kaf install.yaml -nargocd

查看验证 argocd-notifications ：

[root@master01 notifications]# kubectl get po -nargocd |grep notification

argocd-notifications-controller-7f87584d78-hlrmz   1/1     Running   0              2m58s

4.1 配置解析¶

4.1.1 Webhook配置¶

这部分配置指定了一个企业微信（QYWX，即企业微信的缩写）的 Webhook URL，用于接收来自 Argo CD 的通知。

service.webhook.qywx: |

  url: https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key=<qywx-webhook-key>

  headers:

    - name: Content-Type

      value: application/json

url : 企业微信的 Webhook URL。
headers : 设置请求头，这里指定了内容类型为 application/json 。

4.1.2 上下文信息¶

这部分配置定义了一个上下文变量，用于在通知模板中引用 Argo CD 的URL。

context: |

  argocdUrl: https://argocd.example.com

argocdUrl : Argo CD 的访问 URL。

4.1.3 通知模板¶

这里有两个模板，分别用于处理同步成功和同步失败的情况。

template.app-sync-change: |

  webhook:

    qywx:

      method: POST

      body: |

        ...

template.app-sync-degraded: |

  webhook:

    qywx:

      method: POST

      body: |

        ...

webhook : 指定使用 Webhook 方式发送通知。
method : HTTP 请求的方法，这里是 POST 。
body : 发送的 JSON 格式的消息体，包含消息的内容。

4.1.4 触发器¶

这部分定义了不同状态下的触发条件和相应的通知模板。

trigger.on-deployed: |

  - send: [app-sync-change]

    when: app.status.operationState.phase in ['Succeeded'] and app.status.health.status == 'Healthy'

trigger.on-health-degraded: |

  - send: [app-sync-degraded]

    when: app.status.health.status == 'Degraded'

trigger.on-sync-failed: |

  - send: [app-sync-degraded]

    when: app.status.operationState.phase in ['Error', 'Failed']

trigger.on-sync-running: |

  - send: [app-sync-change]

    when: app.status.operationState.phase in ['Running']

trigger.on-sync-status-unknown: |

  - send: [app-sync-degraded]

    when: app.status.sync.status == 'Unknown'

trigger.on-sync-succeeded: |

  - send: [app-sync-change]

    when: app.status.operationState.phase in ['Succeeded']

send : 当触发条件满足时发送的通知模板名称。
when : 触发条件，描述了应用状态满足何种条件时触发通知。

4.1.5 订阅¶

最后，订阅部分指定了哪些触发器会发送通知到哪些接收者。

subscriptions: |

  - recipients: [qywx]

    triggers: [on-deployed, on-sync-failed, on-health-degraded]

recipients : 接收通知的服务列表，这里只有一个企业微信的 Webhook。
triggers : 当这些触发器被激活时，将会发送通知给指定的接收者。

4.2 测试验证¶

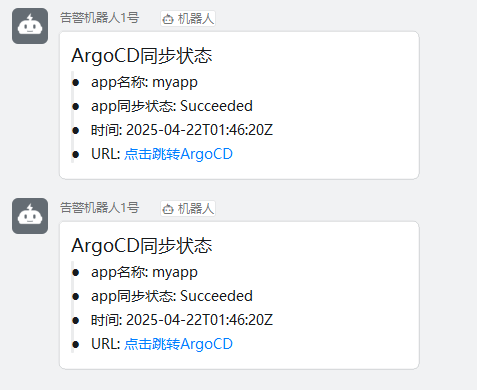

安装完成后重新去修改下 APP 服务的副本数量， Sync APP 服务，正常就可以在企业微信中收到如下所示的消息通知了

1）代码更新

新增 replicas：2 --> 4

[root@master01 ~]# cd /root/17/myapp/dev/

[root@master01 dev]# vim deployment.yaml

apiVersion: apps/v1

kind: Deployment

metadata:

  name: myapp

  namespace: demo

spec:

  selector:

    matchLabels:

      app: myapp

  replicas: 4

  template:

    metadata:

      labels:

        app: myapp

    spec:

      containers:

      - name: myapp

        image: registry.cn-hangzhou.aliyuncs.com/abroad_images/nginx:1.15.12

        ports:

        - containerPort: 80

2）代码提交

[root@master01 ~]# cd /root/17/myapp/

[root@master01 myapp]# git commit -am "update myapp"

[root@master01 myapp]# git push

...

Username for 'http://gitlab.example.com': root

Password for 'http://root@gitlab.example.com': <gitlab-password>

...

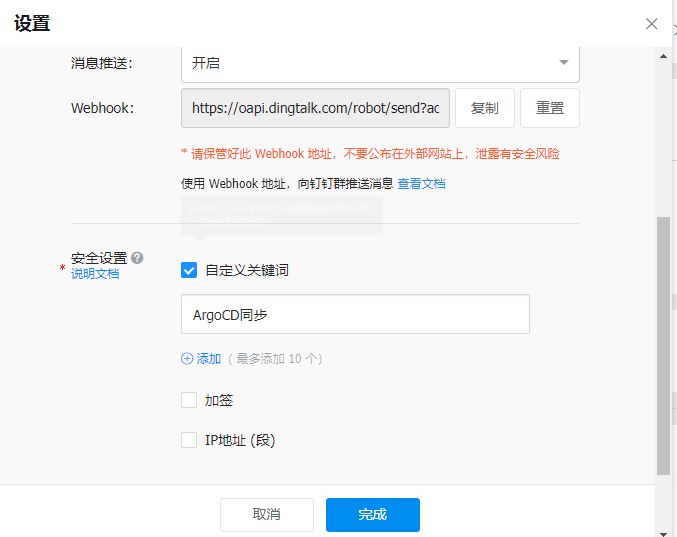

五、基于钉钉的 webhook¶

5.1 配置解析¶
